GeForce RTX™ 5070 Ti EAGLE OC SFF 16G

Highlights

Complying with NVIDIA's small form factor specification, our graphics cards pack powerful performance into a small form factor, achieving the perfect balance of size and power.

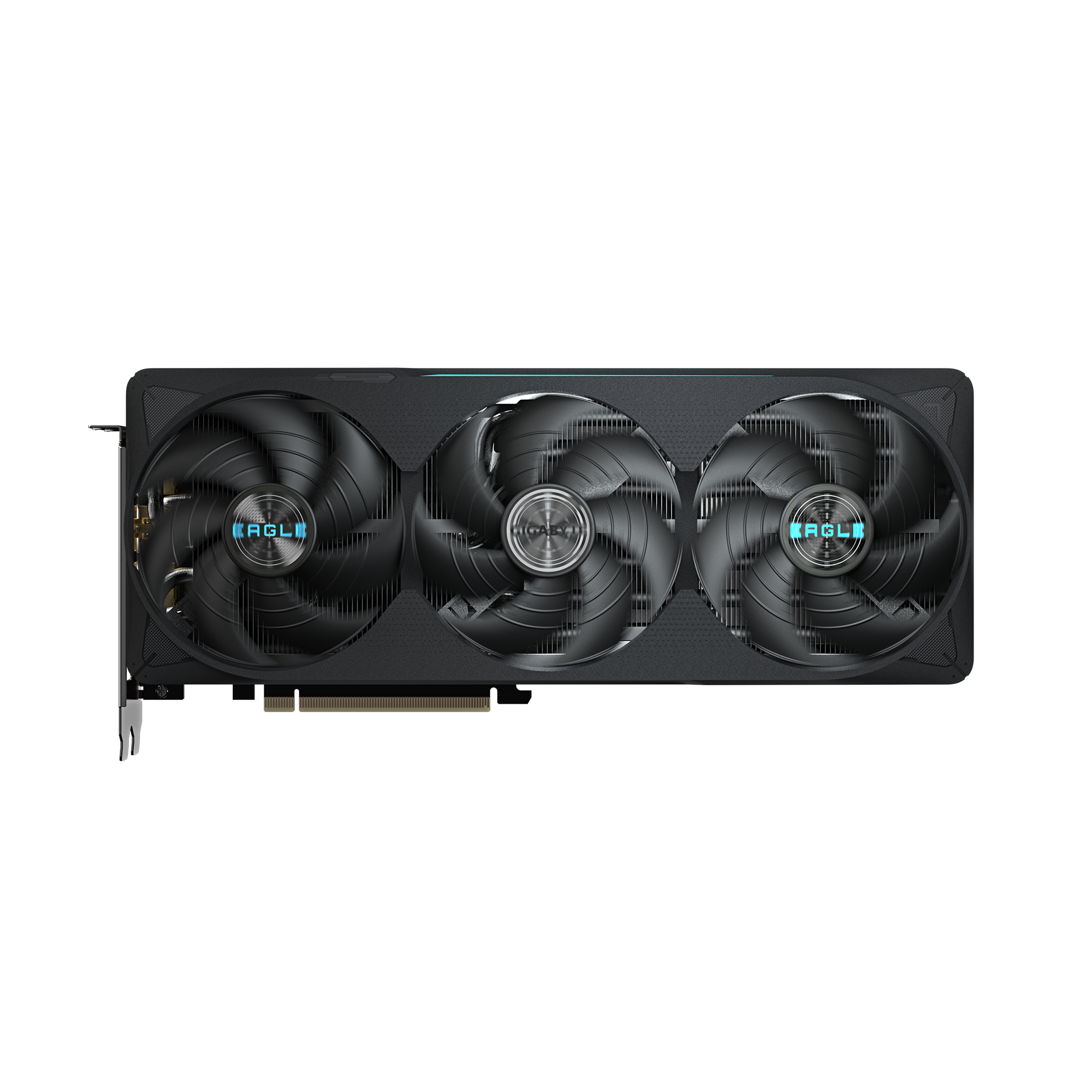

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large copper plate, 3D active fans, and screen cooling.

The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.

The large copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

The design inspiration for the EAGLE series stems from the fusion of aerospace battleships and sci-fi elements. Its unique curved contours outline a streamlined appearance, complemented by segmented lines resembling disassembled deck components, evoking the intricate structure of a spaceship. This design infuses the overall aesthetic with a rich cosmic technology vibe, showcasing the futuristic aesthetics and craftsmanship in every detail.

The frontal design boldly integrates aerospace and sci-fi elements, clearly showcasing the distinctive EALGE style, while maintaining a cohesive aesthetic with the motherboard product line. This ensures a unified design language and reinforces product family identity.

With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

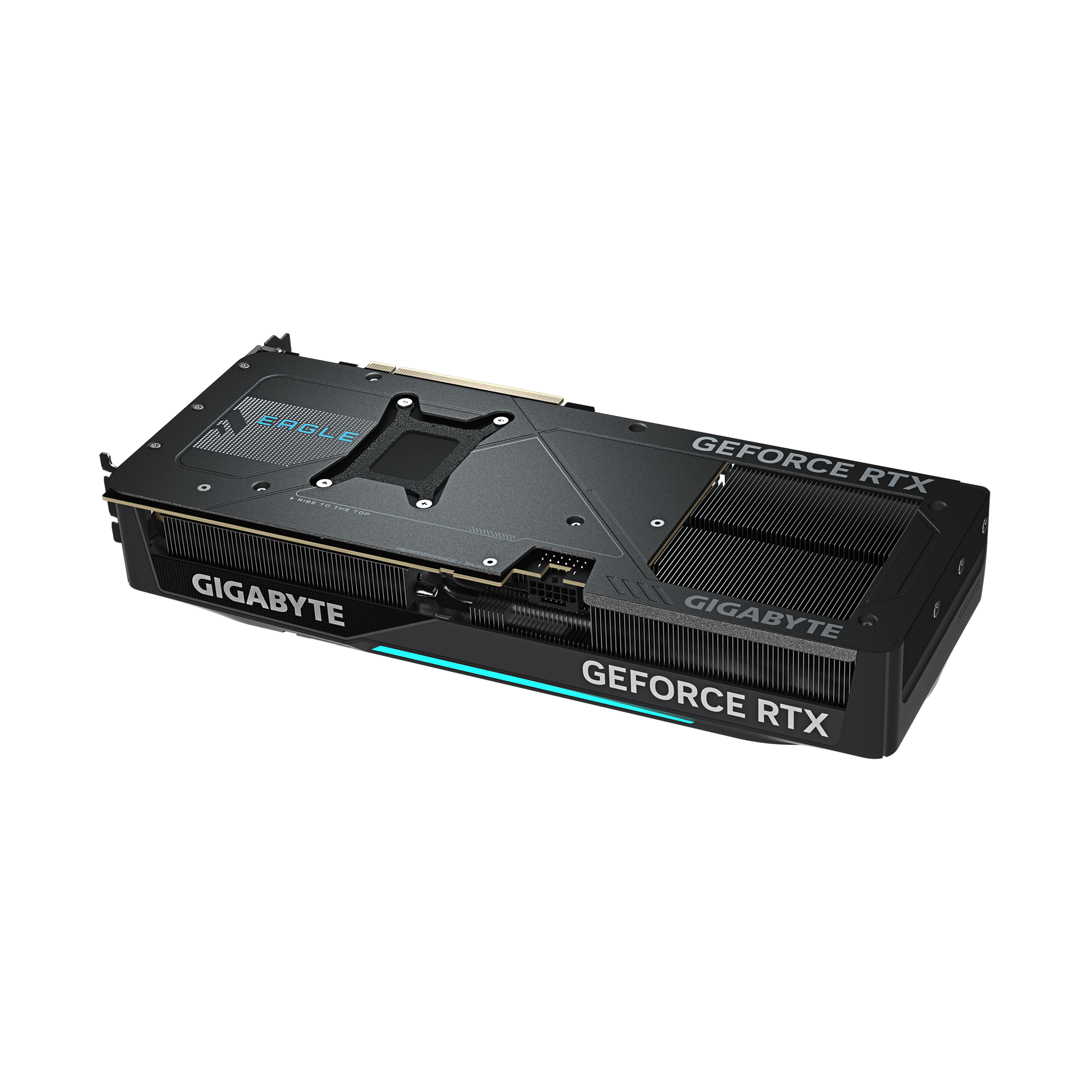

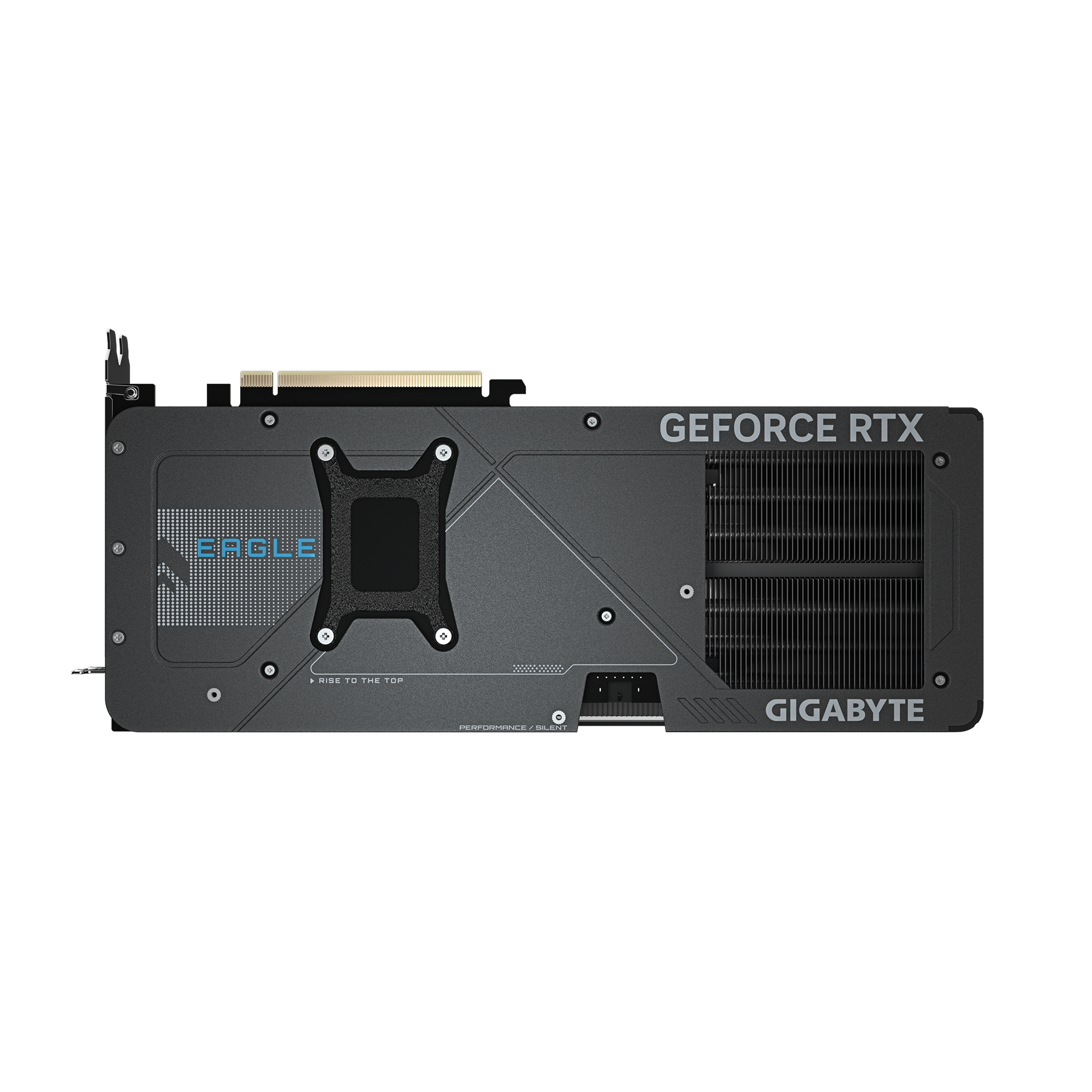

The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.

Our newly designed VGA holder offers dozens of customizable mounting options, ensuring your graphics card is securely supported and prevents sagging. Its sleek design allows for discreet installation, enhancing the overall aesthetics of your system.

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Specifications

• Graphics Processing - GeForce RTX™ 5070 Ti
• Core Clock - 2542 MHz (Reference card : 2452 MHz)
• CUDA® Cores - 8960
• Memory Size - 16 GB GDDR7
• Memory Clock - 28 Gbps
• Memory Bus - 256 bit
• Card Bus - PCI-E 5.0
• Digital max resolution - 7680 x 4320
• Multi-view - 4
• Card size - L=304 W=126 H=50 mm
• PCB Form - ATX
• DirectX - DirectX 12 API
• OpenGL - 4.6
• Recommended PSU - 750 W
• Power Connectors - 16 Pin x 1

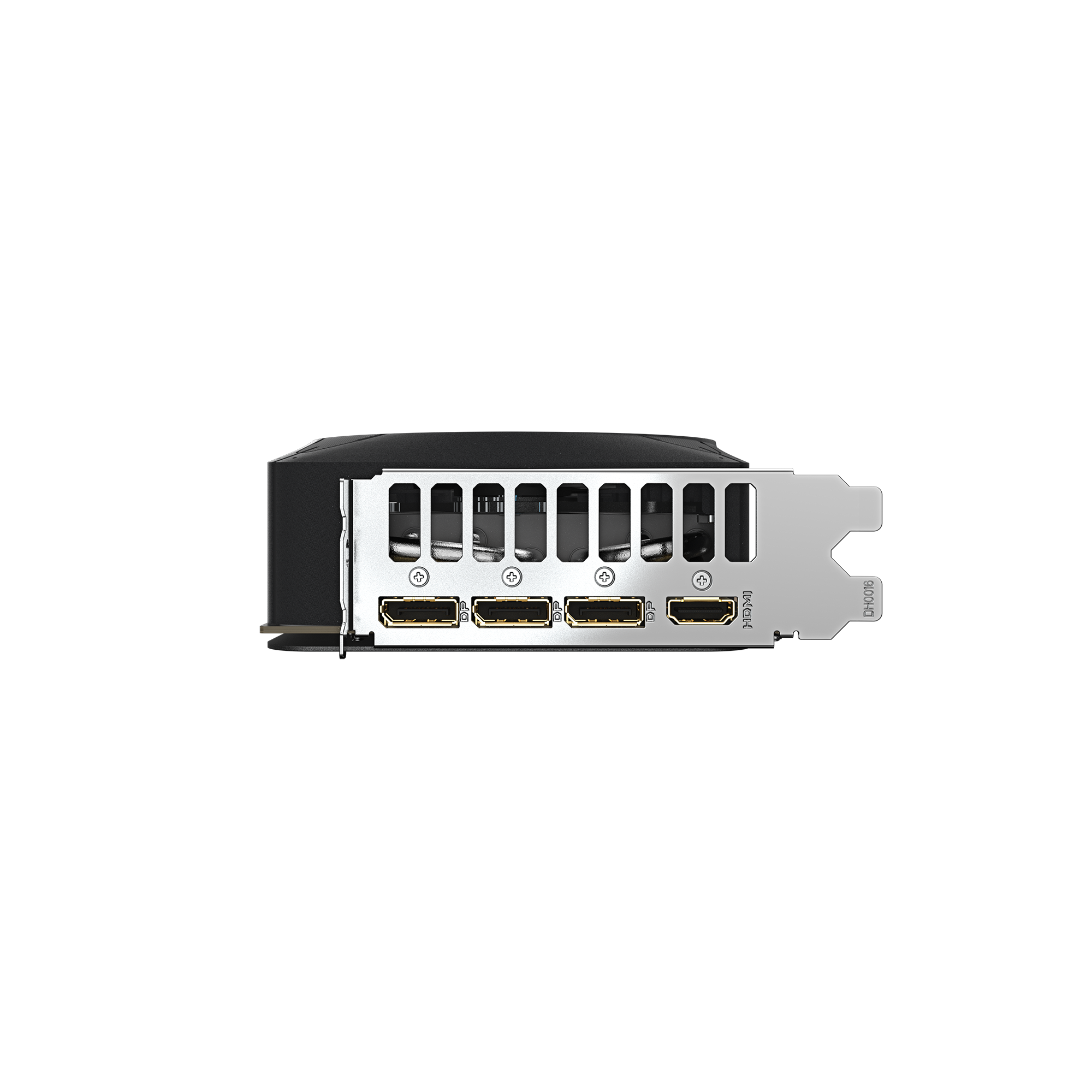

• Output - DisplayPort 2.1b x 3 - HDMI 2.1b x 1
• Accessories - 1. VGA manual - 2. 1x 12V-2x6 to 2x PCIe 8pin adapter - 4. Versatile VGA holder - 5. Versatile VGA holder manual
• Warranty - 3 Years
