GeForce RTX™ 5070 GAMING OC 12G

Highlights

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large copper plate, 3D active fans, and screen cooling.

The GAMING series draws the concept from mech warriors, blending the futuristic armor with mechanical aesthetics to deliver exceptional protection and powerful durability. It goes beyond mere appearances and functionality, offering a profound interpretation of futuristic technology.

Like armor, the exterior features a multi-layered structure combined with varied surface material finishes. Unique textures cover the curved surface, paired with the layering of appreance that give the GAMING design a strong armor-like identity. Every detail highlights a sturdy image and accentuates mechanical aesthetics.

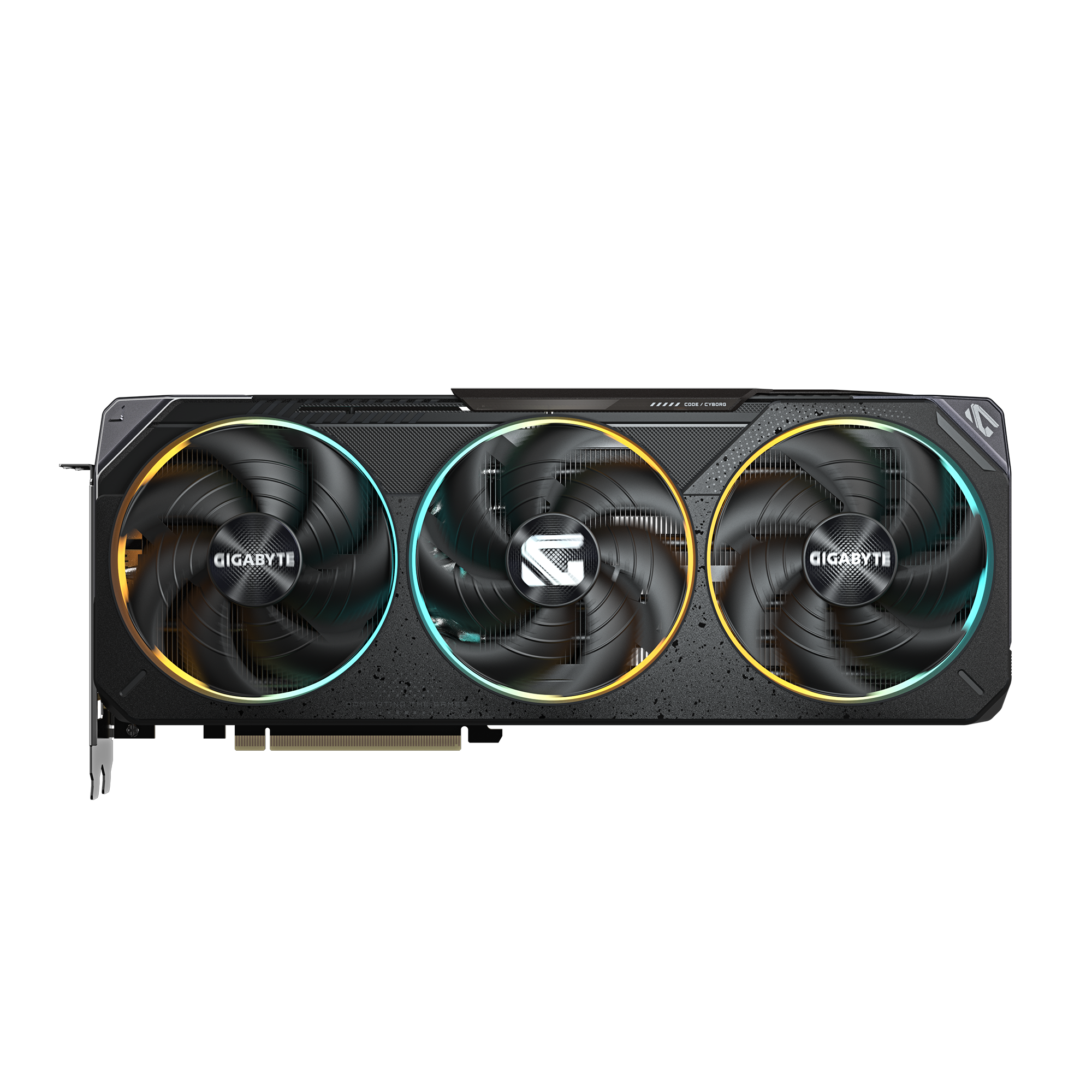

The legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

Featuring a power armor design with a sliding side plate, allowing users to customize their build to match their unique style.

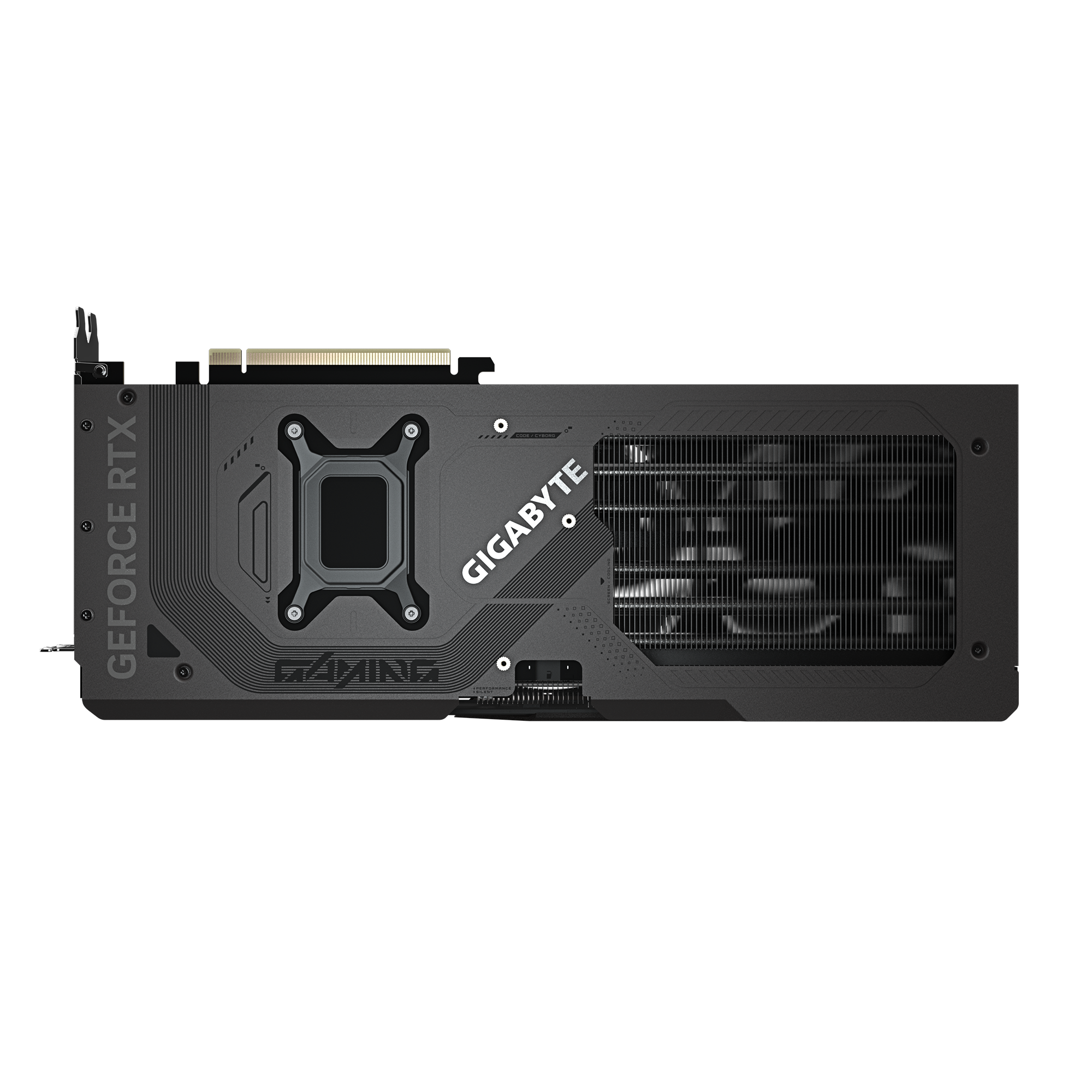

The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.

When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.

Our newly designed VGA holder offers dozens of customizable mounting options, ensuring your graphics card is securely supported and prevents sagging. Its sleek design allows for discreet installation, enhancing the overall aesthetics of your system.

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Specifications

• Graphics Processing - GeForce RTX™ 5070
• Core Clock - 2625 MHz (Reference card : 2512 MHz)
• CUDA® Cores - 6144
• Memory Size - 12 GB GDDR7
• Memory Clock - 28 Gbps
• Memory Bus - 192 bit
• Card Bus - PCI-E 5.0
• Digital max resolution - 7680 x 4320
• Multi-view - 4
• Card size - L=327 W=132 H=56 mm
• PCB Form - ATX
• DirectX - DirectX 12 API
• OpenGL - 4.6
• Recommended PSU - 750 W
• Power Connectors - 16 Pin x 1

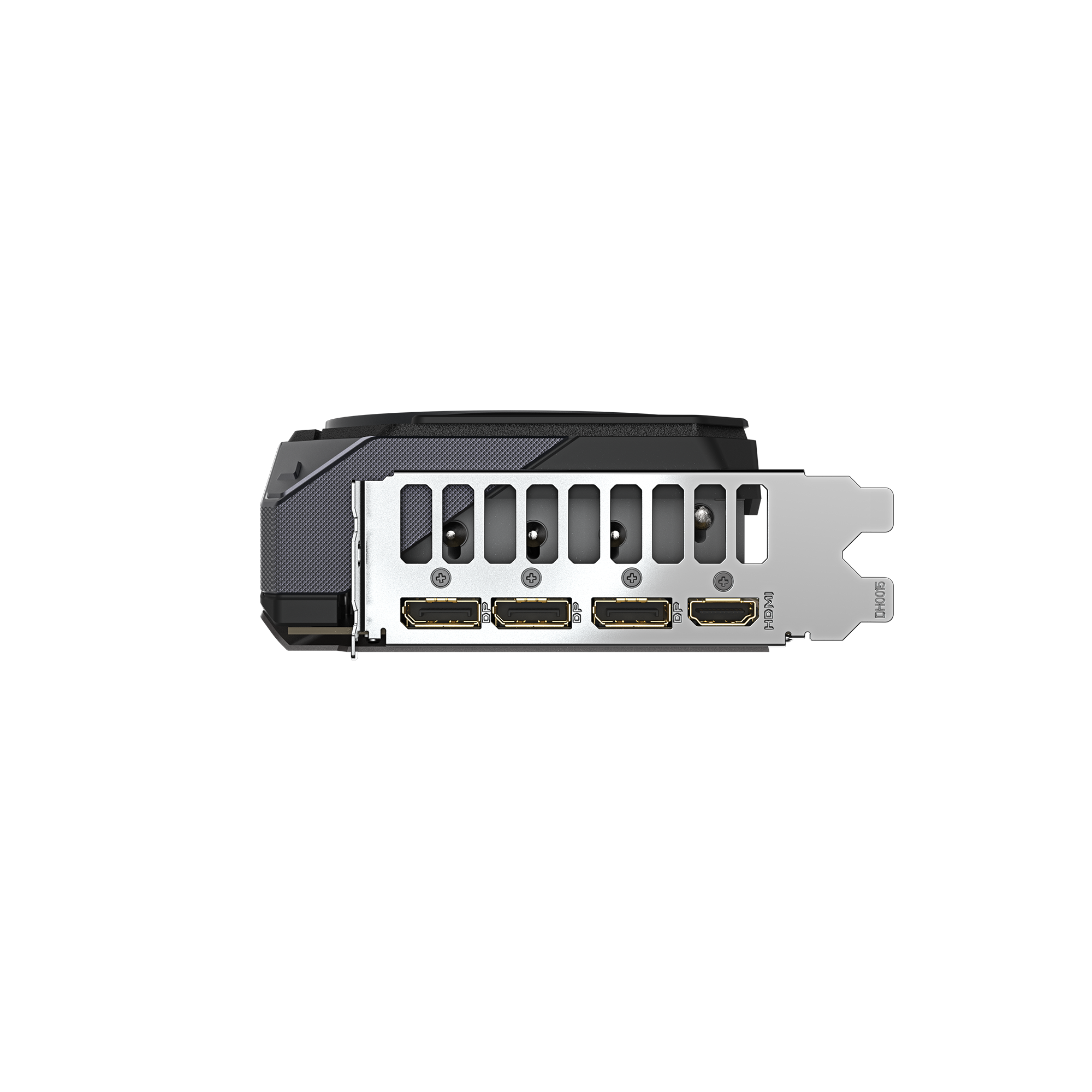

• Output - DisplayPort 2.1b x 3 - HDMI 2.1b x 1
• Accessories - 1. Quick guide - 2. Warranty registration - 3. 1x 12V-2x6 to 2x PCIe 8pin adapter - 4. Versatile VGA holder - 5. Versatile VGA holder manual
• Warranty - 4 years warranty (Online registration required)
