GeForce RTX™ 5070 Ti AERO

Highlights

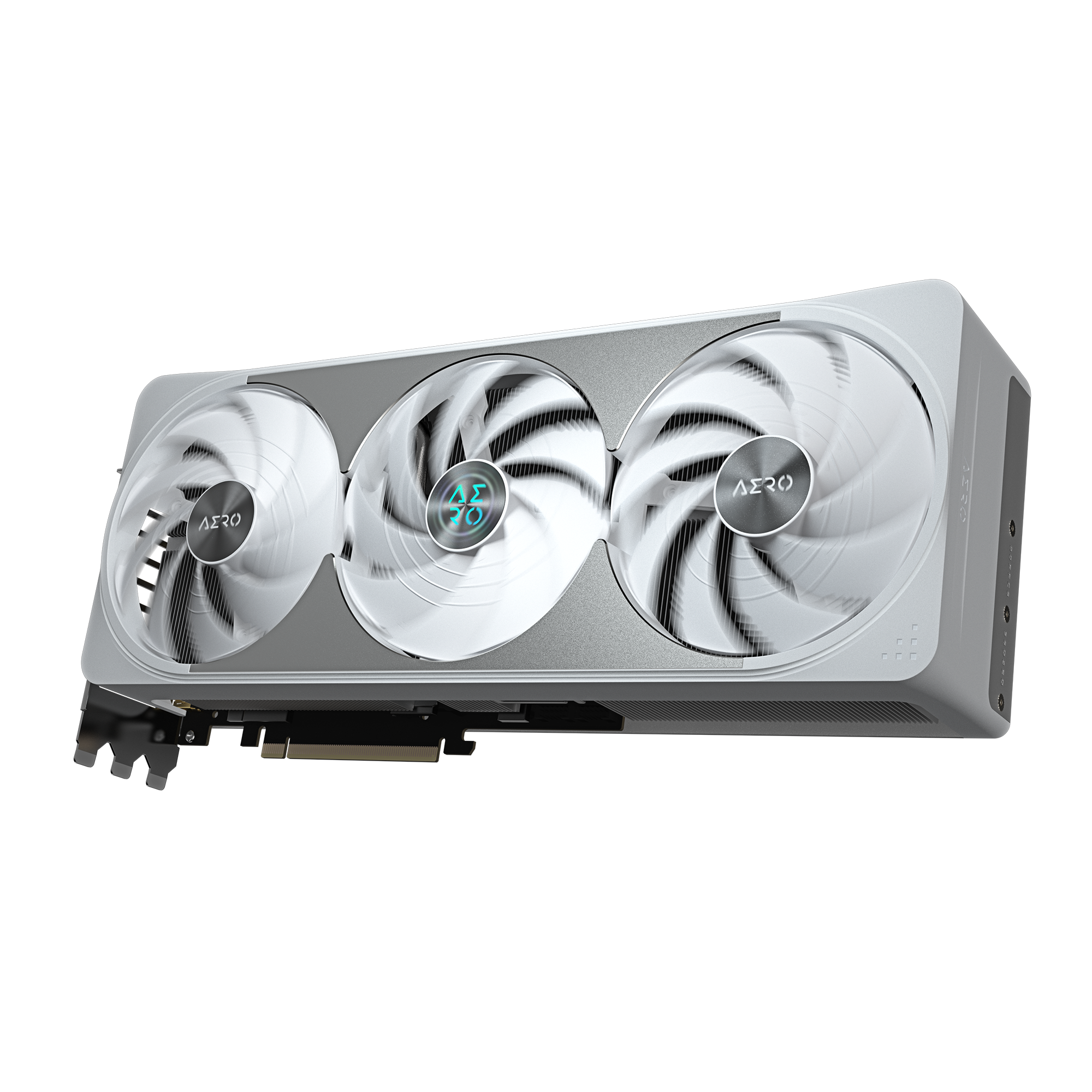

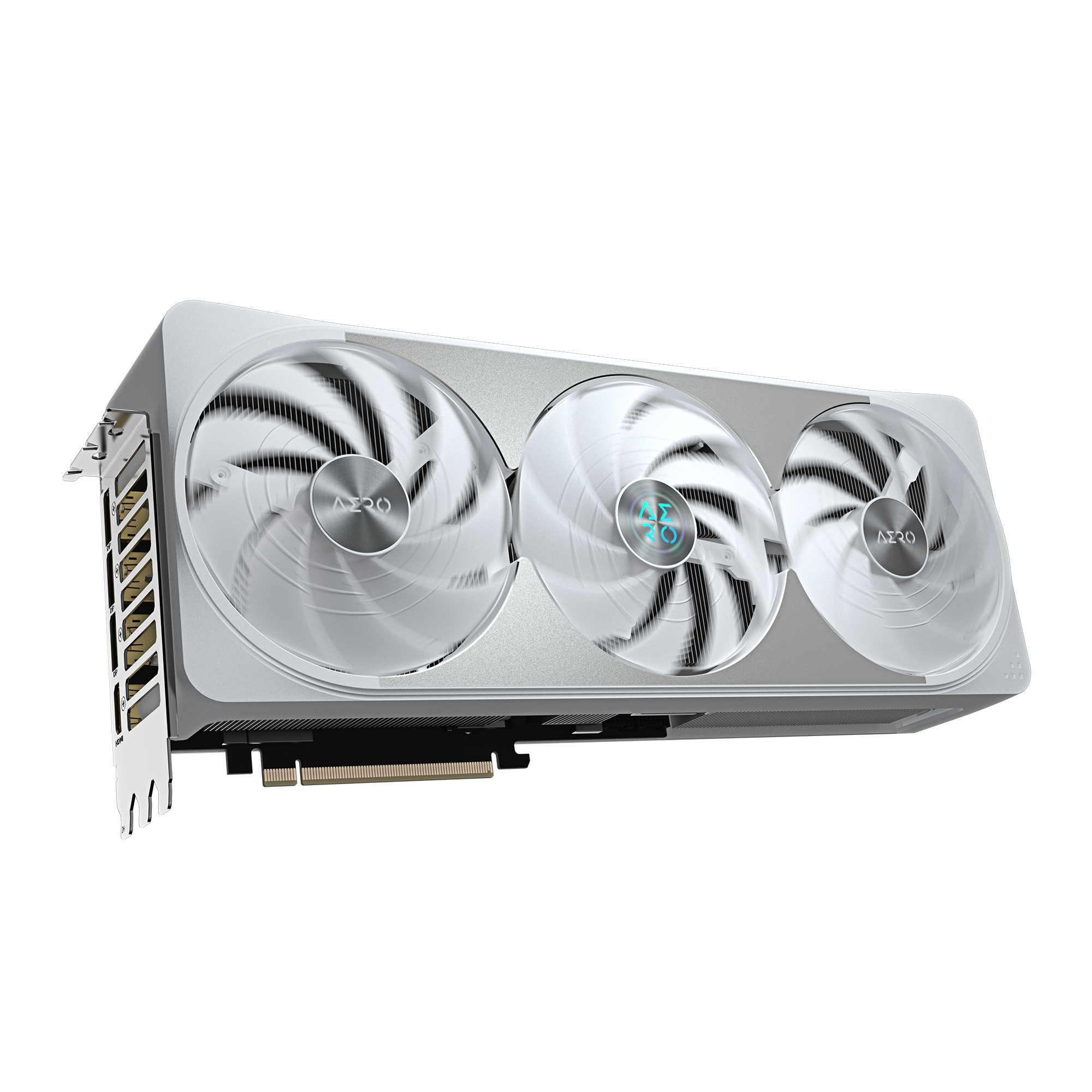

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large vapor chamber, 3D active fans, and screen cooling.

Drawing inspiration from water, the back panel's ripples evoke flowing water, with mirrored, frosted, and light elements reflecting the water's shimmering surface. Metal craftsmanship refines the texture, while teal and iridescent hues accentuate the serene lake. The fan's rotation creates expanding ripples, infusing natural movement into the details.

With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

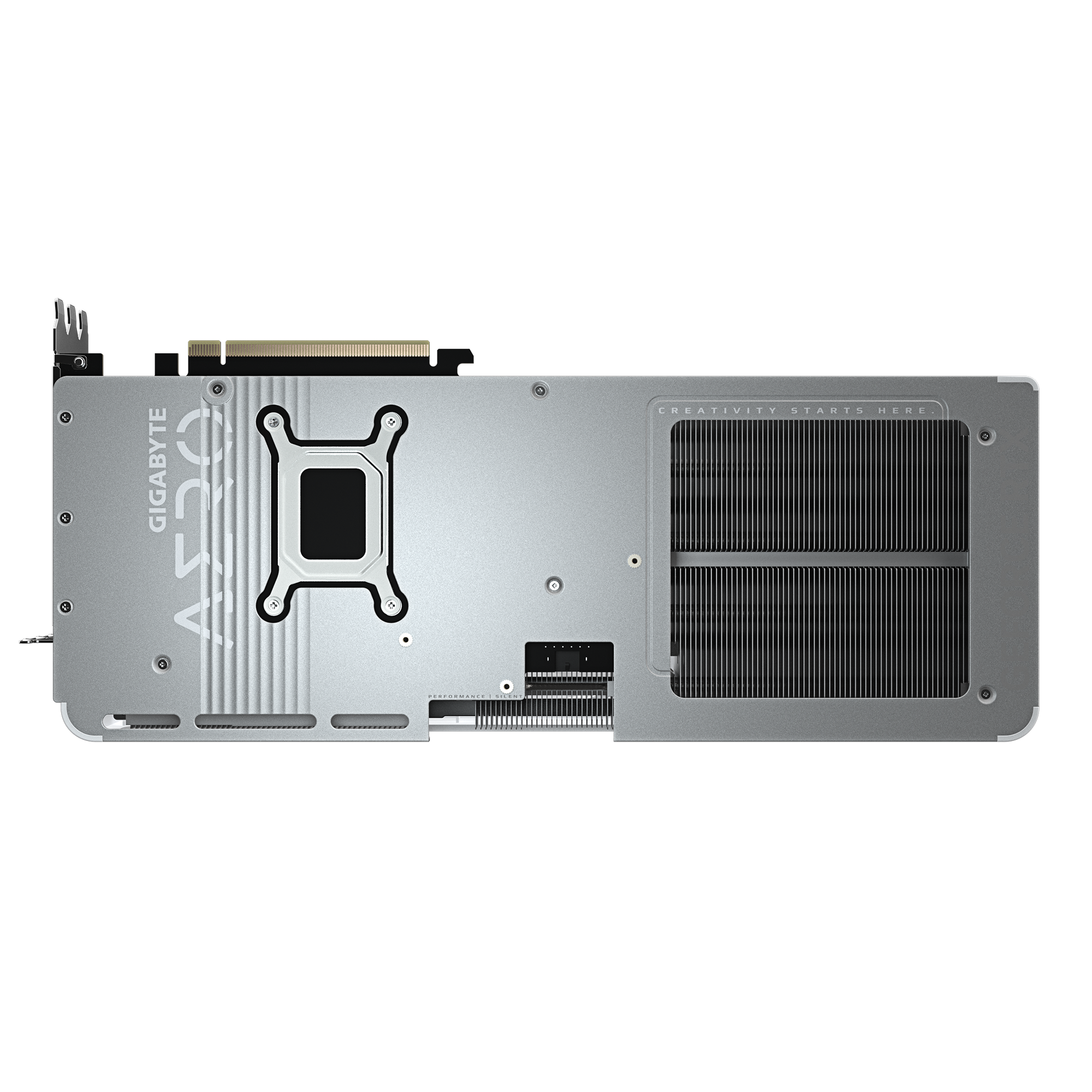

The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.

The factory default setting is Performance mode, which provides users with the best performance. However, switching to Silent mode will enjoy a quieter experience. When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.

Our newly designed VGA holder offers dozens of customizable mounting options, ensuring your graphics card is securely supported and prevents sagging. Its sleek design allows for discreet installation, enhancing the overall aesthetics of your system.

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Specifications

• Graphics Processing - GeForce RTX™ 5070
• Core Clock - 2588 MHz (Reference card : 2452 MHz)
• CUDA® Cores - 8960
• Memory Size - 12 GB GDDR7
• Memory Clock - 28 Gbps
• Memory Bus - 192 bit
• Card Bus - PCI-E 5.0
• Digital max resolution - 7680 x 4320
• Multi-view - 4
• Card size - L=340 W=140 H=70 mm
• PCB Form - ATX
• DirectX - DirectX 12 API
• OpenGL - 4.6
• Recommended PSU - 750 W
• Power Connectors - 16 Pin x 1

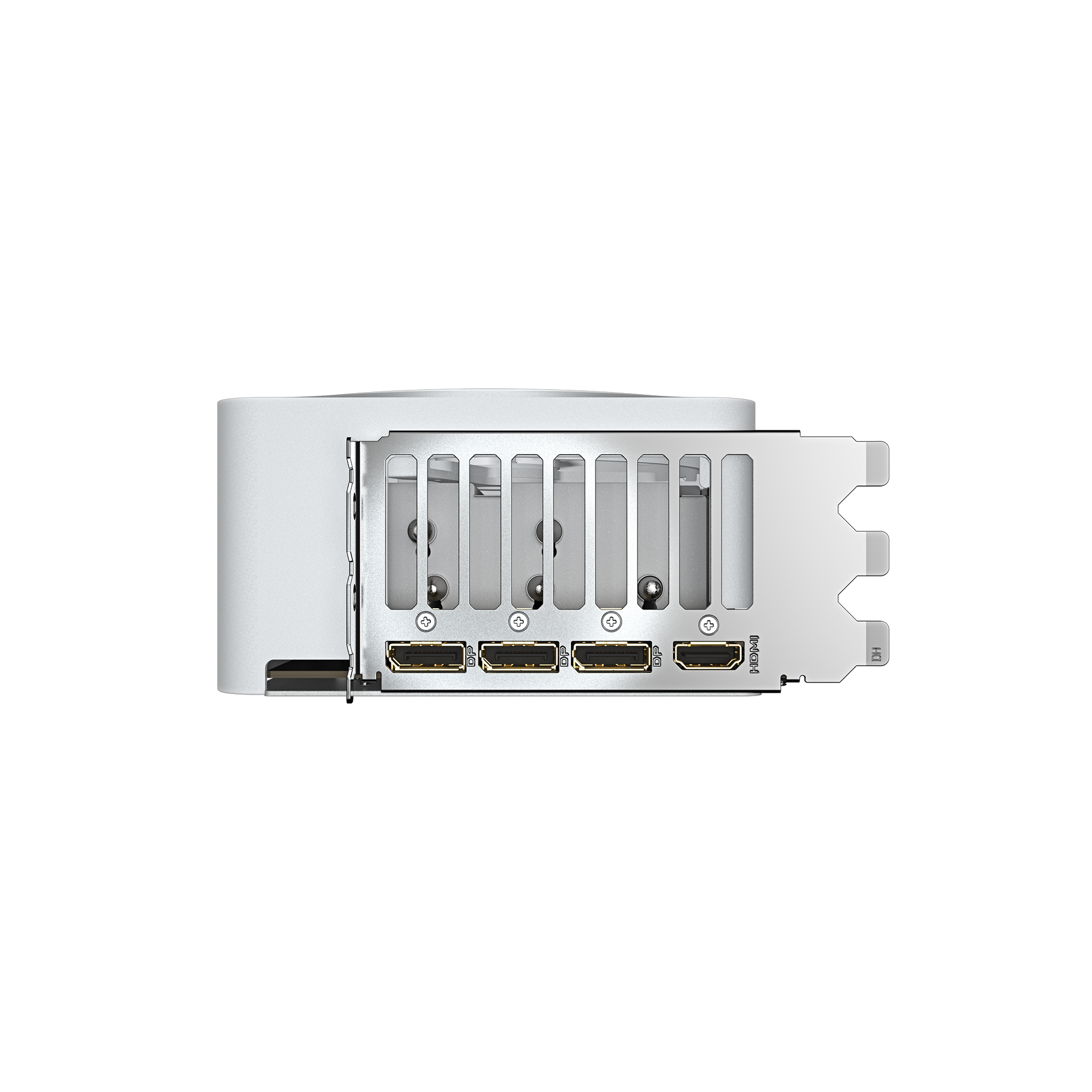

• Output - DisplayPort 2.1b x 3 - HDMI 2.1b x 1
• Accessories - 1. Quick guide - 2. Warranty registration - 3. 1x 12V-2x6 to 2x PCIe 8pin adapter - 4. Versatile VGA holder - 5. Versatile VGA holder manual
• Warranty - 4 years warranty (Online registration required)
