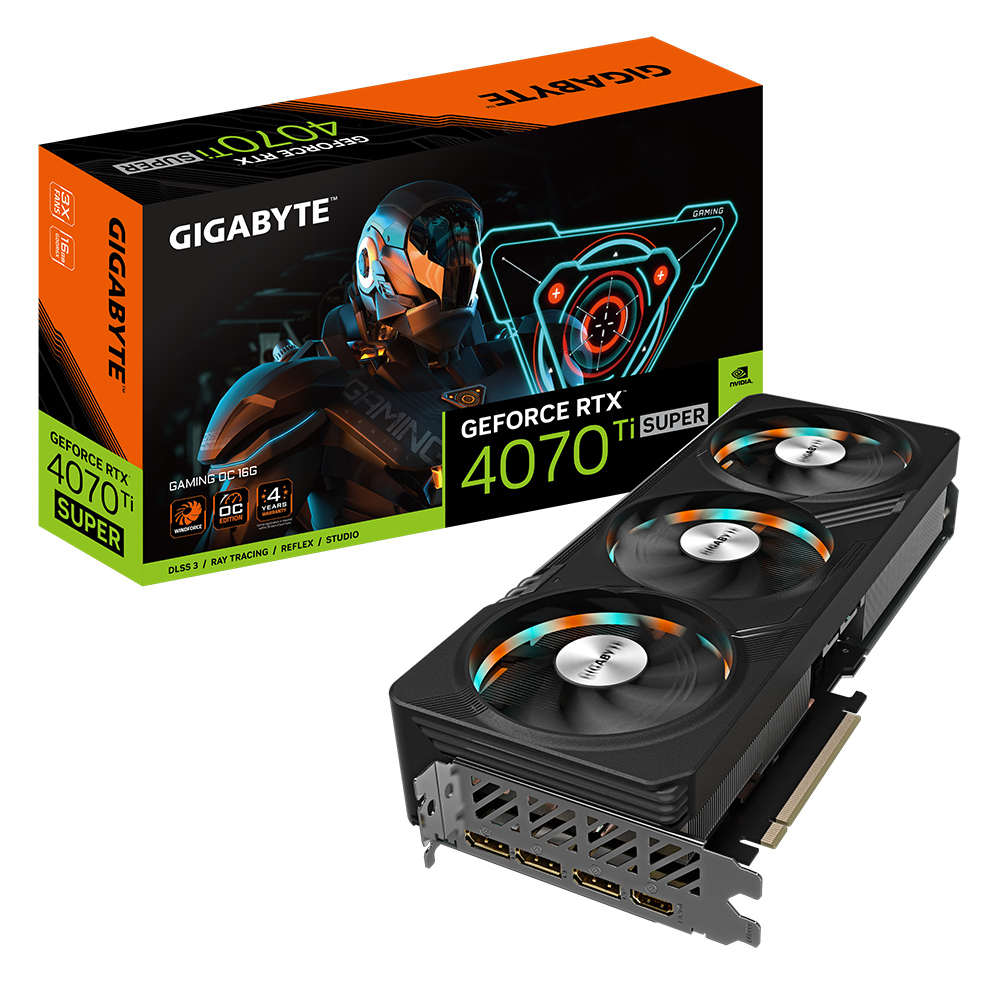

Gigabyte GeForce RTX™ 4070 Ti SUPER GAMING OC 16G - PCIe4.0, 1xHDMI, 3xDP, RGB Fusion
Product Type:
Video Cards
Type Detail:
PCI Express - NVIDIA Chipset
Manufacturer #:
Part Status:
Special Order Only
Milwaukee PC SKU:

GeForce RTX™ 4070 Ti SUPER GAMING OC 16G

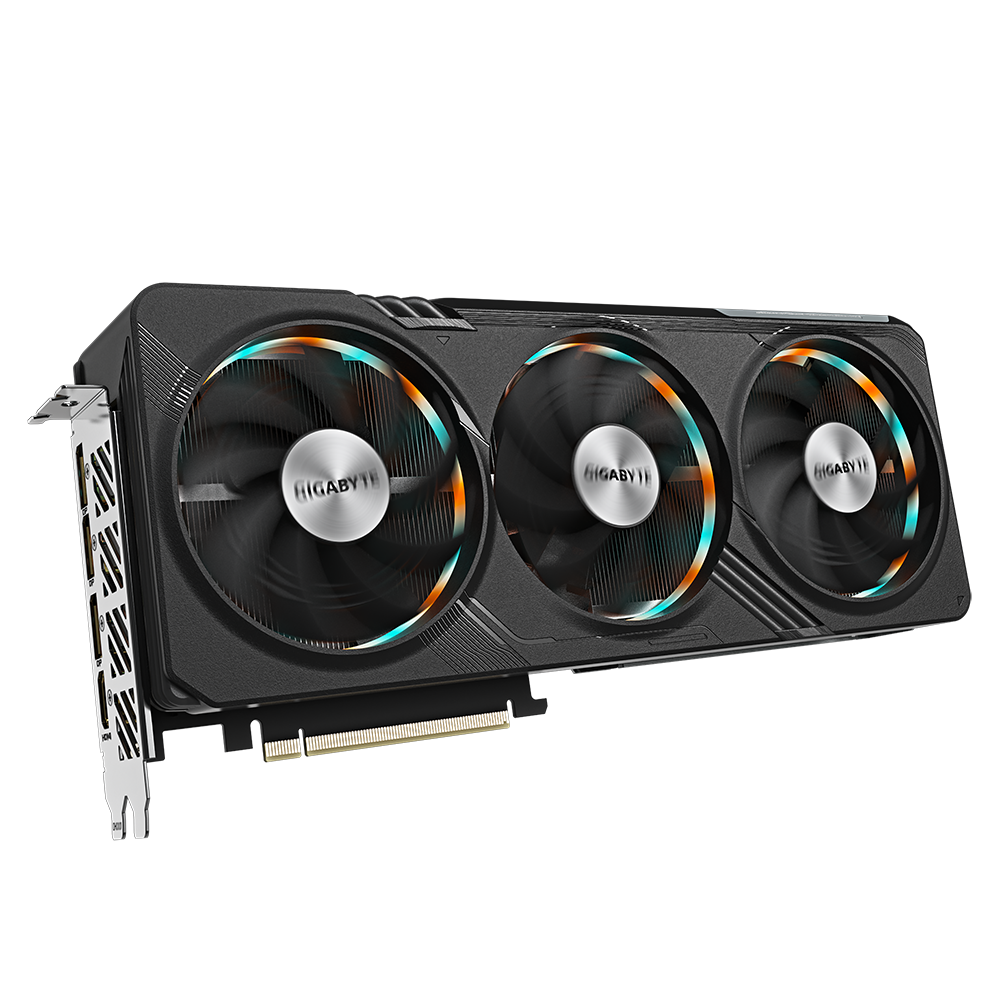

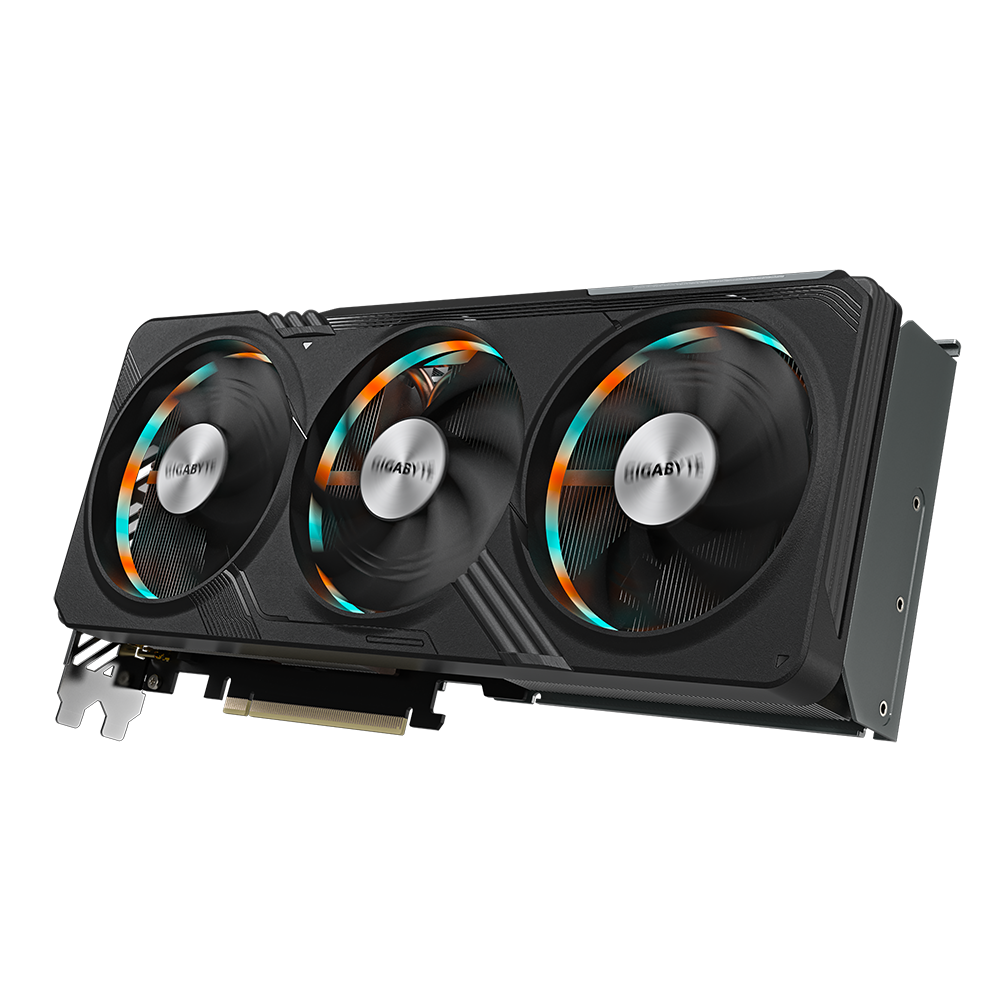

The WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 8 composite copper heat pipes, a copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation. The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. The airflow is split by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface. Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

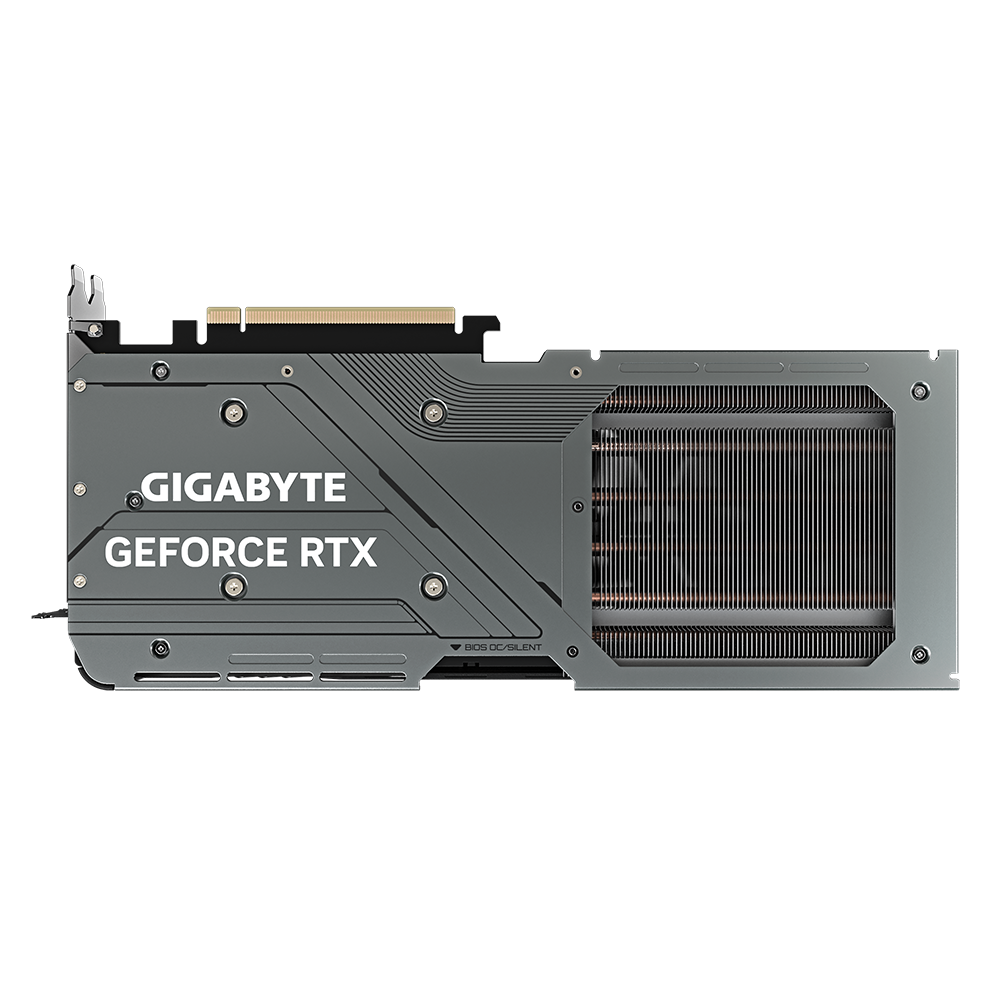

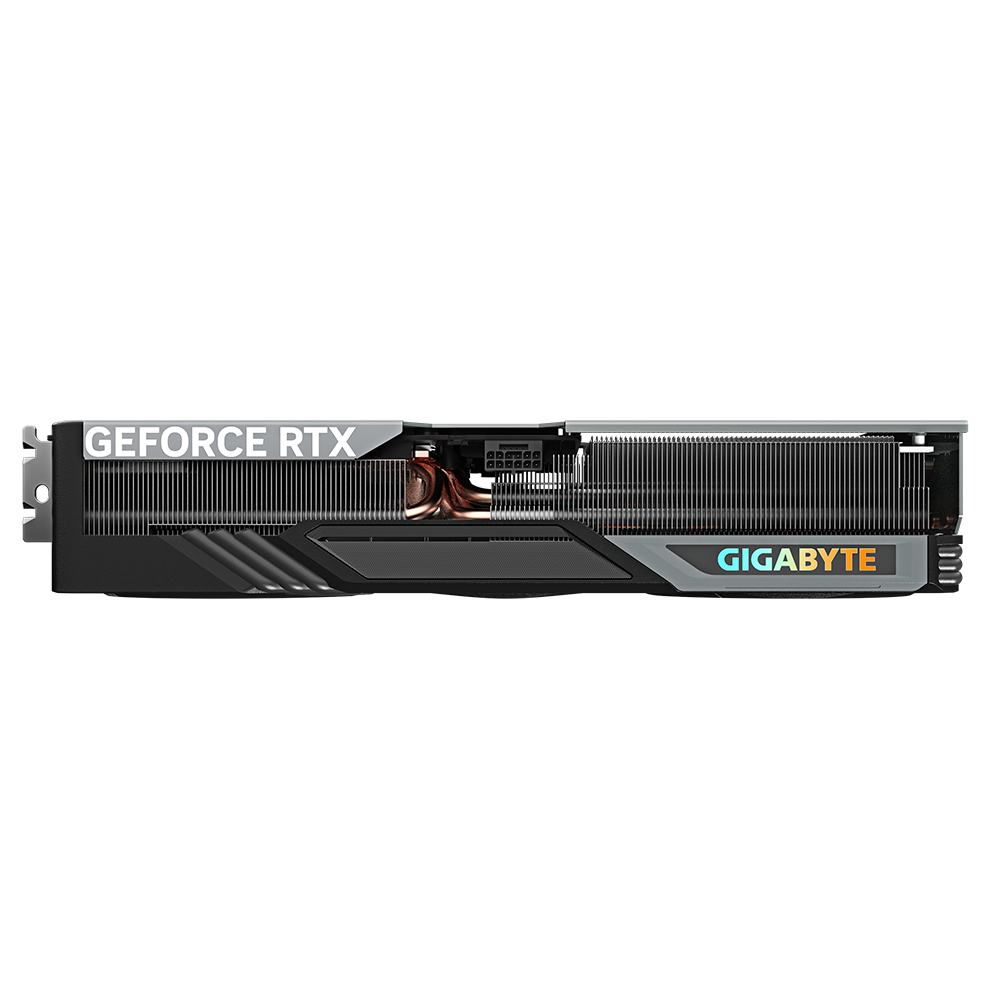

The large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink. Extended heatsink allows air to pass through, providing better heat dissipation.

The legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER .

Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.

We want you to experience the best service you have ever had. This is why, on top of our standard 3-year warranty, we would like to offer you an additional 1 year of protection to your graphics card free of charge. You can enjoy a 4-year warranty by registering on the website within 30 days of purchase.


  • Graphics Processing: GeForce RTX™ 4070 Ti SUPER
  • Core Clock: 2655 MHz (Reference card: 2610 MHz)
  • CUDA® Cores: 8448
  • Memory: 16 GB GDDR6X
  • Memory Clock: 21 Gbps
  • Memory Bus: 256 bit
  • Card Bus: PCIe 4.0
  • Digital max resolution: 7680 x 4320
  • Multi-view: 4
  • Card size: L=300 W=130 H=57.6 mm
  • PCB Form: ATX
  • DirectX: 12 Ultimate
  • OpenGL: 4.6
  • Recommended PSU: 750 W
  • Power Connectors: 16 pin x 1

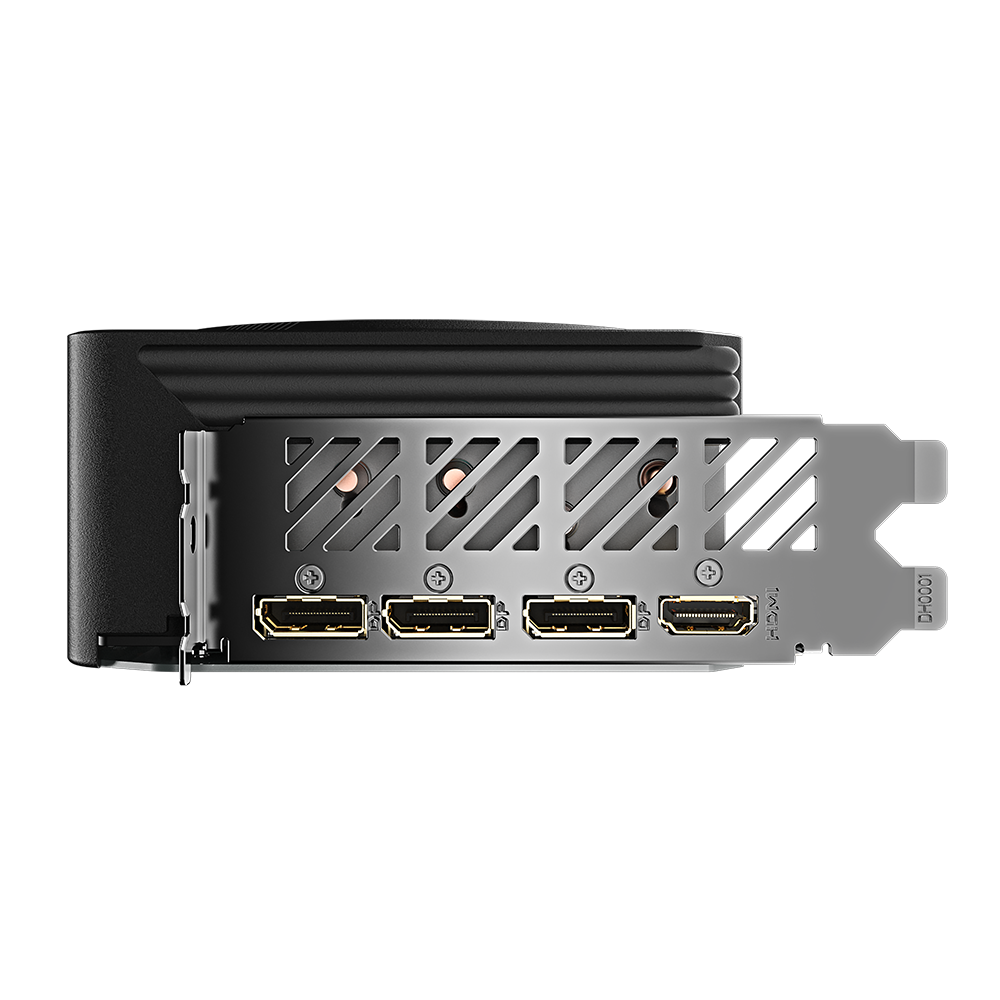

  • Output: DisplayPort 1.4a x 3, HDMI 2.1a x 1
  • Accessories: Quick guide, Warranty registration, Anti-sag bracket, Anti-sag bracket installation guide, One 16-pin to two 8-pin power adapter
  • Warranty: 4-year warranty by registering on the website within 30 days of purchase.
