Gigabyte GeForce RTX™ 4080 SUPER AERO OC 16G - PCIe4.0, 1xHDMI, 3xDP, RGB Fusion
Product Type:
Video Cards
Type Detail:
PCI Express - NVIDIA Chipset
Manufacturer #:
Part Status:
Special Order Only
Milwaukee PC SKU:

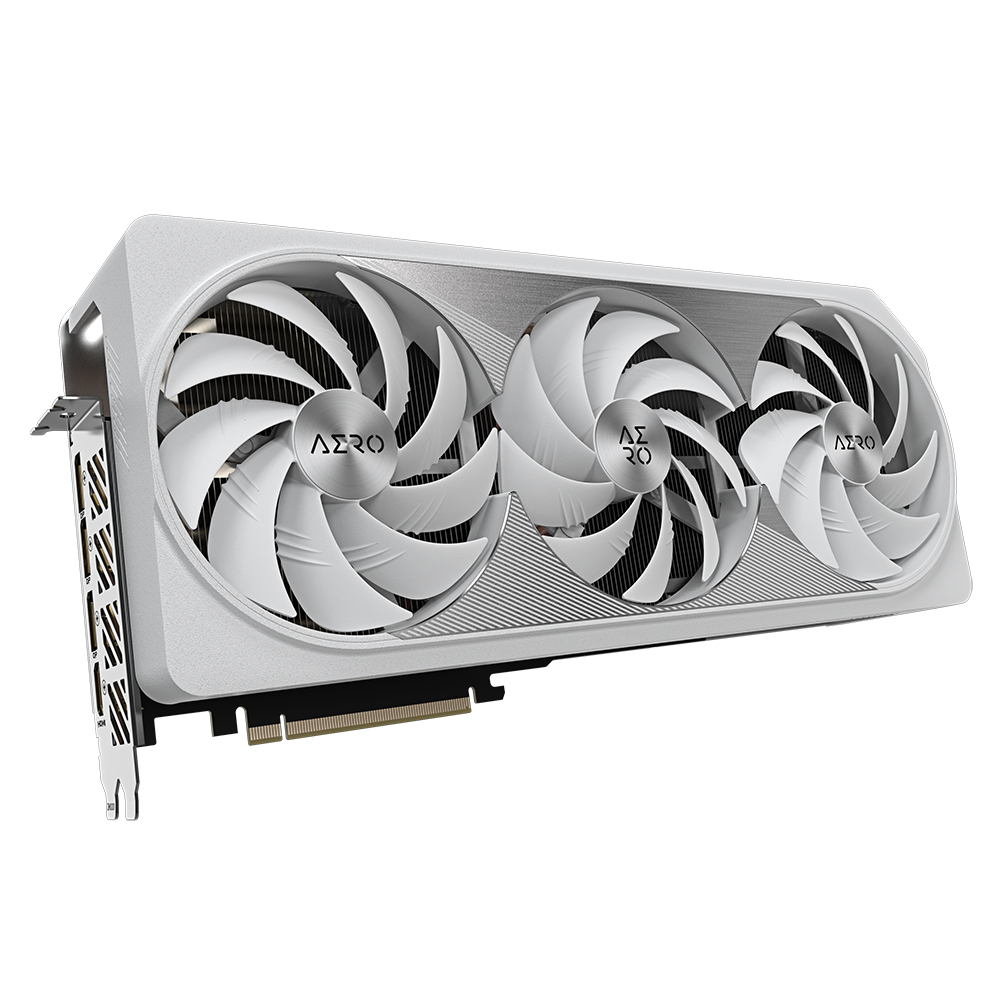

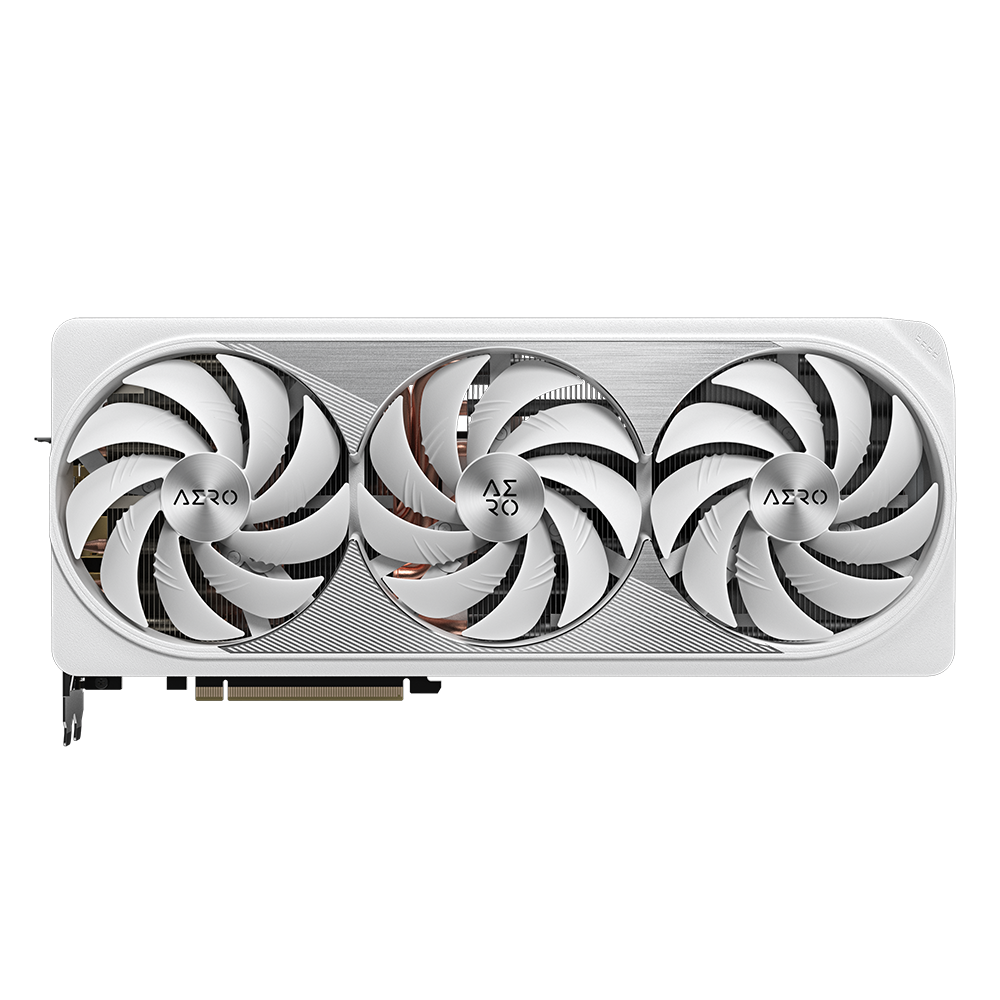

The WINDFORCE cooling system features three 110mm unique blade fans, alternate spinning, 9 composite copper heat pipes, a large copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING - Reduce the turbulence of adjacent fans and increase airflow pressure.

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

UNIQUE BLADE FAN - The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.

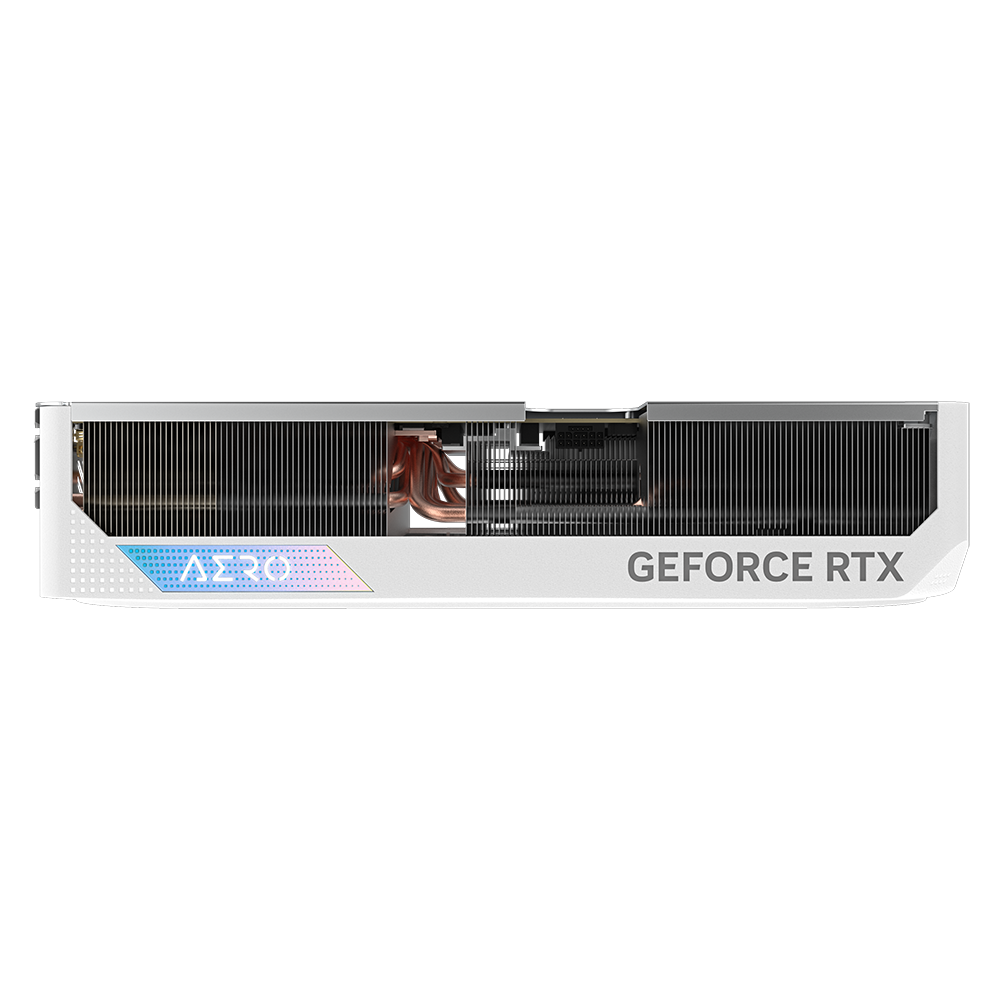

Extended heatsink design allows air flow to pass through, providing better heat dissipation. The large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

RGB FUSION - With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.


  • Graphics Processing: GeForce RTX™ 4080 SUPER
  • Core Clock: 2595 MHz (Reference card: 2550 MHz)
  • CUDA® Cores: 10240
  • Memory: 16 GB GDDR6X
  • Memory Clock: 23 Gbps
  • Memory Bus: 256 bit
  • Card Bus: PCI-E 4.0
  • Digital max resolution: 7680 x 4320
  • Multi-view: 4
  • Card size: L=342 W=150 H=75 mm
  • PCB Form: ATX
  • DirectX: 12 Ultimate
  • OpenGL: 4.6
  • Recommended PSU: 850 W
  • Power Connectors: 16 pin x 1

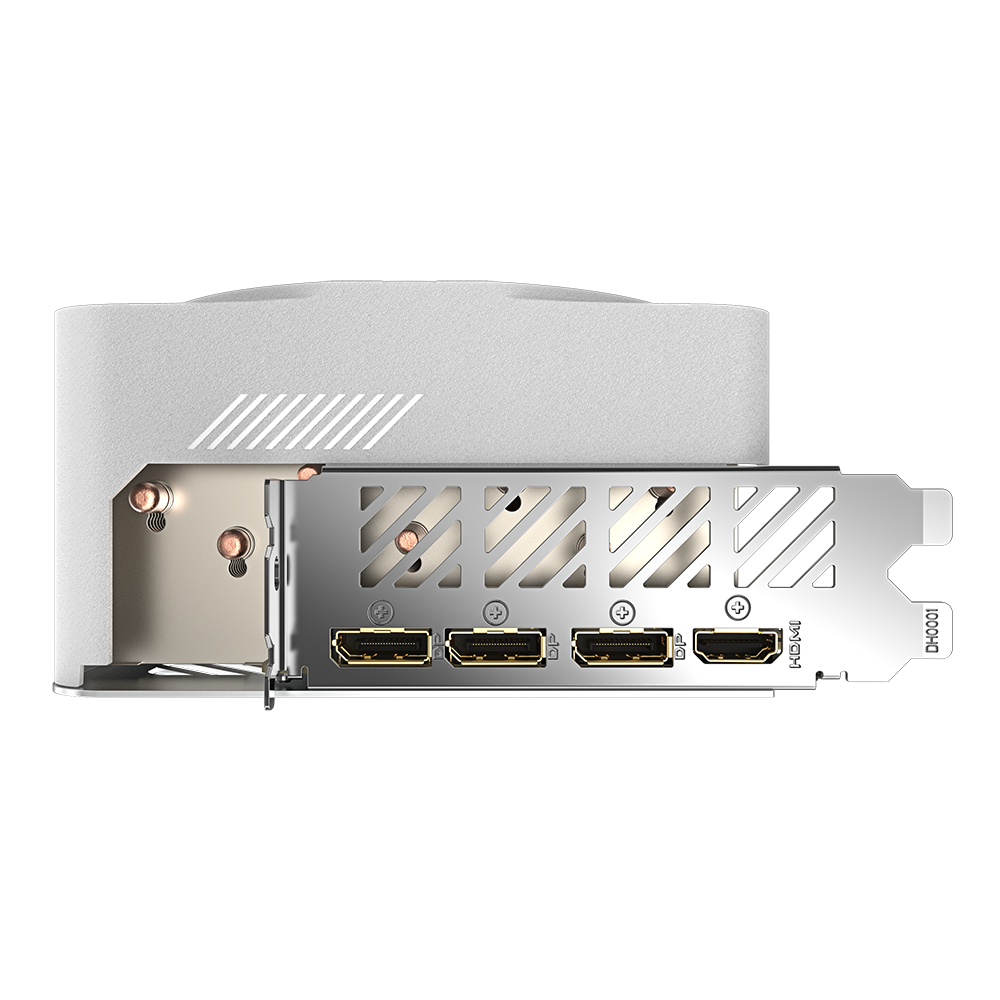

  • Output: DisplayPort 1.4a x 3, HDMI 2.1a x 1
  • Accessories: Quick guide, Warranty registration, Anti-sag bracket, Anti-sag bracket installation guide, One 16 pin to triple 8-pin power adapter
  • Warranty: 4 Years Warranty (Online registration required)
