A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD CP1500AVRLCD3 provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The CP1500AVRLCD3 uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1500AVRLCD3 comes with a three-year warranty (including coverage of batteries) and a $500,000 Connected Equipment Guarantee.

Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.

Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.

AVR increases the AC power and maintains a safe voltage level without switching to battery mode and conserving battery life.

Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.

General

• Energy Saving - GreenPower UPS™ Bypass Technology
• Energy Star Certified - Yes
• UPS Topology - Line Interactive

Battery

• Battery Quantity - 2
• Battery Size - 12 V / 9 Ah
• Battery Type - Sealed Lead-Acid Battery
• Replacement Battery Cartridge - RB1290X2E
• Replacement Battery Cartridge Quantity - 1
• Runtime at Full Load - 3 min
• Runtime at Half Load - 12 min
• Typical Recharge Time - 8 Hours
• User Replaceable Battery - Yes

Input

• Circuit Breaker - 15 A
• Cord Length - 6 ft (1.8 m)
• Input Frequency Range - 57 Hz – 63 Hz
• Input Plug Type - NEMA 5-15P
• Nominal Input Voltage - 120 VAC
• Plug Style - Right Angle – 45° Offset

Output

• Automatic Voltage Regulation - Single Boost
• On AC WaveForm - Sine Wave
• On Battery Frequency - 60 Hz ± 1%
• On Battery Voltage - 120 VAC ± 5%
• On Battery Waveform - Simulated Sine Wave

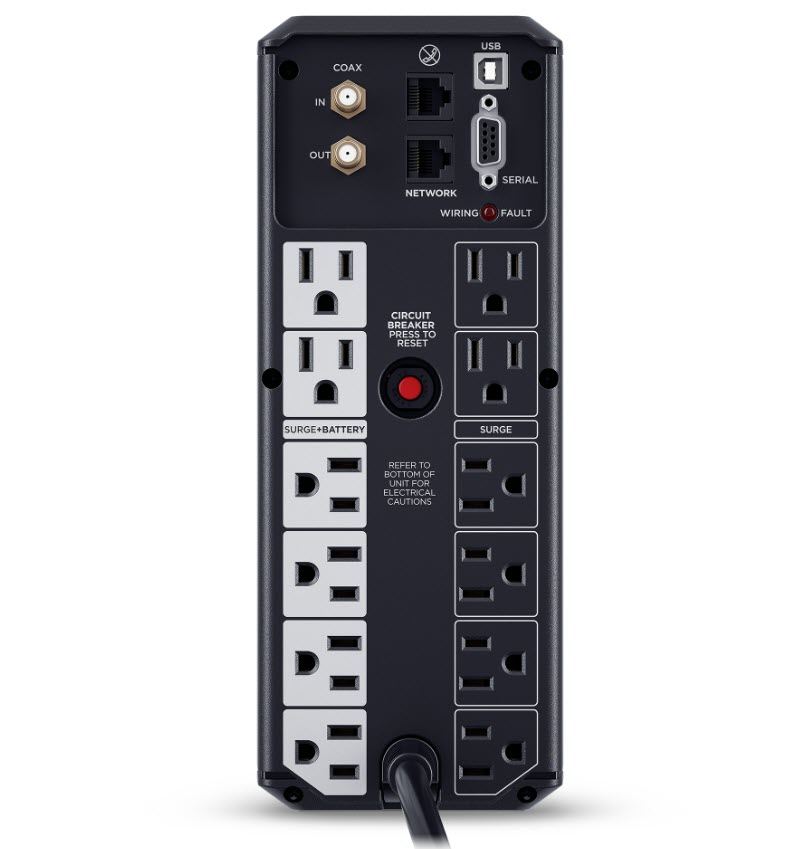

• Outlet Type - 12 – NEMA 5-15R
• Outlets – Battery & Surge Protected - 6
• Outlets – Surge-Only Protected - 6
• Outlets – Total - 12
• Output Power Factor - 0.6
• Overload Protection - Internal Circuitry Limiting - Circuit Breaker Protected
• Typical Transfer Time - 4 ms
• USB Charge Port Type - 1 Type A - 1 Type C
• USB Charge Port Voltage - 5 VDC
• USB Charge Port Watts - 20 Watts
• VA - 1500 VA
• Watts - 900 W

Surge Protection & Filtering

• Coax Protection RG6 - 1 in - 1 out
• EMI/RFI Filtration - Yes
• Network Protection RJ45 - 1-in / 1-Out (10/100/1000)
• Surge Suppression (Joules) - 1500 J

Management & Communications

• Audible Alarms - Battery Mode - Low Battery - Overload Fault
• HID Compliant USB Port - Yes
• LCD - Multifunction LCD
• LED Indicators - Power On - Wiring Fault
• Management Cable - USB Cable

Warranty

• CEG Amount - $500000
• Connected Equipment Guarantee - Lifetime
• Extended Warranty Option - WEXT5YR-U2A
• Product Warranty - 3 Year Limited Warranty
