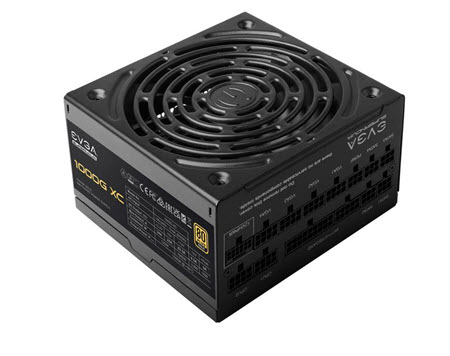

EVGA SuperNOVA 1000G XC
Introducing the EVGA SuperNOVA 1000G XC - The first ATX 3.0 compliant and PCIe 5.0-ready power supply from EVGA. Featuring a half-bridge LLC resonant controller, DC-DC converter, APFC, and 100% Japanese Capacitors, this power supply is extremely stable with low ripple and noise, and 80 Plus Gold-rated for efficiency. The SuperNOVA 1000G XC includes a native 12VHPWR cable capable of delivering up to 600W output, while supporting up to 200% Total Power Excursion and 300% GPU Power Excursion for PCIe 5.0 graphics cards. An ultra-quiet PWM-controlled FDB fan runs completely silent at medium-low loads and temperatures thanks to EVGA ECO Mode. With a full-suite of protections and EVGA's 3-Year limited warranty, the EVGA SuperNOVA 1000G XC gives you everything you need for a modern gaming system

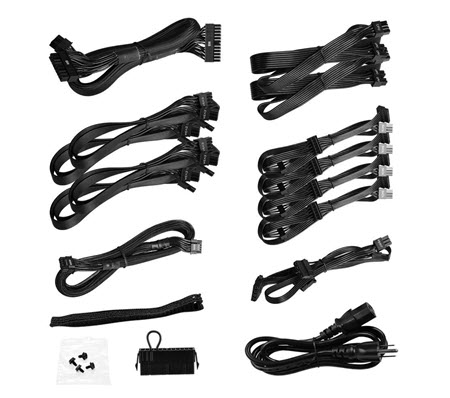

CABLE LENGTH
- ATX Cable: 1 x 600mm
- EPS Cable: 2 x 700mm
- PCIe Cable: 2 x 700mm, 2 x 700mm, 850mm
- 12VHPWR Cable: 1 x 700mm
- SATA Cable: 4 x 550mm, 670mm, 790mm
- Four-Pin Peripheral Cable: 1 x 450mm, 570mm, 690mm, 810mm
- AC Power: 1 x 1500mm
- Modular Cable Type: Fully Modular

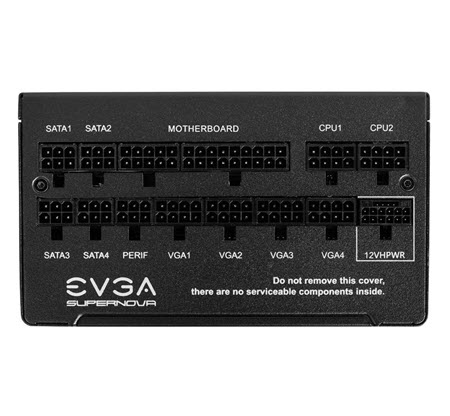

CONNECTORS
- 24 Pin ATX: 1 x 24pin
- EPS (CPU): 2 x 8pin (4+4)
- PCIe: 6 x 8pin (6+2)
- PCIe 12VHPWR: 1 x 16pin (12+4)
- SATA: 12 x
- Four-Pin Peripheral: 4 x

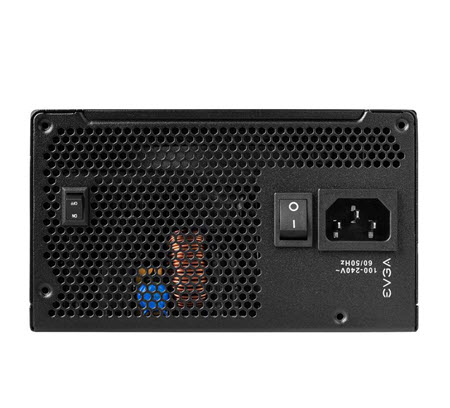

INPUT
- Input Voltage: 100-240V~
- AC Input: 12-6A
- Input Frequency Range: 60/50Hz
- Efficiency: 90% (115VAC) / 92% (220VAC~240VAC) or Higher Typical

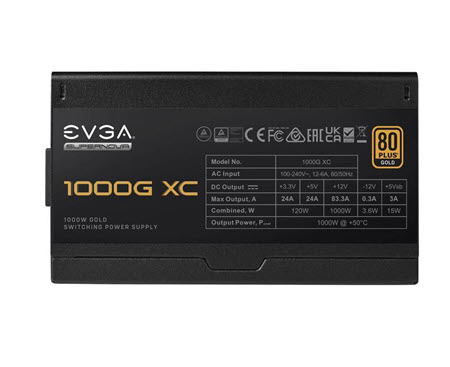

OUTPUT
- Rail: +3.3V +5V +12V -12V +5Vsb
- Max output: 24A 24A 83.3A 0.3A 3A, 120W 1000W 3.6W 15W
- Total: 1000 W
ADDITIONAL DETAILS
- Japanese Capacitors: 100%
- ECO Mode: Yes
- MTBF: 100,000 Hours
- Size: 86mm (H) x 150mm (W) x 150mm (L)
- Fan Size/Bearing: 135mm Fluid Dynamic Bearing
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
- Warranty: 3 Years
