UD850GM

Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.

The main capacitors use high quality Japanese capacitors to produce the efficient performance and ensure the longer reliability.

Compared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components.

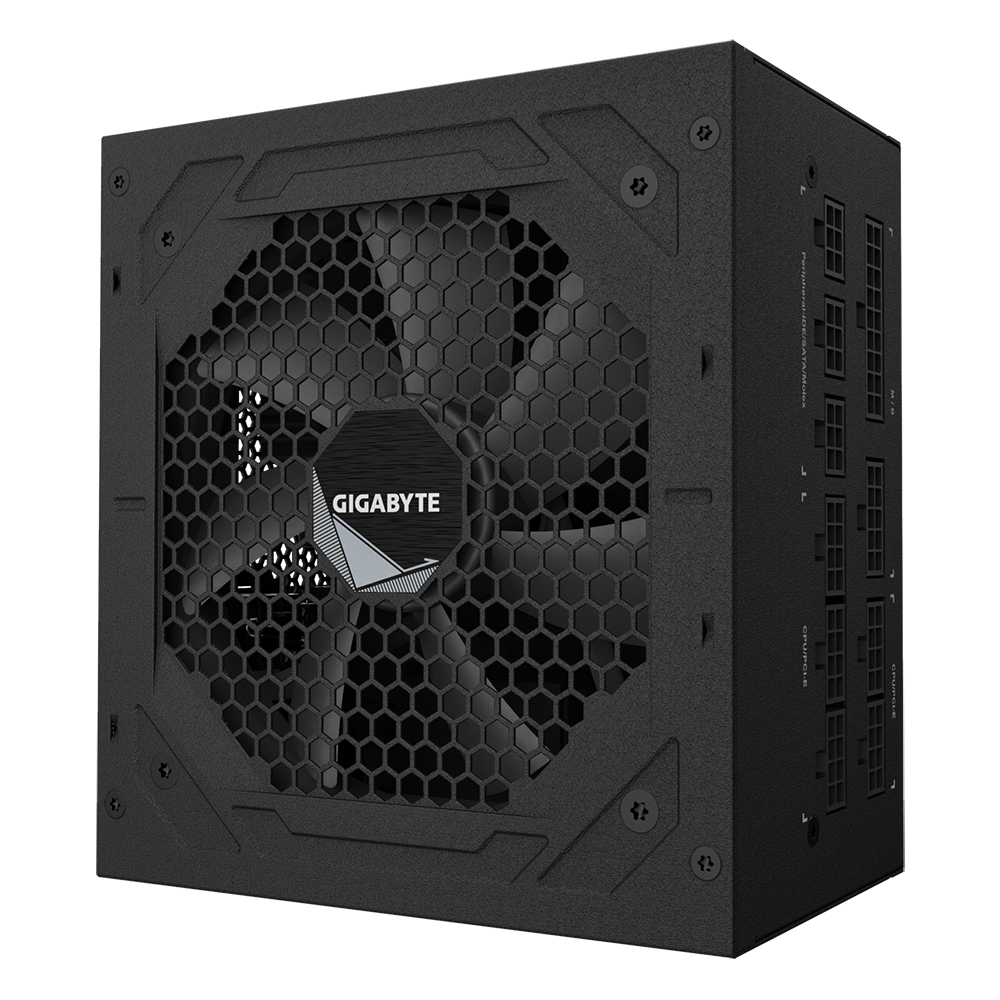

The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time.

Highlights

• Type: Intel Form Factor ATX 12V v2.31
• Dimension: 150 x 140 x 86 mm
• Output Capacity: 850W
• PFC: Active PFC (>0.9 typical)
• Input Voltage: 100-240 Vac (full range)
• Input Current: 12-6A
• Input Frequency: 60-50 Hz
• Efficiency: 90% at typical load
• Power Good Signal: 100-150ms
• Hold Up Time: >16ms
• Fan Type: 120mm Hydraulic Bearing(HYB)fan
• 80 PLUS: Gold
• MTBF: >100,000 hours
• Protection: OVP/OPP/SCP/UVP/OCP/OTP
• Cable Type: Flat, All black

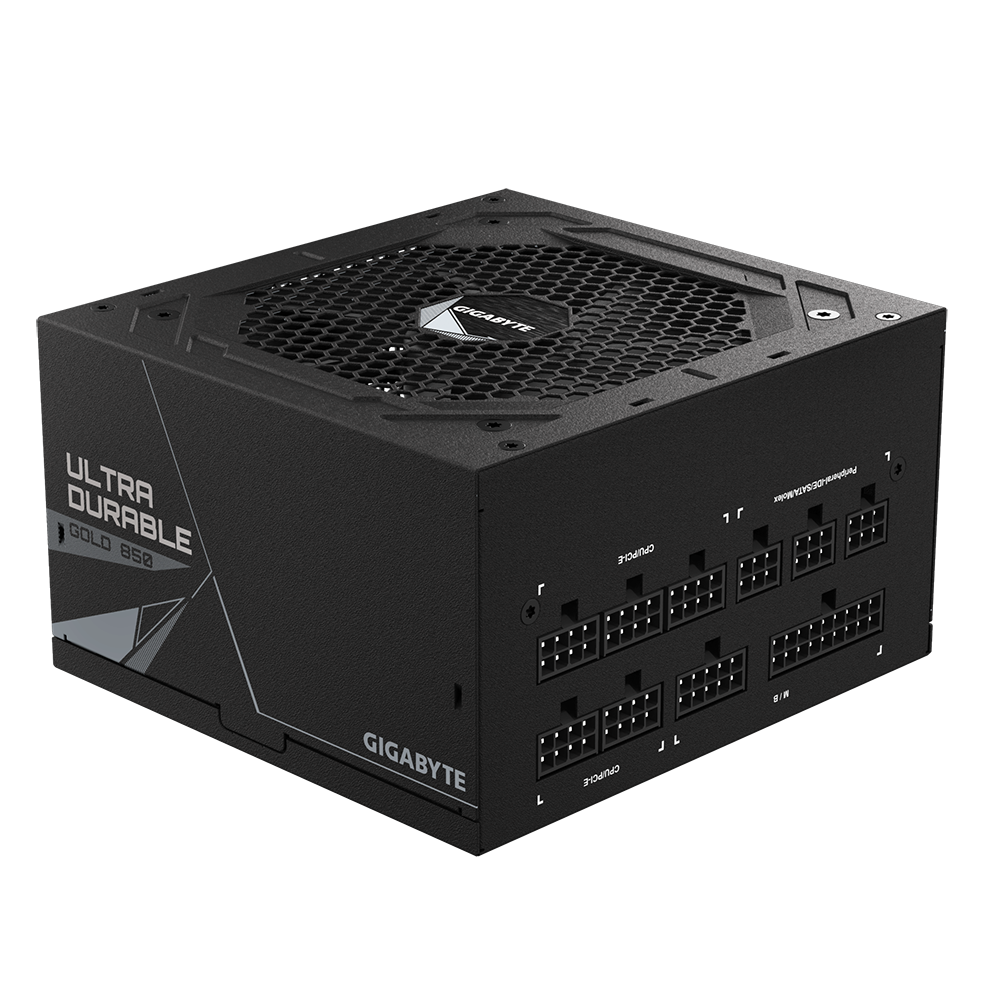

• Connectors: ATX/MB 20+4 Pin x 1, CPU/EPS 4+4 Pin x 2, PCI-e 6+2 Pin x 4, SATA x 8, 4 Pin Peripheral x 3, 4-Pin floppy x 1
• Warranty: 5 Years
