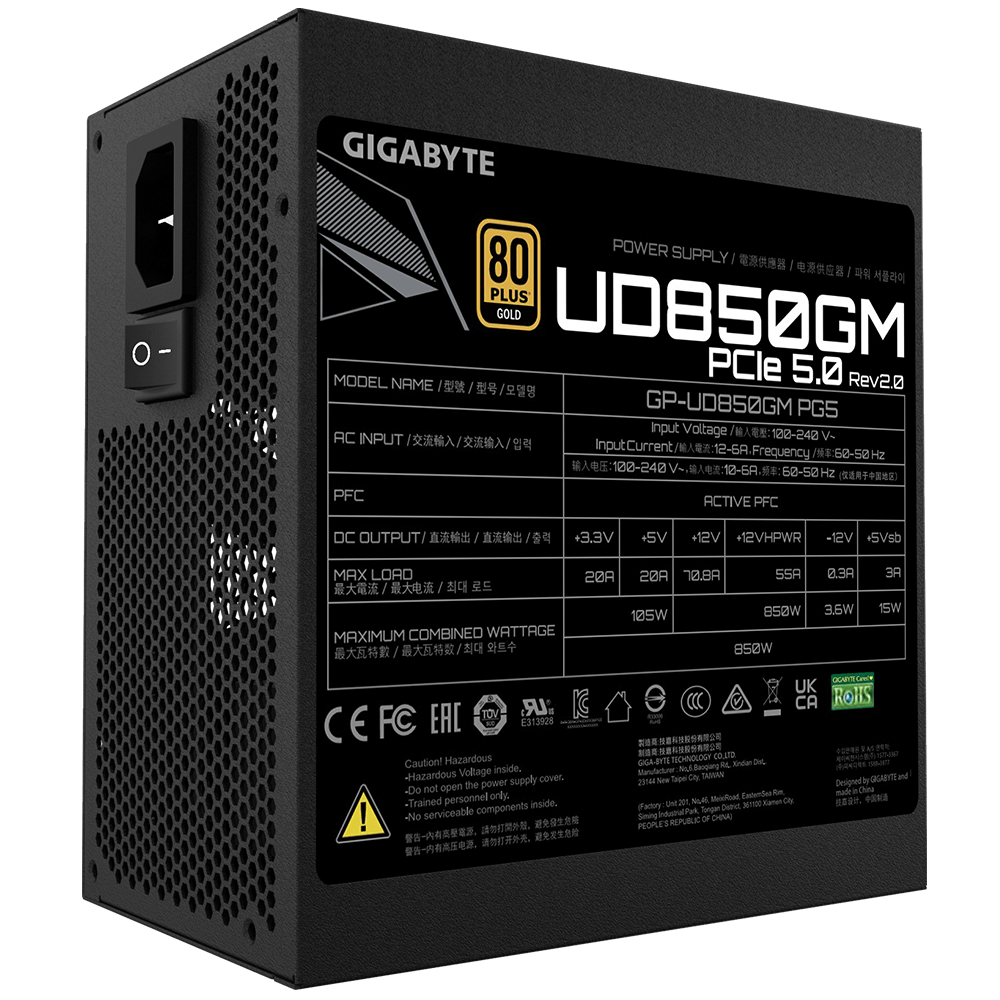

GP-UD850GM PG5

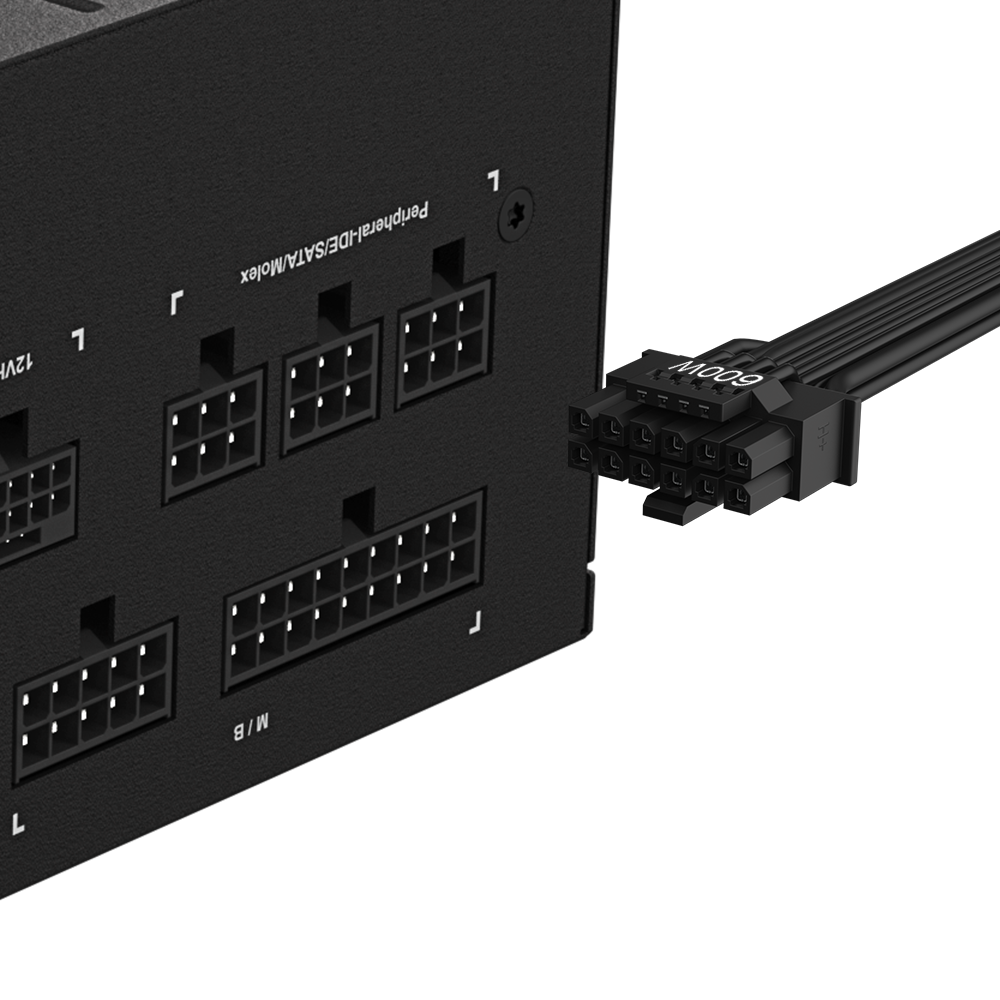

The UD850GM PCIE 5.0 has a 16-pin connector and comes with a high-quality native 16-pin cable that allows you to use the PSU with a PCIe Gen 5.0 graphics card. This cable can support up to 600 watts of power to the graphics card.

The UD850GM PG5 can sustain up to 3x GPU power excursion and 2x total power excursion. It is fully compatible with Intel PSDG (Power Supply Design Guide) ATX 3.0 standard which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards.

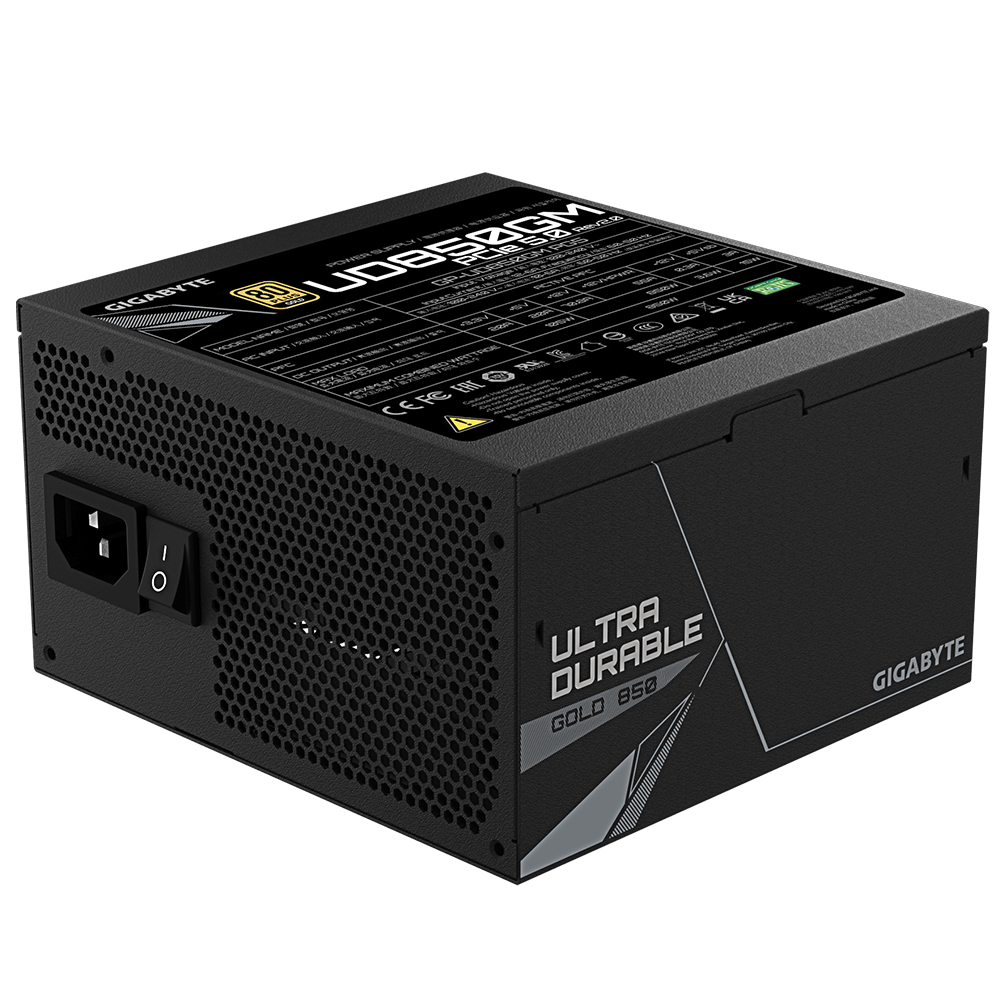

Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.

Compared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components.

Highlights

• Type: Intel Form Factor ATX 12V v3.0, PCIe 5.0
• Output Capacity: 850 W
• PFC: Active PFC (>0.9 typical)
• Input Voltage: 100-240 Vac (full range)
• Input Current: 12-6A
• Input Frequency: 60-50 Hz
• Power Good Signal: 100-150ms
• Hold Up Time: >16ms
• 80 PLUS: Gold
• Efficiency: 90% at typical load

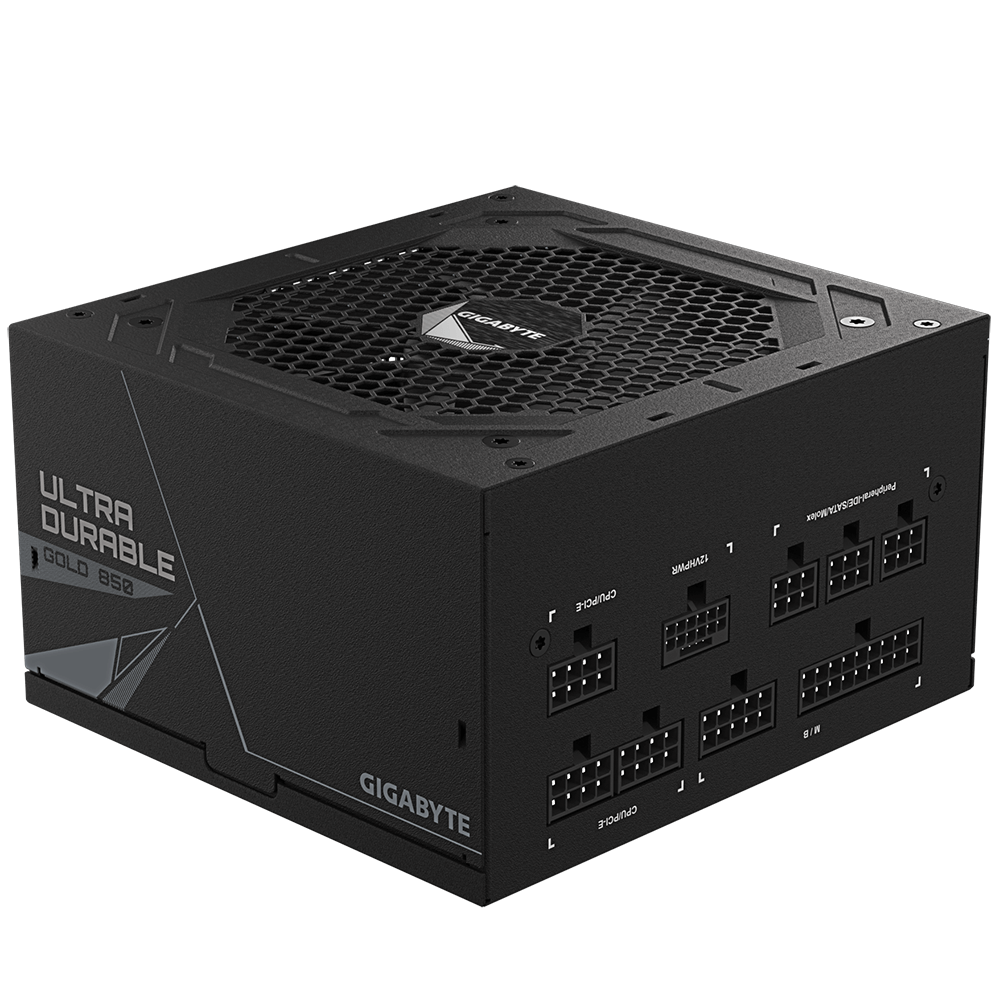

• Fan Type: 120mm Hydraulic Bearing(HYB)fan
• Protection: OVP/OPP/SCP/UVP/OCP/OTP
• Dimension: 150 x 140 x 86 mm
• MTBF: >100,000 hours
• Cable Type: Flat, All black

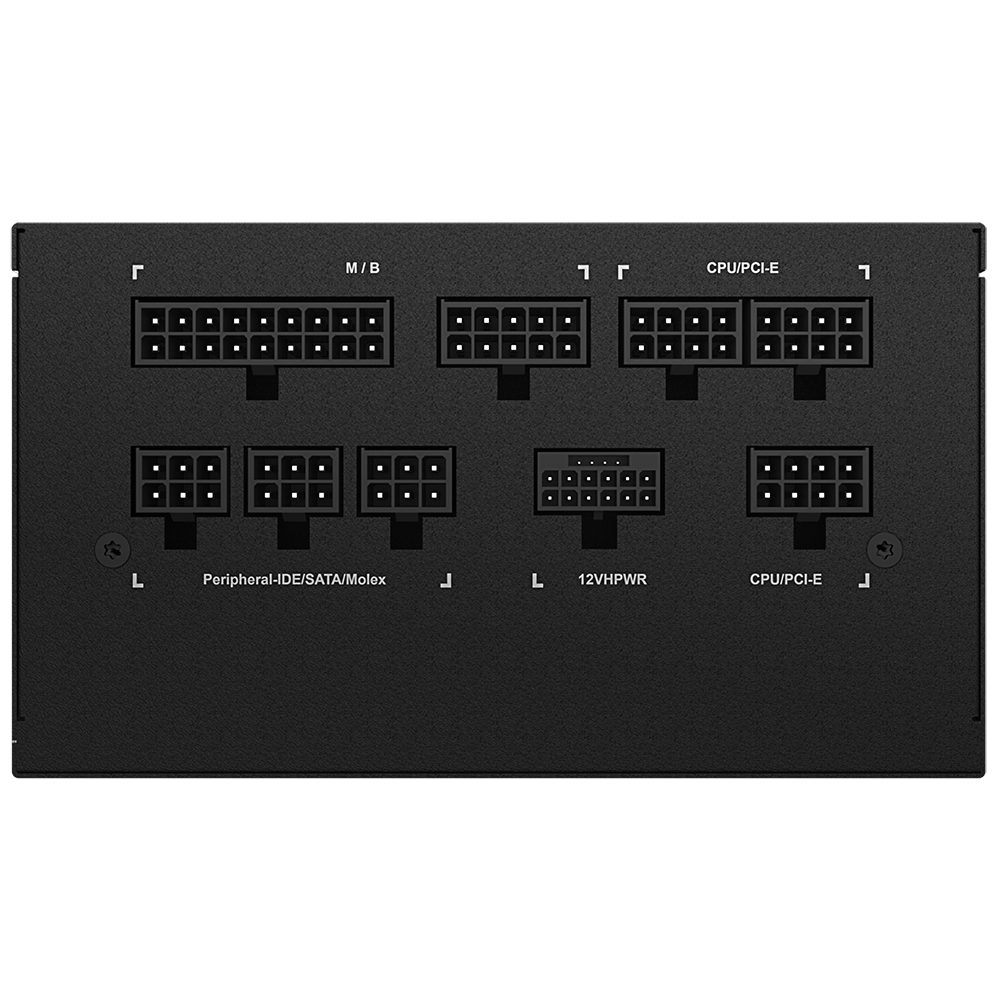

• Connectors: ATX/MB 20+4 Pin x 1, CPU/EPS 4+4 Pin x 2, PCI-e 12+4 Pin x 1, PCI-e 6+2 Pin x 4, SATA x 8, 4 Pin Peripheral x 3, 4-Pin floppy x 1
• Warranty: 5 Years
