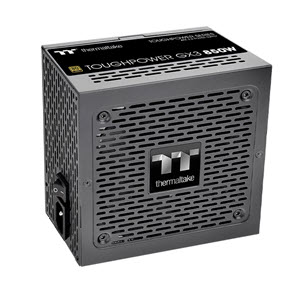

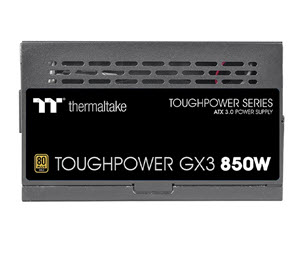

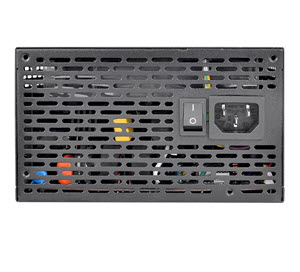

TOUGHPOWER GX3 Gold 850W

Toughpower GX3 series is 80 PLUS Gold certified non-modular PSU. The GX3 series is compatible with Intel's ATX 3.0 specifications. Designed with a native PCIe Gen 5.0 connector, it can power up next-gen technology with one new 12VHPWR cable. Featuring a 120mm Fluid Dynamic Bearing Fan to keep friction at really low levels. To protect the hardware, GX3 is built with industry grade protections. Non modular soft black cables come with sleeve cabling design to make cable installation an easy task while powering the system at an advantageous voltage.

Toughpower GX3 Gold series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.

Toughpower GX3 Gold series comes with a 16pin connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.

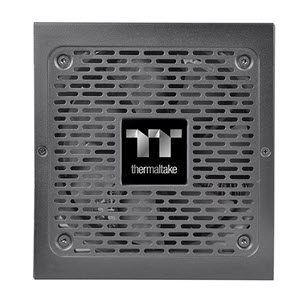

Featuring a 120mm Fluid Dynamic Bearing Fan to keep friction at really low levels even after prolonged usage while guaranteeing superior cooling performance and silent operation.non

Highlights

• WATTS: 850 W
• DIMENSION ( W / H / D ): 150mm(W) x 86mm(H) x 140mm(D)
• POWER GOOD SIGNAL: 100-150 msec
• HOLD UP TIME: > 17msec
• INPUT CURRENT: 15A-8A
• INPUT FREQUENCY RANGE: 50Hz/60Hz
• INPUT VOLTAGE: 100-240V~
• COOLING SYSTEM: 12cm FDB Fan
• EFFICIENCY: Meet 80 PLUS® Gold at 115Vac input.
• MTBF: 100,000 hrs minimum
• Connectors: Main Power(24Pin) x 1, ATX 12V(4+4Pin) x 2, PCIe(6+2Pin) x 4, PCIe(12+4Pin)450W x 1, SATA x 6, Peripheral(4Pin) x 3
• Protection: OVP/UVP/OCP/OPP/OTP/SCP
• Warranty: 5 Years
