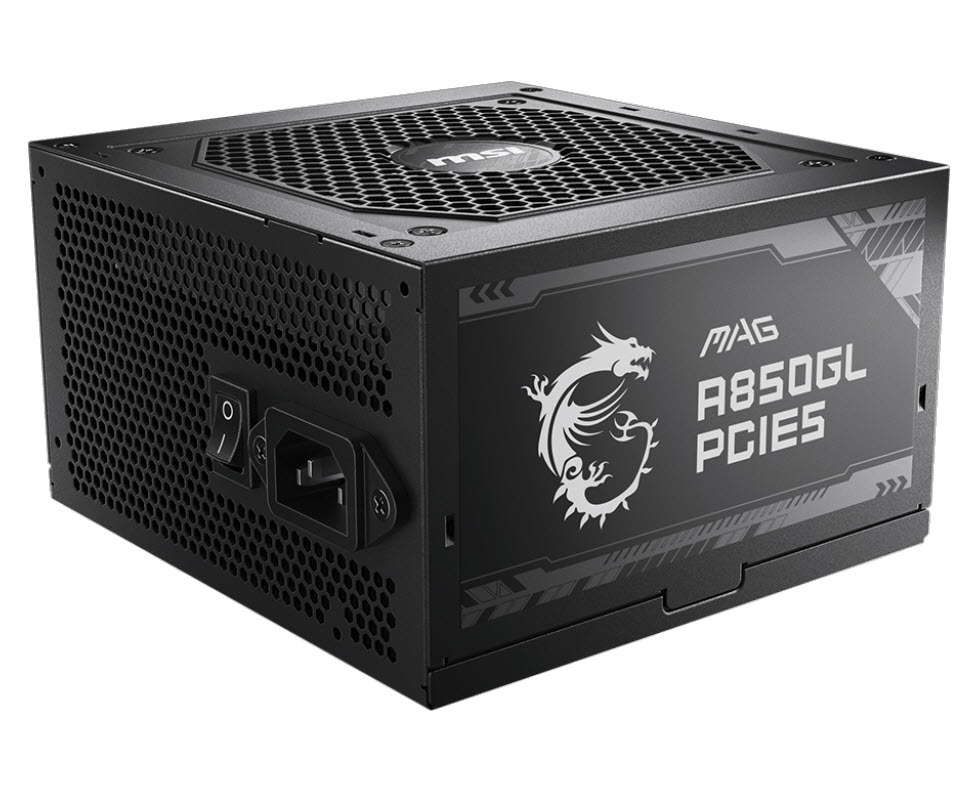

MAG A850GL PCIE5

It has an output port that is compliant with PCIe 5.0 and Intel PSDG(Power Supply Design Guide) ATX 3.0, also the MAG A750GL PCIE5 power supply can handle up to 2x total power excursion and 3x GPU power excursion.

The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.

Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.

Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.

Highlights

• ATX 3.0
• PCIe 5.0
• Power Watt: 850 W
• Efficiency Rating: 80 PLUS Gold (up to 90%)
• Modular: Fully Modular
• Cables: Flat Cables

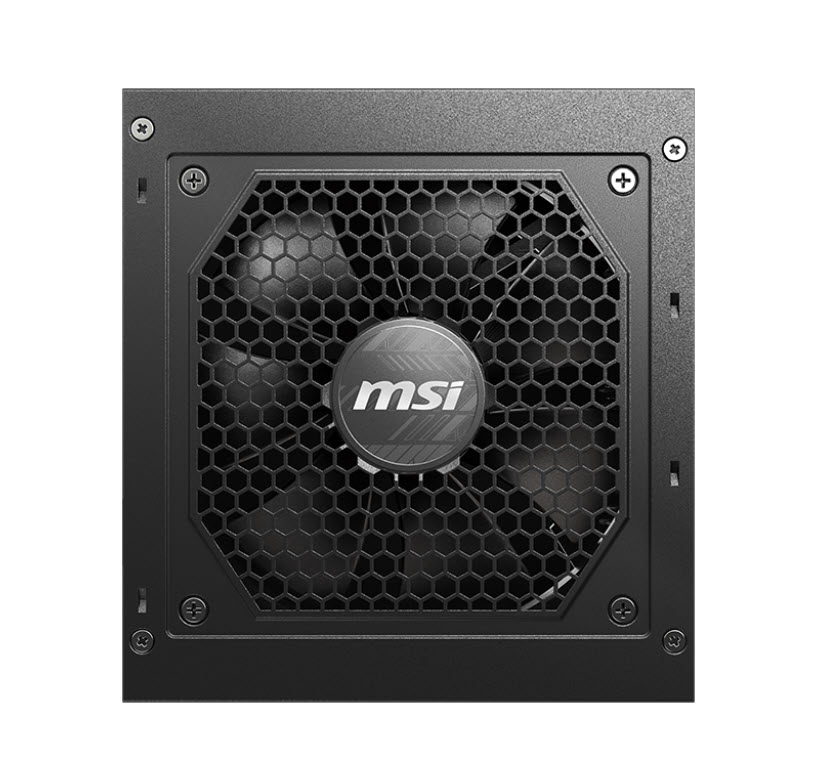

• Fan Size: 120 mm
• Fan Bearing: Fluid Dynamic Bearing
• Dimensions (DxWxH): 140 x 150 x 86 mm
• PFC Type: Active PFC
• Input Voltage Range: 100~240 VAC
• Power Excursion: 1700W (*up to 200% of the PSU's rated power for 100µs)
• Input Frequency Range: 47-63Hz
• Protection: OCP / OVP / OPP / OTP / SCP / UVP

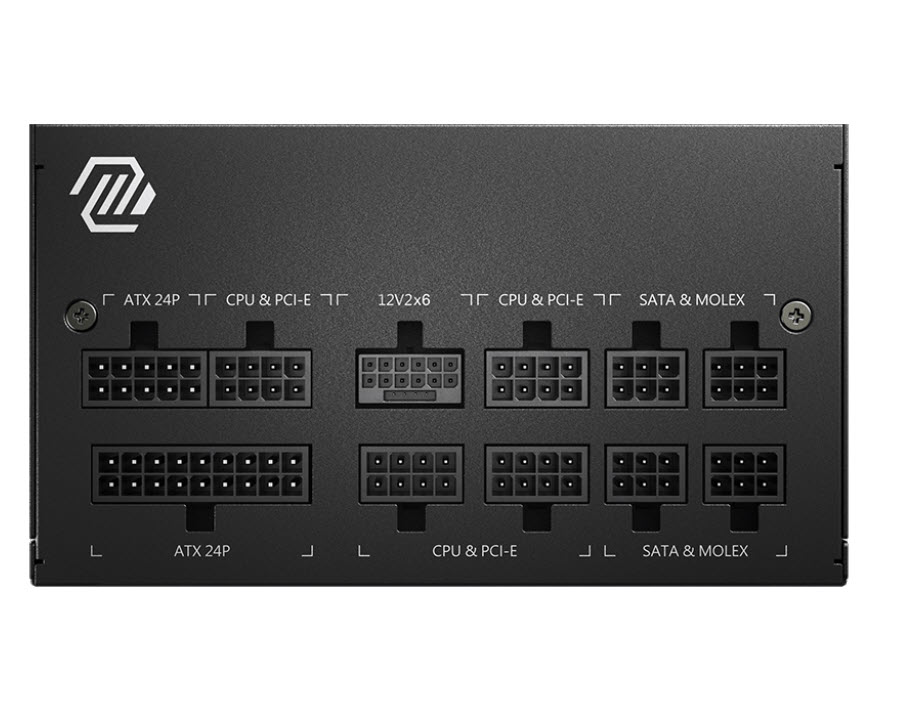

• Connectors: ATX (24 pin) x 1, EPS (4+4 pin) x 2, PCI-E 5.0 (16 pin) x 1 (600W), PCI-E (6+2 pin) x 4, SATA (15 pin) x 8, MOLEX (4 pin) x 4,
• FDD (4 pin) x 1
