Asus ROG-THOR-1200P2-GAMING PSU

Back with a vengeance, the second iteration of the ROG Thor 1200W Platinum wields cooling and component upgrades that make it the quietest PSU in its class. And to compliment the latest high-end ROG motherboards and bring additional flair to beastly rigs, we've added a mirrored side panel that neatly frames the OLED display.

ROG heatsinks have 2x more volume than traditional designs, facilitating lower temperatures, longer component lifespan, and extended 0dB operation.

The ROG Thor 1200W Platinum II utilizes low-ESR Japanese capacitors to ensure efficient operation. These upgrades enable an 80 PLUS Platinum certification, which guarantees 89% efficiency at 100% load and 92% efficiency at 50% load. The increased efficiency results in less heat, reduces fan noise, and increases reliability.

The built-in OLED panel makes it easy to tune your system for best performance and efficiency.

Highlights

• Dimensions: 190 x 150 x 86 mm
• Efficiency: 80Plus Platinum
• Protection Features: OPP/OVP/UVP/SCP/OCP/OTP
• AC Input Range: 100-240Vac
• Thermal Features: ROG Thermal Solution
• DC Output Voltage: +3.3V, +5V, +12V, -12V, +5Vsb
• Maximum Load: 25A, 25A, 100A, 0.3A, 3A
• Combined Load: 125W, 125W, 1200W, 3.6W, 15W
• Total Output: 1200 W

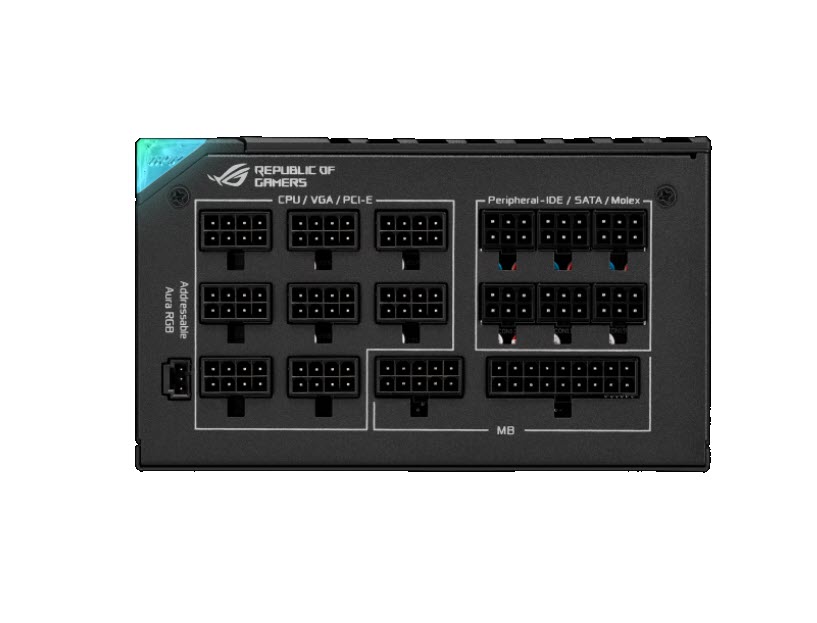

• Connectors: MB 24/20-pin x 1 - CPU 4+4-pin x 2 - PCI-E 16-pin x 1 - PCI-E 6+2-pin x 8 - SATA x 12 - PERIPHERAL x 6
• AURA SYNC: ARGB
• 0dB Fan Button: Yes
• Cybenetics Noise Level Certification: A++
• Package Contents: Power Cord x 1 - Motherboard Power Cable x 1 (610mm) - CPU Cable x2 (650mm) - PCIE Cable 16-pin x 1 (675mm) - PCIE 1-to-1 Cable x 4 (675mm) - PCIE 1-to-2 Cable x 2 (675+75mm) - SATA 1-to-4 Cable x 3 (400+120+120+120mm) - Peripheral 1-to-3 Cable x 2 (450+120+120mm) - Addressable RGB Cable x 1 (800mm) - ROG sticker x 1 - ROG cable tie x 6 - Sleeved Cable Combs (6-pin) x 4 - Sleeved Cable Combs (8-pin) x 10 - Sleeved Cable Combs (24-pin) x 2 - Chassis Screws Package x 1 - Cable Tie x 12 - User Manual x 1
• OLED Display: Monitors power draw in real time
• Warranty: 10 Years
