Toughpower PF3 1200W Platinum - TT Premium Edition - ATX 3.0, 80+Platinum, Fully Modular, PCIe Gen 5
Product Type:
Power Supplies
Type Detail:
ATX
Manufacturer:
Thermaltake
Manufacturer #:
PS-TPD-1200FNFAPU-3
Part Status:
Special Order Only
Milwaukee PC SKU:
302433
Price:
$304.99

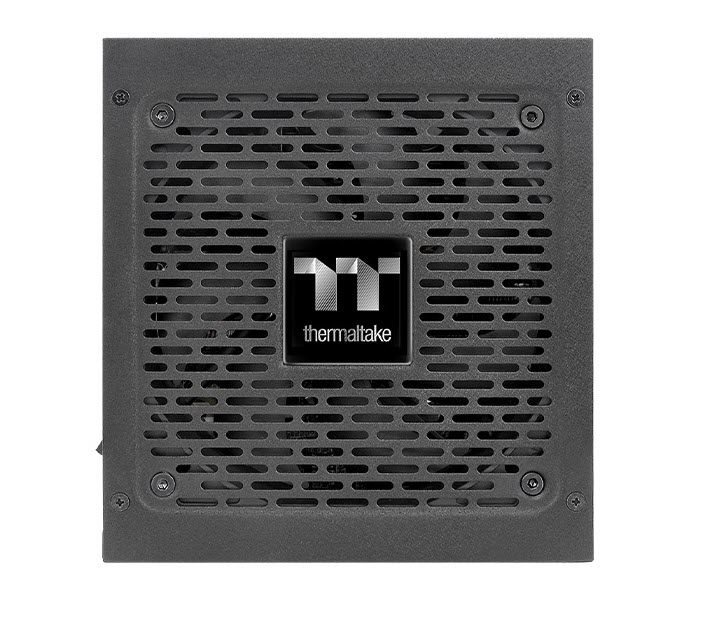

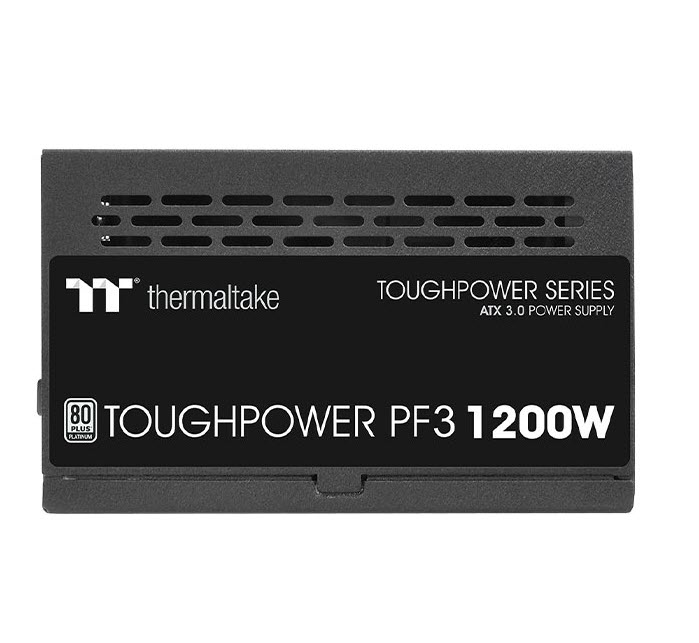

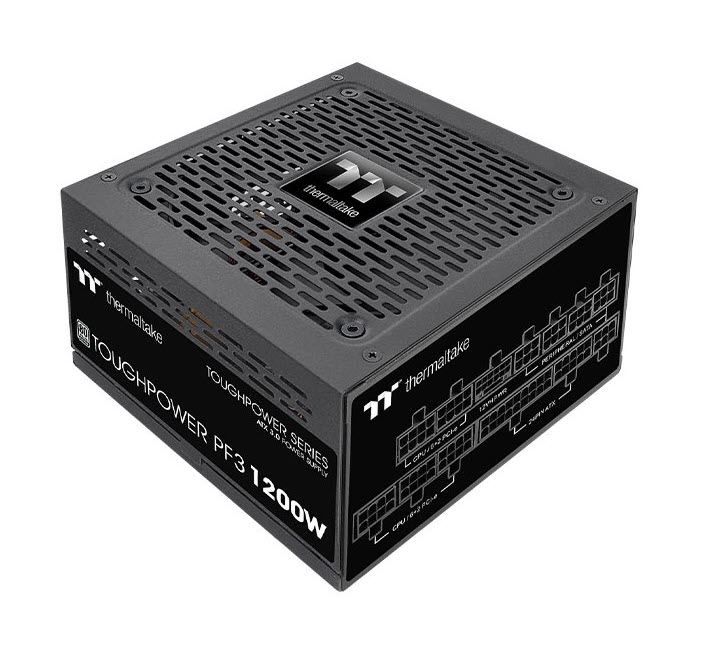

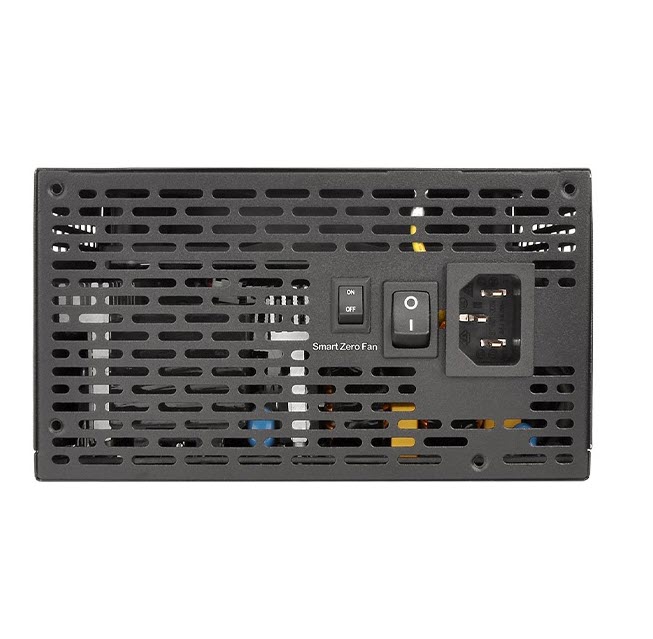

Toughpower PF3 1200W Platinum

To fully support next-gen hardware, Toughpower PF3 Platinum Series (750W/850W/1050W/1200W) is designed to meet ATX 3.0 standards, including a PCIe Gen 5.0 12VHPWR connector. The PF3 Platinum series delivers 80 PLUS Platinum efficiency, it also offers the highest stability, durability, and reliability.

Toughpower PF3 Platinum series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards.

Toughpower PF3 series comes with a 16pin connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs. The wattage marked on the 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of the PF3 1050W can deliver up to 600W for PCIe 5.0 graphics cards.

Highlights

  • WATTS: 1200 W
  • DIMENSION ( W / H / D ): 140mm(W)x86mm(H)x150mm(D)
  • PFC (POWER FACTOR CORRECTION): Active PFC
  • POWER GOOD SIGNAL: 100-250 msec
  • HOLD UP TIME: > 17msec
  • INPUT CURRENT: 15A
  • INPUT FREQUENCY RANGE: 50 - 60Hz
  • INPUT VOLTAGE: 100 - 240Vac
  • COOLING SYSTEM: 12cm FDB Fan
  • EFFICIENCY: Meet 80 PLUS® Platinum at 115Vac input.
  • MTBF: 100,000 hrs minimum

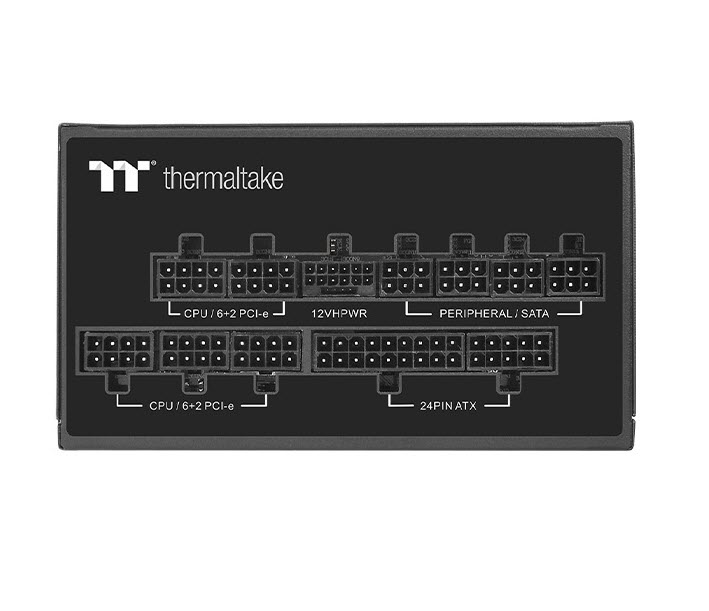

  • Connectors: ATX(24Pin)x 1 - ATX 12V(4+4Pin)x2 - PCIe(6+2Pin)x5 - PCIe 600W(12+4Pin)x1 - SATA x5 - Peripheral x8 - FDD Adapter x1
  • Warranty: 10 Years
