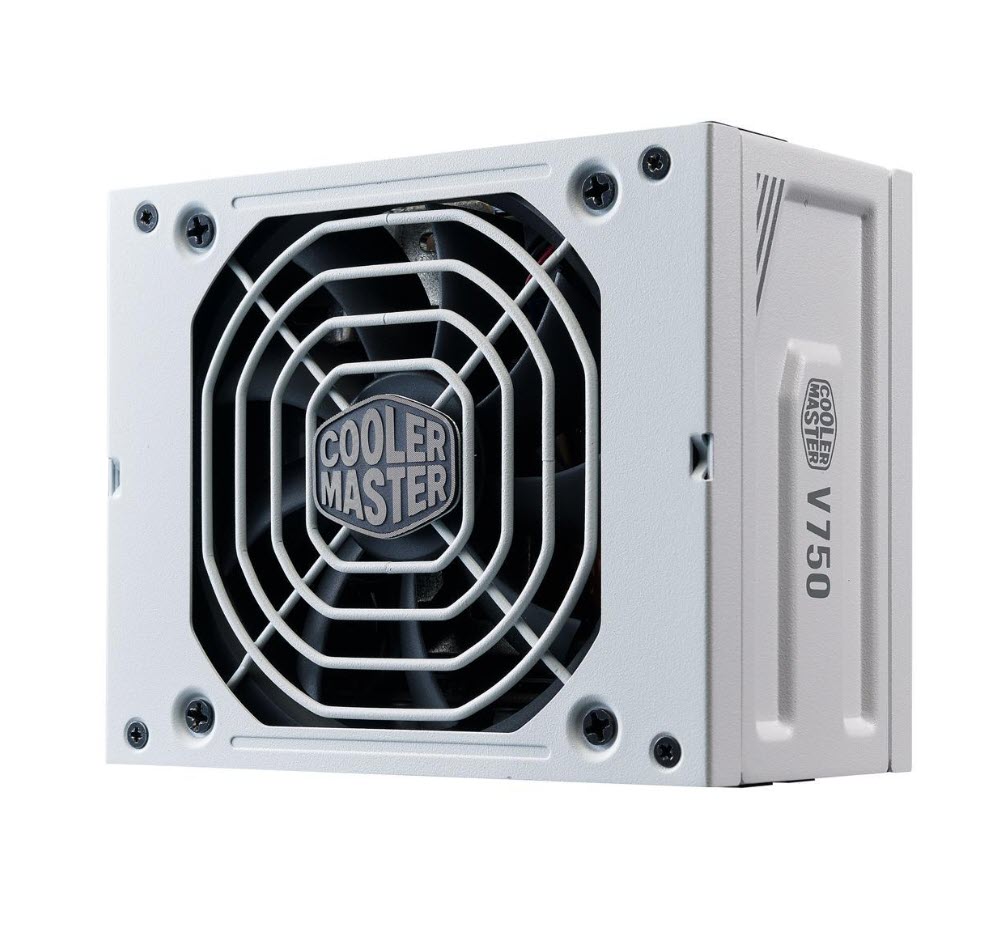

Cooler Master V750 SFX Gold
The V SFX Gold - White Edition is Cooler Master’s next entry into SFX power supply units. After much demand, we have finally produced a PSU specifically made to meet the needs of mini-ITX system builders that want a full white build.
This unit delivers top-shelf performance in 750 and 850 watt levels. It offers an 80 PLUS Gold efficiency rating, full-modular white cables, a 92mm FDB fan, 16AWG PCIe high efficiency cables, 100% Japanese capacitors, and a 10 year warranty.
And with the included SFX-to-ATX bracket, this unit is compatible with cases ranging from mini-ITX all the way up to E-ATX systems.
Highlights
- Form Factor: SFX
- ATX Version SFX 12V Ver. 3.42
- PFC: Active PFC
- Input Voltage: 100-240V
- Input Current: 10-5A
- Input Frequency: 50-60Hz
- Dimensions (L x W x H): 100 x 125 x 63.5 mm
- Fan Size: 92mm
- Fan Bearing: FDB
- Efficiency: 90% @ Typical Load
- 80 PLUS Rating: 80 PLUS Gold
- Power Good Signal: 100 - 500 ms
- Hold Up Time: 16ms
- MTBF: >100,000 Hours
- Protections: OVP, OPP, SCP, OCP, UVP, OTP, Surge and Inrush Protection
- Regulatory: TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, KCC, CB

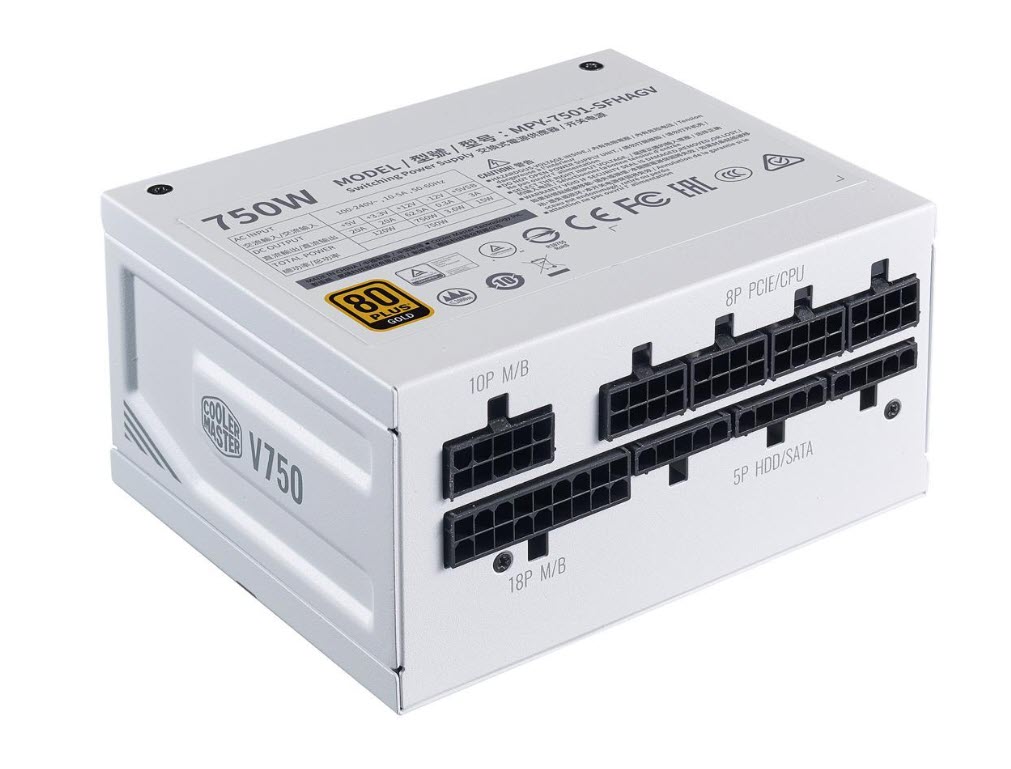

- ATX 24 Pin Connectors: 1
- EPS 4+4 Pin Connectors: 1
- EPS 8 Pin Connector: 1
- SATA Connectors: 8
- Peripheral 4 Pin Connectors: 4
- PCI-e 6+2 Pin Connectors: 4
- Series: V SFX Series
- 80 Plus: Gold
- Modular: Full Modular
- Wattage: Above 750W
- Warranty: 10 Years
