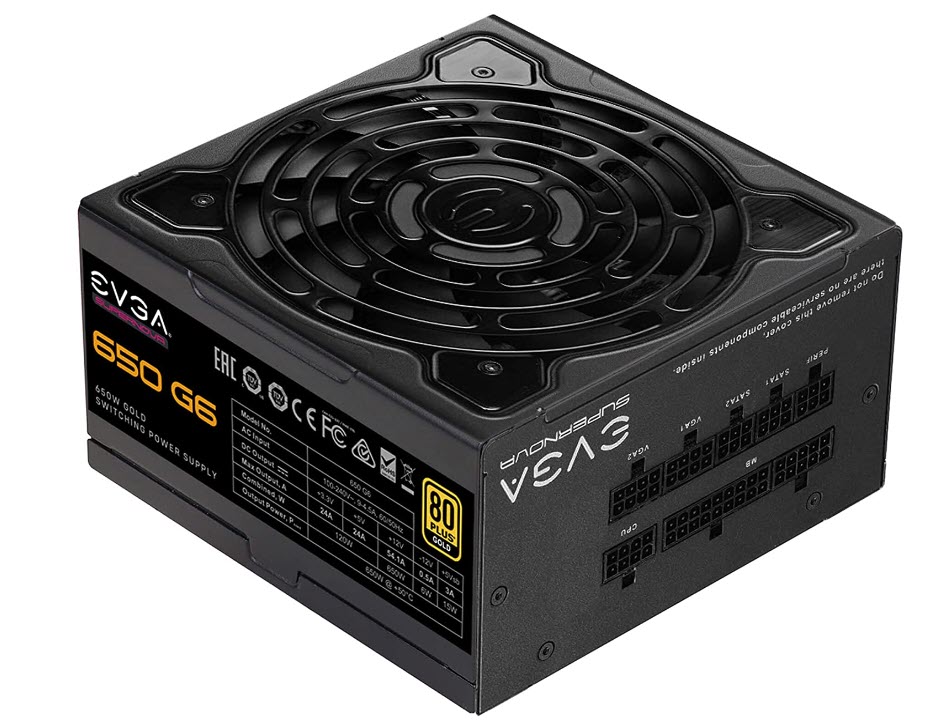

EVGA SuperNOVA 650 G6 - 650W ATX, 80Plus Gold, Fully Modular, 140mm Fan

The EVGA SuperNOVA G6 power supplies feature a new platform design, using new materials and better layout placement to achieve greater performance with extremely low ripple and noise in an even smaller chassis. With a full-bridge, LLC Resonant Rectification, and DC-DC design, the SuperNOVA G6 provides rock-solid stability, relentless efficiency, and extremely tight voltage regulation.

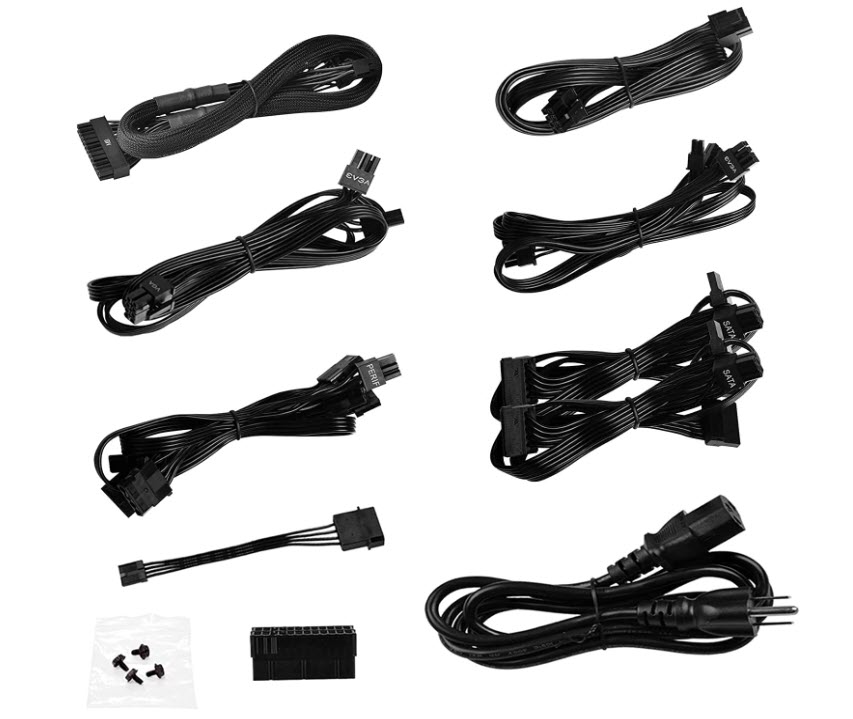

Cable Length

• ATX Cable: 1x 600mm (m)
• EPS Cable: 1x 700mm (m)
• PCIe Cable: 1x 700mm, 1x 700mm, 820mm (m)
• SATA Cable: 2x 550mm, 650mm, 750mm (m)
• Four-Pin Peripheral Cable: 1x 550mm, 650mm, 750mm, 850mm (m)
• Floppy Adapter: 1x 100mm
• AC Power: 1x 1500mm (m)
• Modular Cable Type: Full

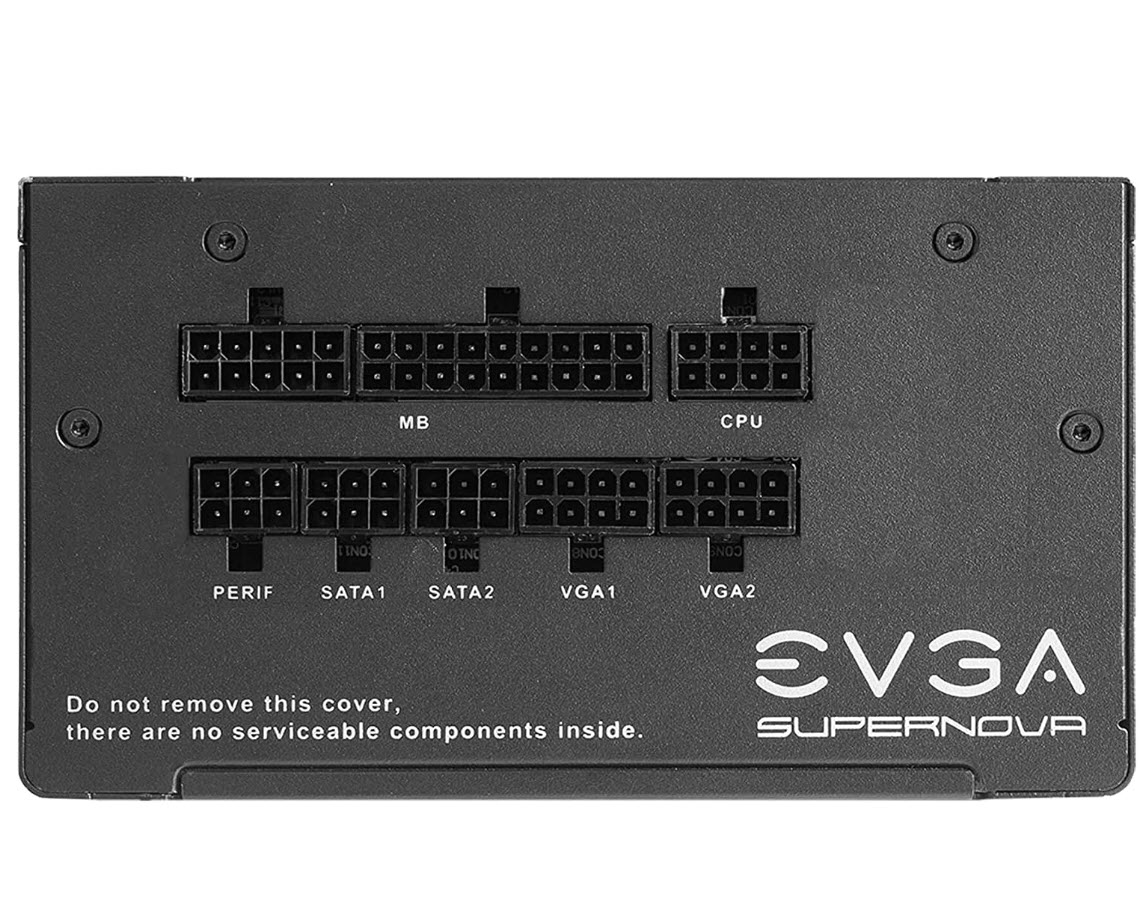

Connector Quantity

• 24 Pin ATX: 1x 24pin
• EPS (CPU): 1x 8pin (4+4)
• PCIe: 3x 8pin (6+2)
• SATA: 6x
• Four-Pin Peripheral: 4x
• Floppy: 1x

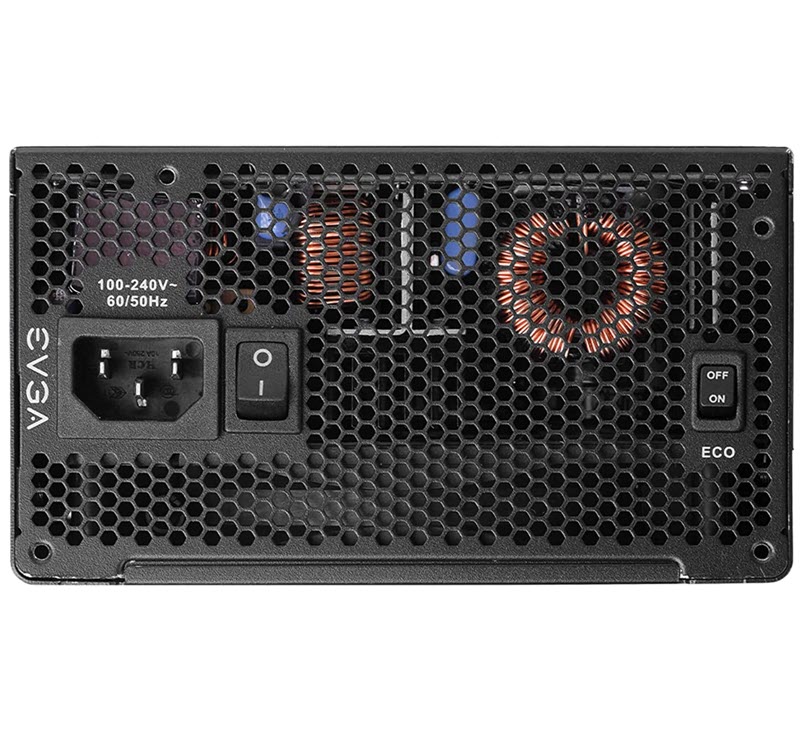

Input

• Input Voltage: 100-240V~
• AC Input: 9-4.5A
• Input Frequency Range: 60/50Hz
• Efficiency: 91% (115VAC) / 92% (220VAC~240VAC) or Higher Typical

Output

• Rail: +3.3V, +5V, +12V, -12V, +5Vsb
• Max output: 24A, 24A, 54.1A, 0.5A, 3A, 120W, 650W, 6W, 15W
• Total: 650W

Additional Details

• Japanese Capacitors: 100%
• ECO Mode: Yes
• MTBF: 100,000 Hours
• Fan Size / Bearing: 135mm Fluid Dynamic Bearing
• Warranty: 10 Years Limited
