EVGA SuperNOVA 750 G6 - 80 Plus Gold 750W, Fully Modular, 140mm fan
Product Type:
Power Supplies
Type Detail:
ATX
Manufacturer:
eVGA
Manufacturer #:
220-G6-0750-X1
Part Status:
Special Order Only
Milwaukee PC SKU:
302254
Price:
$149.99

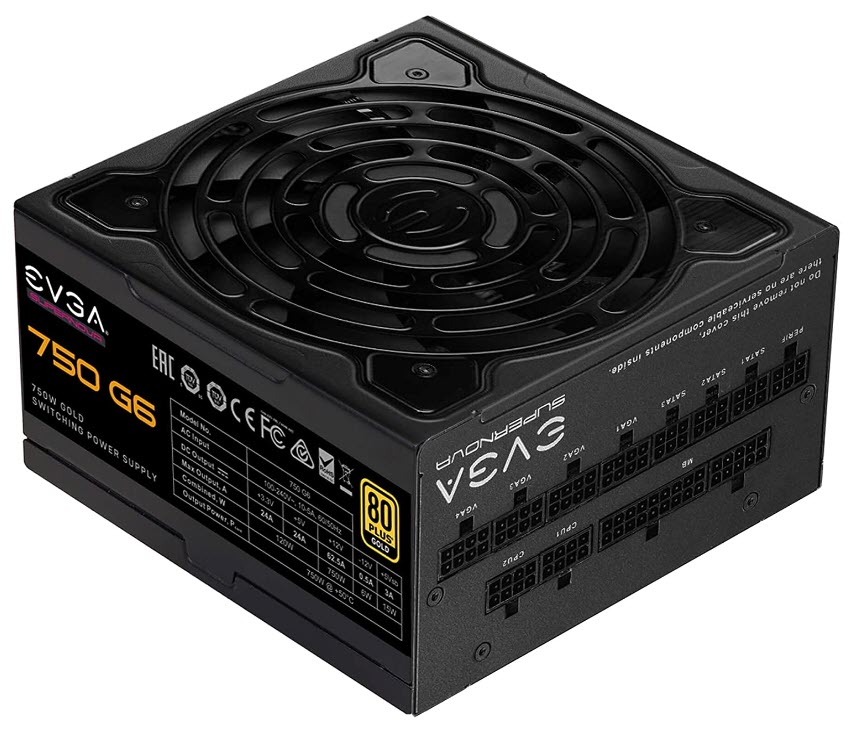

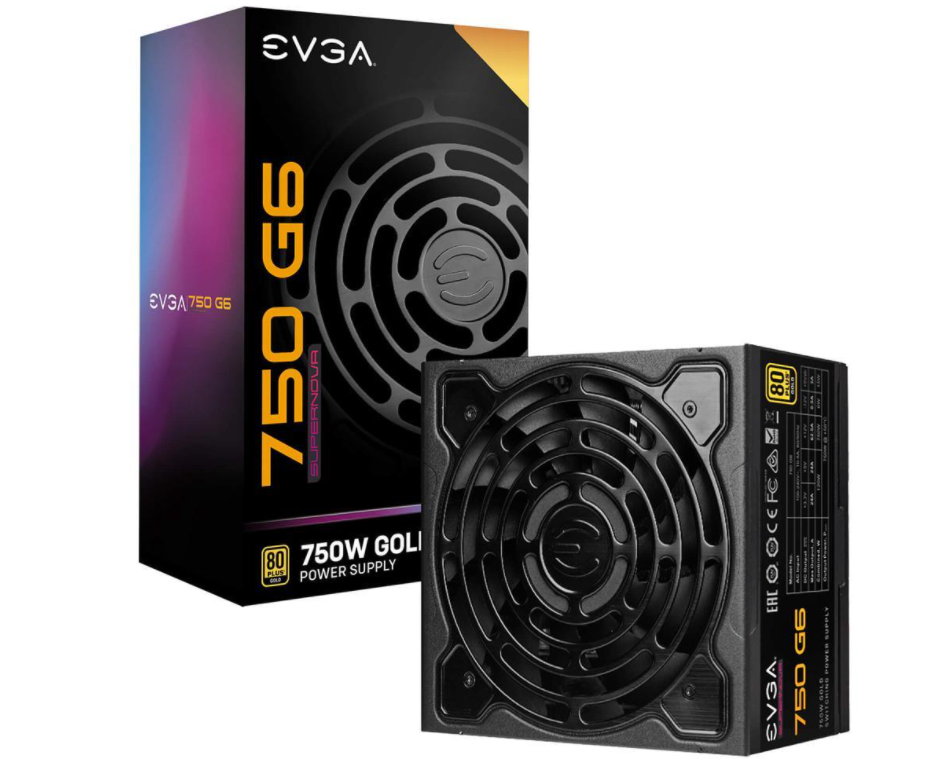

EVGA SuperNOVA 750 G6

The EVGA SuperNOVA G6 power supplies feature a new platform design, using new materials and better layout placement to achieve greater performance with extremely low ripple and noise in an even smaller chassis.

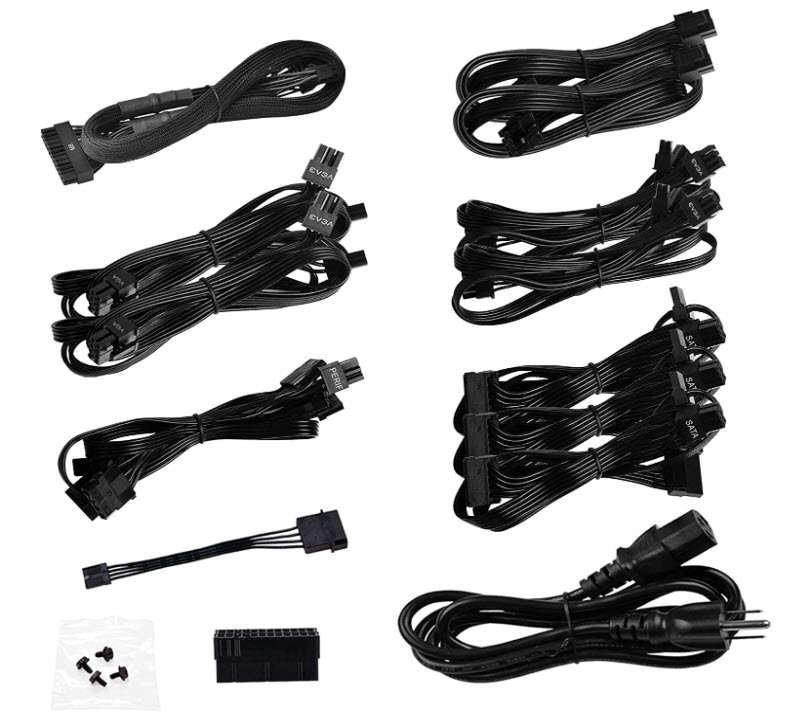

CABLE LENGTH

  • ATX Cable: 1x 600mm (m)
  • EPS Cable: 2x 700mm (m)
  • PCIe Cable: 2x 700mm, 2x 700mm, 820mm (m)
  • SATA Cable: 3x 550mm, 650mm, 750mm (m)
  • Four-Pin Peripheral Cable: 1x 550mm, 650mm, 750mm, 850mm (m)
  • Floppy Adapter: 1x 100mm
  • AC Power: 1x 1500mm (m)
  • Modular Cable Type: Full

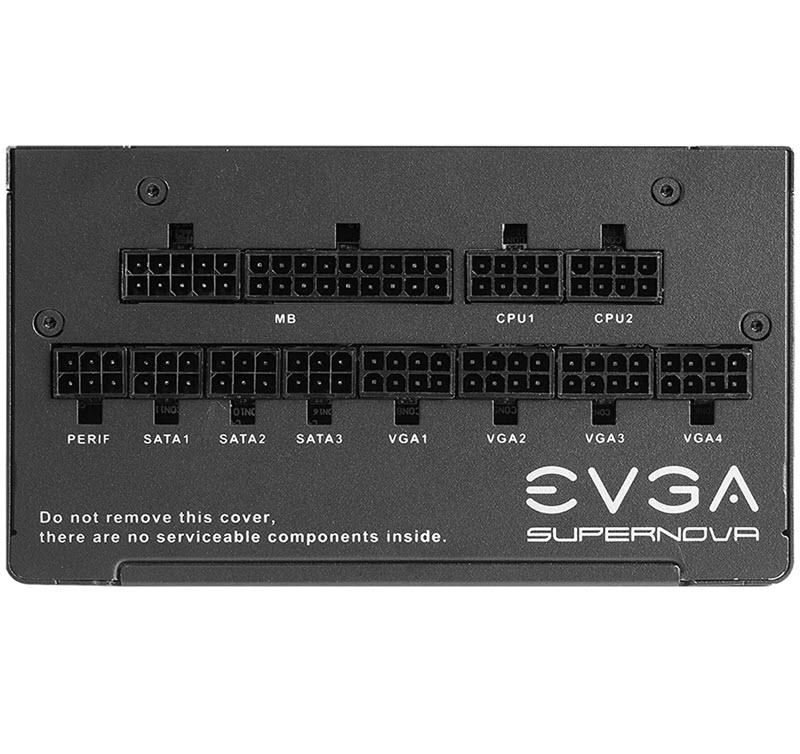

CONNECTOR QUANTITY

  • 24 Pin ATX: 1x 24pin
  • EPS (CPU): 2x 8pin (4+4)
  • PCIe: 6x 8pin (6+2)
  • SATA: 9x
  • Four-Pin Peripheral: 4x
  • Floppy: 1x

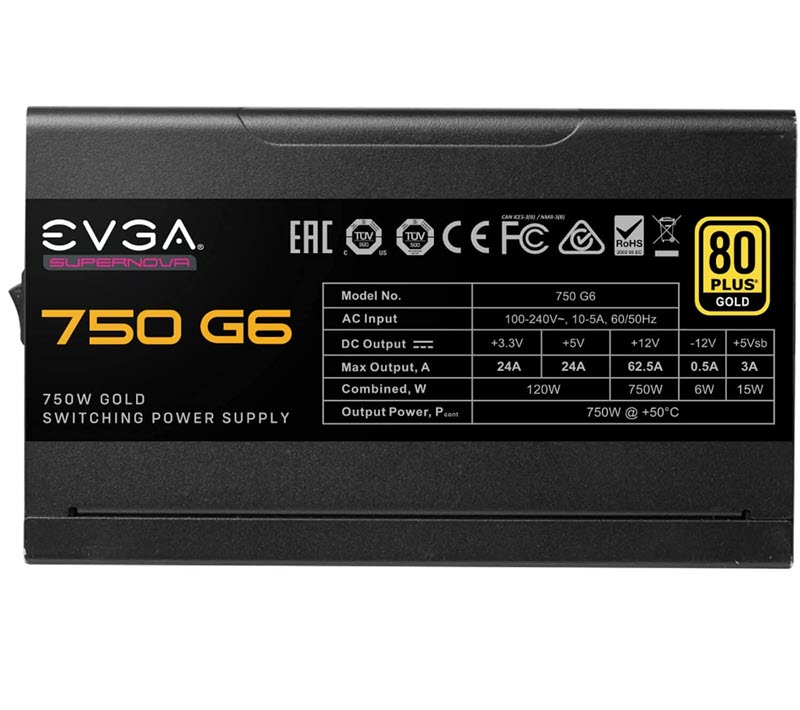

POWER SPECS

  • AC Input: 100-240V~, 10-5A, 60/50Hz
  • Rail: +3.3V, +5V, +12V, +5Vsb, -12V
  • Max Output: 24A, 24A, 62.5A, 3A, 0.5A 120W, 750W, 15W 6W
  • Total: 750W

ADDITIONAL DETAILS

  • Japanese Capacitors: 100%
  • ECO Mode: Yes
  • MTBF: 100,000 Hours
  • Fan Size / Bearing: 135mm Fluid Dynamic Bearing
  • This product comes with a 10 year limited warranty with registration.
