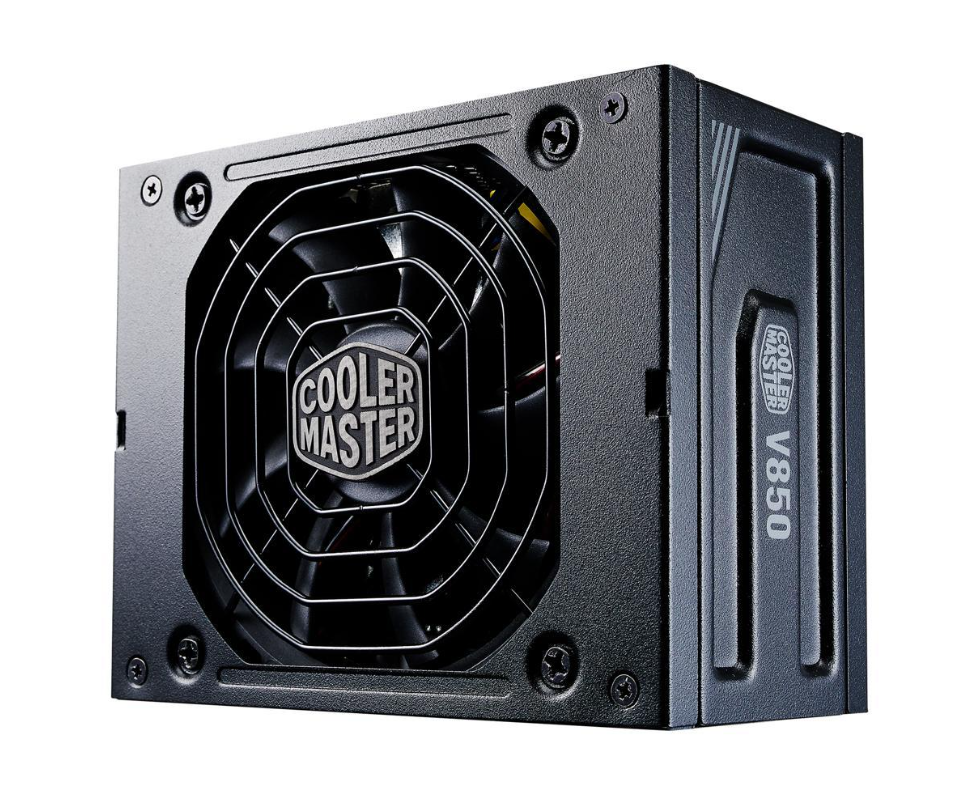

Cooler Master V850 SFX Gold
Cooler Master MPY8501SFHAGVUS V850 SFX Gold Full Modular - The V SFX Gold delivers the high-quality experience you ve come to expect from the V series in SFX form factor. Enjoy the same great features with 80 Plus Gold efficiency, full-modular cabling, an FDB fan, 16AWG PCIe high-efficiency cables, and a 10 year warranty.
But now you can have it in a mini-ITX case. With the V SFX Gold, the V series is now viable for cases ranging from mini-ITX to E-ATX systems. And with the included bracket this unit is compatible with all of them. SFX Form Factor: High-quality PSU that's compatible with all SFX cases and suitable for mini-ITX system builds. SFX-to-ATX Bracket: With the included bracket, users can install the V SFX Gold securely to an ATX case. 80 PLUS Gold Certified: This certification guarantees a typical efficiency of 90% under normal operating conditions. 16 AWG PCI-e Cables: The thicker 16 AWG PCI-e cables allow for higher currents, thereby improving both efficiency and safety.
Full-Modular Cabling: Modular cables reduce clutter, increase airflow, and improve overall efficiency and thermal performance. Quiet FDB Fan: The 92mm FDB fan delivers effective, quiet, and efficient cooling. Semi-fanless up to 15% load. 10 Year Warranty: This unit comes with a standard limited manufacturing warranty of 10 years from the date of purchase.
Highlights
- ATX Version: SFX 12V Ver. 3.42
- Series: V SFX Series
- PFC: Active PFC
- Input Voltage: 100-240V
- Input Current: 12-6A
- Input Frequency: 50-60Hz
- Dimensions (L x W x H): 100 x 125 x 63.5 mm
- Fan Size: 92mm
- Fan Bearing: FDB
- Efficiency: 90% @ Typical Load
- 80 PLUS Rating: 80 PLUS Gold
- ErP 2014 Lot 3: Yes
- Operating Temperature: 0-50°C
- Power Good Signal: 100 - 500 ms
- Hold Up Time: 16ms
- MTBF: >100,000 Hours
- Protections: OVP, OPP, SCP, OCP, UVP, OTP, Surge and Inrush Protection
- Regulatory: TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, KCC, CB

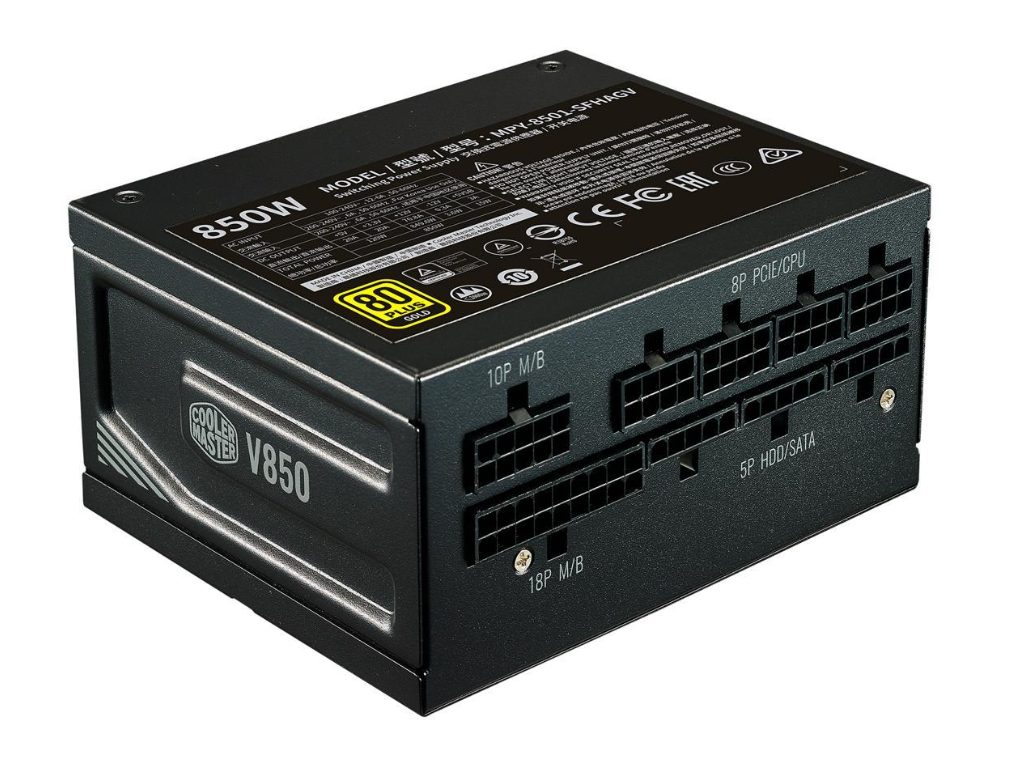

- ATX 24 Pin Connectors: 1
- EPS 4+4 Pin Connectors: 1
- EPS 8 Pin Connector: 1
- SATA Connectors: 8
- Peripheral 4 Pin Connectors: 4
- PCI-e 6+2 Pin Connectors: 4
- 80 Plus: Gold
- Modular: Full Modular
- Wattage: Above 750W
- Warranty: 10 Years
