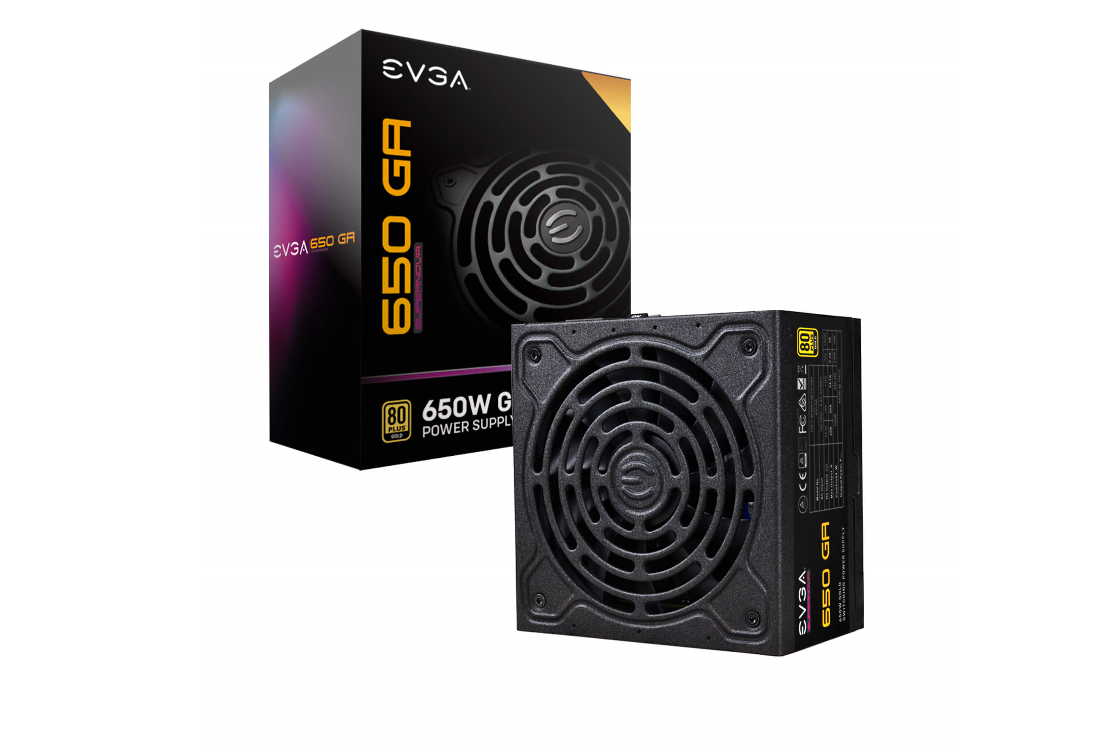

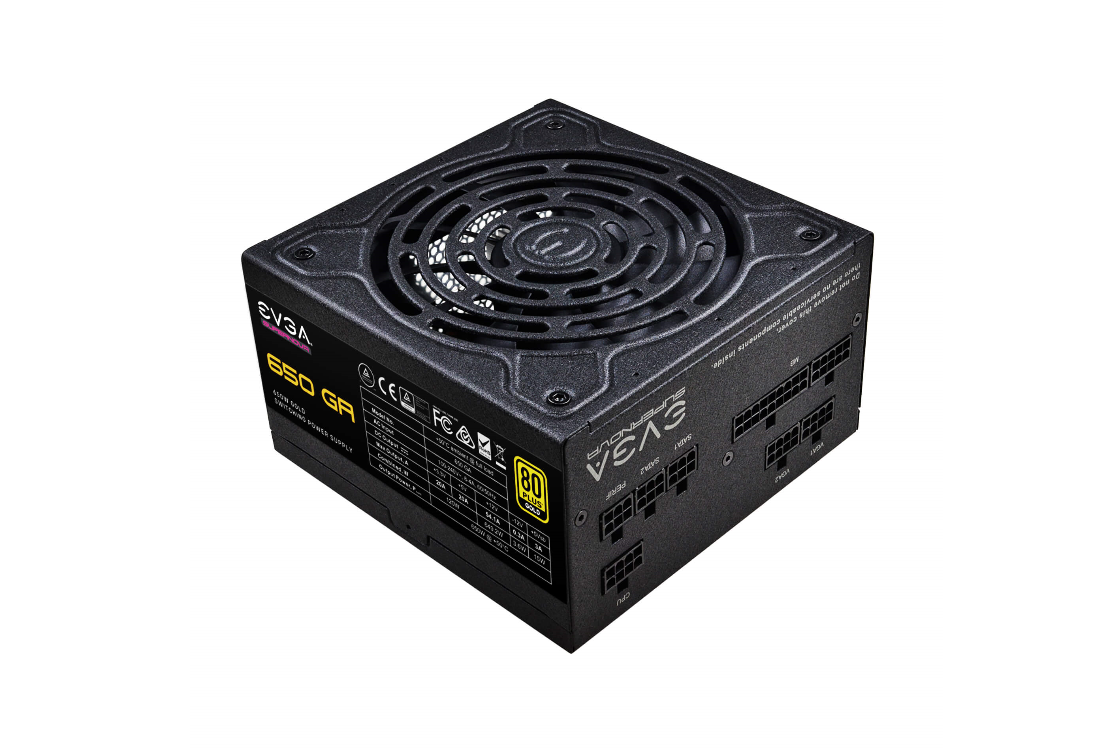

EVGA SuperNOVA 650 GA, 80 Plus Gold 650W, Fully Modular
Introducing the EVGA SuperNOVA GA Series of power supplies - the newest addition to the outstanding line of EVGA Power Supplies. Featuring 80 Plus Gold certification, 100% Japanese capacitors, a durable double-ball bearing fan, and a fully modular design, this power supply is built for long-term usage and durability. Building upon EVGA's line of 80 Plus Gold rated power supplies, the EVGA GA Series combines all these features at a great price.
Cable Length
- ATX Cable: 1x 600mm (m)
- EPS Cable: 1x 700mm (m)
- PCIe Cable: 1x 700mm, 1x 700mm, 850mm (m)
- SATA Cable: 2x 550mm, 650mm, 750mm (m)
- Four-Pin Peripheral Cable: 1x 550mm, 650mm, 750mm, 850mm (m)
- Floppy Adapter: 1x Molex to FDD Adapter
- AC Power: 1x 1500mm (m)
- Modular Cable Type: Full

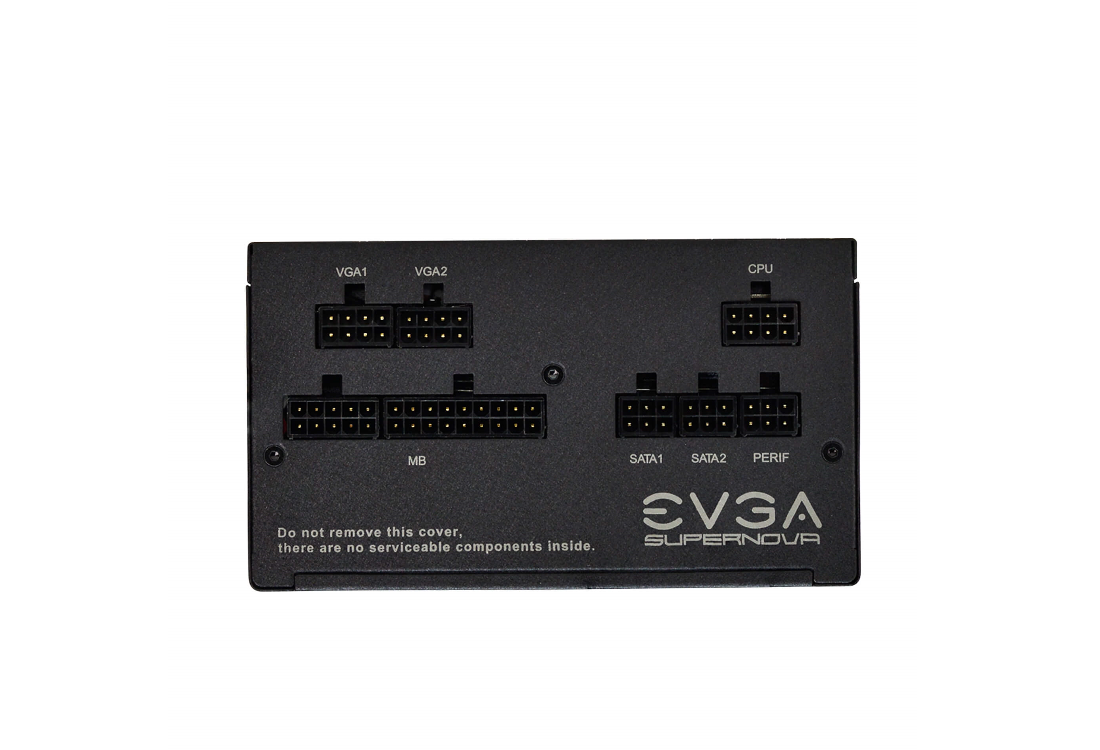

Connector Quantity
- 24 Pin ATX: 1x
- EPS (CPU): 1x 8pin(4+4)
- PCIe: 3x 8pin(6+2)
- SATA: 6x
- Four-Pin Peripheral: 4x
- Floppy: 1x
Input
- Input Voltage: 100-240 VAC
- AC Input: 8-4A
- Input Frequency Range: 50/60 Hz
- Efficiency: 90% or Higher Typical
Highlights
- Rail:
+3.3V,
+5V,
+12V,
-12V,
+5Vsb
- Max output:
20A,
20A,
54.1A,
0.3A,
3.0A,
649.2W,
120W,
649.2W,
3.6W,
15W
- Total: 650W@50°C
- Japanese Capacitors: 100%
- ECO Mode: Yes
- MTBF: 100,000 Hours
- Fan Size / Bearing: 135mm Double Ball Bearing
- Warranty: 10 Years
