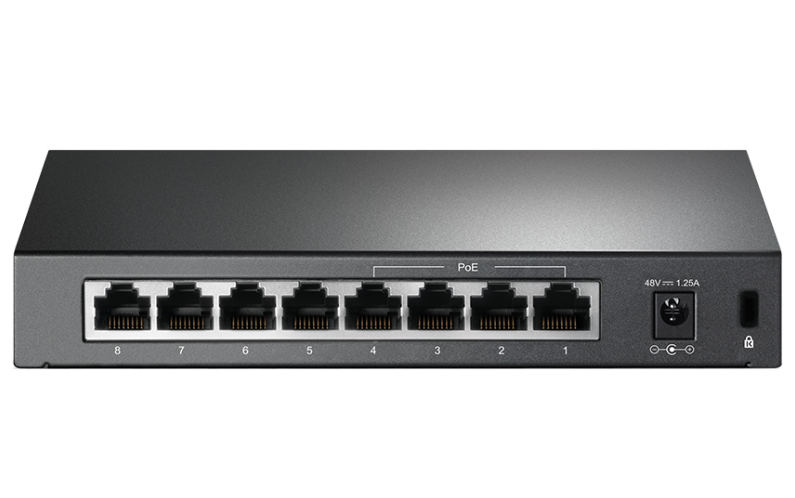

TP-LINK 8-Port 10/100Mbps Desktop Switch with 4-Port PoE

TL-SF1008P is an 8 10/100Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to ­fix devices such as APs, IP Cameras or IP Phones, etc. • Supports PoE power up to 15.4W for each PoE port • Supports PoE power up to 57W for all PoE ports • Supports PoE IEEE 802.3af compliant PDs • Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode • 2K entry MAC address table of the TL-SF1008P with auto-learning and auto-aging • LED indicators for monitoring power, link, activity • External power adapter supply

Highlights

• Interface: 8 10/100Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100O STP (maximum 100m), 100BASE-TX: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100O STP (maximum 100m)
• Fan Quantity: Fanless
• Power Consumption: Maximum (PoE on): 60.2W (220V/50Hz), Maximum (PoE off): 3.2W (220V/50Hz)
• External Power Supply: External Power Adapter(Output: 48VDC / 1.25A)
• PoE Ports (RJ45): Standard: 802.3 af compliant, PoE Ports: Port1- Port4, Power Supply: 57W
• Backbound Bandwidth: 1.6Gbps
• Mac Address Table: 2K
• Transmission Method: Store-And-Forward
• Advanced Functions: Compatible With IEEE 802.3af Compliant PDs, Priority Function, Mac Address Auto-Learning And Auto-Aging, IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
• Consumption: 2.3 watts (max. no PD connected), 59.3 watts (max. with 57w PD connected)
• Package Contents: TL-SF1008P, Power Adapter, User Guide
• Warranty: 2 years limited
