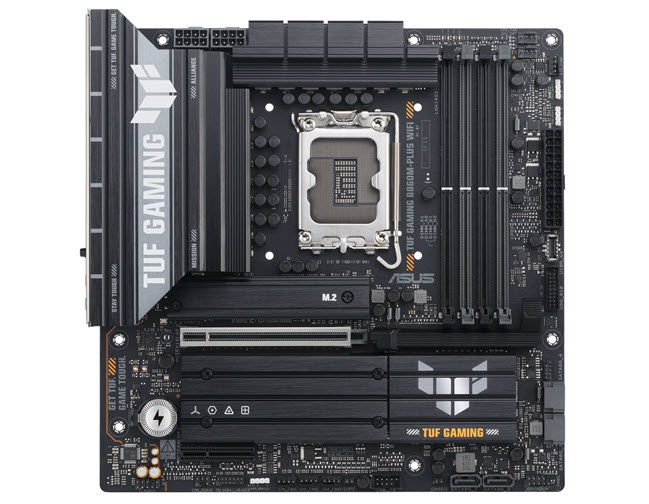

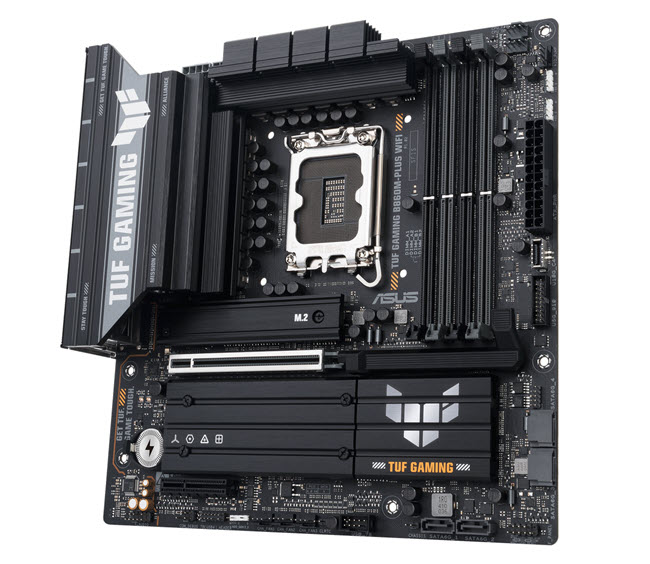

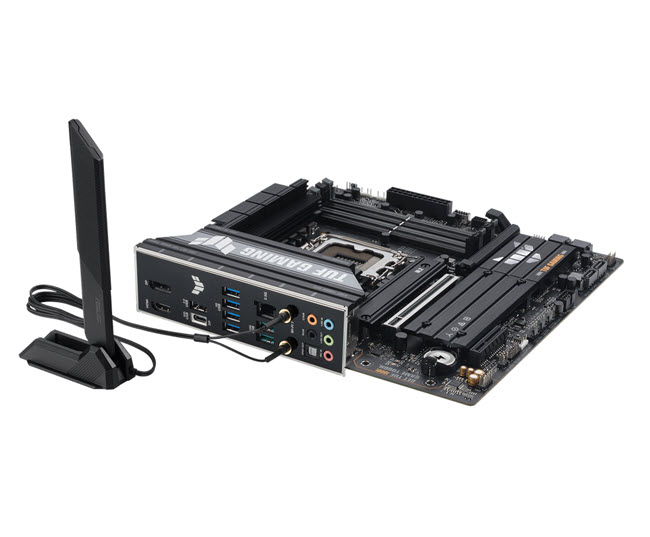

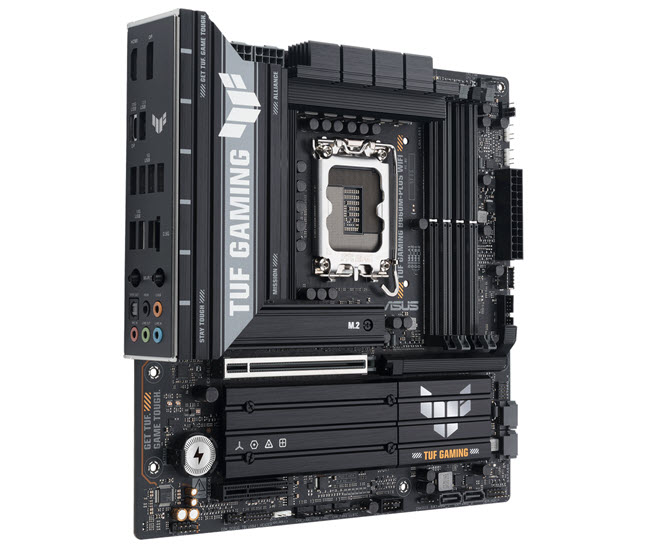

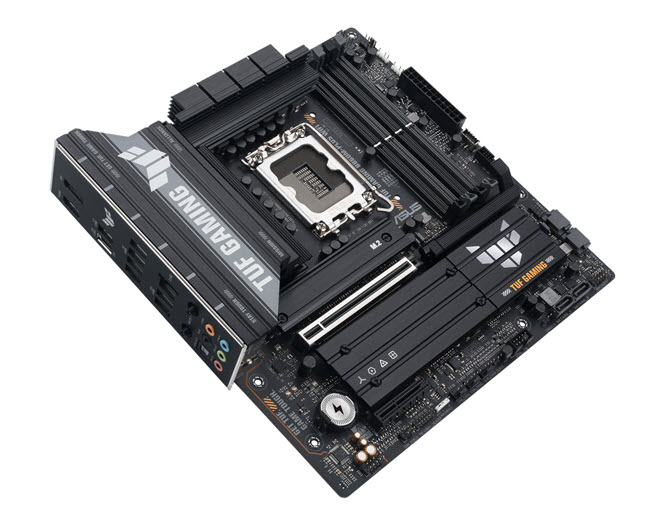

TUF GAMING B860M-PLUS WIFI

ASUS TUF GAMING B860M-PLUS WIFI takes all the essential elements of the latest Intel® Core™ Ultra Processors (Series 2) and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

The integrated NPU in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.

For next-level frequency flexibility, the TUF Gaming B860M features a built-in clock generator that isolates CPU base clock from memory, NPU, D2D and NGU. Drive memory, NPU and others performance to their absolute brink while maintaining the stability of CPU clock domains. Separate CPU BCLK from other domains for unfettered overclocking.

ASUS AI Advisor is an ASUS technical expert that's always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimization features like AI Overclocking and fan speed tuning, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS.

The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.

TurboV Core is engineered for overclocking enthusiasts to elevate system capability with unprecedented simplicity. Accessed via ASUS DriverHub, TurboV Core provides intuitive configuration of CPU and DRAM parameters to unlock your computer's potential. No need to enter the BIOS, you can seamlessly modify settings directly from the Windows interface, and apply them right away without restart interruptions.

ASUS DriverHub - Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.

ASUS GlideX - Enable seamless screen sharing and control across PCs, tablets, and smartphones via USB or WiFi, supporting multiple platforms.

Power Saving - Provides easy-to-use configuration options for PC beginners and advanced features for veterans.

Armoury Crate - Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.

Premium Power Design - Stable power is crucial for maximizing the performance of Intel processors. The motherboard is designed to meet the needs of high-core-count CPUs. It features 12(80A) + 1(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80A each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future Intel processors.

Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With the motherboard, you can extract all the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.

ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-7600 or higher.

DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. This offers peak efficiency, compatibility, and system stability. Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay, or a content creator prioritizing rock-solid stability, DIMM Fit provides optimizations tailored to your needs and your hardware configuration.

Form Factor

• mATX Form Factor - 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )

CPU

• Support Intel® Core™ Ultra Processors (Series 2) ,LGA1851 - Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset

• Intel® B860 Chipset

Memory

• 4 x DIMM slots, max. 256 GB, DDR5 - Support up to 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) - Dual Channel Memory Architecture - DIMM Fit - Supports Intel® Extreme Memory Profile (XMP) memory module - ASUS Enhanced Memory Profile III(AEMPIII)

Graphics

• 1 x DisplayPort** - 1 x HDMI™ port*** - 1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output** - ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. - ***Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

• Intel® CoreTM Ultra Processors(Series 2) - 1 x PCIe 5.0 x16 slot - Intel® B860 Chipset - 1 x PCIe 4.0 x4 slot

Storage

• Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* - Intel® Core™ Ultra Processors(Series 2)* - M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) - Intel® B860 Chipset - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) - M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) - 4 x SATA 6Gb/s ports - *Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

LAN

• 1 x Realtek 2.5Gb Ethernet - TUF LANGuard

Wireless & Bluetooth

• Wi-Fi 7 - 2x2 Wi-Fi 7 (802.11be) - Supports 2.4/5/6GHz frequency band - Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth® v5.4

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback - Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers

USB Ports

• Rear USB (Total 8 ports) - 1 x USB 20Gbps port (1 x USB Type-C®) - 2 x USB 10Gbps port (2 x Type-A) - 4 x USB 5Gbps ports (4 x Type-A) - 1 x USB 2.0 ports (1x Type-A) - Front USB (Total 5 ports) - 1 x USB 10Gbps connector (supports USB Type-C®) - 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports - 1 x USB 2.0 headers support 2 additional USB 2.0 ports - * USB Type-C® power delivery output: max. 5V/3A

OS Support

• Windows 11 (22H2 & later)

Internal I/O Ports

• I/O Connectors Fan and Cooling related - 1 x 4-pin CPU Fan header - 1 x 4-pin CPU OPT Fan header - 1 x 4-pin AIO Pump header - 3 x 4-pin Chassis Fan headers - Power related - 1 x 24-pin Main Power connector - 2 x 8-pin +12V Power connectors - Storage related - 3 x M.2 slots (Key M) - 4 x SATA 6Gb/s ports - USB - 1 x USB 10Gbps connector (supports USB Type-C® ) - 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports - 1 x USB 2.0 header supports 2 additional USB 2.0 ports - Miscellaneous - 3 x Addressable Gen 2 headers - 1 x Clear CMOS header - 1 x Chassis Intrusion header - 1 x Front panel audio header (F_AUDIO) - 1 x 10-1 pin Front System Panel header - 1 x Thunderbolt™ (USB4®) header

Back I/O Ports

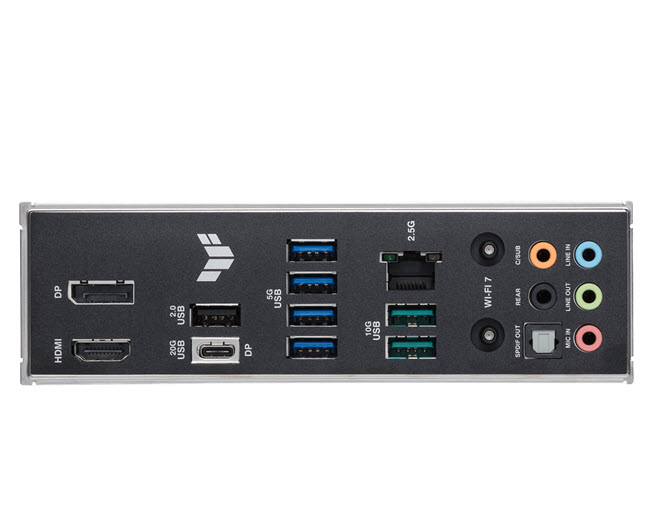

• 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode) - 2 x USB 10Gbps port (2 x Type-A) - 4 x USB 5Gbps ports (4 x Type-A) - 1 x USB 2.0 port (1 x Type-A) - 1 x DisplayPort - 1 x HDMI™ port - 1 x Wi-Fi Module - 1 x Realtek 2.5Gb Ethernet port - 5 x Audio jacks - 1 x Optical S/PDIF out port

Software Features

• ASUS Exclusive Software - Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ - Power Saving - ASUS DriverHub - ASUS GlideX - TurboV Core - TUF GAMING CPU-Z - DTS Audio Processing - Norton 360 for Gamers (60 Days Free Trial) - WinRAR (40 Days Free Trial) - UEFI BIOS - ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey - NPU Boost

Special Features

• ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O - ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Thermal Solution - M.2 heatsinks - VRM heatsink design - ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM - AURA Sync - Addressable Gen 2 headers

BIOS

• 2 x 128 Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

Accessories

• Cables - 2 x SATA 6Gb/s cables - Miscellaneous - 1 x ASUS WiFi Q-Antenna - 2 x M.2 Rubber Packages - 1 x TUF Gaming sticker - 1 x Screw package for M.2 SSD - Documentation - 1 x Quick start guide

Warranty

• 3 Years
