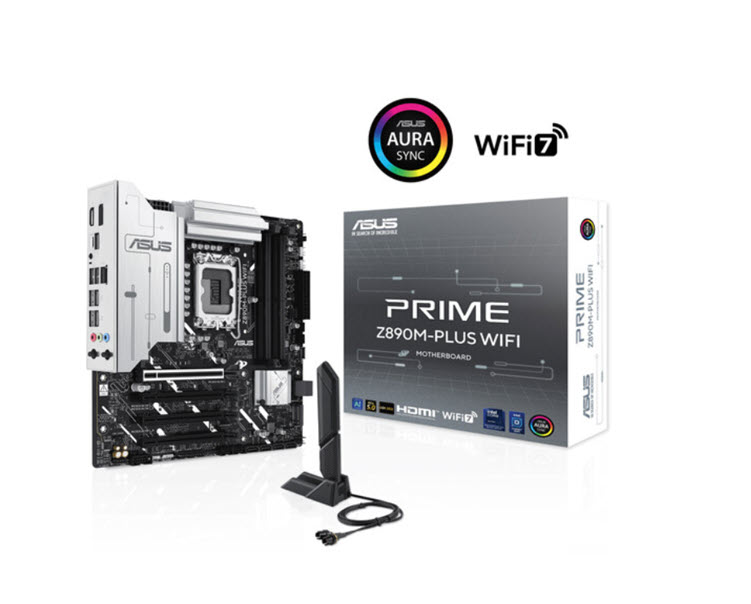

Prime Z890M-PLUS WIFI
News & Updates - 2024/10/24: A new BIOS has been released addressing various bugs, including no display from the graphics card when installing Windows 11 24H2. It is recommended to use the new EZ Flash tool to update directly using the ZIP file downloaded from the ASUS site.

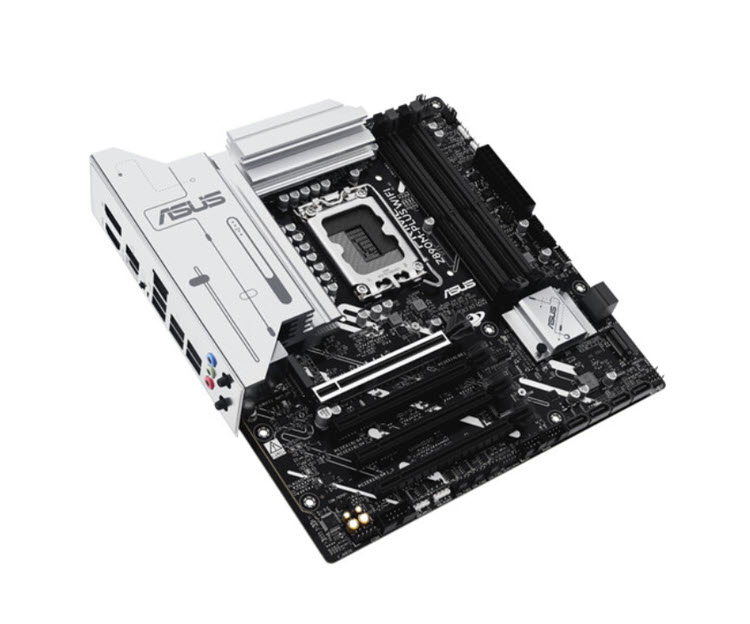

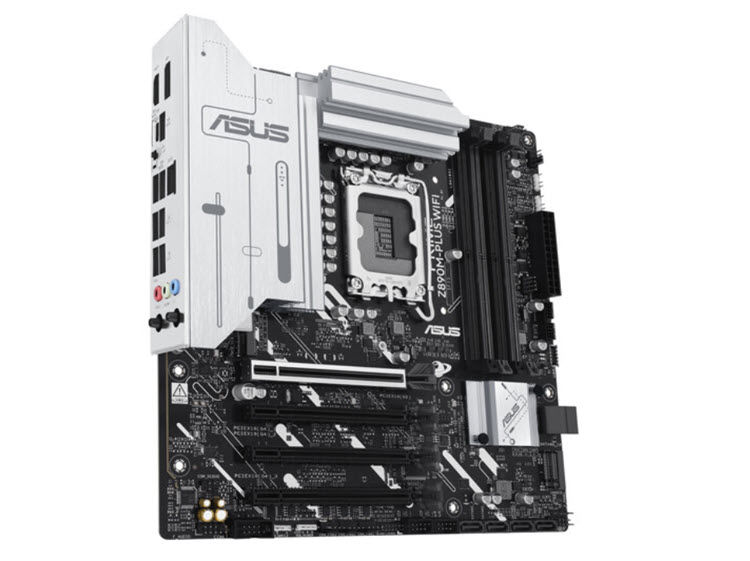

ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z890M-PLUS WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
ASUS AI Solutions include AI Advisor as your technical expert with expertise in PC performance, AI Networking II for real-time bandwidth optimization and AI Cooling II for automated temperature control. ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way. Optimized network performance, helping to ensure seamless connectivity and maximized WiFi 7 speeds. Optimized thermals and reduced noise via dynamic adjustment of fan speeds, based on CPU temperatures.
The integrated NPU in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.
Stable power is crucial for maximizing the performance of Intel® Core™ Ultra Processors (Series 2). The PRIME Z890M-PLUS WIFI is designed to meet the needs of high-core-count CPUs. It features 10(80A) + 1(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future Intel® processors.
The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom. Proprietary connectors augment the motherboard’s link to the power supply with 8 + 4 pin connectors that pass 12 volts of power directly to the processor. Each connector features solid pins that can handle more current than hollow-pin connectors.The Power Saving function contains several settings to easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting and set the fan profile to a Power Saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows. The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings.
ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-7600MHz or higher.
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. This offers peak efficiency, compatibility, and system stability. Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay, or a content creator prioritizing rock-solid stability, DIMM Fit provides optimizations tailored to your needs and your hardware configuration.
The PRIME Z890M-PLUS WIFI offers a total of three M.2 slots, including one that supports data-transfer speeds of up to 128Gbps via PCIe 5.0, two that support 64Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.
The PRIME Z890M-PLUS WIFI motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads. ASUS Fan Xpert 4 software offers comprehensive control over fans and AIO coolers. Auto-Tuning mode configures settings with one click, while Extreme Quiet mode reduces fan speeds for silent operation during light tasks. Controls are also available via the UEFI BIOS.
ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new motherboards, empowering you to build your dream gaming rig.
The PRIME Z890M-PLUS WIFI motherboard offers a versatile range of connectivity, including support for WiFi 7, the latest version of PCI Express and an arsenal of USB ports which includes Type-C connections.
The next-gen WiFi 78 supports 160 MHz bandwidth in the 6 GHz band and 4096 QAM. Multi-Link Operation (MLO) ensures stable connections and low latency, supporting 2.4, 5, and 6 GHz bands for enhanced coverage and throughput.
The PRIME Z890M-PLUS WIFI enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.

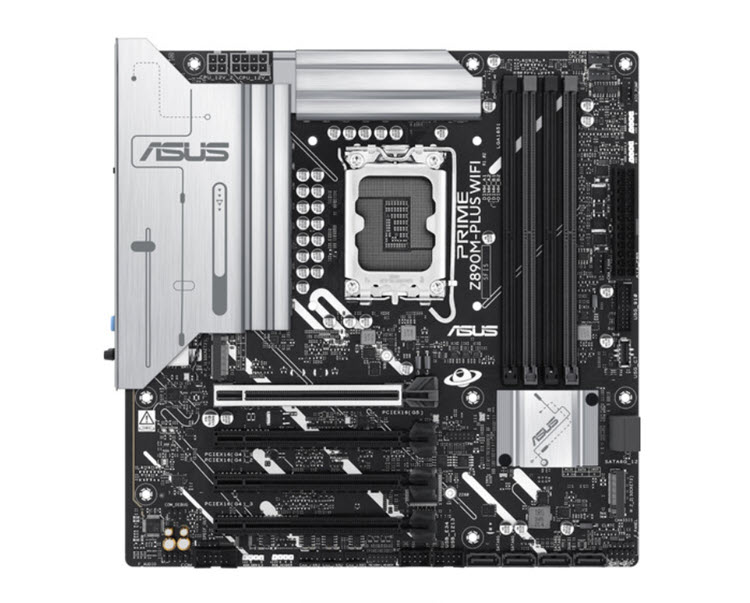

Form Factor
- mATX Form Factor, 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
CPU
-
Supports Intel® Core™ Ultra Processors(Series 2), LGA1851,
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset
Memory
-
4 x DIMM slots, max. 192 GB, DDR5
Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM),
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP)
ASUS Enhanced Memory Profile III(AEMPIII)
Graphics
-
1 x DisplayPort**,
1 x HDMI™ port***,
1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output****,
**Supports max. 4K@60Hz as specified in DisplayPort 1.4. -
***Supports 4K@60Hz as specified in HDMI 2.1. -
****Supports max. 4K@120Hz as specified in DisplayPort 1.4.
Expansion Slots
-
Intel® Core™ Ultra Processors (Series 2);
1 x PCIe 5.0 x16 slot,
Intel® Z890 Chipset;
1 x PCIe 4.0 x16 slot (supports x4 mode),
2 x PCIe 4.0 x16 slots (support x1 mode)
Storage
-
Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports*,
Intel® Core™ Ultra Processors (Series 2)*,
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode),
Intel® Z890 Chipset;
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode),
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode),
6 x SATA 6Gb/s ports,
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
LAN
- 1 x Realtek 2.5Gb Ethernet, ASUS LANGuard
Wireless & Bluetooth
-
Wi-Fi 7,
2x2 Wi-Fi 7 (802.11be),
Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth® v5.4
Audio
-
Realtek 7.1 Surround Sound High Definition Audio CODEC,
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback,
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
USB Ports
-
Rear USB (Total 8 ports);
1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode),
1x USB 10Gbps port (1 x Type-A),
4 x USB 5Gbps ports (4 x Type-A),
2 x USB 2.0 ports (2 x Type-A) **,
Front USB (Total 7 ports);
1 x USB 5Gbps connector (supports USB Type-C®),
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports,
2 x USB 2.0 headers support 4 additional USB 2.0 ports**,
* USB Type-C® power delivery output: max. 5V/3A,
** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
OS Support
- Windows 11 (22H2 & later)
Internal I/O Ports
-
Fan and cooling related;
1 x 4-pin CPU Fan header,
1 x 4-pin CPU OPT Fan header,
1 x 4-pin AIO Pump header,
4 x 4-pin Chassis Fan headers,
Power related;
1 x 24-pin Main Power connector,
1 x 8-pin +12V CPU Power connector,
1 x 4-pin +12V CPU Power connector,
Storage related;
3 x M.2 slots (Key M),
6 x SATA 6Gb/s ports,
USB;
1 x USB 5Gbps connector (supports USB Type-C®),
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports,
2 x USB 2.0 headers support 4 additional USB 2.0 ports,
Miscellaneous;
3 x Addressable Gen2 headers,
1 x Aura RGB header,
1 x Clear CMOS header,
1 x Chassis Intrusion header,
1 x COM Port header,
1 x Front Panel Audio header (F_AUDIO),
1 x S/PDIF Out header,
1 x SPI TPM header (14-1pin),
1 x 10-1 pin Front Panel System header,
1 x Thunderbolt™ (USB4®) header

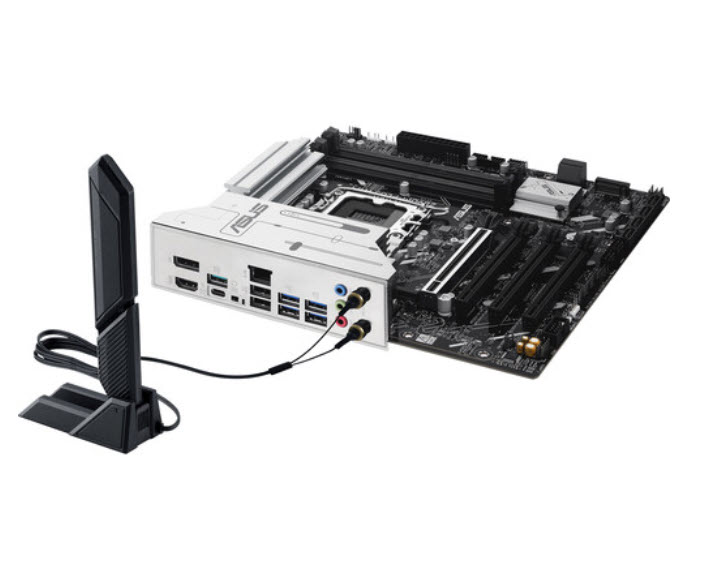

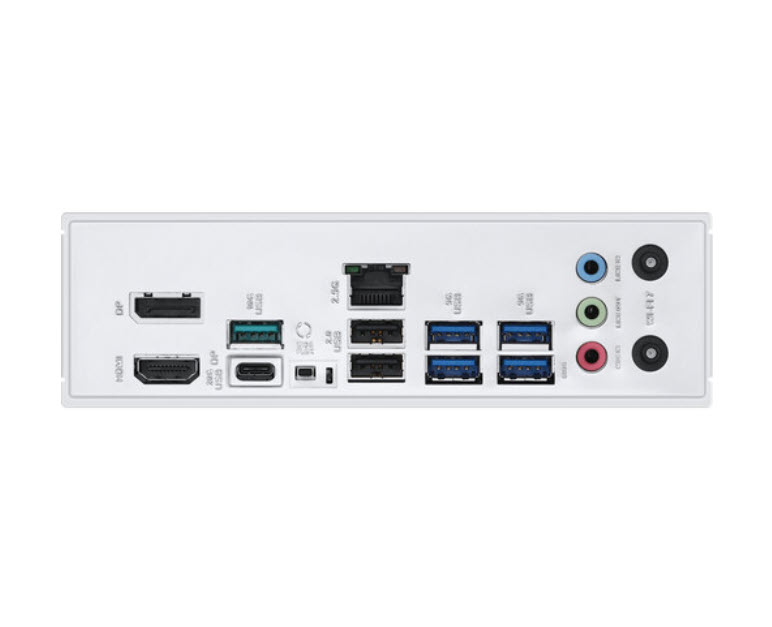

Back I/O Ports
-
1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode),
1 x USB 10Gbps port (1 x Type-A),
4 x USB 5Gbps ports (4 x Type-A),
2 x USB 2.0 ports (2 x Type-A),
1 x DisplayPort,
1 x HDMI™ port,
1 x Wi-Fi module,
1 x Realtek 2.5Gb Ethernet,
3 x Audio jacks,
1 x BIOS FlashBack™ button
Software Features
-
ASUS Exclusive Software,
Armoury Crate
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving,
ASUS AI Advisor,
ASUS DriverHub,
ASUS GlideX,
TurboV Core,
ASUS CPU-Z,
Norton 360 for Deluxe (60 Days Free Trial),
WinRAR (40 Days Free Trial),
UEFI BIOS,
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
NPU Boost (Intel K-series Processors only)
Special Features
-
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O,
ASUS Q-Design
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED Core
- Q-Slot,
ASUS Thermal Solution
- VRM heatsink design,
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
- Pre-mounted I/O shield,
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
BIOS
- 256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Manageability
Accessories
- Cables;
2 x SATA 6Gb/s cables,
Miscellaneous;
1 x ASUS WiFi Q-Antenna,
3 x Screw packages for M.2 SSD,
Documentation;
1 x Quick start guide
