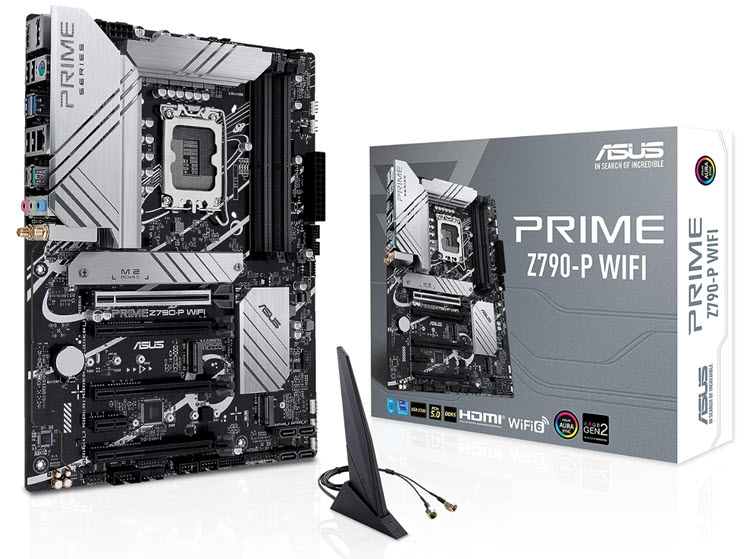

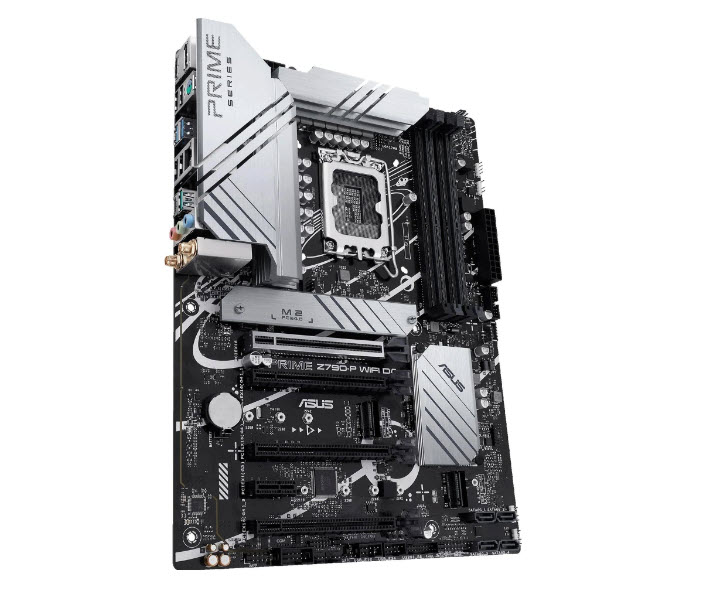

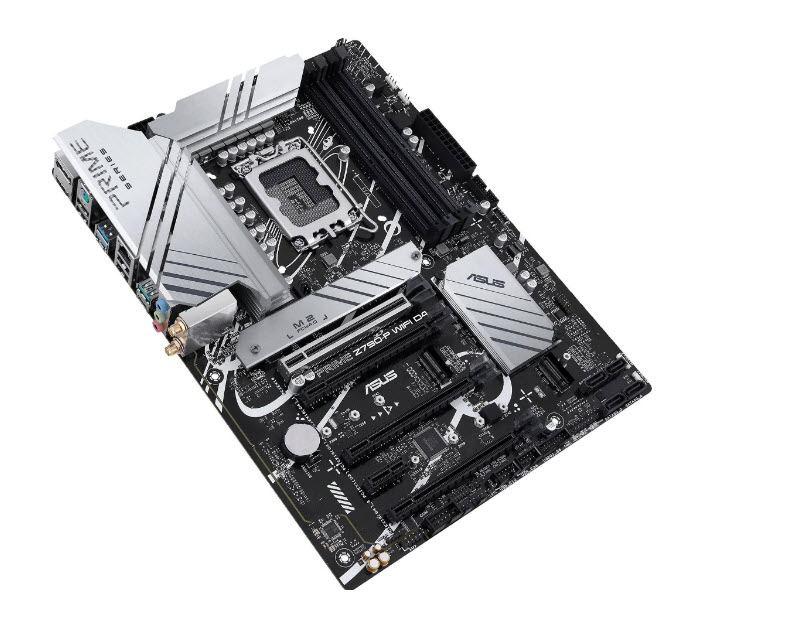

PRIME Z790-P WIFI

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-P WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME Z790-P WIFI motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

PRIME Z790-P WIFI motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

The flexible M.2 heatsink with removable captive screws can take care of the M.2_1 or M.2_3 slot, warding off throttling that can occur with M.2 storage during sustained transfers. Removable captive screws reduce risk of drops or loss during heatsink removal.

The PRIME Z790-P WIFI motherboard is built to handle the high core counts and bandwidth demands of 13th Gen Intel® Core™ Processors. ASUS Z790 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.

Stable power is essential to extract every last bit of performance out of Intel processors. The PRIME Z790-P WIFI is geared to cater to the demands of these high-core-count CPUs.

Form Factor

• ATX Form Factor, 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )

CPU

• Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset

• Intel® Z790 Chipset

Memory

• 4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC) /6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC) / 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports Intel® Extreme Memory Profile (XMP), OptiMem II

Graphics

• 1 x DisplayPort**, 1 x HDMI® port***, ** Supports max. 4K@60Hz as specified in DisplayPort 1.4., *** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

• Intel® 13th & 12th Gen Processors; 1 x PCIe 5.0 x16 slot, Intel® Z790 Chipset; 3 x PCIe 4.0 x16 slots (support x4 mode), 1 x PCIe 3.0 x1 slot

Storage

• Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*, Intel® 13th & 12th Gen Processors; M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), Intel® Z790 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes), 4 x SATA 6Gb/s ports, * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

LAN

• 1 x Realtek 2.5Gb Ethernet

Wireless & Bluetooth

• Wi-Fi 6, 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Supports 2.4/5GHz frequency band, Bluetooth® v5.2

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback, Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers. * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

USB Ports

• Rear USB (Total 8 ports); 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 1 x USB 3.2 Gen 2 port (1 x Type-A), 2 x USB 3.2 Gen 1 ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), Front USB (Total 9 ports); 1 x USB 3.2 Gen 2 connector (supports USB Type-C®), 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports

OS Support

• Windows® 11, Windows® 10 64-bit

Internal I/O Ports

• Fan and Cooling related; 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 3 x 4-pin Chassis Fan headers, Power related; 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x 4-pin +12V Power connector, Storage related; 3 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, USB; 1 x USB 3.2 Gen 2 connector (supports USB Type-C®), 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports, Miscellaneous; 3 x Addressable Gen 2 headers, 2 x Aura RGB headers, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x SPI TPM header (14-1pin), 1 x 20-5pin System Panel header, 1 x Thunderbolt™ (USB4®) Header

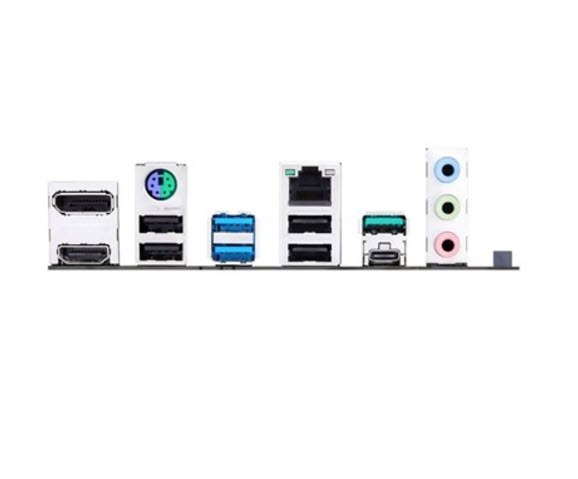

Back I/O Ports

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 1 x USB 3.2 Gen 2 port (1 x Type-A), 2 x USB 3.2 Gen 1 ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x DisplayPort, 1 x HDMI® port, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo port

Software Features

• ASUS Exclusive Software, Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving, AI Suite 3 -TurboV EVO -PC Cleaner -DIGI+ VRM, ASUS CPU-Z, MyASUS, Norton 360 Deluxe (60 Days Free Trial), WinRAR, UEFI BIOS, ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Special Features

• ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O, ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core, ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design, ASUS EZ DIY - ProCool, Aura Sync - Aura RGB headers - Addressable Gen 2 headers

BIOS

• 192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

Accessories

• Cables; 2 x SATA 6Gb/s cables, Miscellaneous; 1 x ASUS Wi-Fi moving antennas, 1 x I/O Shield, 1 x M.2 Rubber Package,, 2 x Screw packages for M.2 SSD, Documentation; 1 x User guide
