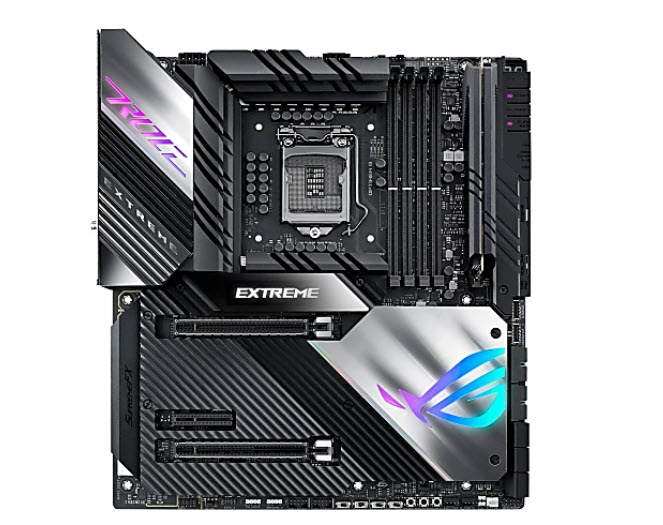

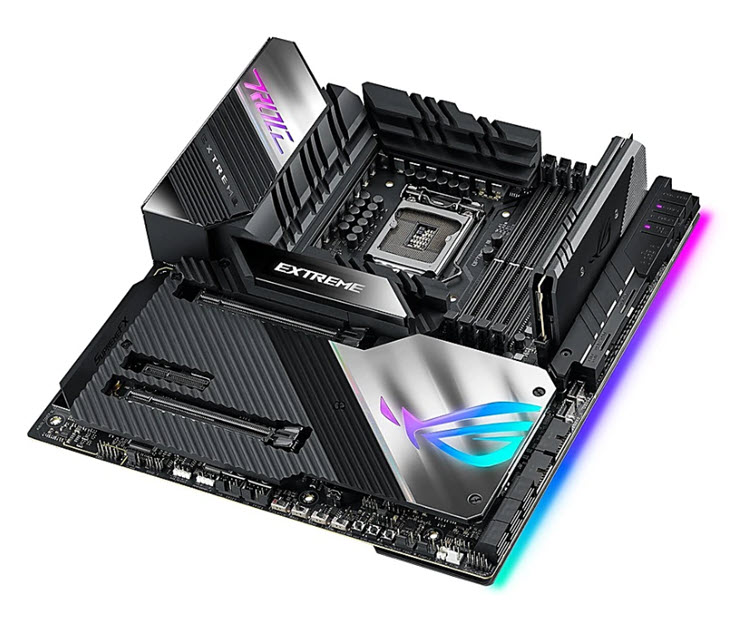

ROG Maximus XIII Extreme is fully armed for those wanting to push the latest 11th Gen Intel® Core™ to the very edges of the performance envelope. It features the latest hardware and software that work in unison to optimize your overclocking experience, as well as AI-enhancements and comprehensive cooling controls to give you total command over your build.

Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push each system to its limits.

Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm reduces unnecessary system noise by monitoring CPU temperatures and dynamically adjusting fans to optimal speeds.

GameFirst VI optimizes networking performance by allocating bandwidth in real time based on application usage scenarios and corresponding learning algorithms.

Two-Way AI Noise Cancellation - This utility leverages a massive deep-learning database to reduce over 500 million types of background noise from incoming or outgoing audio, helping ensure crystal-clear communication in games or calls.

Form Factor

• E-ATX Form Factor, 12 inch x 10.9 inch ( 30.5 cm x 27.7 cm )

CPU

• LGA 1200, Supports Intel® 14 nm CPU, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset

• Intel Z590

Memory

• DDR4 128GB 5333(OC) / 5133(OC) / 5000(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133*, * 11th Gen Intel Core processors support 3200 / 2933 / 2800 / 2666 / 2400 / 2133 natively. * 10th Gen Intel Core i7 / i9 processors support 2933 / 2800 / 2666 / 2400 / 2133 natively, others will run at the maximum transfer rate of DDR4 2666.

Graphics

• 1 x HDMI 2.0, 2 x Intel® Thunderbolt™ 4 ports,

Multi-GPU Support

• NVIDIA 2-Way SLI® Technology

Expansion Slots

• Intel® 11th &10th Gen Processors 2 x PCIe 4.0/3.0 x16 slot(s) - Intel® 11th Core™ processors support PCIe 4.0 x16 or x8/x8 mode(s) - Intel® 10th, Core™ processors support PCIe 3.0 x16 or x8/x8 mode(s), Intel® Z590 Chipset; 1 x PCIe 3.0 x4 slot

Storage

• Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports, Intel® 11th & 10th Gen Processors, M.2_1 slot (Key M), type 2242/2260/2280 - Intel® 11th Core™ processors support PCIe 4.0 x4 mode - Intel® 10th Core™ processors support PCIe 3.0 x4 mode M.2_2 slot (Key M), type 2242/2260/2280 - Intel® 11th Core™ processors support PCIe 4.0 x4 mode - Intel® 10th Core™ processors support PCIe 3.0 x4 mode M.2_3 slot (Key M), type 2242/2260/2280 - Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs - Intel® Z590 Chipset; DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes), DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)* 6 x SATA 6Gb/s ports, Raid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH- attached slots. To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology. * DIMM.2_2 shares bandwidth with SATA6G_34 and DIMM.2_2 is default set at x2 mode

LAN

• 1 x Intel® 2.5Gb Ethernet, 1 x Marvell® 10Gb Ethernet, ASUS LANGuard

Wireless & Bluetooth

• Intel® Wi-Fi 6E, 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 hardware ready

Audio

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback - Audio Features - SupremeFX Shielding Technology - ESS® SABRE9018Q2C DAC/AMP - LED-illuminated audio jacks - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Audio cover

USB Ports

• Rear USB (Total 10 ports); 2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support, 8 x USB 3.2 Gen 2 port(s) (8 x Type-A), Front USB (Total 10 ports); 1 x USB 3.2 Gen 2x2 connector(s) (support(s) USB Type-C®), 1 x USB 3.2 Gen 2 Front Panel connector(s) (support(s) USB Type-C®) 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports, 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

OS Support

• Windows® 10 - 64 bit

Internal I/O Ports

• Fan and Cooling related; 1 x 4-pin CPU Fan header(s), 1 x 4-pin CPU OPT Fan header(s), 2 x 4-pin Chassis Fan header(s), 2 x 4-pin Radiator Fan header(s), 2 x W_PUMP+ header(s), 1 x WB_SENSOR header(s), 1 x 2-pin Water In header, 1 x 2-pin Water Out header, 1 x 3-pin Water Flow header, Power related; 1 x 24-pin Main Power connector, 2 x 8-pin +12V Power connector, 1 x 6-pin PCIe Graphics Card connector, Storage related; 3 x M.2 slots (Key M), 1 x DIMM.2 slot supports, 2 x M.2 slots (Key M), 6 x SATA 6Gb/s ports, USB; 1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C®), 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®), 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports, 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports, Miscellaneous; 3 x AURA Addressable Gen 2 header(s), 1 x AURA RGB header(s), 1 x BIOS Switch button, 1 x FlexKey button, 1 x Front Panel Audio header (AAFP), 1 x LN2 Mode jumper, 8 x ProbeIt Measurement Points, 1 x ReTry button, 2 x RSVD switch, 1 x RSVD header, 1 x Safe Boot button, 1 x Slow Mode switch, 1 x Speaker header, 1 x Start button, 1 x V_LATCH switch, 1 x 10-1 pin System Panel header, 1 x Thermal Sensor header

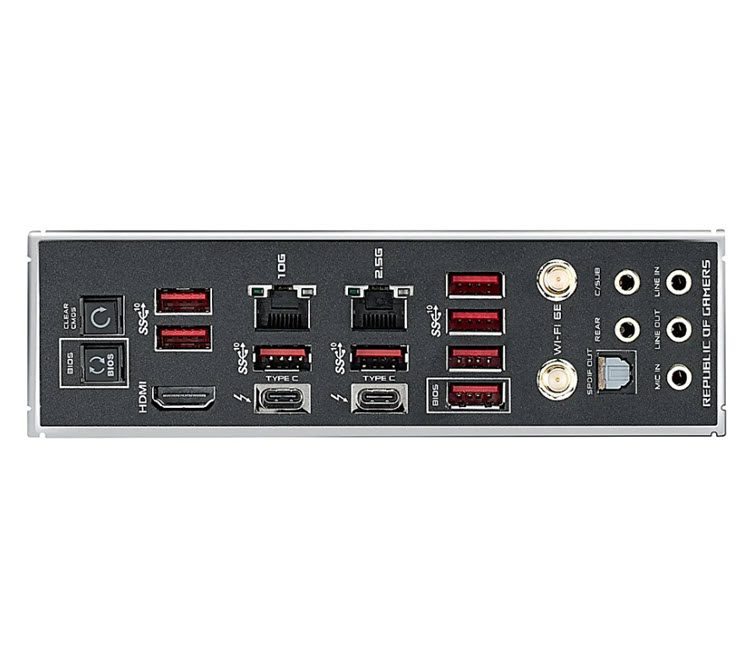

Back I/O Ports

• 2 x Thunderbolt™ 4 USB Type-C® port(s), 8 x USB 3.2 Gen 2 port(s) (8 x Type-A) 1 x HDMI™ port, 1 x ASUS Wi-Fi Module, 1 x Marvell® AQtion AQC113CS 10Gb Ethernet, 1 x Intel® I225-V 2.5Gb Ethernet, 5 x LED-illuminated audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack™ button, 1 x Clear CMOS button

Software Features

• ROG Exclusive Software - Mem Tweakit - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - BullGuard Internet Security (1-year full version) - ASUS Exclusive Software - Armoury Crate - AIDA64 Extreme (1 year full version) - AURA Creator - AURA Sync - Two-Way AI Noise Cancelation - OLED Display - AI Suite 3 - 5-Way Optimization with AI Overclocking - TPU, EPU, Digi+ Power Control, Fan Xpert 4, Turbo app - EZ update, AI Charger, DAEMON Tools, MyASUS, WinRAR, UEFI BIOS, MemTest86, AI Overclocking Guide, ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Special Features

• Extreme OC Kit - FlexKey button - LN2 Mode - Probelt - ReTry button - Safe boot button - Start button - Slow Mode - Extreme Engine Digi+ - 10K Black Metallic Capacitors - MicroFine Alloy Choke - ASUS Q-Design - Q-Code - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot - ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design - ASUS EZ DIY - BIOS FlashBack™ button - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - AURA Sync - ROG AURA sync backplate - AURA RGB header(s) - Addressable Gen 2 RGB header(s), Dual BIOS, OLED 2”, ASUS HYDRANODE, - 2 x Chassis fan support* (CHA_FAN1P, CHA_FAN2P) - 2 x USB 2.0 port support* (USB_EP1, USB_EP3)

BIOS

• 2 x 256 Mb Flash ROM, UEFI AMI BIOS

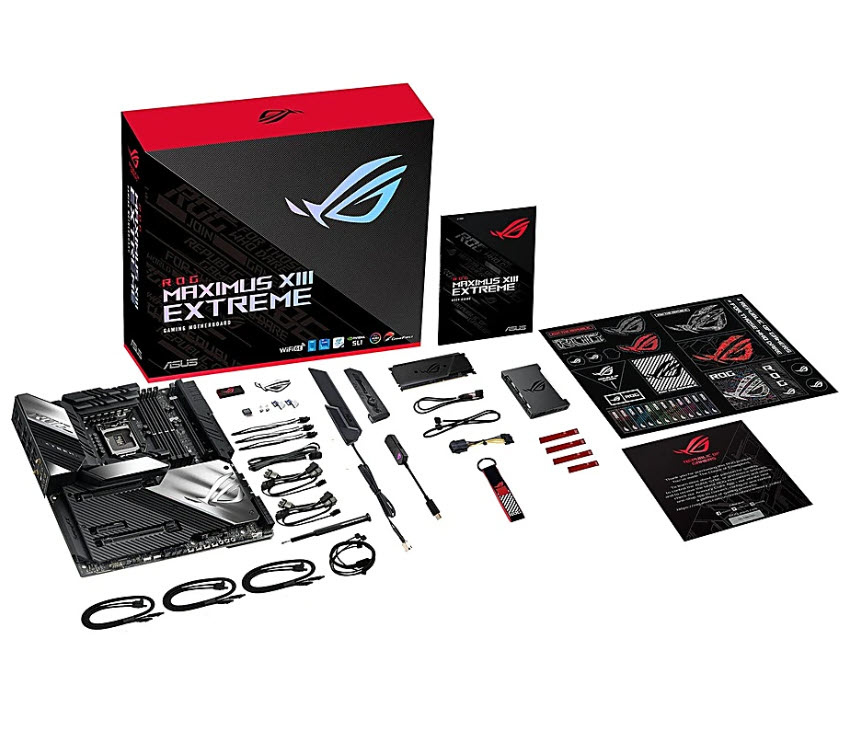

Accessories

• Cables; 1 x 1-to-3 ARGB splitter cable, 2 x 1-to-4 fan splitter cable, 1 x RGB extension cable, 3 x ROG weave SATA 6G cables, 1 x 3-in-1 Thermistor cables pack, ROG Fan Controller; 1 x ROG Fan Controller, 1 x Fan EXT PWR cable, 1 x ARGB input cable, 1 x USB input cable, 1 x ROG Fan Controller 3M Mounting tape, 1 x Fan Controller manual, ROG DIMM.2 with Heatsink; 1 x ROG DIMM.2 with heatsink, 1 x M.2 pad for ROG DIMM.2, 2 x M.2 screw package for ROG DIMM.2, Miscellaneous; 1 x ASUS Wi-Fi moving antennas, 1 x Q-connector, 1 x ROG CLAVIS DAC, 1 x ROG key chain, 1 x ROG Graphics card holder, 1 x ROG logo plate stickers, 1 x ROG screwdriver, 1 x ROG stickers, 1 x ROG thank you card, Installation Media; 1 x USB drive with utilities and drivers, Documentation; 1 x User manual
