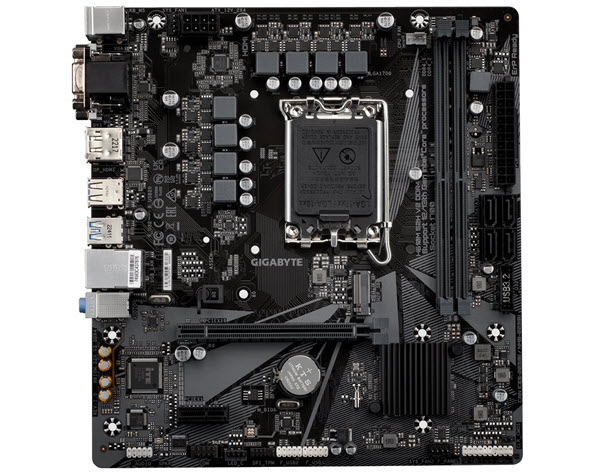

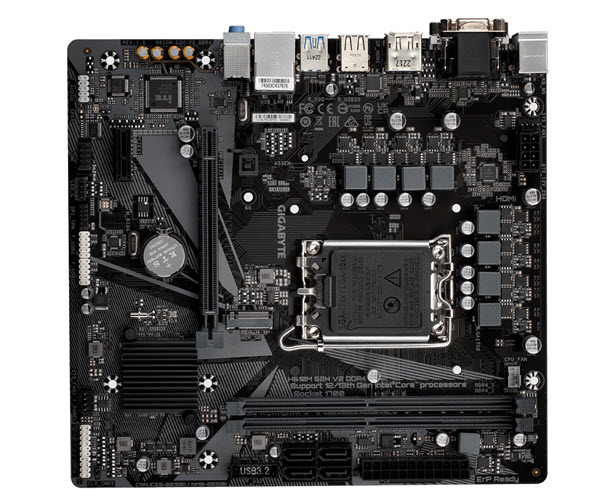

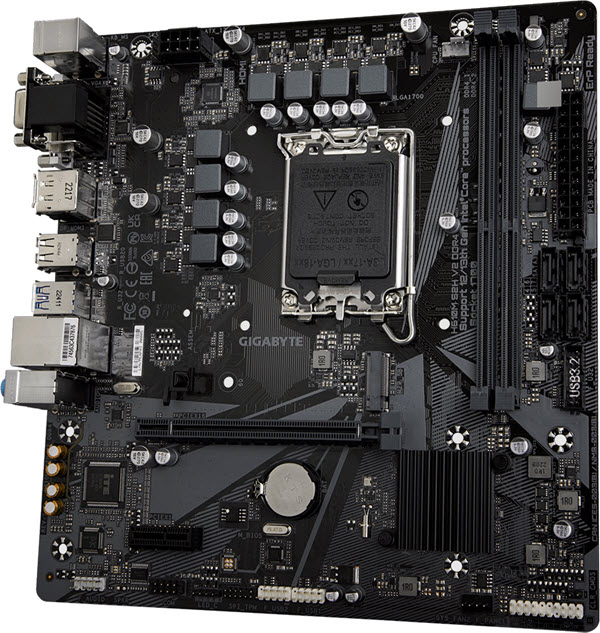

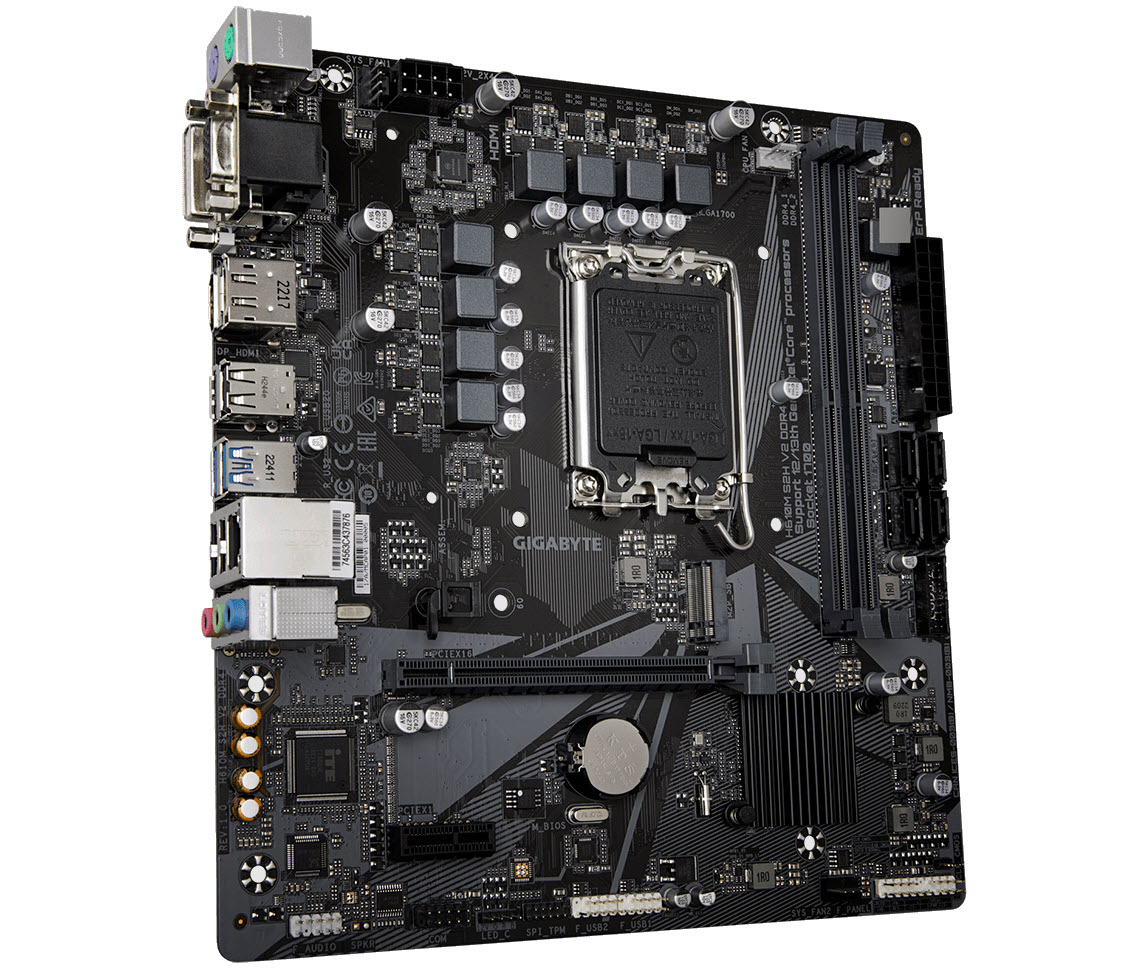

Gigabyte H610M S2H V2 DDR4 - MATX, H610, s1700, 2xDDR4

Product Type:

Motherboards

Type Detail:

Intel Socket 1700 (6xx/7xx Series)

Manufacturer:

Gigabyte

Manufacturer #:

H610M S2H V2 DDR4

Part Status:

Special Order Only

Milwaukee PC SKU:

264713

Price:

$109.99

Quick Tech Specs

Processor Manufacture:	Intel
Socket:	LGA 1700
Chipset Manufacture:	Intel / H610M
Form Factor:	Micro ATX
Max Memory:	64GB
Number of Memory Slots:	2 Slots
Memory Type:	DDR4
PCI Express x1 Slots:	1 Slots
PCI Express x16 Slots:	1 Slots
NVMe Support:	No
M.2 Slots:	1 Slots
Sata 6 Gbits/s Ports (3.0/3.1):	4 Ports
USB 3.x Ports (3.0 or higher):	2 Ports
DVI Ports:	1 Port
VGA Ports:	1 Port
Display Ports:	1 Port
Network Ports:	10/100
USB 2.0 Ports:	4 Ports

Gigabyte H610M S2H V2 DDR4

Form Factor

Micro ATX Form Factor; 23.0cm x 21.5cm

CPU

LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation, Intel® Core™, Pentium® Gold and Celeron® Processors, L3 cache varies with CPU

Chipset

Intel® H610 Express Chipset

Memory

Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules, 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory, Dual channel memory architecture, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules

Graphics

Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz, 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz, * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz, * Support for DisplayPort 1.2 version and HDCP 2.3

Expansion Slots

CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16, Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage

Chipset: 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support), 4 x SATA 6Gb/s connectors

LAN

Realtek® GbE LAN chip (1 Gbps/100 Mbps)

Audio

Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel

USB Ports

Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header), 4 x USB 2.0/1.1 ports on the back panel, Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers

OS Support

Windows 11 64-bit, Windows 10 64-bit

Internal I/O Ports

1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 2 x system fan headers, 1 x M.2 Socket 3 connector, 4 x SATA 6Gb/s connectors, 1 x RGB LED strip header, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers,, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only), 1 x serial port header, 1 x Clear CMOS jumper

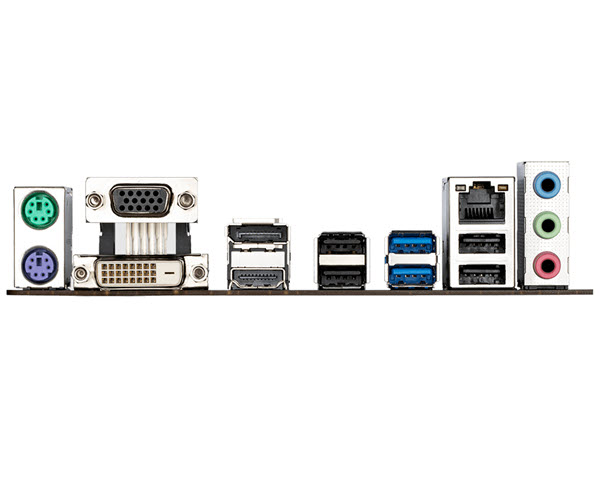

Back I/O Ports

1 x PS/2 keyboard port, 1 x PS/2 mouse port, 1 x D-Sub port, 1 x DVI-D port, 1 x DisplayPort, 1 x HDMI port, 2 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks

H/W Monitoring

Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control, * Whether the fan speed control function is supported will depend on the cooler you install.

Special Features

Support for APP Center, * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS, Ambient LED, EasyTune, Smart Backup, System Information Viewer, Support for Q-Flash, Support for Xpress Install

Bundled Software

Norton® Internet Security (OEM version), LAN bandwidth management software
