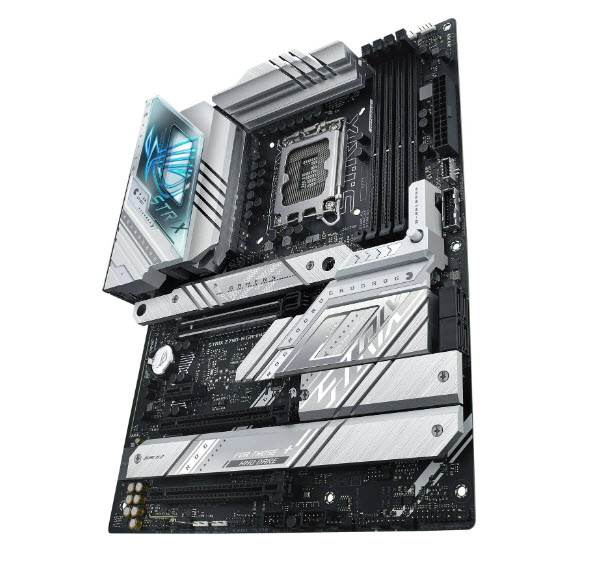

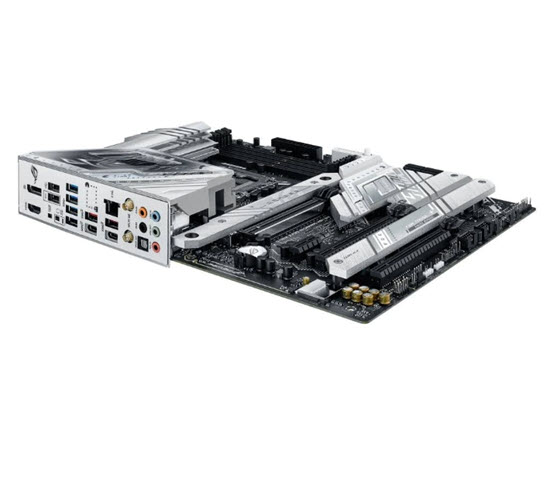

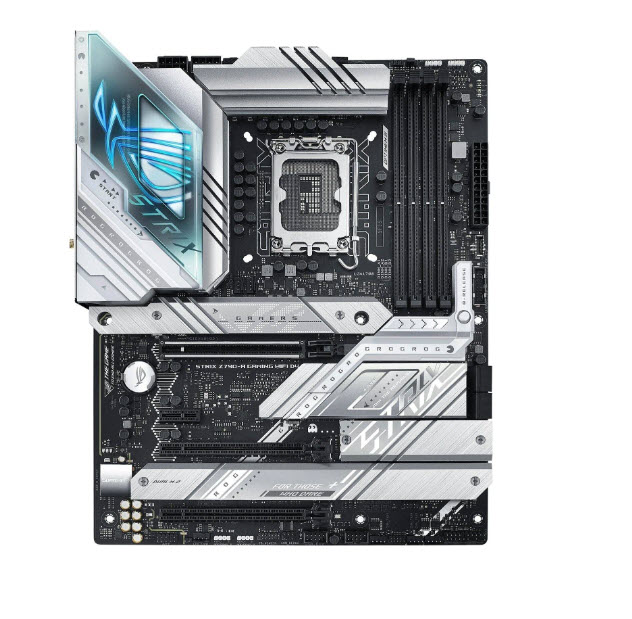

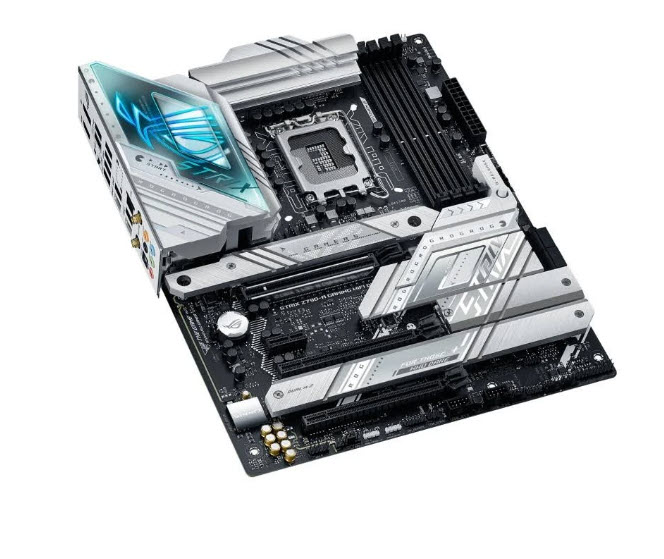

ROG STRIX Z790-A GAMING WIFI D4

Well-versed in style, performance, cooling, and connectivity, the ROG Strix Z790-A exudes well-rounded balance inside and out. A robust VRM topped with stout silver heatsinks comfortably articulates power for the latest Intel® 13th Gen Core processors. PCIe 5.0, WiFi 6E, and high-speed USB flesh out the board's fluency across a variety of disciplines. And a vast collection of tuning options and utilities derived from its ROG heritage are the icing on top.

The ROG Strix Z790-A boldly embraces the light, for an alternate take on build themes to its dark and brooding brother, the Strix Z790-F. Silver metallic heatsinks pop against a dark PCB backdrop and call attention to the board's high capacity for thermal management. A transparent layer on the I/O shield adds a unique touch and emphasizes the customizable RGB logo below. The whole design is tied together with ROG-centric detailing on the board, heatsinks, and I/O shield for a vibrant and futuristic outlook. Pair the Strix Z790-A with other products from the diverse ROG ecosystem to create a fully-customized gaming setup that reflects your personal style.?

Form Factor

• ATX Form Factor, 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

CPU

• Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset

• Intel® Z790 Chipset

Memory

• 4 x DIMM, Max. 128GB, DDR4, 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC) /4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC) /4133(OC)/4000(OC)/3866(OC)/3733(OC) /3600(OC)/3466(OC)/3400(OC)/3333(OC) /3200/3000/2933/2800/2666/2400/2133, Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports Intel® Extreme Memory Profile (XMP), OptiMem III

Graphics

• 1 x DisplayPort**, 1 x HDMI® port***, ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

• Intel® 13th & 12th Gen Processors; 1 x PCIe 5.0 x16 slot, Intel® Z790 Chipset; 2 x PCIe 4.0 x16 slots (support x4/x4 mode), 1 x PCIe 3.0 x1 slot

Storage

• Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*, Intel® 13th & 12th Gen Processors; M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), Intel® Z790 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes), 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

LAN

• 1 x Intel® 2.5Gb Ethernet, ASUS LANGuard

Wireless & Bluetooth

• Wi-Fi 6E, 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax), Supports 2.4/5/6GHz frequency band, Bluetooth® v5.3

Audio

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback, Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover *The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

USB Ports

• Rear USB (Total 10 ports); 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®), 4 x USB 3.2 Gen 1 ports (4 x Type-A), 2 x USB 2.0 ports (2 x Type-A), Front USB (Total 7 ports); 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 30W PD), 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers supports 4 additional USB 2.0 ports

OS Support

• Windows® 11, Windows® 10 64-bit

Internal I/O Ports

• Fan and Cooling related; 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 5 x 4-pin Chassis Fan headers, Power related; 1 x 24-pin Main Power connector, 2 x 8-pin +12V Power connectors, Storage related; 4 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, USB; 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® ), 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports, Miscellaneous; 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x CPU Over Voltage jumper, 1 x Front Panel Audio header (AAFP), 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x Thermal Sensor header, 1 x Thunderbolt™ header

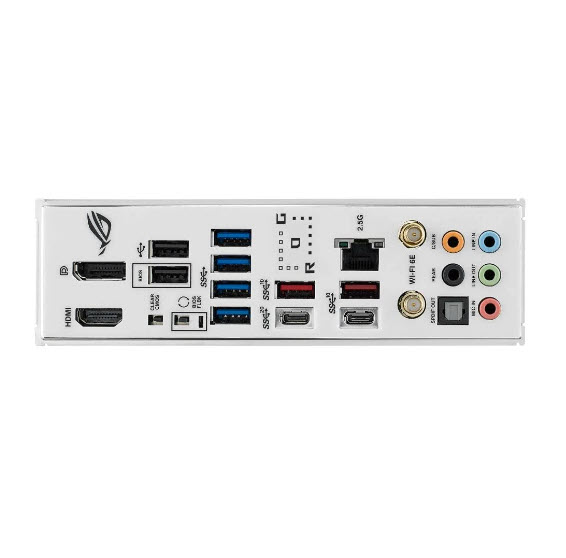

Back I/O Ports

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C®), 4 x USB 3.2 Gen 1 ports (4 x Type-A), 2 x USB 2.0 ports (2 x Type-A), 1 x DisplayPort, 1 x HDMI® port, 1 x Wi-Fi Module, 1 x Intel® 2.5Gb Ethernet port, 5 x Audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack™ button, 1 x Clear CMOS button

Software Features

• ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound, ASUS Exclusive Software, Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator- Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancellation, AI Suite 3 - Easy Optimization with AI Overclocking - TPU - DIGI+ VRM - Turbo app - PC Cleaner, MyAsus, Norton 360 for Gamers, WinRAR, UEFI BIOS, AI Overclocking Guide, ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode, FlexKey, MemTest86

Special Features

• ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design, ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM, Aura Sync - Aura RGB header - Addressable Gen 2 headers, Front Panel USB 3.2 Gen 2x2 with PD Fast-charge Support - Support: up to 30W charging - Output: 5/9V max. 3A, 12V max. 2.5A - Compatible with PD3.0

Accessories

• 2 x SATA 6Gb/s cables, 1 x Thermal pad for M.2, 1 x ASUS Wi-Fi moving antennas, 1 x Cable ties package, 1 x M.2 backplate Q-Latch package, 1 x M.2 Q-Latch package, 1 x ROG key chain, 1 x ROG Strix stickers, 1 x ROG Strix thank you card, 2 x M.2 Rubber Packages, 1 x M.2 backplate Rubber, 1 x User guide
