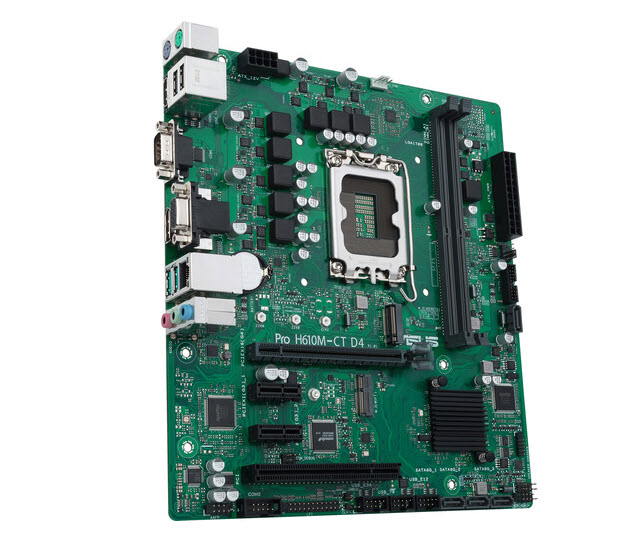

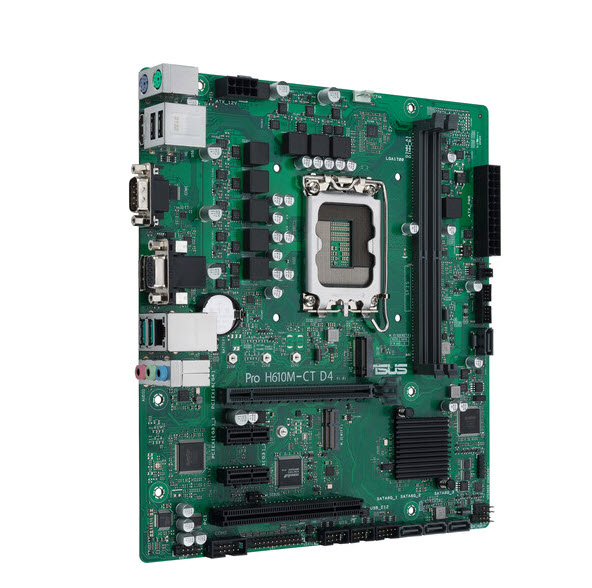

Pro H610M-CT D4-CSM

ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.

ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

Form Factor

• mATX Form Factor, 9.6 inch x 8.7 inch ( 24.4 cm x 22 cm )

CPU

• Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processor, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset

• Intel® H610 Chipset

Memory

• 2 x DIMM, Max. 64GB, DDR4, 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports Intel® Extreme Memory Profile (XMP)

Graphics

• 1 x DisplayPort**, 1 x D-Sub port, 1 x HDMI® port***, ** Supports max. 4K@60Hz as specified in DisplayPort 1.4., *** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

• Intel® 13th & 12th Gen Processors; 1 x PCIe 4.0 x16 slot, Intel® H610 Chipset; 2 x PCIe 3.0 x1 slots, 1 x PCI slot

Storage

• Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports, Intel® H610 Chipset; M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode), 4 x SATA 6Gb/s ports

LAN

• 1 x Intel® 1Gb Ethernet, ASUS LANGuard

Wireless & Bluetooth

• M.2 slot only (Key E, CNVi & PCIe)*, * Wi-Fi module is sold separately.

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback, * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

USB Ports

• Rear USB (Total 4 ports); 2 x USB 3.2 Gen 2 ports (2 x Type-A), 2 x USB 2.0 ports (2 x Type-A), Front USB (Total 8 ports); 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 3 x USB 2.0 headers support additional 6 USB 2.0 ports

OS Support

• Windows® 11 64-bit, Windows® 10 64-bit

Internal I/O Ports

• 1 x 4-pin CPU Fan header, 1 x 4-pin Chassis Fan header, 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x M.2 slot (Key M), 4 x SATA 6Gb/s ports, 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 3 x USB 2.0 headers support additional 6 USB 2.0 ports, 1 x Clear CMOS header, 1 x Chassis Intrude header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x COM debug header, 1 x LPT header, 1 x M.2 slot (Key E), 1 x SMBUS header, 1 x Speaker header, 1 x 10-1 pin System Panel header

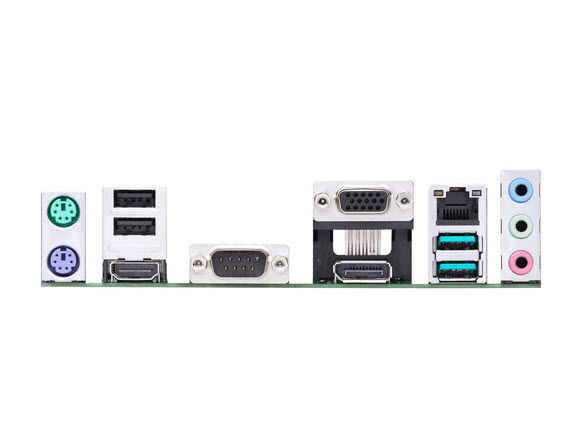

Back I/O Ports

• 2 x USB 3.2 Gen 2 ports (2 x Type-A), 2 x USB 2.0 ports (2 x Type-A), 1 x DisplayPort, 1 x D-Sub port, 1 x HDMI® port, 1 x Intel® 1Gb Ethernet port, 3 x Audio jacks, 1 x COM port, 1 x PS/2 Keyboard (purple) port, 1 x PS/2 Mouse (green) port

Special Features

• ASUS EZ DIY - Box Headers, Bespoke Motherboard Design & Business Focused Features - Q-LED Core - ASUS Self Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS kit - Anti-Moisture Coating - 24/7 Reliability - Overcurrent Protection, TPM IC Onboard

Software Features

• ASUS Exclusive Software, IT Management software supported - ASUS Control Center Express(ACCE)

Accessories

• 2 x SATA 6Gb/s cables, 1 x I/O Shield, 1 x M.2 SSD screw package, 1 x M.2 Key E screw package, 1 x Support DVD, 1 x ACC Express Activation Key Card, 1 x User guide
