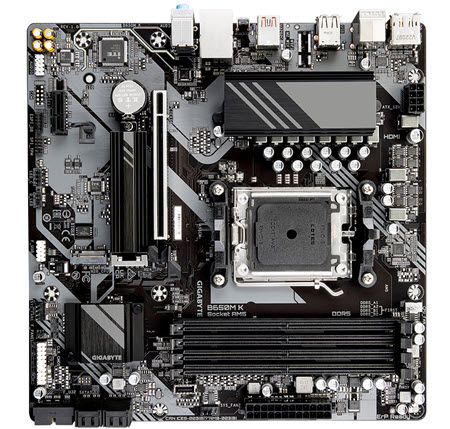

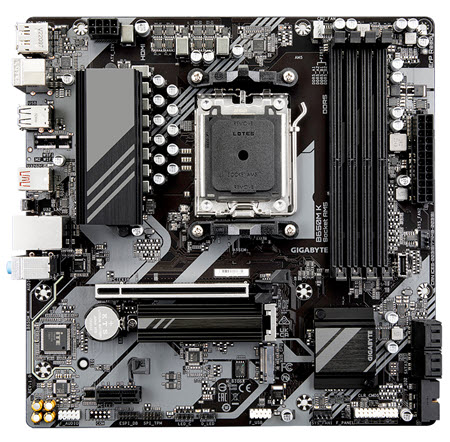

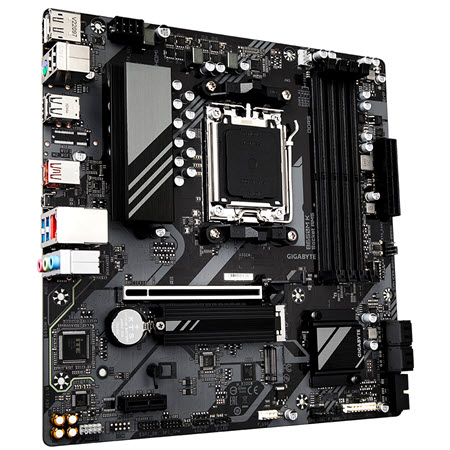

B650M K

GIGABYTE Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.

GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage.

GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

Form Factor

• mATX Form Factor; 24.4cm x 24.4cm

CPU

• AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors

Chipset

• AMD B650

Memory

• Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / MT/s memory modules, 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory, Dual channel memory architecture, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

Graphics

• Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz, * Support for DisplayPort 1.4 version. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports.

Expansion Slots

• CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16, Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage

• CPU: 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support), 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support), Chipset: 4 x SATA 6Gb/s connectors, RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices, RAID 0, RAID 1, and RAID 10 support for SATA storage devices

LAN

• Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Audio

• Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel

USB Ports

• CPU: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support, 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel, 2 x USB 2.0/1.1 ports on the back panel, Chipset: 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header, 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header), 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

OS Support

• Windows 11 64-bit, Windows 10 64-bit

Internal I/O Ports

• 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 2 x system fan headers, 1 x addressable LED strip header, 1 x RGB LED strip header, 2 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB Type-C® header, with USB 3.2 Gen 1 support, 1 x USB 3.2 Gen 1 header, 1 x USB 2.0/1.1 header, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only), 1 x reset jumper, 1 x Clear CMOS jumper

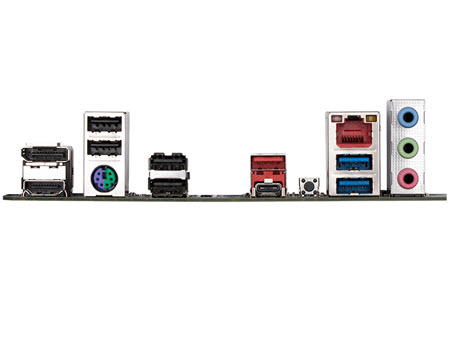

Back I/O Ports

• 1 x DisplayPort, 1 x HDMI port, 4 x USB 2.0/1.1 ports, 1 x PS/2 keyboard/mouse port, 1 x USB 3.2 Gen 2 Type-A port (red), 1 x USB Type-C® port, with USB 3.2 Gen 2 support, 1 x Q-Flash Plus button, 1 x RJ-45 port, 2 x USB 3.2 Gen 1 ports, 3 x audio jacks

H/W Monitoring

• Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control, * Whether the fan speed control function is supported will depend on the cooler you install.

Special Features

• Support for GIGABYTE Control Center (GCC), * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash, Support for Q-Flash Plus

Bundled Software

• Norton® Internet Security (OEM version), LAN bandwidth management software
