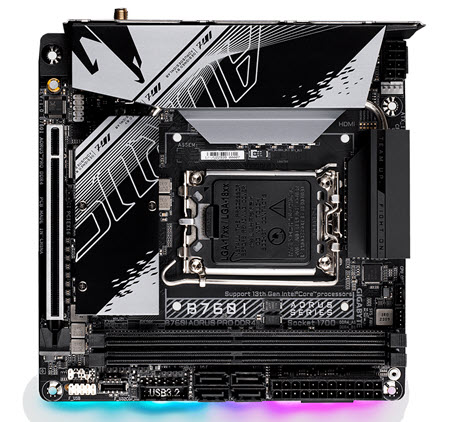

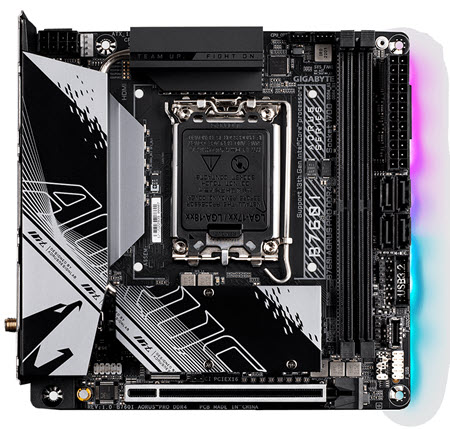

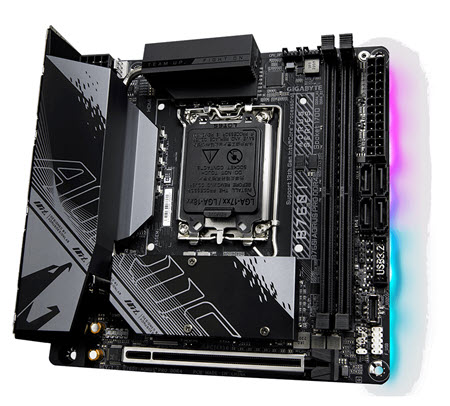

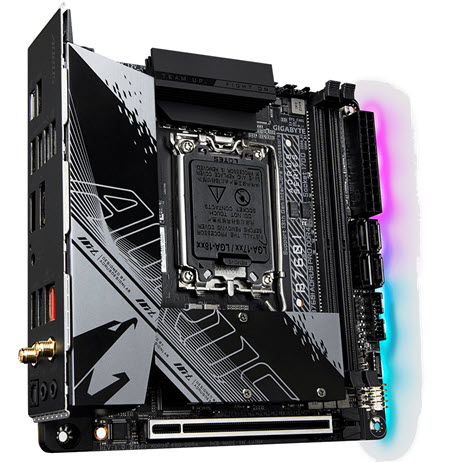

B760I AORUS PRO DDR4

GIGABYTE Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.

Form Factor

• Mini-ITX Form Factor; 17.0cm x 17.0cm

CPU

• LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*, L3 cache varies with CPU

Chipset

• Intel® B760 Express Chipset

Memory

• Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules, 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory, Dual channel memory architecture, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules

Graphics

• Integrated Graphics Processor-Intel® HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz, * Support for DisplayPort 1.2 version and HDCP 2.3, 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, * Support for HDMI 2.0 version and HDCP 2.3.

Expansion Slots

• CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Storage

• CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU), Chipset: 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB), 4 x SATA 6Gb/s connectors, RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

LAN

• Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

• Intel® Killer™ Wi-Fi 6 AX1650 (PCB rev. 1.0), WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band, BLUETOOTH 5.2, Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate, Intel® Wi-Fi 6E AX211 (PCB rev. 1.1), WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands, BLUETOOTH 5.3, Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Audio

• Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out

USB Ports

• Chipset: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support, 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header, 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel, 2 x USB 3.2 Gen 1 ports available through the internal USB header, 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header), Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel

OS Support

• Windows 11 64-bit, Windows 10 64-bit

Internal I/O Ports

• 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 1 x CPU fan/water cooling pump header, 1 x system fan header, 1 x addressable LED strip header, 1 x RGB LED strip header, 2 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x speaker header, 1 x USB Type-C® header, with USB 3.2 Gen 1 support, 1 x USB 3.2 Gen 1 header, 1 x USB 2.0/1.1 header, 1 x reset jumper, 1 x Clear CMOS jumper, 1 x chassis intrusion header

Back I/O Ports

• 1 x USB Type-C® port, with USB 3.2 Gen 2 support, 1 x USB 3.2 Gen 2 Type-A port (red), 4 x USB 3.2 Gen 1 ports, 2 x USB 2.0/1.1 ports, 1 x DisplayPort, 1 x HDMI port, 1 x Q-Flash Plus button, 1 x RJ-45 port, 2 x SMA antenna connectors (2T2R), 1 x optical S/PDIF Out connector, 2 x audio jacks

H/W Monitoring

• Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control

Unique Features

• Support for GIGABYTE Control Center (GCC), * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash, Support for Q-Flash Plus

Bundled Software

• Norton® Internet Security (OEM version), LAN bandwidth management software
