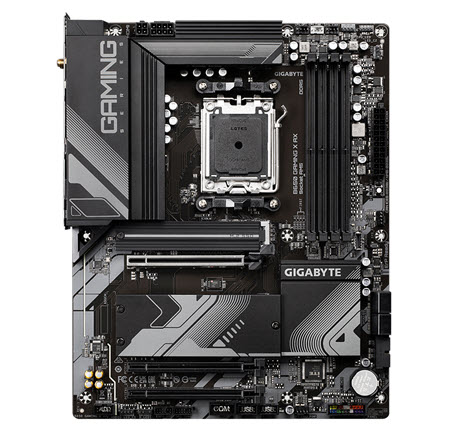

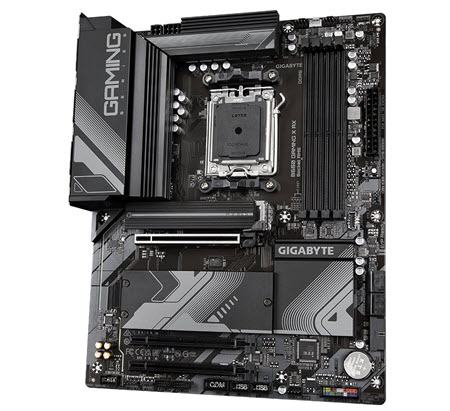

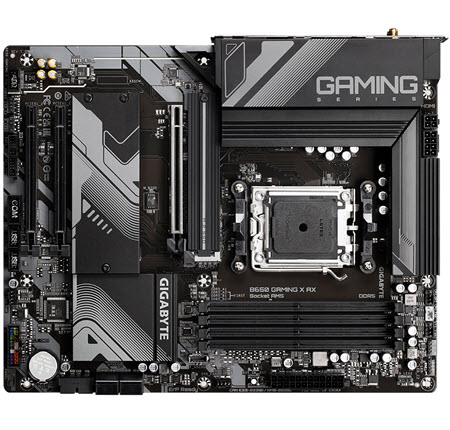

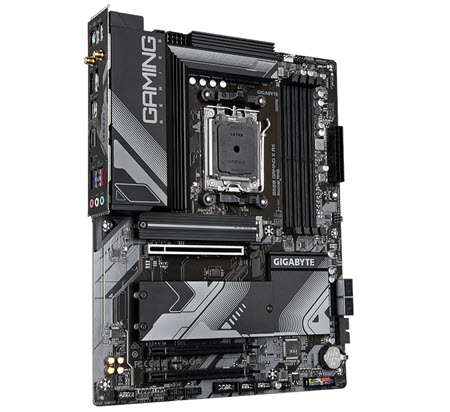

B650 GAMING X AX

With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.

GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

Form Factor

• ATX Form Factor; 30.5cm x 24.4cm

CPU

• AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors

Chipset

• AMD B650

Memory

• Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules, 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory, Dual channel memory architecture, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

Graphics

• Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz, * Support for DisplayPort 1.4 version and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports.

Expansion Slots

• CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16), * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)

Storage

• CPU: 2 x M.2 connectors (Socket 3, M key, type 25110/2280 support), M2A_CPU and M2B_CPU connectors support PCIe 4.0 x4/x2 SSD (PCB rev. 1.0/1.1), M2A_CPU connector supports PCIe 5.0* x4/x2 SSD, M2B_CPU connector supports PCIe 4.0 x4/x2 SSD (PCB rev. 1.2), * Actual support may vary by CPU. Chipset: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB) 4 x SATA 6Gb/s connectors, RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices, RAID 0, RAID 1, and RAID 10 support for SATA storage devices

LAN

• Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

• AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0/PCB rev. 1.2), WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands, BLUETOOTH 5.2, Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate, Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1), WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands, BLUETOOTH 5.3, Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Audio

• Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel

USB Ports

• CPU: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support, 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel, 1 x USB 3.2 Gen 1 port on the back panel, CPU + USB 2.0 Hub: 3 x USB 2.0/1.1 ports on the back panel, Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header, 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header), 4 x USB 2.0/1.1 ports available through the internal USB headers

OS Support

• Windows 11 64-bit, Windows 10 64-bit

Internal I/O Ports

• 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x 4-pin ATX 12V power connector, 1 x CPU fan header, 1 x water cooling CPU fan header, 2 x system fan headers, 1 x system fan/water cooling pump header, 2 x addressable LED strip headers, 2 x RGB LED strip headers, 1 x CPU cooler LED strip/RGB LED strip header, 3 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only), 1 x serial port header, 1 x reset button, 1 x reset jumper, 1 x Clear CMOS jumper

Back I/O Ports

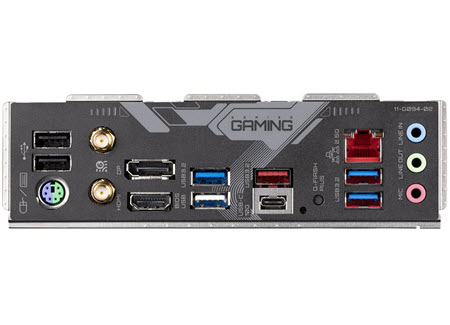

• 2 x SMA antenna connectors (2T2R), 1 x Q-Flash Plus button, 1 x DisplayPort, 1 x HDMI port, 1 x USB Type-C® port, with USB 3.2 Gen 2 support, 1 x USB 3.2 Gen 2 Type-A port (red), 3 x USB 3.2 Gen 1 ports, 3 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks

H/W Monitoring

• Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control

Unique Features

• Support for GIGABYTE Control Center (GCC), * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash, Support for Q-Flash Plus

Bundled Software

• Norton® Internet Security (OEM version), LAN bandwidth management software
