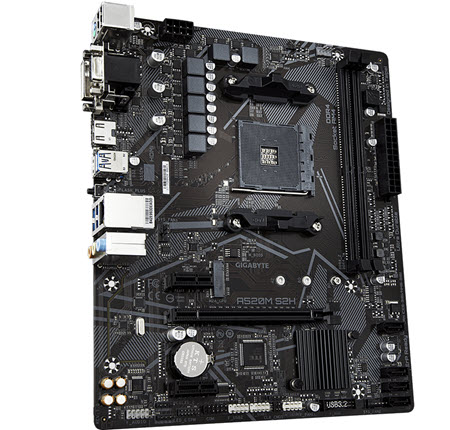

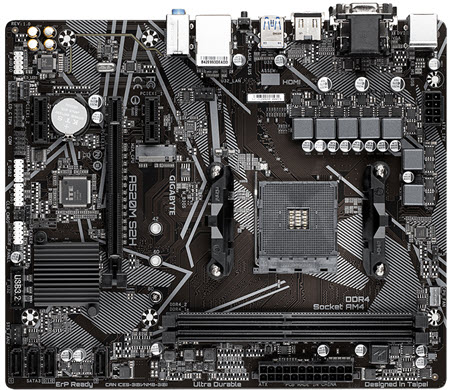

A520M S2H

GIGABYTE UD series motherboards use a 4+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

Form Factor

• Micro ATX Form Factor; 24.4cm x 20.5cm

CPU

• AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors

Chipset

• AMD A520

Memory

• 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory, Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules, Dual channel memory architecture, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*. * ECC memory (ECC mode) support varies by CPU, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules

Graphics

• Integrated Graphics Processor: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz, 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz,, * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support for up to 3 displays at the same time, Maximum shared memory of 16 GB

Expansion Slots

• CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0

Storage

• CPU: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support),, Chipset: 4 x SATA 6Gb/s connectors, Support for RAID 0, RAID 1, and RAID 10

LAN

• Realtek® GbE LAN chip (1000 Mbit/100 Mbit)

Audio

• Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel

USB Ports

• CPU: 4 x USB 3.2 Gen 1 ports on the back panel, Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header, 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

OS Support

• Windows 11 64-bit, Windows 10 64-bit

Internal I/O Ports

• 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 2 x system fan headers, 1 x addressable LED strip header, 1 x RGB LED strip header, 1 x M.2 Socket 3 connector, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only), 1 x serial port header, 1 x speaker header, 1 x chassis intrusion header, 1 x Clear CMOS jumper

Back I/O Ports

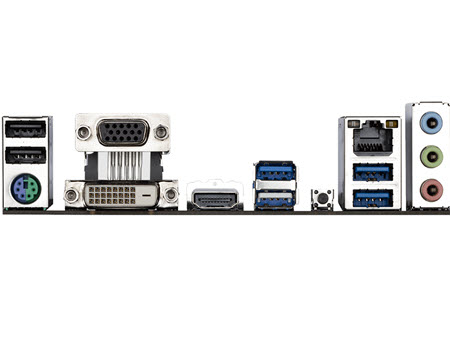

• 1 x PS/2 keyboard/mouse port, 1 x D-Sub port, 1 x DVI-D port, 1 x HDMI port, 4 x USB 3.2 Gen 1 ports, 2 x USB 2.0/1.1 ports, 1 x RJ-45 port, 1 x Q-Flash Plus button, 3 x audio jacks

H/W Monitoring

• Voltage detection, Temperature detection, Fan speed detection, Overheating warning, Fan fail warning, Fan speed control

Unique Features

• Support for APP Center, * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS, EasyTune, Fast Boot, Game Boost, ON/OFF Charge, RGB Fusion, Smart Backup, System Information Viewer, Support for Q-Flash Plus, Support for Q-Flash, Support for Xpress Install

Bundled Software

• Norton® Internet Security (OEM version), Realtek® 8118 Gaming LAN Bandwidth Control Utility
