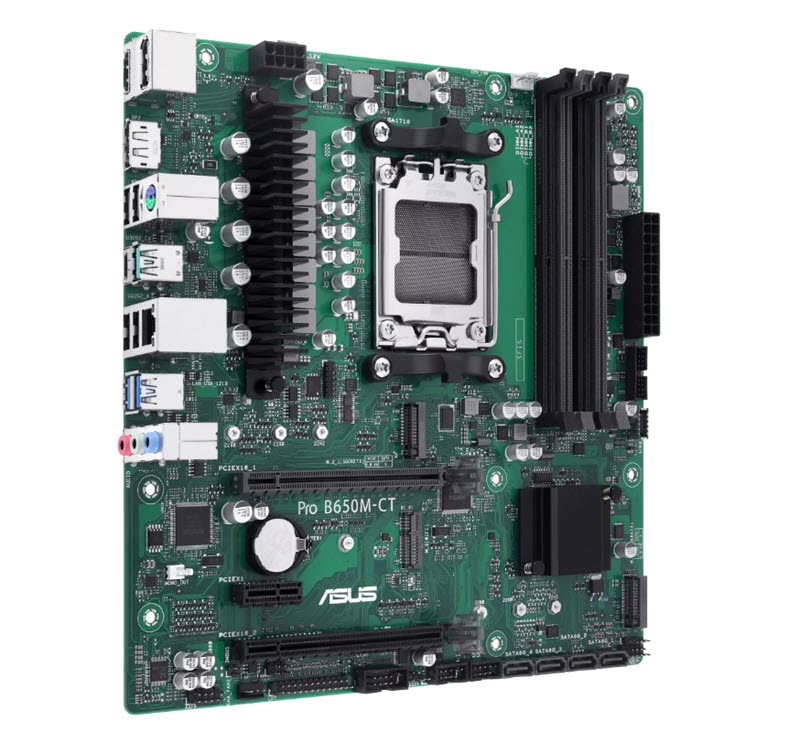

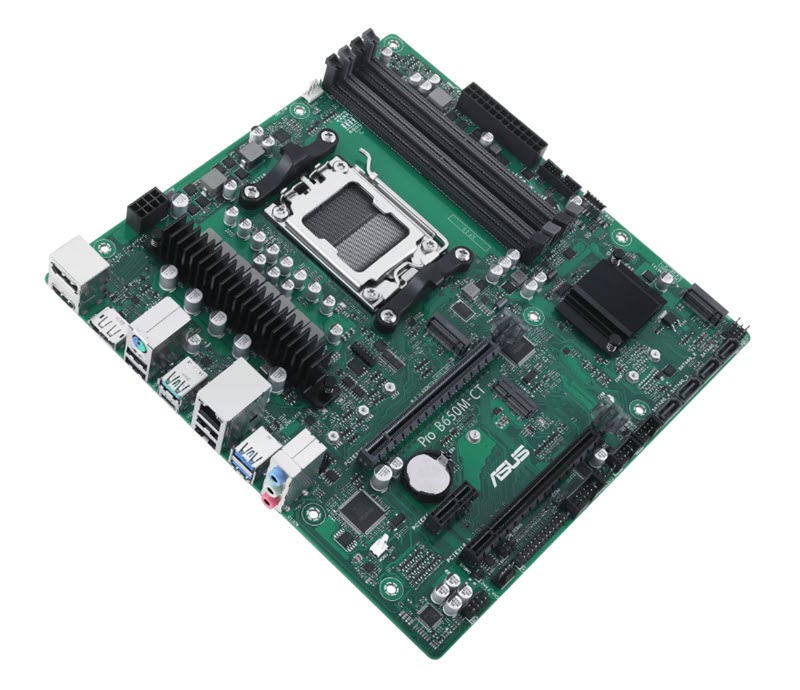

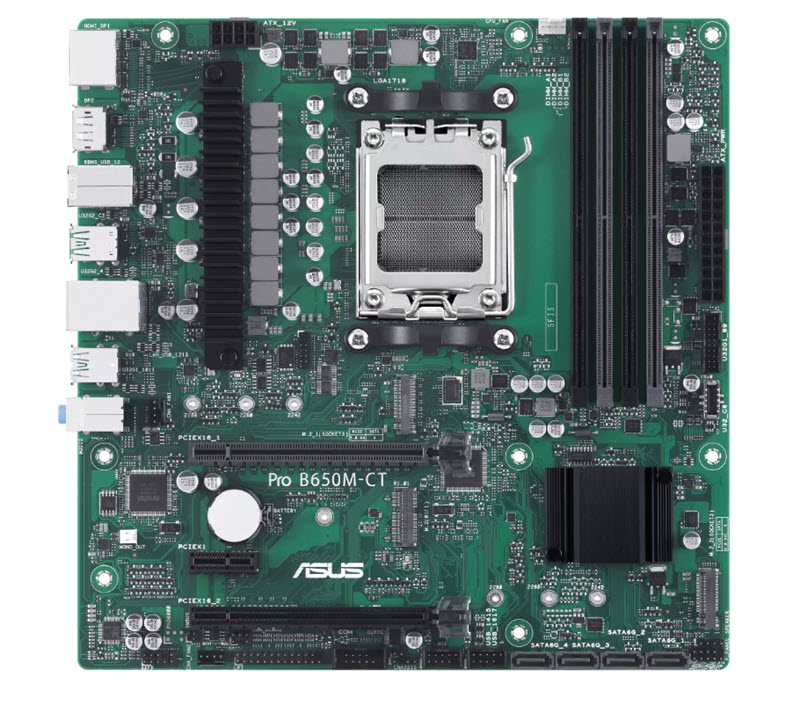

Pro B650M-CT-CSM

ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.

ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

Form Factor

• mATX Form Factor: 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

CPU

• CPU: AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors

Chipset

• Chipset: AMD B650 Chipset

Memory

• 4 x DIMM slots, Max. 128 GB, DDR5 6400+(OC)/6200(OC) /6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports AMD Extended Profiles for Overclocking (EXPO™), OptiMem II

Graphics

• 2 x DisplayPort**, 1 x HDMI™ port***, ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

• AMD Ryzen™ 7000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot (supports x16 mode), 1 x PCIe 4.0 x16 slot (supports x4 mode), AMD B650 Chipset; 1 x PCIe 4.0 x1 slot

Storage

• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*, AMD Ryzen™ 7000 Series Desktop Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), AMD B650 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), 4 x SATA 6Gb/s ports, * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

LAN

• 1 x Realtek 1Gb Ethernet ASUS LANGuard

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*, - Supports: Jack-detection, Front Panel Jack-retasking, - Supports up to 24-Bit/192 kHz playback, * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

USB Ports

• Rear USB (Total 8 ports); 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C®), 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), Front USB (Total 7 ports); 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports

OS Support

• Windows® 11, Windows® 10 64-bit

Internal I/O Ports

• Fan and Cooling related; 1 x 4-pin CPU Fan header, 2 x 4-pin Chassis Fan headers, Power related; 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, Storage related 2 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, USB; 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® ), 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports, Miscellaneous; 1 x Clear CMOS header, 1 x Chassis Intrude header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x COM debug header, 1 x LPT header, 1 x Mono-out header (with Amp IC), 1 x M.2 slot (Key E), 1 x SMBUS header, 1 x Speaker header, 1 x 10-1 pin System Panel header

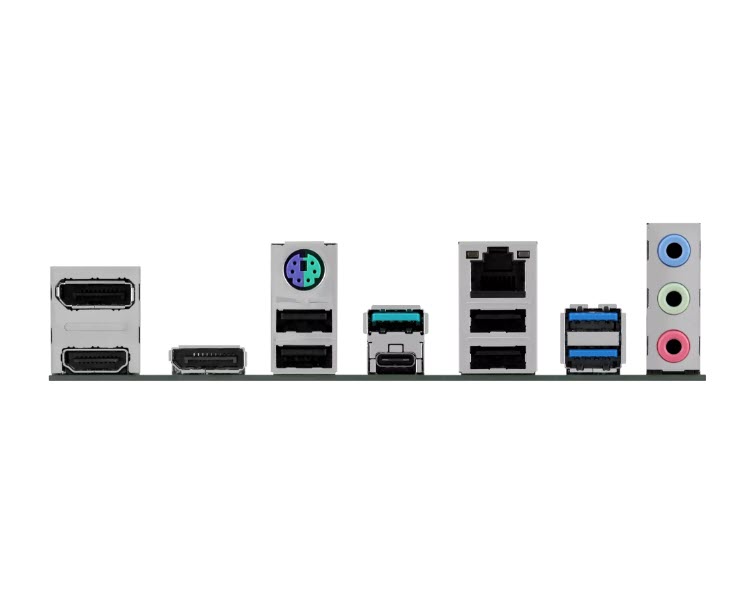

Back I/O Ports

• 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C®), 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 2 x DisplayPort, 1 x HDMI™ port, 1 x Realtek 1Gb Ethernet port, 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo port

Software Features

• ASUS Exclusive Software, IT Management software supported - ASUS Control Center Express (ACCE)

Special Features

• ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot, ASUS Thermal Solution - VRM heatsink design, ASUS EZ DIY - Box Headers, Bespoke Motherboard Design & Business Focused Features - ASUS Boot Defender - ASUS Self Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS kit* - Anti-Moisture Coating - 24/7 Reliability - Overcurrent Protection * Please contact local FAE for commercial BIOS kit. TPM2.0 IC Onboard

Bundled Software

• Cables; 2 x SATA 6Gb/s cables, Miscellaneous; 1 x I/O Shield, 1 x Screw package for M.2 SSD, 1 x Screw package for M.2 Key E, Documentation; 1 x ACC Express Activation Key Card, 1 x User guide
