Form Factor

• ATX, 30.5cm x 24.4cm

CPU

• Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors - Supports Intel® 14 nm CPU, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset

• Z590

Memory

• DDR4 5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports Intel® Extreme Memory Profile (XMP), OptiMem II

Graphics

• 1 x DisplayPort 1.4, 1 x HDMITM 2.0

Expansion Slots

• Intel® 11th & 10th Gen Processors, 1 x PCIe 4.0/3.0 x16 slot - Intel® 11th processors support PCIe 4.0 x16 - Intel®10th processors support PCIe 3.0 x16, Intel® Z590 Chipset; 1 x PCIe 3.0 x16 slot (supports x4 mode), 2 x PCIe 3.0 x1 slots

Storage

• Supports 3 x M.2 slots and 6 x SATA 6Gb/s ports, Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports, Intel®11th Gen Processors; M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs, Intel® Z590 Chipset; M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes), M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes), 6 x SATA 6Gb/s ports

LAN

• 1 x Intel® 2.5Gb Ethernet

Wireless

• Intel® WiFi 6

Audio

• Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-re-tasking - Supports up to 24-Bit/192 kHz playback, Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Dedicated audio PCB layers - Audio cover

USB Ports

• Rear USB: Total 7 ports, 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 2 x USB 3.2 Gen 2 ports (2 x Type-A), 2 x USB 3.2 Gen 1 ports (2 x Type-A), 2 x USB 2.0 ports (2 x Type-A), Front USB:Total 7 ports; 1 x USB 3.2 Gen 1 connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports

OS Support

• Windows 10 64bit

Internal I/O Ports

• Fan and Cooling related - 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 3 x 4-pin Chassis Fan headers, Power related; 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x 4-pin +12V Power connector, Storage related; 3 x M.2 slots (Key M), 6 x SATA 6Gb/s ports, USB; 1 x USB 3.2 Gen 1 connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports, Miscellaneous; 2 x AURA Addressable Gen 2 headers, 2 x AURA RGB headers, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x Thunderbolt™ header

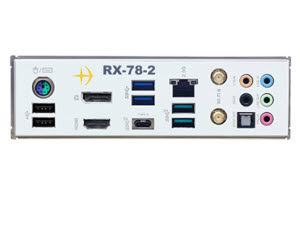

Back I/O Ports

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 2 x USB 3.2 Gen 2 ports (2 x Type-A), 2 x USB 3.2 Gen 1 ports (2 x Type-A), 2 x USB 2.0 ports (2 x Type-A), 1 x DisplayPort, 1 x HDMI™ port, 1 x ASUS Wi-Fi Module, 1 x Intel® I225-V 2.5Gb Ethernet port, 5 x Audio jacks, 1 x Optical S/PDIF out port, 1 x PS/2 Keyboard/Mouse combo port

Software Features

• ASUS Exclusive Software, Armoury Crate - AURA Creator - AURA Sync - Two-Way AI Noise Cancellation, AI Suite 3 - Performance And Power Saving Utility, TurboV EVO, EPU, Digi+ VRM, Fan Xpert 4 - EZ update, ASUS CPU-Z, AI Charger, ASUS Turbo LAN, DAEMON Tools, DTS Custom for GAMING Headsets, MyASUS, Norton Anti-virus software (Free Trial version), WinRAR, UEFI BIOS, ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Special Features

• ASUS PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ASUS LANGuard - Overvoltage Protection, ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot, ASUS Thermal Solution - M.2 heatsink - VRM heatsink design, ASUS EZ DIY - ProCool - Pre-mounted I/O shield - SafeSlot, AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers

Accessories

• 2 x SATA 6Gb/s cables, 1 x ASUS Wi-Fi moving antenna, 2 x M.2 Rubber Packages, 1 x M.2 SSD screw package, 1 x GUNDAM DIY sticker, 1 x Support DVD, 1 x User manual
