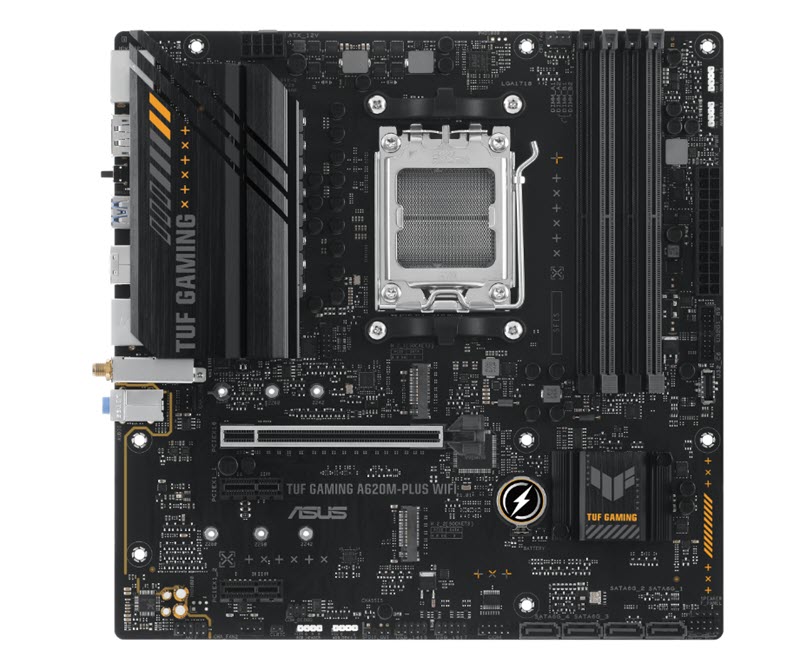

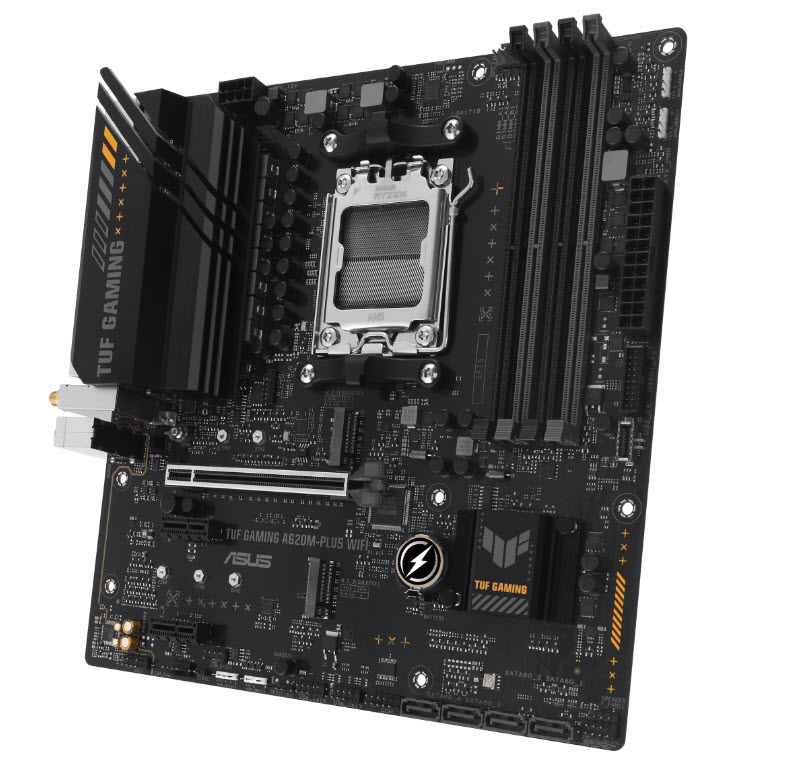

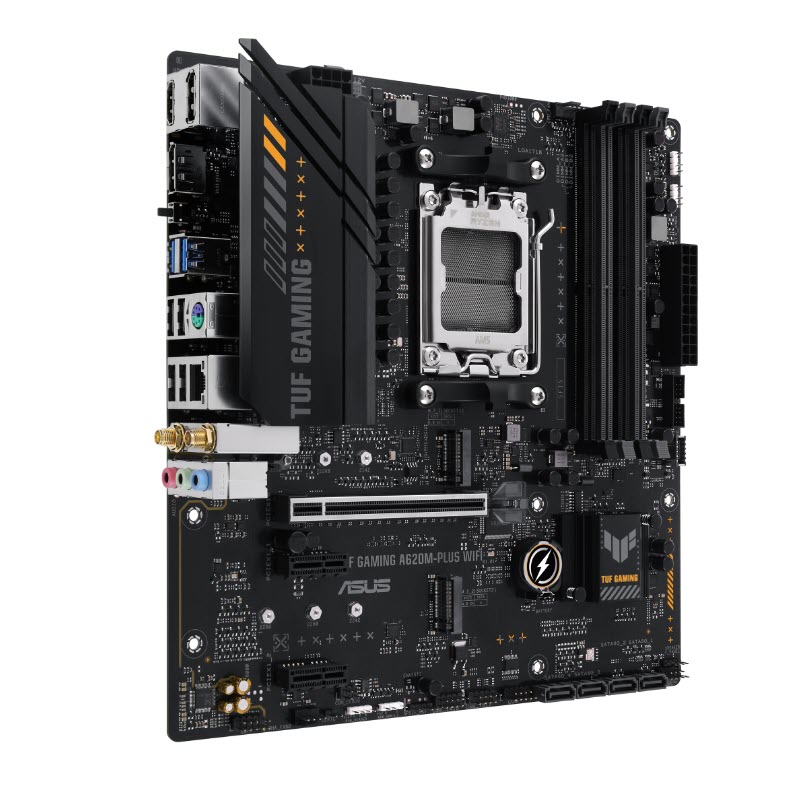

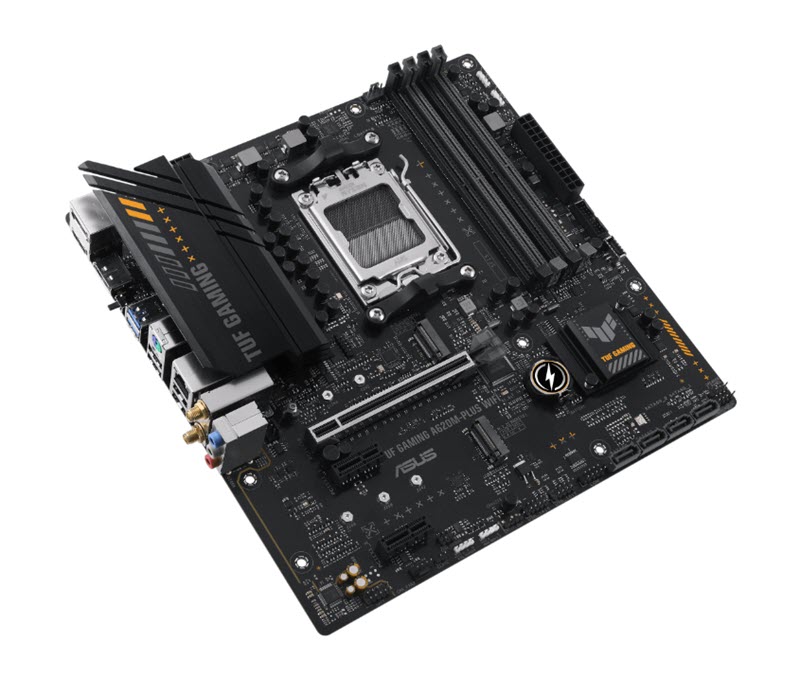

TUF GAMING A620M-PLUS WIFI
ASUS TUF GAMING A620M-PLUS WIFI takes all the essential elements of AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming.
TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
The TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 2+, hardware info, Two-Way AI Noise Cancellation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.
TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.
Form Factor
- Micro-ATX Form Factor, 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
CPU
- AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors
Chipset
Memory
- 4 x DIMM slots, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)
/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture,
Supports AMD Extended Profiles for Overclocking (EXPO™), OptiMem II
Graphics
- 2 x DisplayPort**,
1 x HDMI™ port***,
** Support max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
- AMD Ryzen™ 7000 Series Desktop Processors,
1 x PCIe 4.0 x16 slot, AMD A620 Chipset, 2 x PCIe 3.0 x1 slots
Storage
- Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports, *
AMD Ryzen™ 7000 Series Desktop Processors,
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode),
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode),
AMD A620 Chipset,
4 x SATA 6Gb/s ports,
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
LAN
- 1 x Realtek 2.5Gb Ethernet, TUF LANGuard
Wireless & Bluetooth
- Wi-Fi 6,
1x1 Wi-Fi 6 (802.11 a/b/g/n/ac/ax),
Supports 2.4/5GHz frequency band, Bluetooth® v5.3
Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback,
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
USB Ports
- Rear USB (Total 6 ports);
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A),
4 x USB 2.0 ports (4 x Type-A),
Front USB (Total 7 ports);
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®),
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports,
2 x USB 2.0 headers support 4 additional USB 2.0 ports
OS Support
- Windows® 11, Windows® 10 64-bit
Internal I/O Ports
- Fan and Cooling related;
1 x 4-pin CPU Fan header,
2 x 4-pin Chassis Fan headers,
Power related;
1 x 24-pin Main Power connector,
1 x 8-pin +12V Power connector,
Storage related;
2 x M.2 slots (Key M),
4 x SATA 6Gb/s ports,
USB;
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® ),
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports,
2 x USB 2.0 headers support 4 additional USB 2.0 ports,
Miscellaneous;
3 x Addressable Gen 2 headers,
1 x Aura RGB header,
1 x Clear CMOS header,
1 x COM Port header,
1 x Front Panel Audio header (AAFP),
1 x S/PDIF Out header,
1 x Speaker header,
1 x 10-1 pin System Panel header

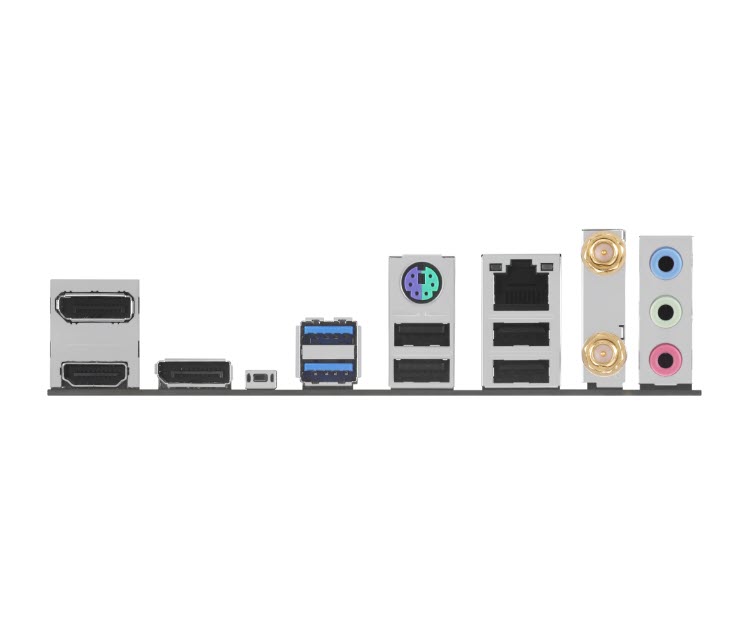

Back I/O Ports
- 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A),
4 x USB 2.0 ports (4 x Type-A),
2 x DisplayPort,
1 x HDMI™ port,
1 x Wi-Fi Module,
1 x Realtek 2.5Gb Ethernet port,
3 x Audio jacks,
1 x BIOS FlashBack™ button,
1 x PS/2 Keyboard/Mouse combo port
Software Features
- ASUS Exclusive Software,
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
- Two-Way AI Noise Cancellation,
AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner,
TUF GAMING CPU-Z,
MyASUS,
Norton 360 for Gamers (60 Days Free Trial),
WinRAR,
UEFI BIOS,
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Special Features
- ASUS TUF PROTECTION
- DIGI+ VRM
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O,
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED Core
- Q-Slot,
ASUS Thermal Solution
- VRM heatsink design,
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED,
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Accessories
- Cables;
2 x SATA 6Gb/s cables,
Miscellaneous;
1 x ASUS Wi-Fi moving antennas,
1 x I/O Shield,
1 x TUF Gaming sticker,
1 x Screw package for M.2 SSD,
Documentation;
1 x TUF Certification card,
1 x User guide
