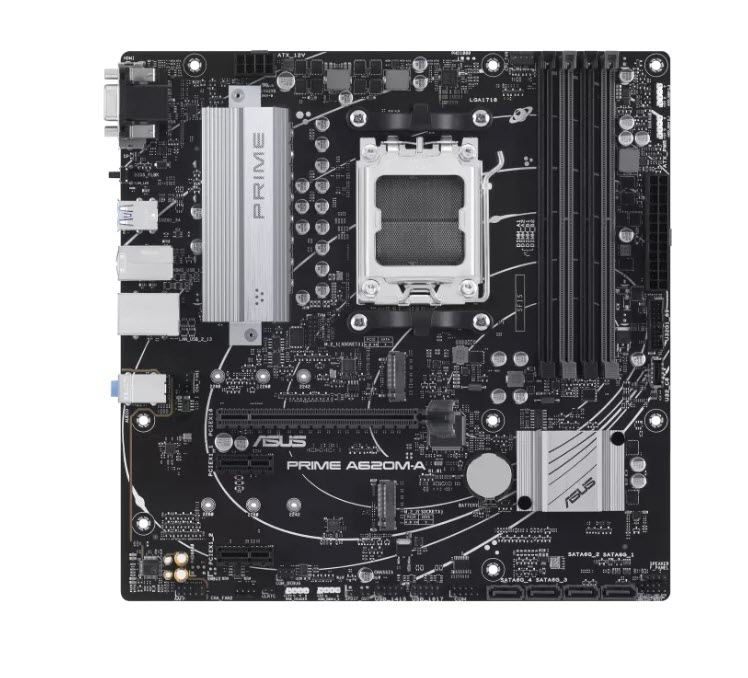

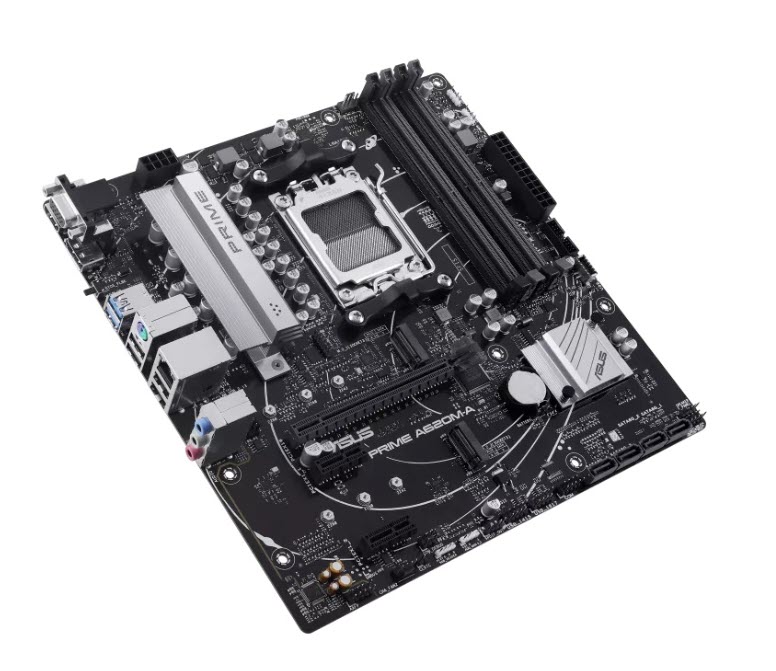

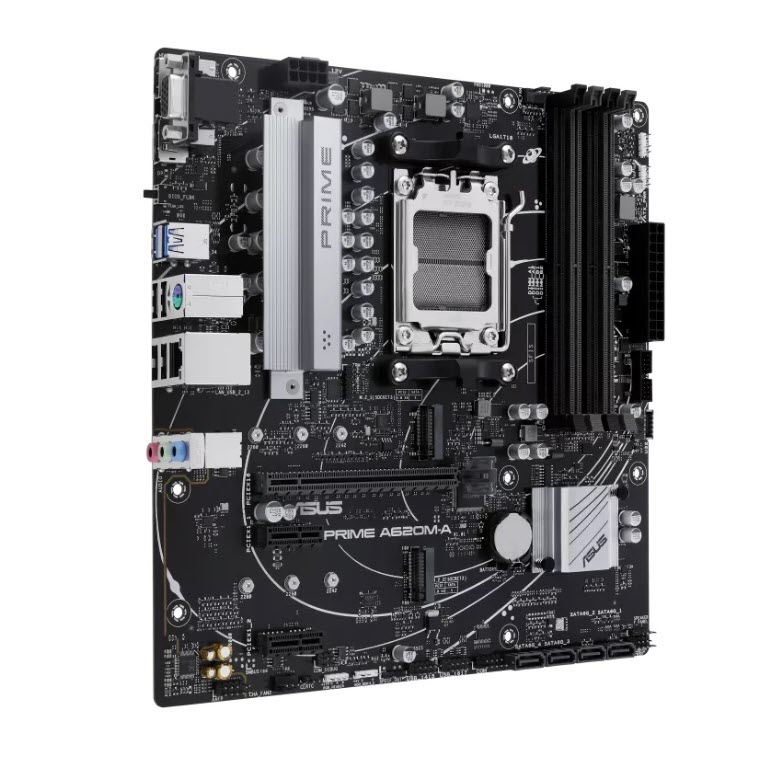

PRIME A620M-A-CSM
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME A620M-A-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
Form Factor
- mATX Form Factor, 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
CPU
- AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors
Chipset
Memory
- 4 x DIMM slots, Max. 128 GB, DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)
/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory Dual Channel Memory Architecture,
Supports AMD Extended Profiles for Overclocking (EXPO™),
OptiMem II
Graphics
- 1 x DisplayPort**,
1 x VGA port,
1 x HDMI™ port***,
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
- AMD Ryzen™ 7000 Series Desktop Processors,
1 x PCIe 4.0 x16 slot (supports x16 mode),
AMD A620 Chipset,
2 x PCIe 3.0 x1 slots
Storage
- Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*,
AMD Ryzen™ 7000 Series Desktop Processors,
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode),
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode),
AMD A620 Chipset,
4 x SATA 6Gb/s ports,
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
LAN
Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC*,
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback,
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers,
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
USB Ports
- Rear USB (Total 6 ports);
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A),
4 x USB 2.0 ports (4 x Type-A),
Front USB (Total 7 ports);
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®),
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports,
2 x USB 2.0 headers support 4 additional USB 2.0 ports
OS Support
- Windows® 11, Windows® 10 64-bit
Internal I/O Ports
- Fan and Cooling related;
1 x 4-pin CPU Fan header,
2 x 4-pin Chassis Fan headers,
Power related;
1 x 24-pin Main Power connector,
1 x 8-pin +12V Power connector,
Storage related;
2 x M.2 slots (Key M),
4 x SATA 6Gb/s ports,
USB;
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® ),
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports,
2 x USB 2.0 headers support 4 additional USB 2.0 ports,
Miscellaneous;
3 x Addressable Gen 2 headers,
1 x Aura RGB header,
1 x Clear CMOS header,
1 x COM Port header,
1 x Front Panel Audio header (AAFP),
1 x S/PDIF Out header,
1 x Speaker header,
1 x SPI TPM header (14-1pin),
1 x 10-1 pin System Panel header

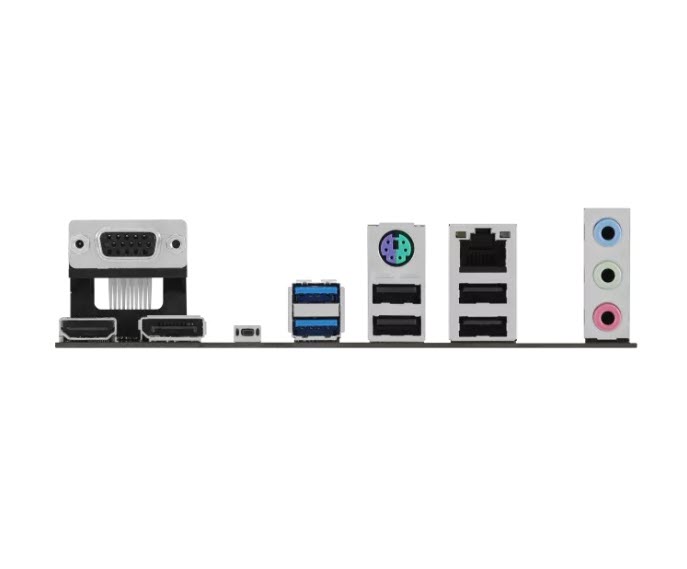

Back I/O Ports
- 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A),
4 x USB 2.0 ports (4 x Type-A),
1 x DisplayPort,
1 x VGA port,
1 x HDMI™ port,
1 x Realtek 1Gb Ethernet port,
3 x Audio jacks,
1 x BIOS FlashBack™ button,
1 x PS/2 Keyboard/Mouse combo port
Software Features
- ASUS Exclusive Software,
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
- Two-Way AI Noise Cancellation,
AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner,
ASUS CPU-Z,
IT Management software supported
- ASUS Control Center Express(ACCE),
Norton 360 Deluxe (60 Days Free Trial),
WinRAR,
UEFI BIOS,
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Special Features
- ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O,
ASUS Q-Design
- Q-DIMM
- Q-LED core
- Q-Slot,
ASUS Thermal Solution
- VRM heatsink design,
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED,
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Accessories
- Cables,
2 x SATA 6Gb/s cables,
Miscellaneous,
1 x I/O Shield,
1 x Screw package for M.2 SSD,
Documentation,
1 x ACC Express Activation Key Card,
1 x User guide
