MSI MPG Z790 EDGE WIFI Z790 - ATX, s1700, 4xDDR5, 1xDP, 1xHDMI, 2.5Gb, Wi-Fi 6E, BT 5.3
Product Type:
Motherboards
Type Detail:
Intel Socket 1700 (6xx/7xx Series)
Manufacturer:
MSI
Manufacturer #:
Z790EDGEWI
Part Status:
Special Order Only
Milwaukee PC SKU:
264673
Price:
$429.99

Quick Tech Specs

Processor Manufacture: Intel
Socket: LGA 1700
Chipset Manufacture: Intel / Z790
Form Factor: ATX
SLI Support: NONE
Crossfire Support: NONE
Memory Type: DDR5
Number of Memory Slots: 4 Slots
Max Memory: 192GB
PCI Express x16 Slots: 2 Slots
PCI Express x1 Slots: 1 Slots
PCI Slots: None
WiFi Onboard: Wi-Fi 6E / BT 5.3
RAID Support: RAID 0/1/5/10
NVMe Support: Yes
Sata 6 Gbits/s Ports (3.0/3.1): 7 Ports
M.2 Slots: 5 Slots
Network Ports: 2.5 Gigabit
USB C Ports: 2 Ports
Legacy Ports: NONE
USB 3.x Ports (3.0 or higher): 8 Ports
Thunderbolt Ports: NONE
USB 3.0 Ports: None
USB 2.0 Ports: None
Display Ports: 1 Port
VGA Ports: NONE
DVI Ports: NONE
HDMI Ports: 1 Ports

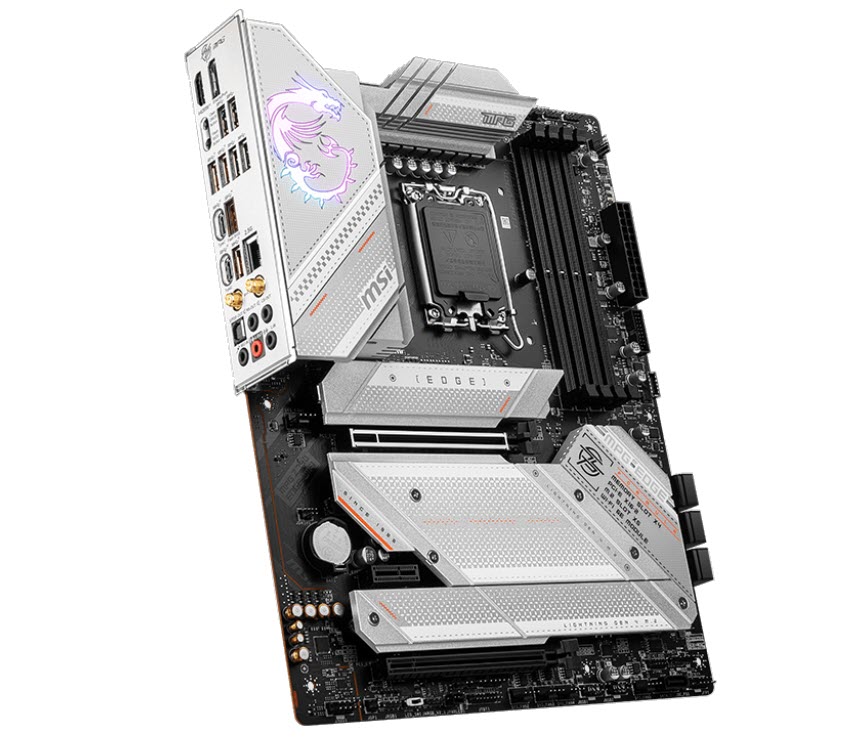

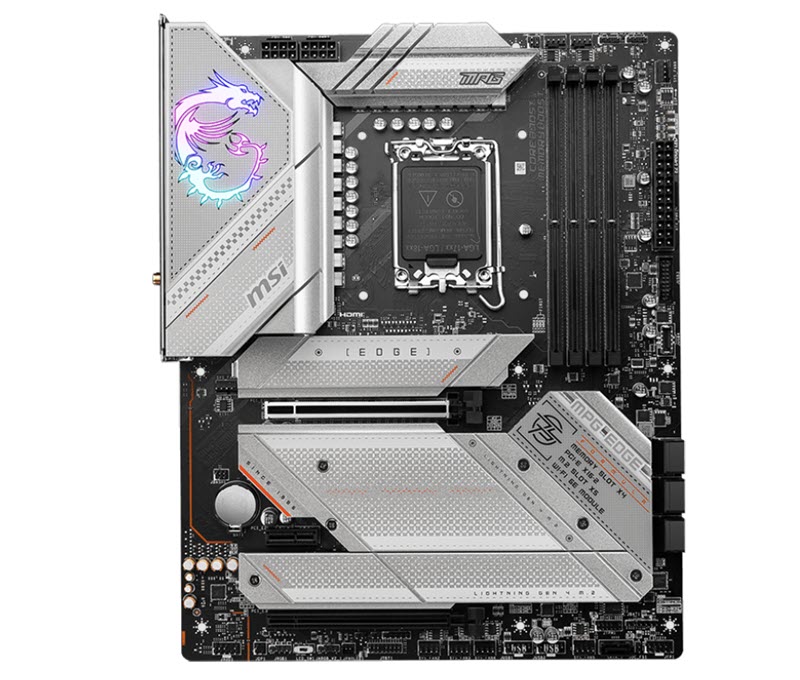

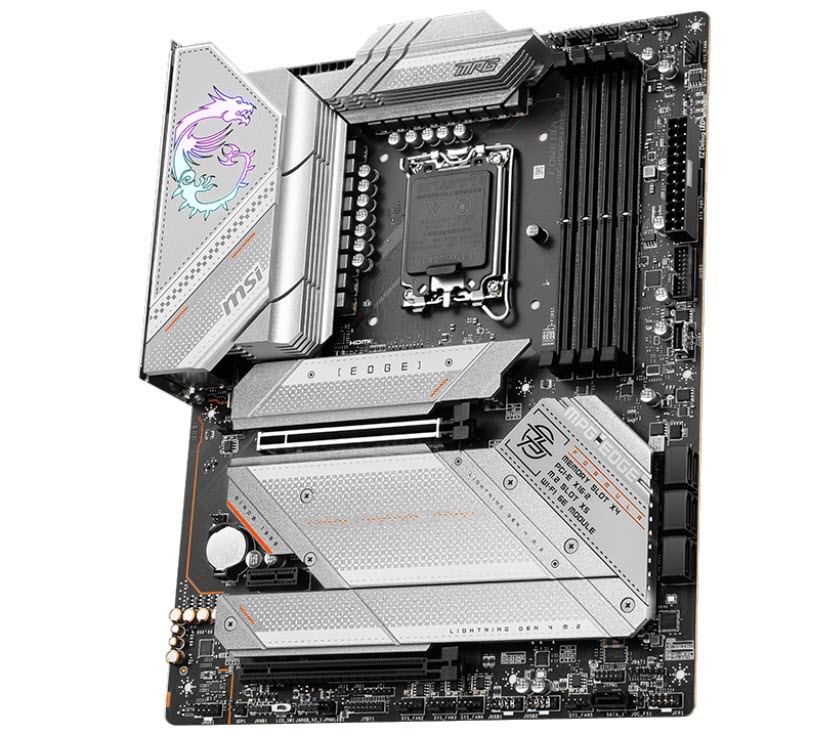

MSI MPG Z790 EDGE

MPG Z790 EDGE WIFI employs silver white color scheme to show off different personality and identity. Besides being stylish, it is also powerful.

Form Factor

  • ATX - 243.84mmx304.8mm

CPU

  • Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors - LGA 1700

Chipset

  • INTEL Z790

Memory

  • 4x DDR5, Maximum Memory Capacity 192 GB Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC) / 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC) / 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz, Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz - Supports Intel® XMP3.0 OC - Supports Dual-Controller Dual-Channel mode - Supports non-ECC, un-buffered memory

Graphics

  • 1x HDMI™ - Support HDMI™ 2.1, maximum resolution of 4K 60Hz* - 1x DisplayPort - Support DP 1.4, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Expansion Slots

  • 2x PCI-E x16 slot - 1x PCI-E x1 slot - PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) - PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) - PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Storage

  • 5x M.2 - M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices - M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices - M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices - M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices - M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices - 7x SATA 6G - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

LAN

  • Intel® 2.5Gbps LAN

WIRELESS / BLUETOOTH

  • Intel® Wi-Fi 6E - The Wireless module is pre-installed in the M.2 (Key-E) slot - Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps - Supports 802.11 a/ b/ g/ n/ ac/ ax - Supports Bluetooth® 5.3**, FIPS, FISMA

Audio

  • Realtek® ALC4080 Codec - 7.1-Channel USB High Performance Audio - Supports up to 32-Bit/384 kHz playback on front panel

USB Ports

  • 4x USB 2.0 (Front) - 4x USB 3.2 Gen1 Type A (Rear) - 2x USB 3.2 Gen1 Type A (Front) - 4x USB 3.2 Gen2 Type A (Rear) - 1x USB 3.2 Gen2 Type C (Rear) - 1x USB 3.2 Gen2 Type C (Front) - 1x USB 3.2 Gen2x2 Type C (Rear)

OS Support

  • Windows® 11 64-bit, Windows® 10 64-bit

Internal I/O Ports

  • 1x Power Connector(ATX_PWR) - 2 x Power Connector(CPU_PWR) - 1 x CPU Fan - 1 x Pump Fan - 6 x System Fan - 2 x Front Panel (JFP) - 1 x Chassis Intrusion (JCI) - 1 x Front Audio (JAUD) - 1 x TBT connector (JTBT, supports RTD3) - 1 x Tuning Controller connector(JDASH) - 3 x Addressable V2 RGB LED connector (JARGB_V2) - 1 x RGB LED connector(JRGB) - 1 x TPM pin header(Support TPM 2.0) - 4 x USB 2.0 ports - 2 x USB 3.2 Gen1 Type A ports - 1 x USB 3.2 Gen2 Type C ports

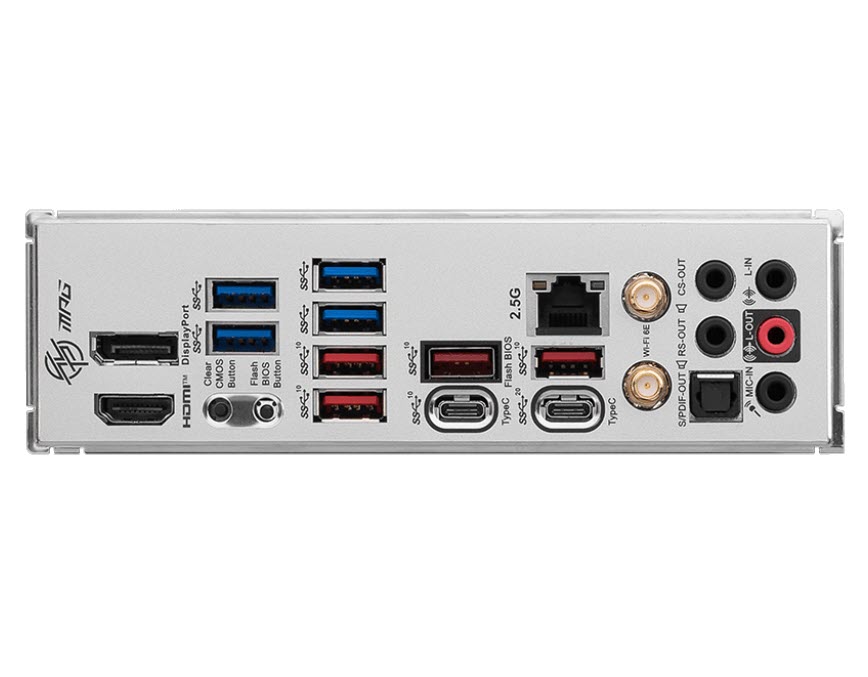

Back I/O Ports

  • Display Port - 4 x USB 3.2 Gen 1 5 Gbps (Type-A) - 4 x USB 3.2 Gen 2 10Gbps (Type-A) - 2.5G LAN - Wi-Fi/Bluetooth - 5 x Audio Connectors - HDMI™ - Clear CMOS / Flash BIOS - 1 x USB 3.2 Gen 2 10Gbps (Type-C) - 1 x USB 3.2 Gen 2x2 20Gbps (Type-C) - Optical S/PDIF Out

LED FEATURE

  • 4 x EZ Debug LED - 1 x EZ LED Control switch
