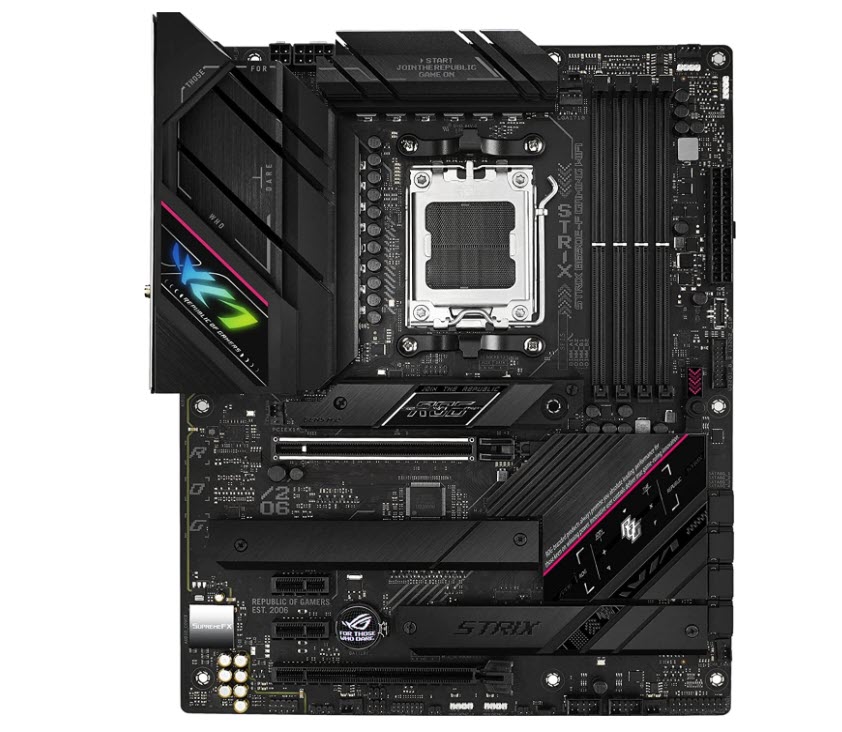

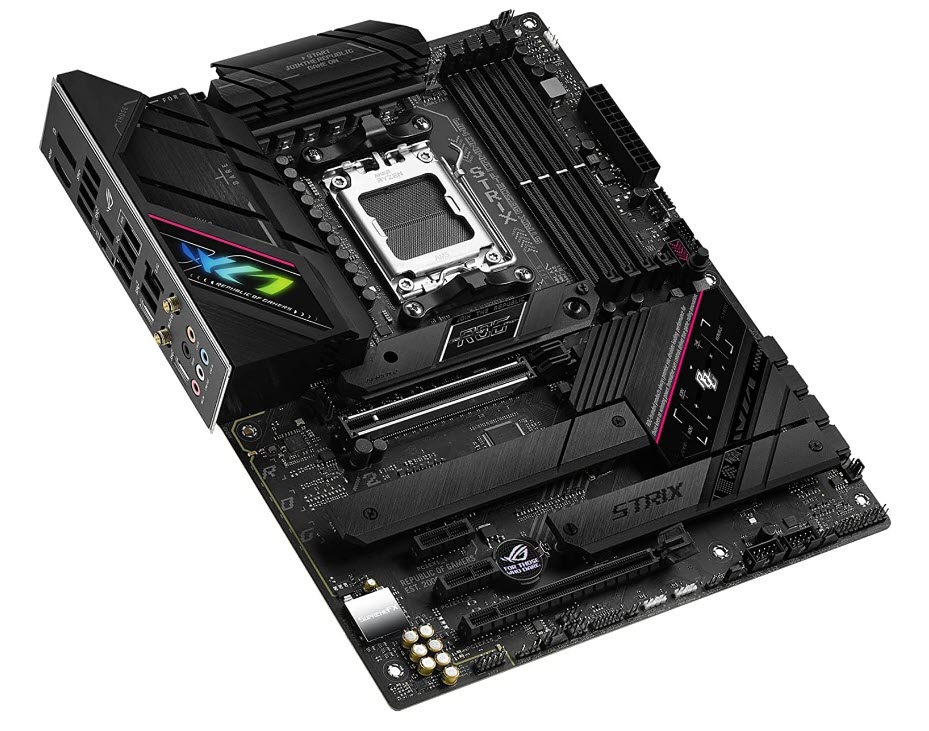

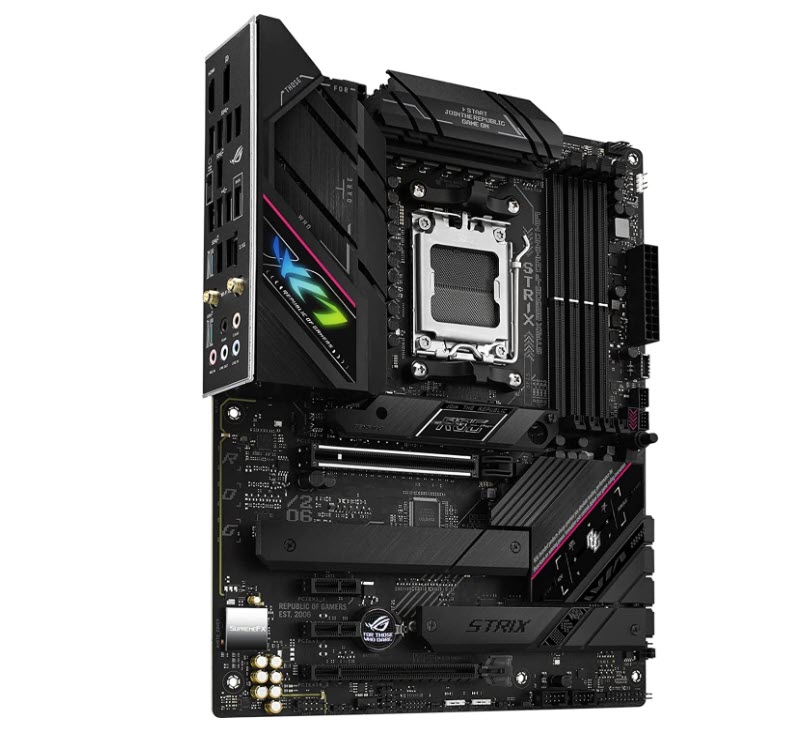

ROG STRIX B650E F GAMING WIFI

This mean machine is the heart of your next hot rod. With the stunning speed of PCIe 5.0 and WiFi 6E, hearty cooling from onboard heatsinks, and advanced power design engineered for the latest Ryzen™ processors, the ROG Strix B650E-F leaves its competition in the dust.

Take advantage of future storage and GPU performance with a PCIe 5.0 and two PCIe 4.0 M.2 slots, all with robust heatsinks, and a PCIe 5.0 x16 slot that features SafeSlot for increased durability and Q-Release for easy upgrades.

An overall dark aesthetic is accented with punchy brand-centric details and a logo that glows with fully-customizable RGB lighting. A meld of form and function is illustrated by a cut-out I/O shield, which allows additional airflow to pass through the VRM heatsink channels below. Pair the Strix B650E-F with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style.

Form Factor

• ATX Form Factor, 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

CPU

• AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors

Chipset

• AMD B650

Memory

• 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC) / 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports AMD EXTended Profiles for Overclocking (EXPO™), OptiMem II

Graphics

• 1 x DisplayPort*, 1 x HDMI® port**, * Supports max. 8K@60Hz as specified in DisplayPort 1.4. **Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

• AMD Ryzen™ 7000 Series Desktop Processors; 1 x PCIe 5.0 x16 slot, AMD B650 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode), 2 x PCIe 4.0/3.0 x1 slots

Storage

• Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*; AMD Ryzen™ 7000 Series Desktop Processors; M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), AMD B650 Chipset; M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), 4 x SATA 6Gb/s port *AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.

LAN

• 1 x Intel® 2.5Gb Ethernet, ASUS LANGuard

Wireless & Bluetooth

• Wi-Fi 6E, 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax), Supports 2.4/5GHz frequency band, Bluetooth v5.2

Audio

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback, Audio Features; - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover

USB Ports

• Rear USB (Total 12 ports); 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®), 4 x USB 3.2 Gen 1 port (4 x Type-A), 4 x USB 2.0 ports (4 x Type-A), Front USB (Total 7 ports); 1 x USB 3.2 Gen 2 connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers supports additional 4 USB 2.0 ports

OS Support

• Windows® 11 64-bit

Internal I/O Ports

• Fan and Cooling related; 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers, Power related; 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x 4-pin +12V Power connector, Storage related; 3 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, USB; 1 x USB 3.2 Gen 2 connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers supports additional 4 USB 2.0 ports, Miscellaneous; 3 x Addressable Gen 2 headers, 1 x AURA RGB header, 1 x Clear CMOS header, 1 x CPU Over Voltage jumper, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x Thermal Sensor header, 1 x Thunderbolt™header, 1 x COM_DEBUG header

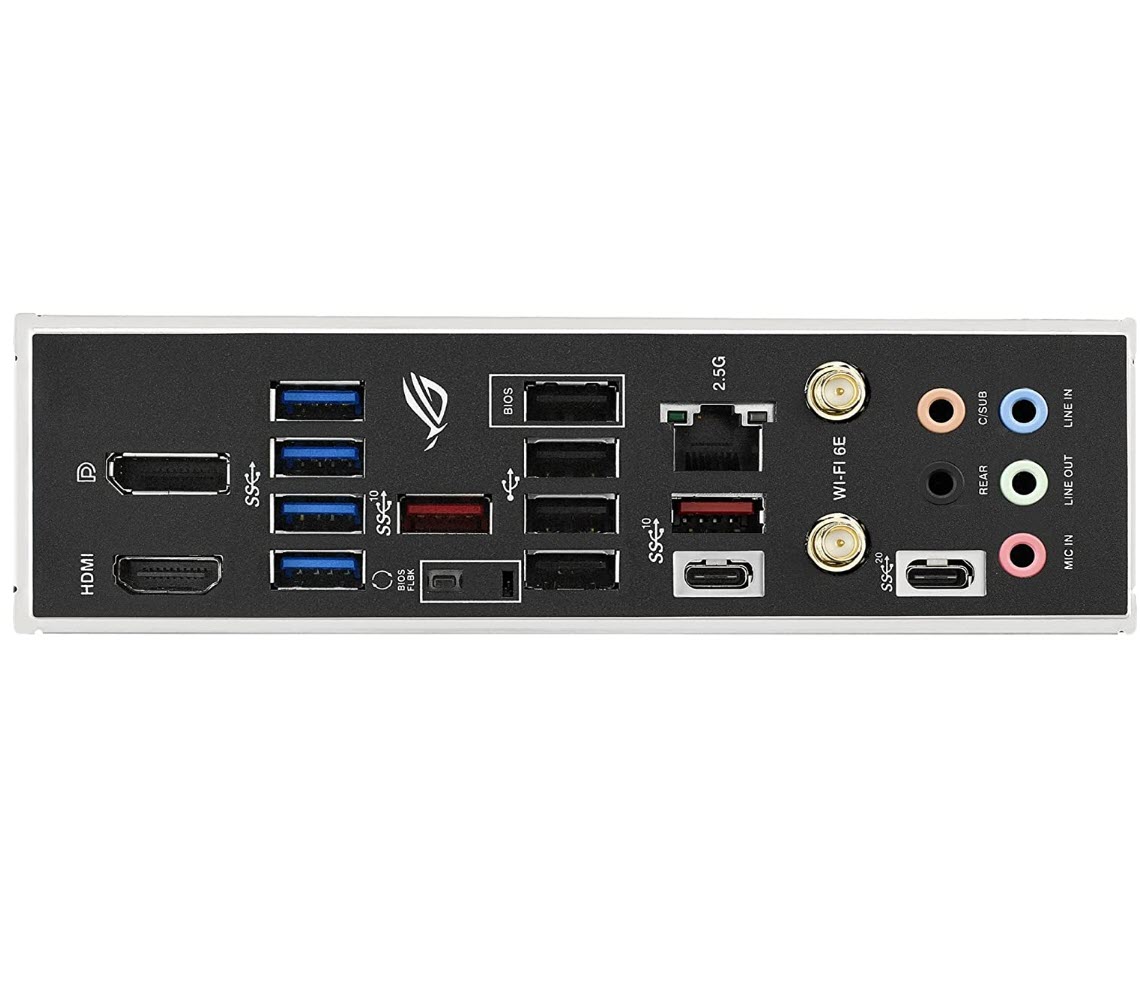

Back I/O Ports

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®), 4 x USB 3.2 Gen 1 ports (4 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x DisplayPort, 1 x HDMI® port, 1 x Wi-Fi Module, 1 x Intel® I225-V 2.5Gb Ethernet port, 5 x Audio jacks, 1 x BIOS FlashBack™ button

Software Features

• ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound - Anti-virus software ASUS Exclusive Software, Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation, AI Suite 3 - TPU - DIGI+ VRM - Turbo app - PC Cleaner, MyAsus, WinRAR, UEFI BIOS, ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode, FlexKey

Special Features

• Extreme Engine Digi+ - 5K Black Metallic Capacitors, ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-LED - Q-DIMM - Q-Slot, ASUS Thermal Solution - M.2 heatsink - VRM heatsink design, ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM, AURA Sync - AURA RGB header - Addressable Gen 2 headers

Accessories

• 2 x SATA 6Gb/s cables, 1 x Thermal pad for M.2, 1 x ASUS Wi-Fi moving antennas, 1 x Cable ties pack, 1 x M.2 Q-Latch package, 1 x ROG key chain, 1 x ROG Strix stickers, 1 x ROG Strix thank you card, 2 x M.2 Rubber Packages, 1 x User guide
