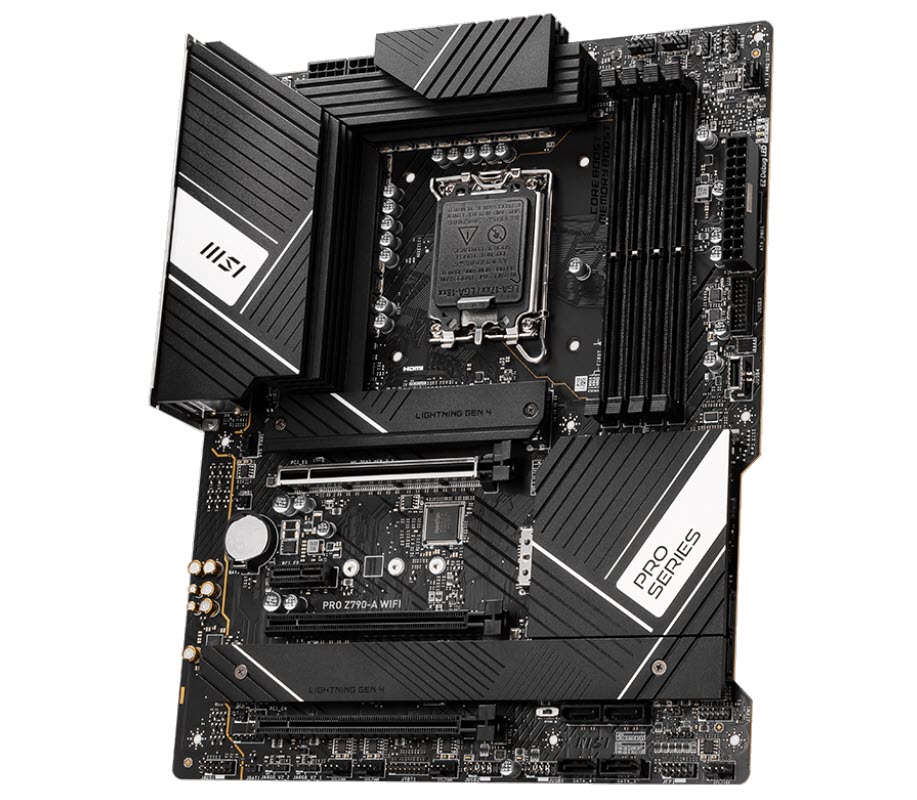

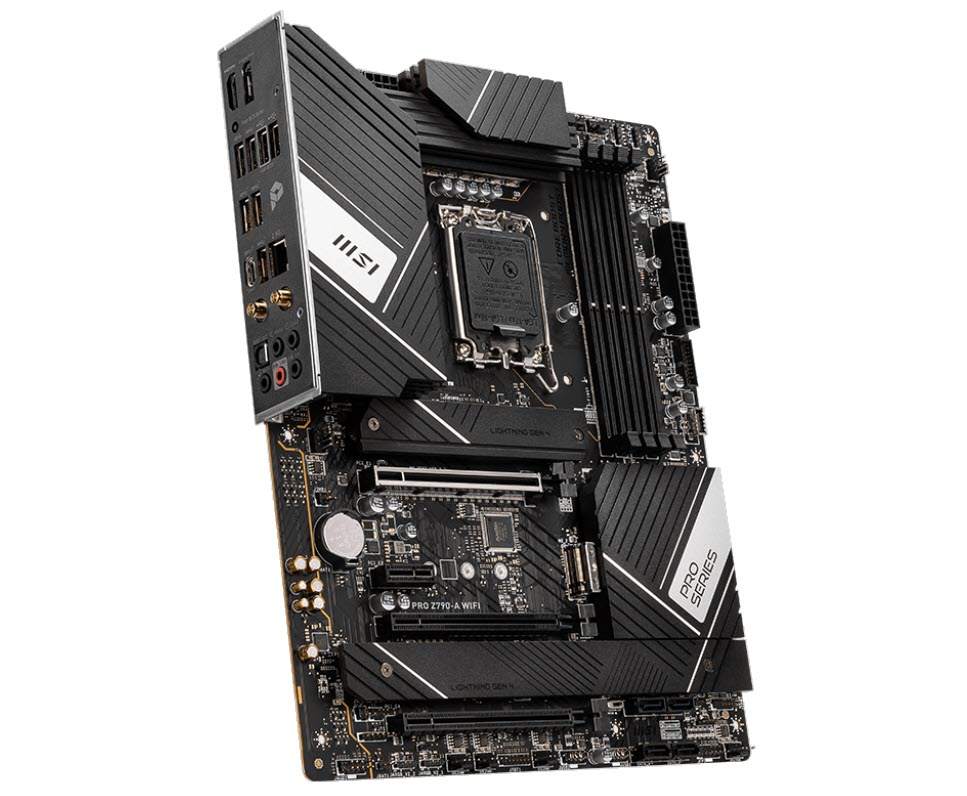

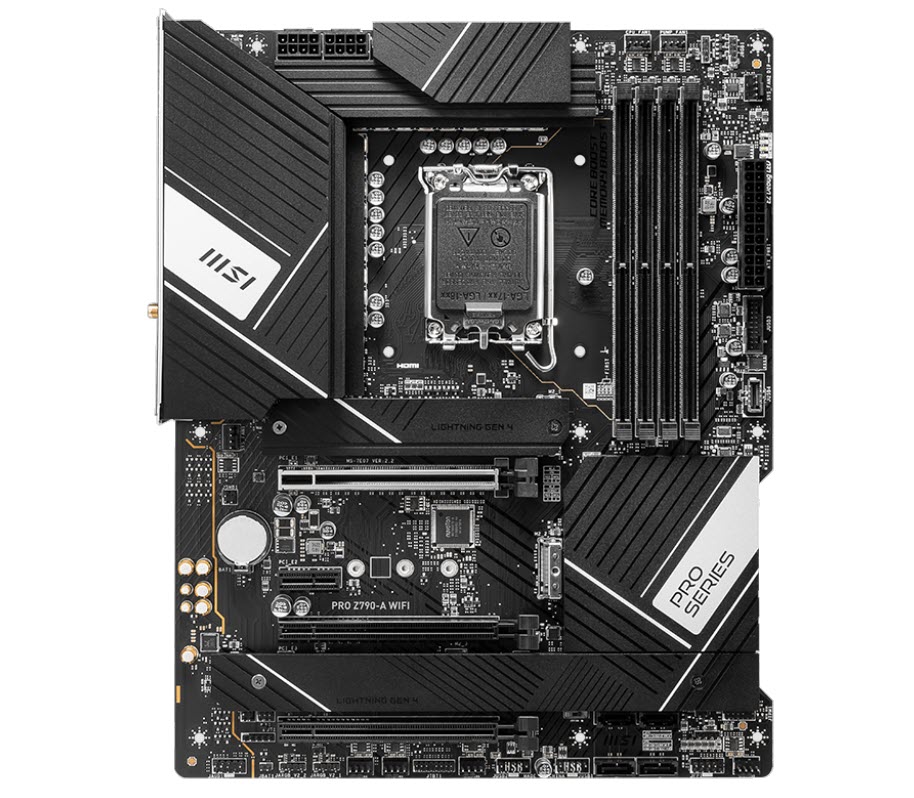

MSI PRO Z790-A WIFI

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

Form Factor

• ATX, 243.84mmx304.8mm

CPU

• Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors, LGA 1700

Chipset

• INTEL Z790

Memory

• 4x DDR5, Maximum Memory Capacity 128 GB, Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC) / 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz, Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz, • 1DPC 2R Max speed up to 6600+ MHz, • 2DPC 1R Max speed up to 6400+ MHz, • 2DPC 2R Max speed up to 5600+ MHz, Supports Intel® XMP3.0 OC, Supports Dual-Controller Dual-Channel mode, Supports non-ECC, un-buffered memory

Graphics

• 1x HDMI™, Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz, 1x DisplayPort, Support DP 1.4, maximum resolution of 8K 60Hz

Expansion Slots

• 3x PCI-E x16 slot, 1x PCI-E x1 slot, PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset), PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

Storage

• 4x M.2, M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices, M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices, M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices, M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices, 6x SATA 6G, RAID - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices, Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

LAN

• 2.5 Gigabit Ethernet

WIRELESS / BLUETOOTH

• Intel® Wi-Fi 6E, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth® 5.3, FIPS, FISMA

Audio

• Audio Channels: 7.1

USB Ports

• 2x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 3.2 Gen1 Type A (Rear), 2x USB 3.2 Gen1 Type A (Front), 3x USB 3.2 Gen2 Type A (Rear), 1x USB 3.2 Gen2 Type C (Front), 1x USB 3.2 Gen2x2 Type C (Rear)

OS Support

• Windows® 11 64-bit, Windows® 10 64-bit

Internal I/O Ports

• 1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x CPU Fan, 1x Pump Fan, 6x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x TBT connector (JTBT, supports RTD3), 1x Tuning Controller connector(JDASH), 3x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 ports, 2x USB 3.2 Gen1 Type A ports, 1x USB 3.2 Gen2 Type C ports

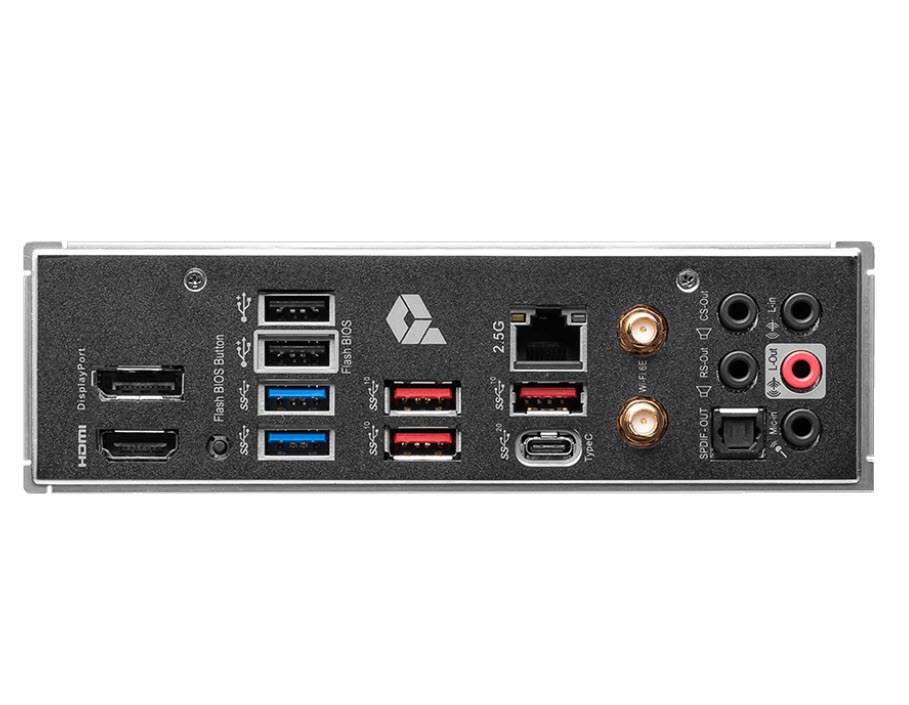

Back I/O Ports

• DisplayPort, 2x USB 2.0, 2.5G LAN, Wi-Fi / Bluetooth, 5 x Audio Connectors, HDMI, Flash BIOS Button, 2 x USB 3.2 Gen 1 5Gbps (Type-A), 3 x USB 3.2 Gen 2 10Gbps (Type-A), 1 x USB 3.2 Gen 2x2 20Gbps (Type-C), S/PDIF-OUT

LED FEATURE

• 4x EZ Debug LED
