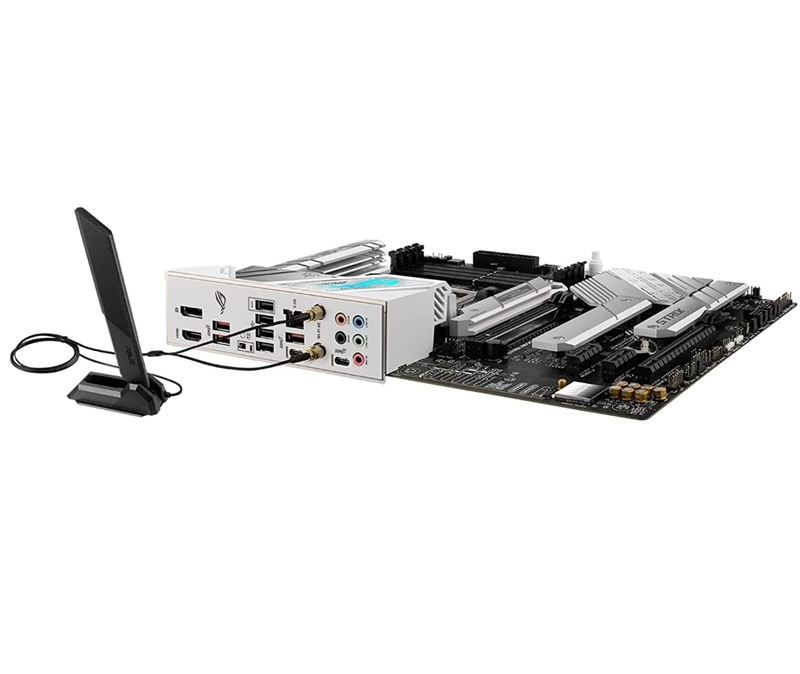

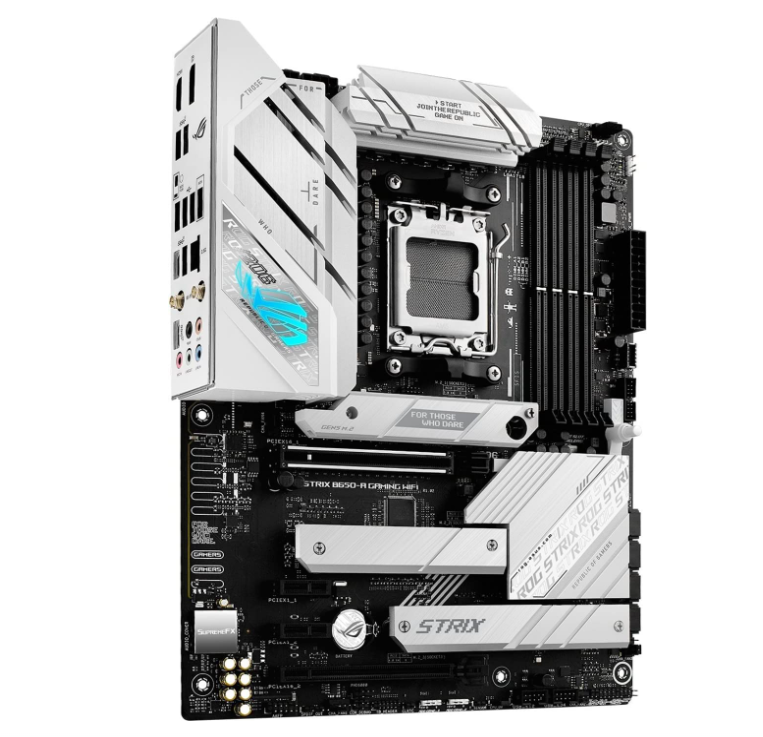

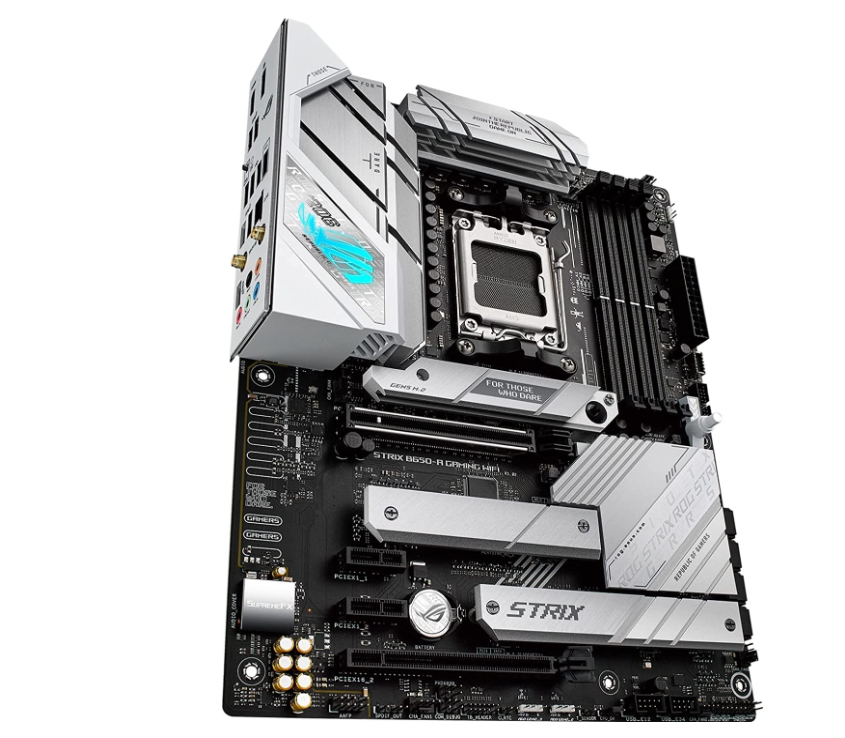

Asus ROG STRIX B650 A GAMING WIFI DDR5

The ROG Strix B650-A Gaming WiFi comes equipped with potent performance and thermal prowess in a fresh-looking package. Robust power delivery designed to handle the latest AMD Ryzen™ 7000 Series processors is cooled with thick metal heatsinks that stand out against a black PCB. A PCIe 5.0 M.2 slot, speedy DDR5 memory support, and the latest WiFi 6E networking fleshes out the futuristic feature set.

Blazing fast storage is at your command with a PCIe 5.0 and two PCIe 4.0 M.2 slots, all featuring robust heatsinks to maximize performance. Push speeds even further, create a mirrored backup, or both; NVMe and SATA RAID configurations (0/1/10) are available through AMD RAIDXpert2. The top PCIe 4.0 x16 SafeSlot supports heavy graphics cards and features Q-Release for easy upgrades.

Form Factor

• ATX Form Factor, 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

CPU

• AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors

Chipset

• AMD B650

Memory

• 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC) / 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports AMD EXTended Profiles for Overclocking (EXPO™), OptiMem II

Graphics

• 1 x DisplayPort, 1 x HDMI® port

Expansion Slots

• AMD Ryzen™ 7000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot, AMD B650 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode)*, 2 x PCIe 4.0/3.0 x1 slots, * PCIe 4.0 x16 slot (supports x4 mode) from AMD B650 Chipset shares bandwidth with M.2_3.

Storage

• Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*, AMD Ryzen™ 7000 Series Desktop Processors; M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), AMD B650 Chipset; M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)**, 4 x SATA 6Gb/s port, *AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. ** M.2_3 slot shares bandwidth with PCIe 4.0 x16 slot (supports x4 mode) When M.2_3 slot is operating in PCIe mode, M.2_3 will be disabled.

LAN

• 1 x Intel® 2.5Gb Ethernet, ASUS LANGuard

Wireless & Bluetooth

• Wi-Fi 6E, 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax), Supports 2.4/5GHz frequency band, Bluetooth v5.2

Audio

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback, Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover

USB Ports

• Rear USB (Total 9 ports); 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®), 4 x USB 2.0 ports (4 x Type-A), Front USB (Total 7 ports); 1 x USB 3.2 Gen 2 connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers supports additional 4 USB 2.0 ports

OS Support

• Windows® 11 64-bit

Internal I/O Ports

• Fan and Cooling related; 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers, Power related; 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x 4-pin +12V Power connector, Storage related; 3 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, USB; 1 x USB 3.2 Gen 2 connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers supports additional 4 USB 2.0 ports, Miscellaneous; 3 x Addressable Gen 2 headers, 1 x AURA RGB header, 1 x Clear CMOS header, 1 x CPU Over Voltage jumper, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x Thermal Sensor header, 1 x Thunderbolt™header, 1 x COM_DEBUGheader

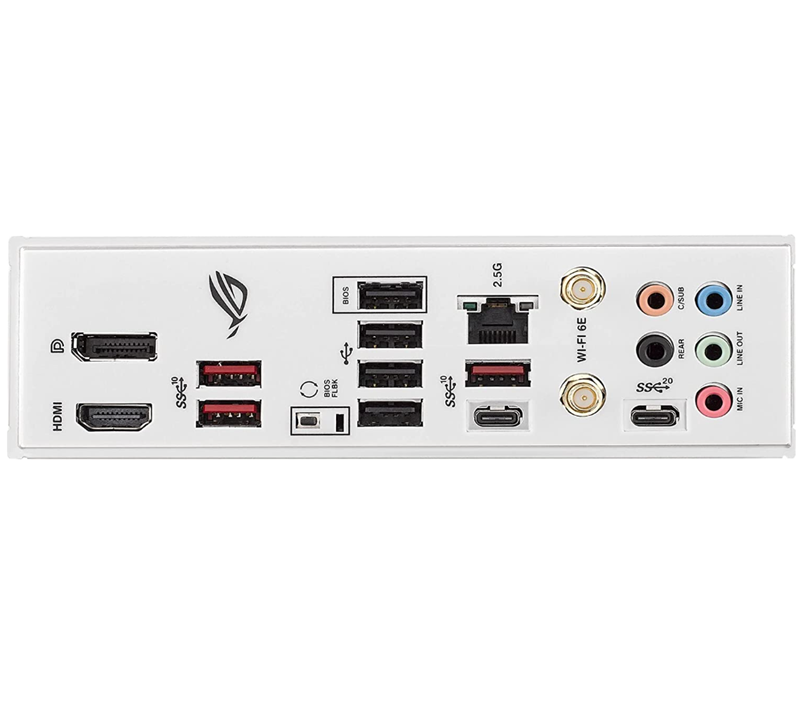

Back I/O Ports

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®), 4 x USB 2.0 ports (4 x Type-A), 1 x DisplayPort, 1 x HDMI® port, 1 x Wi-Fi Module, 1 x Intel® 2.5Gb Ethernet port, 5 x Audio jacks, 1 x BIOS FlashBack™ button

Software Features

• ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound - Anti-virus software, ASUS Exclusive Software, Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation, AI Suite 3 - TPU - DIGI+ VRM - Turbo app - PC Cleaner MyAsus, WinRAR, UEFI BIOS, ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey

Special Features

• Extreme Engine Digi+ - 5K Black Metallic Capacitors, ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-LED - Q-DIMM - Q-Slot, ASUS Thermal Solution - M.2 heatsink - VRM heatsink design, ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM, AURA Sync - AURA RGB header - Addressable Gen 2 headers

Accessories

• 2 x SATA 6Gb/s cables, 1 x Thermal pad for M.2, 1 x ASUS Wi-Fi moving antennas, 1 x Cable ties pack, 1 x M.2 Q-Latch package, 1 x ROG key chain, 1 x ROG Strix stickers, 1 x ROG Strix thank you card, 2 x M.2 Rubber Packages, 1 x User guide
