Asus PRIME B650M A AX - mATX, AM5, EXPO, 4xDDR5, 2xM.2, WiFi6, BT 5.2, 1xDP, 1xHDMI, 1xVGA
Product Type:
Motherboards
Type Detail:
AMD Socket AM5
Manufacturer:
Asus
Manufacturer #:
PRIMEB650M-AAX
Part Status:
Special Order Only
Milwaukee PC SKU:
264657
Price:
$244.99

Quick Tech Specs

Processor Manufacture: AMD
Socket: AM5
Chipset Manufacture: AMD / B650
Form Factor: Micro ATX
SLI Support: NONE
Crossfire Support: NONE
Number of Memory Slots: 4 Slots
Max Memory: 128GB
Memory Type: DDR5
PCI Express x16 Slots: 4 Slots
PCI Express x1 Slots: None
PCI Slots: None
WiFi Onboard: Wi-Fi 6 / BT 5.2
RAID Support: RAID 0/1/10 / PCIe RAId + SATA RAID
Sata 6 Gbits/s Ports (3.0/3.1): 8 Ports
M.2 Slots: 2 Slots
NVMe Support: Yes
USB C Ports: None
Legacy Ports: NONE
USB 3.x Ports (3.0 or higher): 4 Ports
Thunderbolt Ports: NONE
USB 2.0 Ports: 4 Ports
Display Ports: 1 Port
VGA Ports: 1 Port
DVI Ports: NONE
HDMI Ports: 1 Ports
Network Ports: 2.5 Gigabit

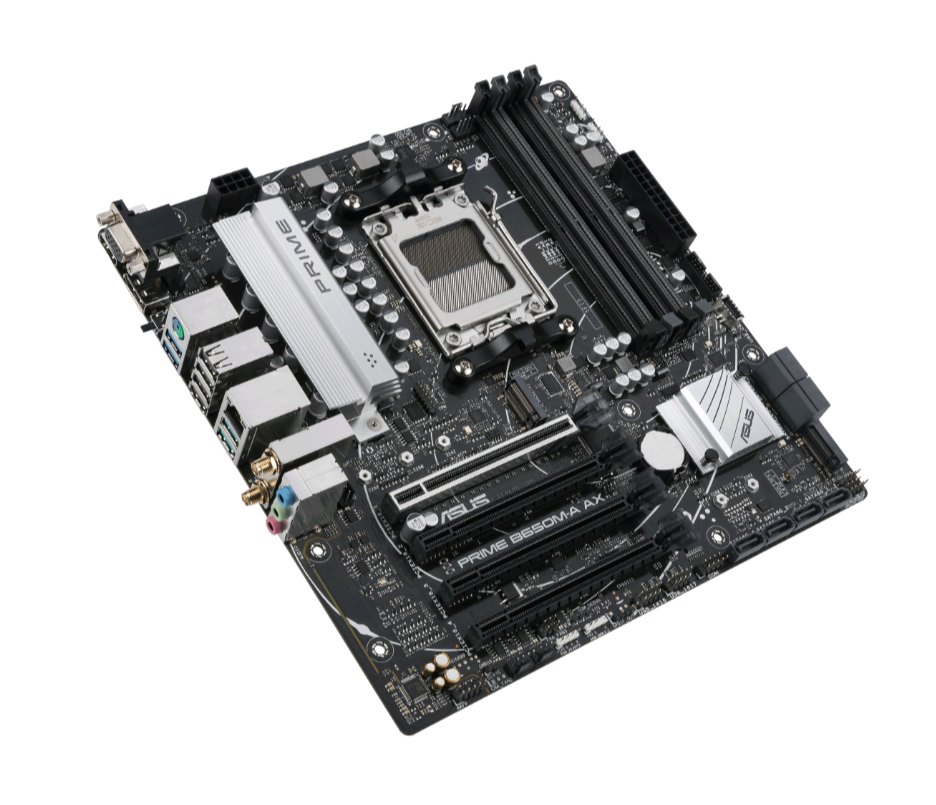

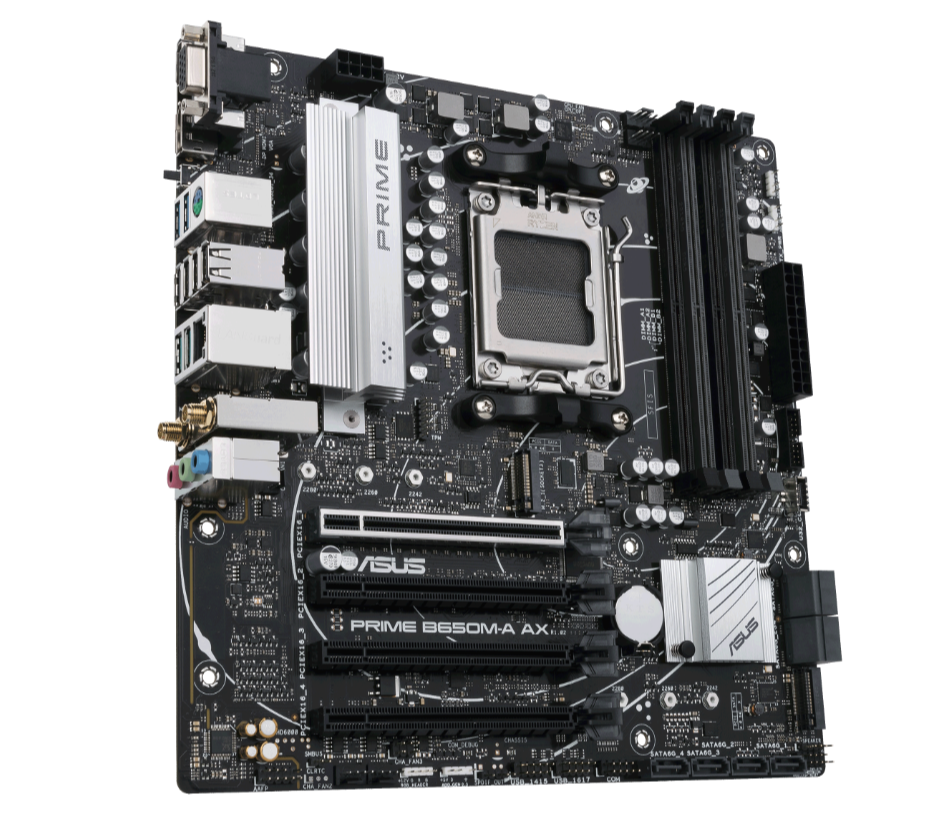

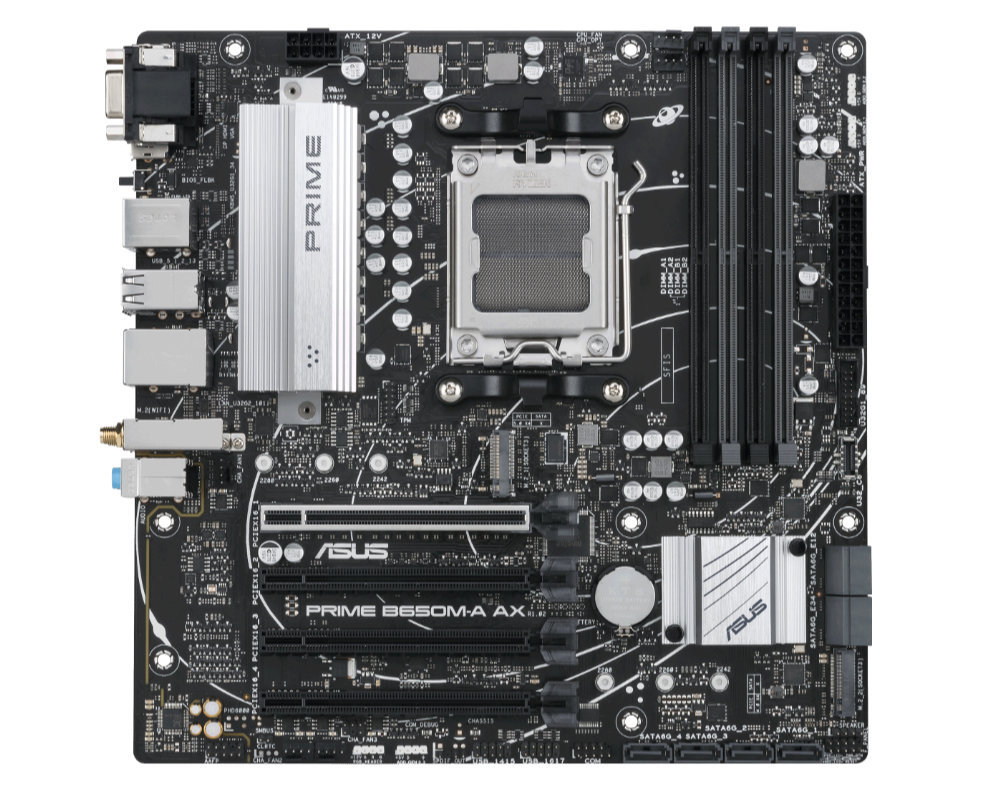

Asus PRIME B650M A AX

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650M-A AX provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

Form Factor

  • mATX Form Factor, 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

CPU

  • AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors

Chipset

  • AMD B650 Chipset

Memory

  • 4 x DIMM, Max. 128GB, DDR5 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports AMD Extended Profiles for Overclocking (EXPO™), OptiMem II

Graphics

  • 1 x DisplayPort, 1 x VGA port, 1 x HDMI® port

Expansion Slots

  • AMD Ryzen™ 7000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot (supports x16 mode), 1 x PCIe 4.0 x16 slot (supports x1 mode), AMD B650 Chipset; 2 x PCIe 4.0 x16 slots (support x1 mode)

Storage

  • Total supports 2 x M.2 slots and 8 x SATA 6Gb/s ports* ; AMD Ryzen™ 7000 Series Desktop Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), AMD B650 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), 8 x SATA 6Gb/s ports**, * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. ** The SATA6G_E12/E34 ports cannot support RAID.

LAN

  • 1 x Realtek 2.5Gb Ethernet

Wireless & Bluetooth

  • Wi-Fi 6, 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Supports 2.4/5GHz frequency band, Bluetooth® v5.2

Audio

  • Realtek 7.1 Surround Sound High Definition Audio CODEC*, - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback, Audio Features; - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

USB Ports

  • Rear USB (Total 8 ports); 2 x USB 3.2 Gen 2 ports (2 x Type-A), 2 x USB 3.2 Gen 1 ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports); 1 x USB 3.2 Gen 1 connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports

OS Support

  • Windows® 11, Windows® 10 64-bit

Internal I/O Ports

  • Fan and Cooling related; 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 3 x 4-pin Chassis Fan headers, Power related; 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, Storage related; 2 x M.2 slots (Key M), 8 x SATA 6Gb/s ports, USB; 1 x USB 3.2 Gen 1 connector (supports USB Type-C® ), 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports, Miscellaneous; 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x Speaker header, 1 x SPI TPM header (14-1pin), 1 x 10-1 pin System Panel header

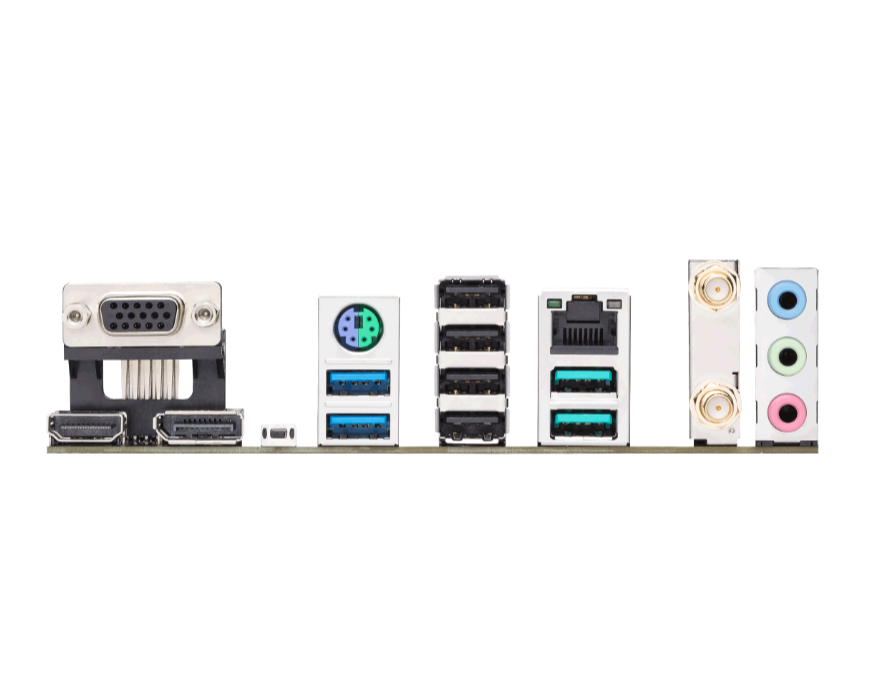

Back I/O Ports

  • 2 x USB 3.2 Gen 2 ports (2 x Type-A), 2 x USB 3.2 Gen 1 ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x DisplayPort, 1 x VGA port, 1 x HDMI® port, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x BIOS FlashBack™ button, 1 x PS/2 Keyboard/Mouse combo port

Software Features

  • ASUS Exclusive Software, Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving, AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner, ASUS CPU-Z, Norton Anti-virus software (Free Trial version), WinRAR, UEFI BIOS, ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Special Features

  • ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O, ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot, ASUS Thermal Solution - VRM heatsink design, ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED, Aura Sync - Aura RGB header - Addressable Gen 2 headers

Accessories

  • 2 x SATA 6Gb/s cables, 1 x ASUS Wi-Fi moving antennas, 1 x I/O Shield, 1 x Screw Package for M.2 SSD, 1 x User guide
