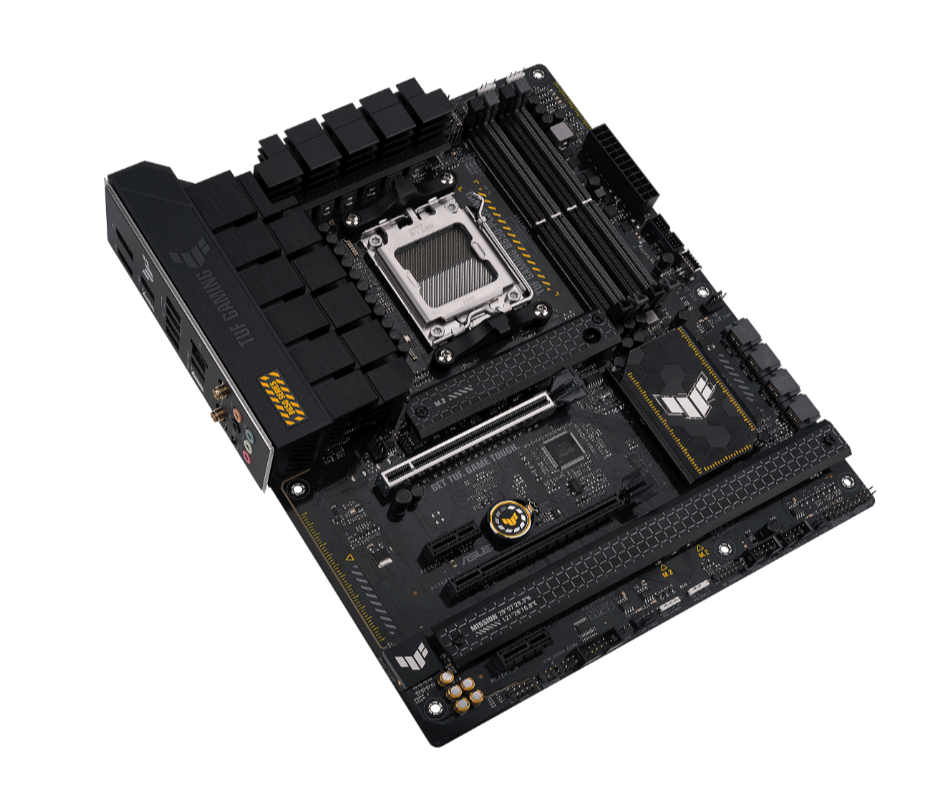

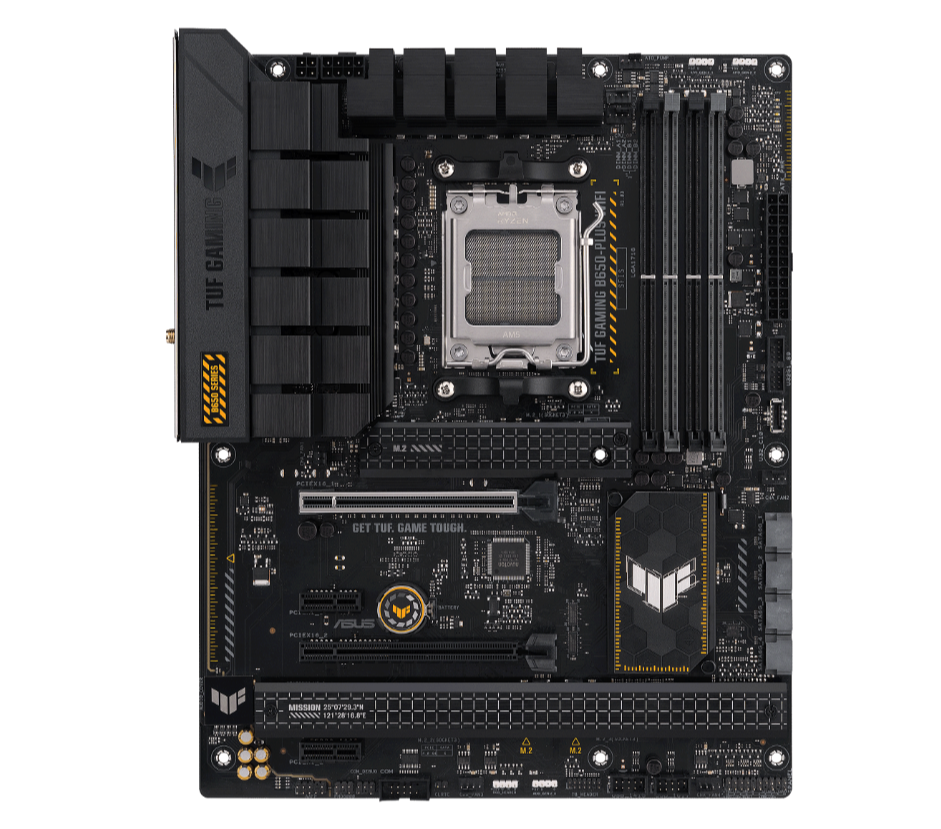

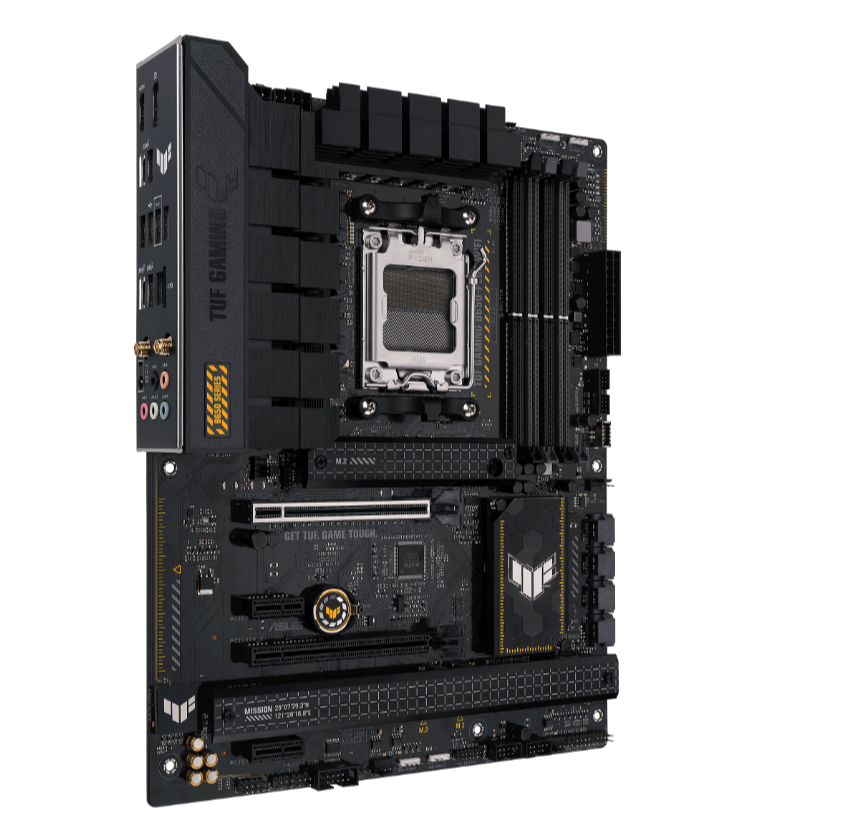

TUF GAMING B650-PLUS WIFI

ASUS TUF GAMING B650-PLUS WIFI takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.

Form Factor

• ATX Form Factor, 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

CPU

• AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors

Chipset

• AMD B650

Memory

• 4 x DIMM, Max. 128GB, DDR5, 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC) / 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports AMD EXTended Profiles for Overclocking (EXPO™), OptiMem II

Graphics

• 1 x DisplayPort*, 1 x HDMI® port**, * Supports max. 8K@60Hz as specified in DisplayPort 1.4. ** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

• AMD Ryzen™ 7000 Series Desktop Processors; 1 x PCIe 4.0/3.0 x16 slot(s), AMD B650 Chipset; 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode), 2 x PCIe 4.0/3.0 x1 slots

Storage

• Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports; AMD Ryzen™ 7000 Series Desktop Processors; M.2_1 slot (Key M), type, 2242/2260/2280(supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), AMD B650 Chipset, M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)**, 4 x SATA 6Gb/s ports, * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. ** M.2_3 shares bandwidth with PCIEX16_2. PCIEX16_2 will be suspended once M.2_3 is populated.

LAN

• 1 x Realtek 2.5Gb Ethernet, TUF LANGuard

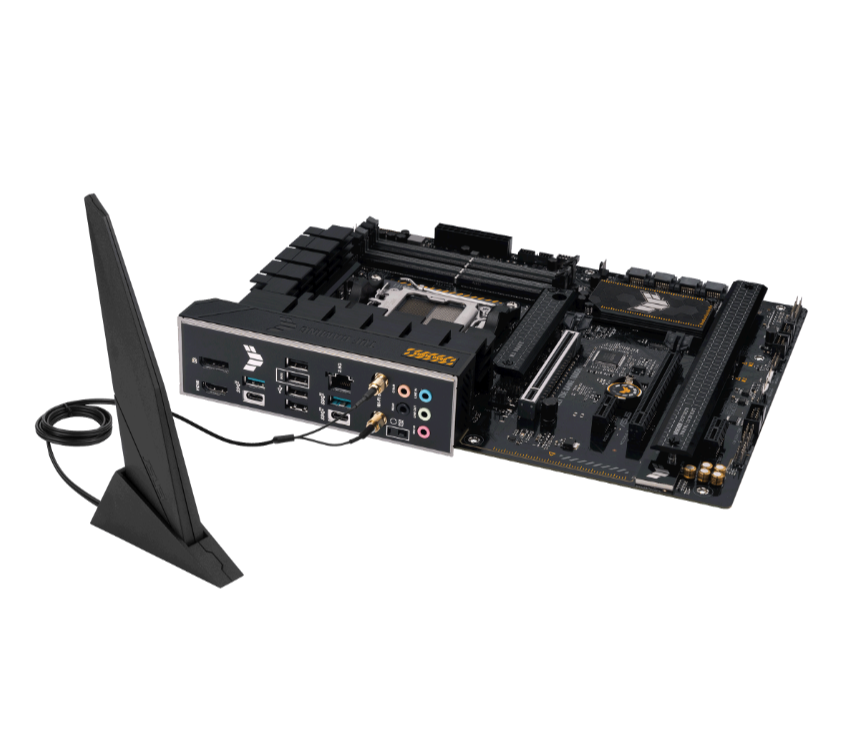

Wireless & Bluetooth

• Wi-Fi 6, 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Supports 2.4/5GHz frequency band, Bluetooth v5.2

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*, - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, - Supports up to 24-Bit/192 kHz playback, Audio Features - Audio Shielding - Power pre-regulator reduces power input noise to ensure consistent performance - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit. * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

USB Ports

• Rear USB (Total 8 ports); 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®, 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®), 4 x USB 2.0 port(s) (4 x Type-A), Front USB (Total 7 ports); 1 x USB 3.2Gen 1 connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

OS Support

• Windows® 11, Windows® 10 64-bit

Internal I/O Ports

• Fan and Cooling related; 1 x 4-pin CPU Fan header(s), 1 x 4-pin CPU OPT Fan header(s), 1 x 4-pin AIO Pump header(s), 4 x 4-pin Chassis Fan header(s), Power related; 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x 4-pin +12V Power connector, Storage related; 3 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, USB; 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C® ), 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports, Miscellaneous; 3 x Addressable Gen 2 header(s), 1 x Aura RGB header(s), 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 20-3 pin System Panel header with Chassis intrude function, 1 x Thunderbolt™ (USB4®) header

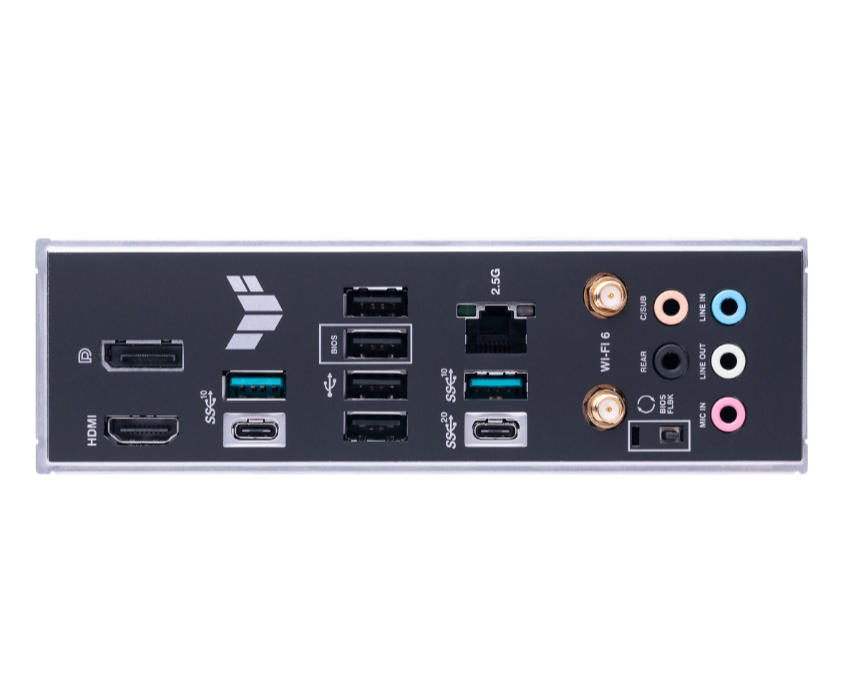

Back I/O Ports

• 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®), 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®), 4 x USB 2.0 port(s) (4 x Type-A), 1 x DisplayPort, 1 x HDMI® port, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port, 5 x Audio jacks, 1 x BIOS FlashBack™ button

Software Features

• ASUS Exclusive Software, Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation, AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner, TUF GAMING CPU-Z, DTS Audio Processing, MyAsus, Norton Anti-virus software (Free Trial version), WinRAR, UEFI BIOS, ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Special Features

• ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O, ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot, ASUS Thermal Solution - M.2 heatsink - VRM heatsink design, ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeDIMM, Aura Sync - Aura RGB header(s) - Addressable Gen 2 header(s)
