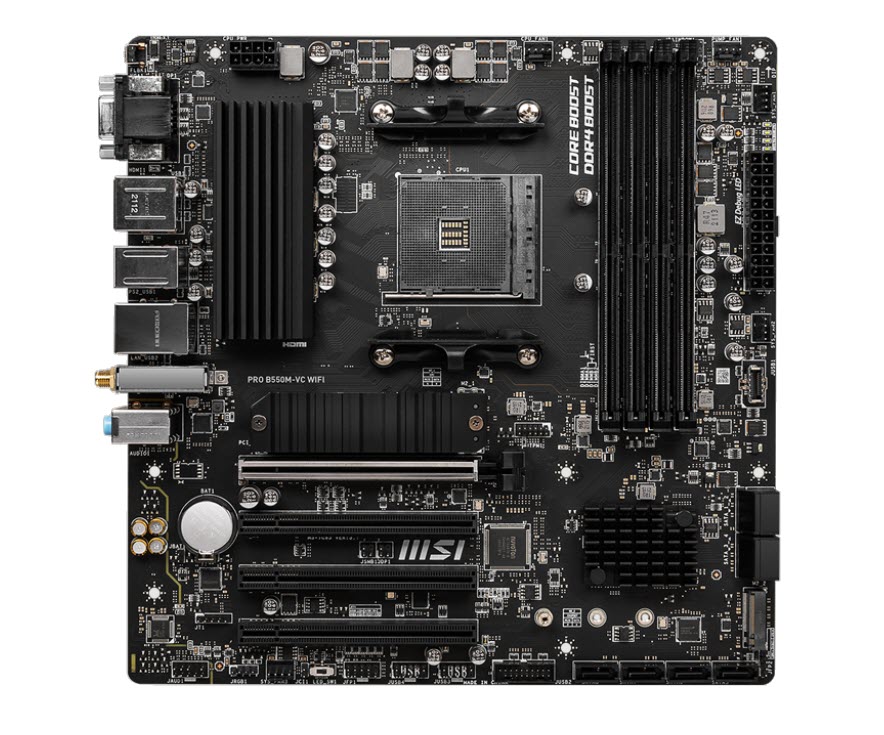

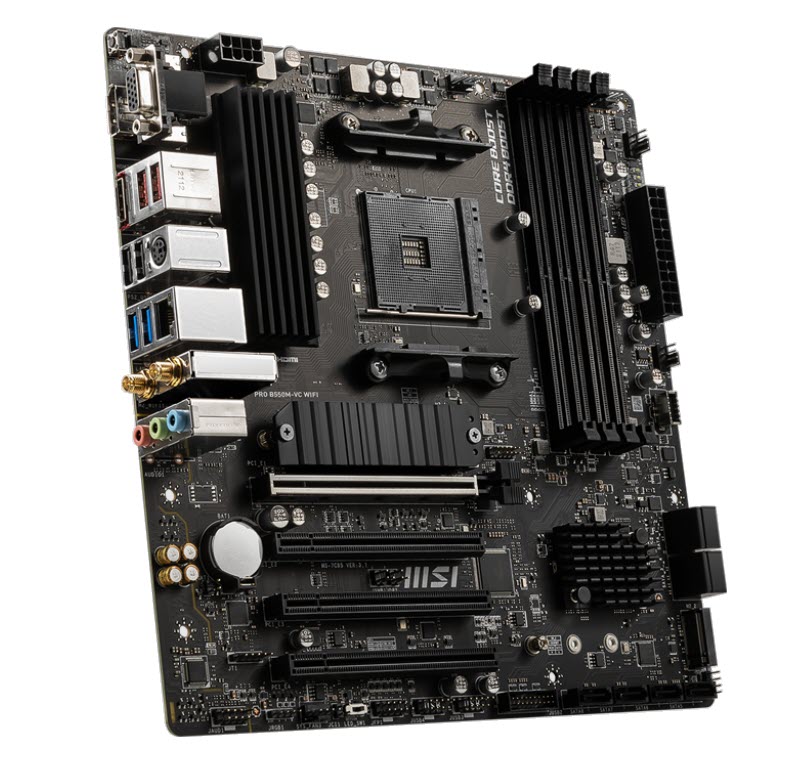

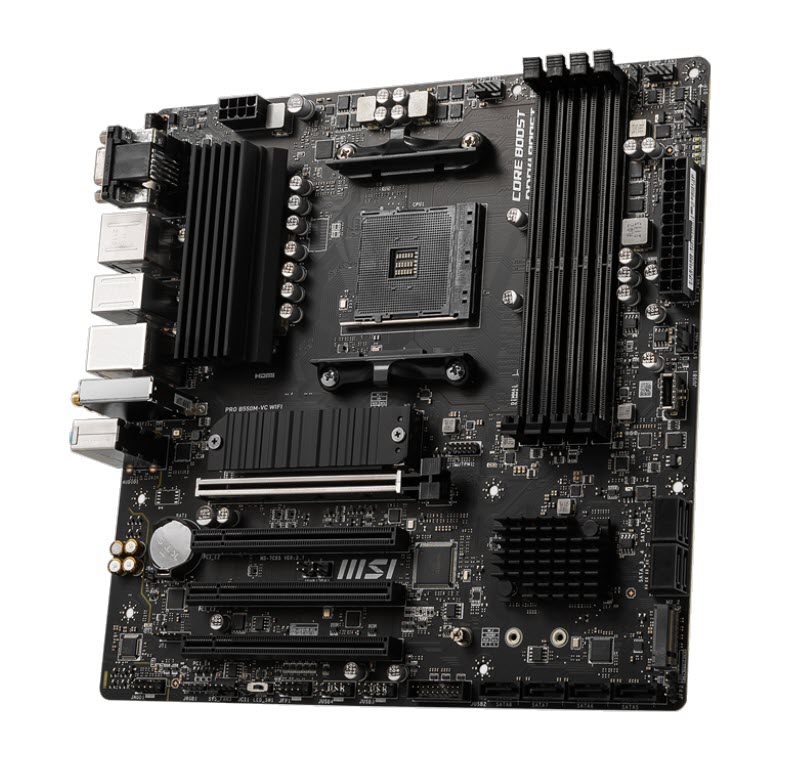

MSI PRO B550M-VC WIFI - AM4, mATX, 4xDDR4, 2xM.2, 1xVGA, 1xDP, 1xHDMI
Product Type:
Motherboards
Type Detail:
AMD Socket AM4
Manufacturer:
MSI
Manufacturer #:
B550MPROVCWIFI
Part Status:
Special Order Only
Milwaukee PC SKU:
264655
Price:
$134.99

Quick Tech Specs

Processor Manufacture: AMD
Socket: AM4
Chipset Manufacture: AMD / B550
Form Factor: Micro ATX
SLI Support: NONE
Crossfire Support: NONE
Memory Type: DDR4
Number of Memory Slots: 4 Slots
Max Memory: 128GB
PCI Express x16 Slots: 4 Slots
PCI Express x1 Slots: None
PCI Slots: None
WiFi Onboard: Wi-Fi 6E / BT 5.2
RAID Support: RAID 0/1/10 / RAID 0 RAID 1 for M.2 NVMe
Sata 6 Gbits/s Ports (3.0/3.1): 4 Ports
M.2 Slots: 2 Slots
NVMe Support: No
USB C Ports: None
Legacy Ports: NONE
USB 3.x Ports (3.0 or higher): 4 Ports
Thunderbolt Ports: NONE
USB 2.0 Ports: 2 Ports
Network Ports: Gigabit (10/100/1000)
Display Ports: 1 Port
VGA Ports: 1 Port
DVI Ports: NONE
HDMI Ports: 1 Ports


MSI PRO B550M-VC WIFI

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue.

Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.

Form Factor

  • Micro-ATX Form Factor, 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

CPU

  • Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update

Chipset

  • AMD B550 Chipset

Memory

  • 4x DDR4 memory slots, support up to 128 GB, Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC, Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE, 1DPC 1R max speed 4400 MHZ, 1DPC 2R max speed 3733 MHZ, 2DPC 1R max speed 3866 MHZ, 2DPC 2R max speed 3466 MHZ, Dual channel memory architecture, Supports non-ECC UDIMM memory, Supports ECC UDIMM memory, Supports un-buffered memory

Graphics

  • 1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz, 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz, 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz, Maximum shared memory of 16 GB

Expansion Slots

  • 1x PCIe 3.0/ 4.0 x16 slot (PCI_E1), 3x PCIe 3.0 x16 slots, support PCIe x1 speed

Storage

  • ASMedia AM1064 Chipset; 4 x SATA 6Gb/s ports, AMD B550 Chipset; 4 x SATA 6Gb/s ports, 2 x M.2 slots (Key M), M2_1 slot (from AMD Processor), Supports PCIe 4.0/ 3.0 x4, Supports SATA 6Gb/s, Supports 2242/ 2260/ 2280 storage devices, M2_2 slot (from AMD B550 chipset); Supports PCIe 3.0x4, Supports 2242/ 2260/ 2280 storage devices, The supported specification depends on installed processor. RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices, Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

LAN

  • 1x Realtek® 8RTL8111GN / RTL8111HN 1Gbps LAN controller

WIRELESS LAN & BLUETOOTH

  • AMD Wi-Fi 6E, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1 (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth® 5.2 2, FIPS, FISMA

Audio

  • Realtek® ALC892/ALC897 Codec, 7.1-Channel High Definition Audio

USB Ports

  • AMD B550 Chipset; 3 x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector), 6 x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors), AMD Processor; 2 x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel, 2 x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel

OS Support

  • Windows 11, Windows 10 64-bit

Internal I/O Ports

  • 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 8x SATA 6Gb/s connectors, 2x M.2 slots (M-Key), 1x USB 3.2 Gen 1 5Gbps Type-C port, 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports), 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 1x 4-pin CPU fan connector, 1x 4-pin water-pump fan connector, 3x 4-pin system fan connectors, 1x Front panel audio connector, 2x System panel connectors, 1x Chassis Intrusion connector, 1x 4-pin RGB LED connector, 1x 3-pin RAINBOW LED connector, 1xTPM module connector, 1x Clear CMOS jumper

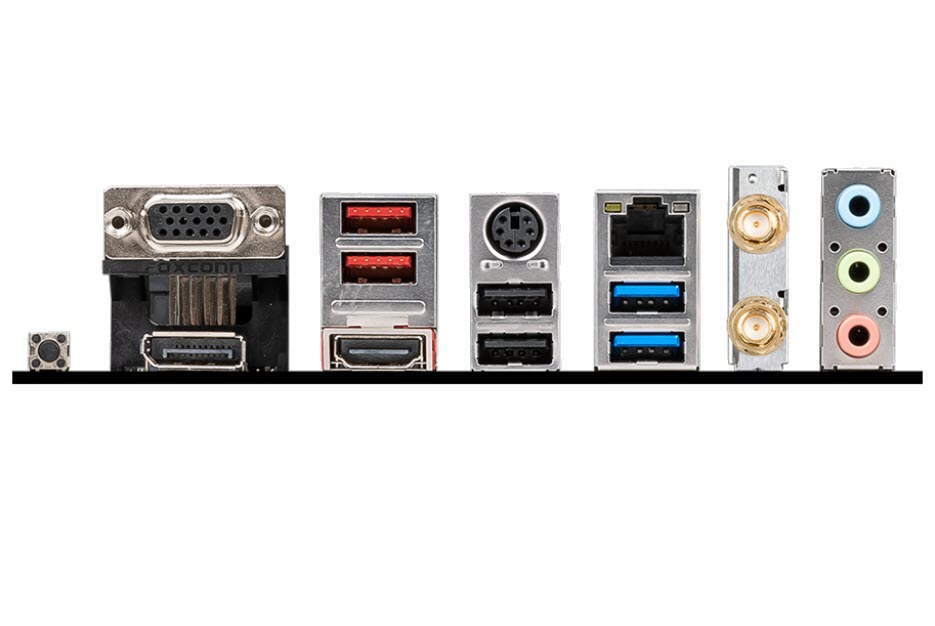

Back I/O Ports

  • VGA, 2 x USB 3.2 Gen 2 10Gbps, Keyboard/Mouse, LAN port, WiFi/Bluetooth, 3 x Audio connectors, Flash BIOS Button, DisplayPort, HDMI, 2 x USB 2.0, 2 x USB 3.2 Gen1 5Gbps
