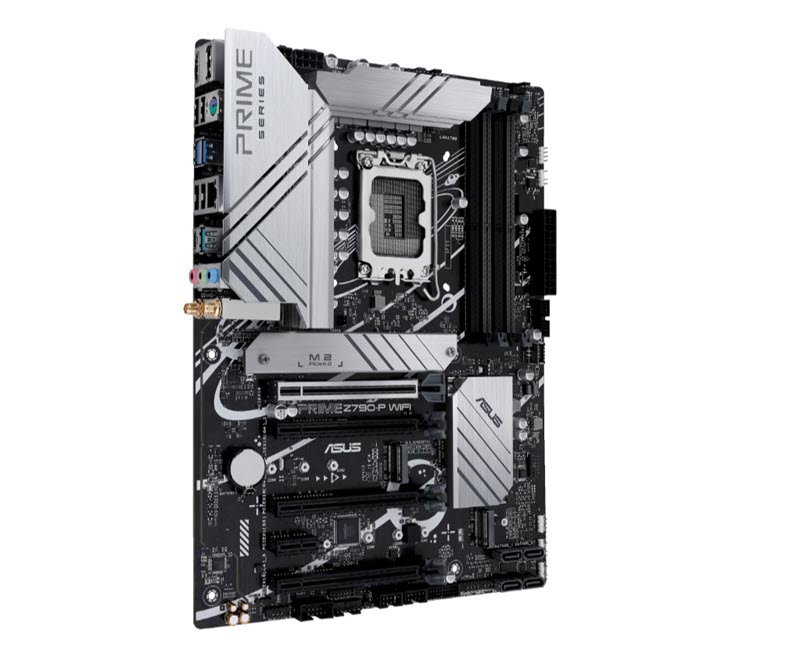

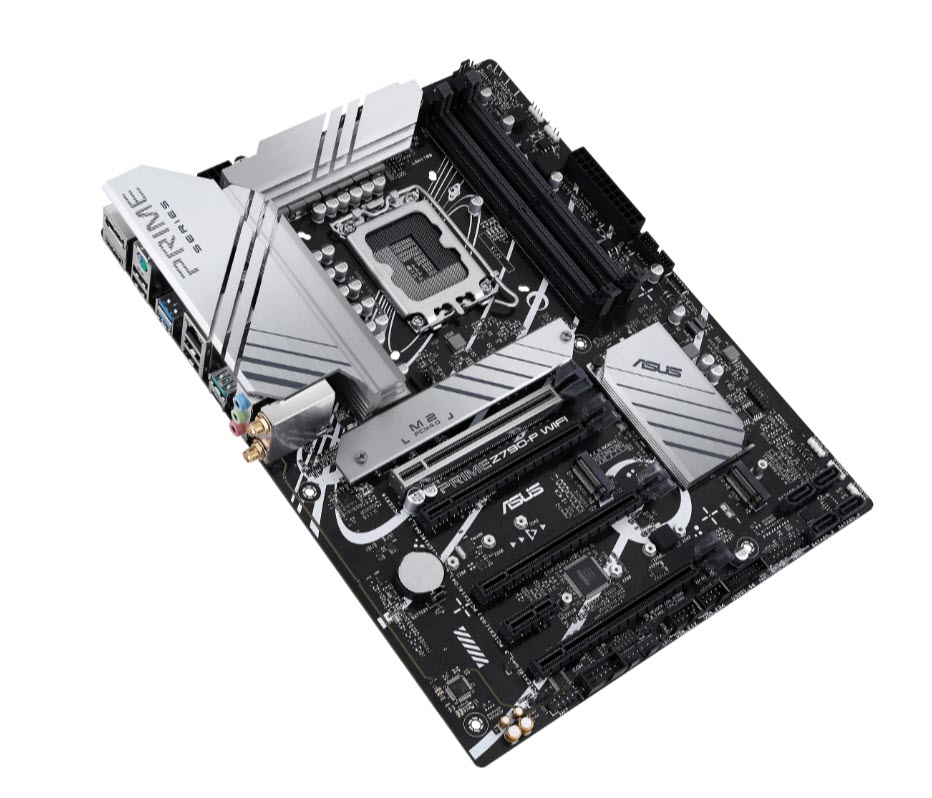

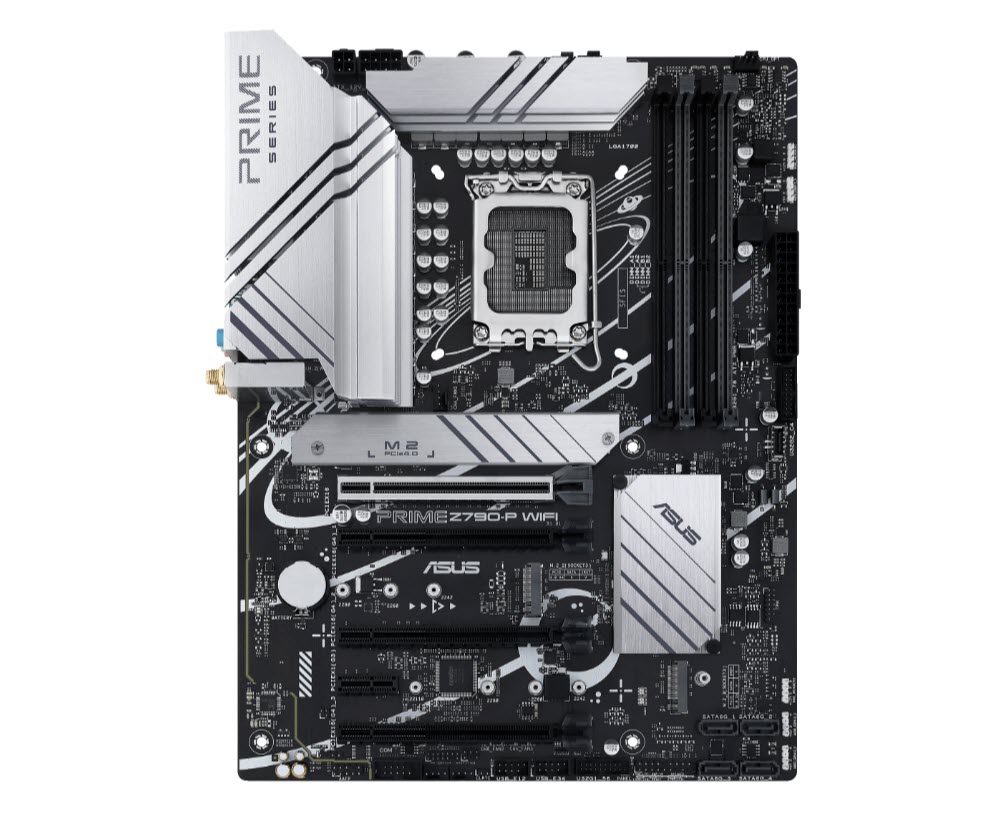

ASUS PRIME Z790-P WIFI

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-P WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

Form Factor

• ATX Form Factor, 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )

CPU

• Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset

• Intel® Z790 Chipset

Memory

• 4 x DIMM, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC) /6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400 / 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports Intel® Extreme Memory Profile (XMP), OptiMem II

Graphics

• 1 x DisplayPort**, 1 x HDMI® port***, ** Supports max. 4K@60Hz as specified in DisplayPort 1.4., *** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

• Intel® 13th & 12th Gen Processors, 1 x PCIe 5.0 x16 slot, Intel® Z790 Chipset; 3 x PCIe 4.0 x16 slots (support x4 mode), 1 x PCIe 3.0 x1 slot

Storage

• Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*, Intel® 13th & 12th Gen Processors; M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), Intel® Z790 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes), 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

LAN

• 1 x Realtek 2.5Gb Ethernet

Wireless & Bluetooth

• Wi-Fi 6, 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Supports 2.4/5GHz frequency band, Bluetooth® v5.2

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback, Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers

USB Ports

• Rear USB (Total 8 ports); 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 1 x USB 3.2 Gen 2 port (1 x Type-A), 2 x USB 3.2 Gen 1 ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), Front USB (Total 9 ports); 1 x USB 3.2 Gen 2 connector (supports USB Type-C®), 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports

OS Support

• Windows® 11, Windows® 10 64-bit

Internal I/O Ports

• Fan and Cooling related; 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 3 x 4-pin Chassis Fan headers, Power related; 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x 4-pin +12V Power connector, Storage related 3 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, USB; 1 x USB 3.2 Gen 2 connector (supports USB Type-C®), 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports, Miscellaneous; 3 x Addressable Gen 2 headers, 2 x Aura RGB headers, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x SPI TPM header (14-1pin), 1 x 20-5pin System Panel header, 1 x Thunderbolt™ (USB4®) Header

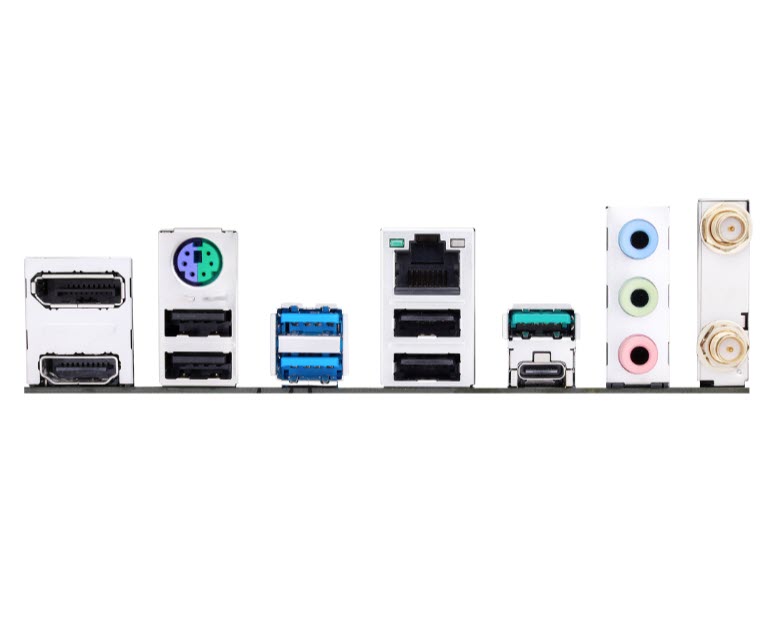

Back I/O Ports

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 1 x USB 3.2 Gen 2 port (1 x Type-A), 2 x USB 3.2 Gen 1 ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x DisplayPort, 1 x HDMI® port, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo port

Software Features

• ASUS Exclusive Software, Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving, AI Suite 3 -TurboV EVO -PC Cleaner -DIGI+ VRM, ASUS CPU-Z, MyASUS, Norton 360 Deluxe (60 Days Free Trial), WinRAR, UEFI BIOS, ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Special Features

• ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O, ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core, ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design, ASUS EZ DIY - ProCool, Aura Sync - Aura RGB headers - Addressable Gen 2 headers

Accessories

• 2 x SATA 6Gb/s cables, 1 x ASUS Wi-Fi moving antennas, 1 x I/O Shield, 1 x M.2 Rubber Package, 2 x Screw packages for M.2 SSD, 1 x User guide
