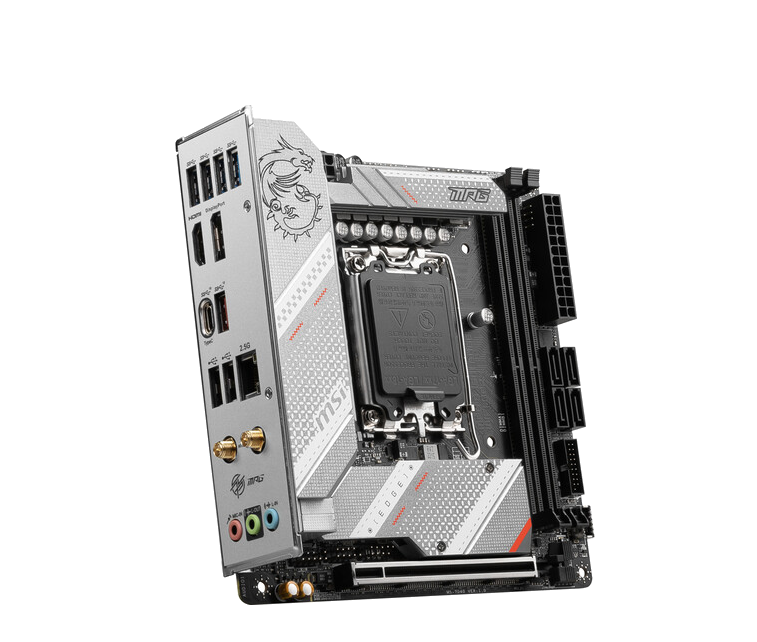

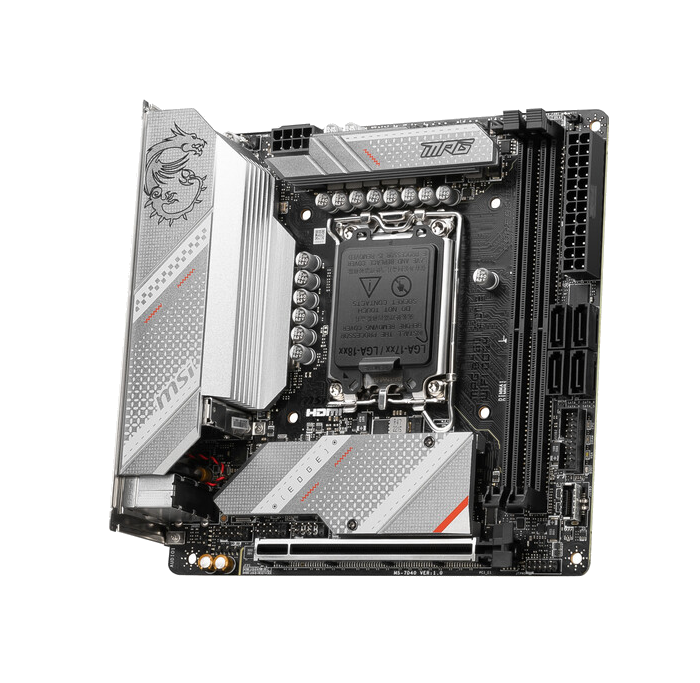

MSI MPG B760I EDGE WIFI DDR4 - Mini-ITX, s1700, 2xDDR4, 2xM.2, 1xDP, 1xHDMI , 2.5Gb, Wi-Fi 6E, BT 5.3
Product Type:
Motherboards
Type Detail:
Intel Socket 1700 (6xx/7xx Series)
Manufacturer:
MSI
Manufacturer #:
B760IEDGEWIFID4
Part Status:
Special Order Only
Milwaukee PC SKU:
264648
Price:
$249.99

Quick Tech Specs

Processor Manufacture: Intel
Socket: LGA 1700
Chipset Manufacture: Intel / B760
Form Factor: ITX / Mini-ITX
SLI Support: NONE
Crossfire Support: NONE
Memory Type: DDR4
Number of Memory Slots: 2 Slots
Max Memory: 64GB
PCI Express x16 Slots: 1 Slots
PCI Express x1 Slots: None
PCI Slots: None
WiFi Onboard: Wi-Fi 6 / BT 5.3
RAID Support: RAID 0/1/5/10
Sata 6 Gbits/s Ports (3.0/3.1): 4 Ports
M.2 Slots: 2 Slots
NVMe Support: No
USB C Ports: 1 Port
Legacy Ports: NONE
Thunderbolt Ports: NONE
USB 3.0 Ports: None
USB 2.0 Ports: 2 Ports
Display Ports: 1 Port
VGA Ports: NONE
DVI Ports: NONE
HDMI Ports: 1 Ports
Network Ports: 2.5 Gigabit
USB 3.x Ports (3.0 or higher): 5 Ports


MSI MPG B760I EDGE WIFI DDR4

Form Factor

  • Mini-ITX, 170mmx170mm

CPU

  • Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors, LGA 1700

Chipset

  • INTEL B760

Memory

  • 2x DDR4, Maximum Memory Capacity 64 GB, Memory Support 5333/ 5200/ 5066/ 5000/ 4800/ 4600/ 4533/ 4400/ 4266/ 4000/ 3866/ 3733/ 3600/ 3466/ 3333(O.C.) / 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133(By JEDCE & POR), Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz, Supports Dual-Channel mode, Supports non-ECC, un-buffered memory, Supports Intel® Extreme Memory Profile (XMP)

Graphics

  • 1x HDMI™, 1x DisplayPort, Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*, Support DP 1.4, maximum resolution of 8K 60Hz

Expansion Slots

  • 1x PCI-E x16 slot, PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

Storage

  • 2x M.2, M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices, M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices, 4x SATA 6G, RAID - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

LAN

  • Realtek® RTL8125BG 2.5Gbps LAN

WIRELESS / BLUETOOTH

  • Intel® Wi-Fi 6E, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth® 5.3, FIPS, FISMA

Audio

  • Realtek® ALC897 Codec, 7.1-Channel USB High Performance Audio

USB Ports

  • 2x USB 2.0 (Rear), 2x USB 2.0 (Front), 4x USB 3.2 Gen1 Type A (Rear), 2x USB 3.2 Gen1 Type A (Front), 1x USB 3.2 Gen2 Type A (Rear), 1x USB 3.2 Gen2 Type C (Rear), 1x USB 3.2 Gen2 Type C (Front)

OS Support

  • Windows® 11 64-bit, Windows® 10 64-bit

Internal I/O Ports

  • 1x Power Connector(ATX_PWR), 1x Power Connector(CPU_PWR), 1x CPU Fan, 1x Pump Fan, 1x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 2x USB 2.0 ports, 2x USB 3.2 Gen1 Type A ports, 1x USB 3.2 Gen2 Type C ports

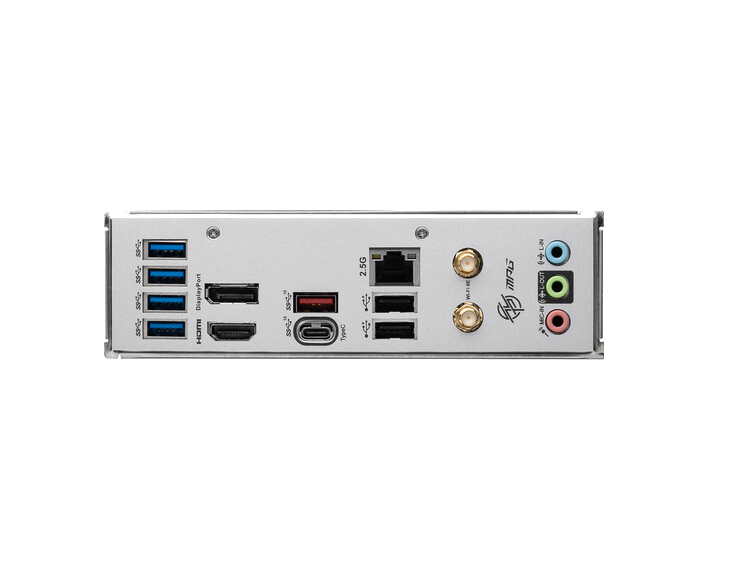

Back I/O Ports

  • 4 x USB 3.2 Gen 1 5Gbps, Display Port, 1 x USB 3.2 Gen 2 10Gbps, 2.5G LAN, 3 x Audio Connectors, HDMI™, 1 x USB 3.2 Gen 2 10Gbps (Type-C), 2 x USB 2.0, Wi-Fi/Bluetooth
