MSI MAG B760M Mortar WIFI - mATX, s1700, 4xDDR5, 2xM.2, 1xDP, 1xHDMI, 2.5G, Wi-Fi 6E, BT 5.3
Product Type:
Motherboards
Type Detail:
Intel Socket 1700 (6xx/7xx Series)
Manufacturer:
MSI
Manufacturer #:
B760MMOTWIFI
Part Status:
Special Order Only
Milwaukee PC SKU:
264647
Price:
$229.99

Quick Tech Specs

Processor Manufacture: Intel
Socket: LGA 1700
Chipset Manufacture: Intel / B760
Form Factor: Micro ATX
SLI Support: NONE
Crossfire Support: NONE
Number of Memory Slots: 4 Slots
Max Memory: 128GB
Memory Type: DDR5
PCI Express x16 Slots: 2 Slots
PCI Express x1 Slots: 1 Slots
PCI Slots: None
WiFi Onboard: Wi-Fi 6 / BT 5.3
RAID Support: RAID 0/1/5/10
Sata 6 Gbits/s Ports (3.0/3.1): 4 Ports
M.2 Slots: 2 Slots
NVMe Support: No
USB C Ports: 1 Port
Legacy Ports: NONE
Thunderbolt Ports: NONE
USB 3.0 Ports: None
USB 2.0 Ports: 4 Ports
Display Ports: 1 Port
VGA Ports: NONE
DVI Ports: NONE
HDMI Ports: 1 Ports
Network Ports: 2.5 Gigabit
USB 3.x Ports (3.0 or higher): 3 ports

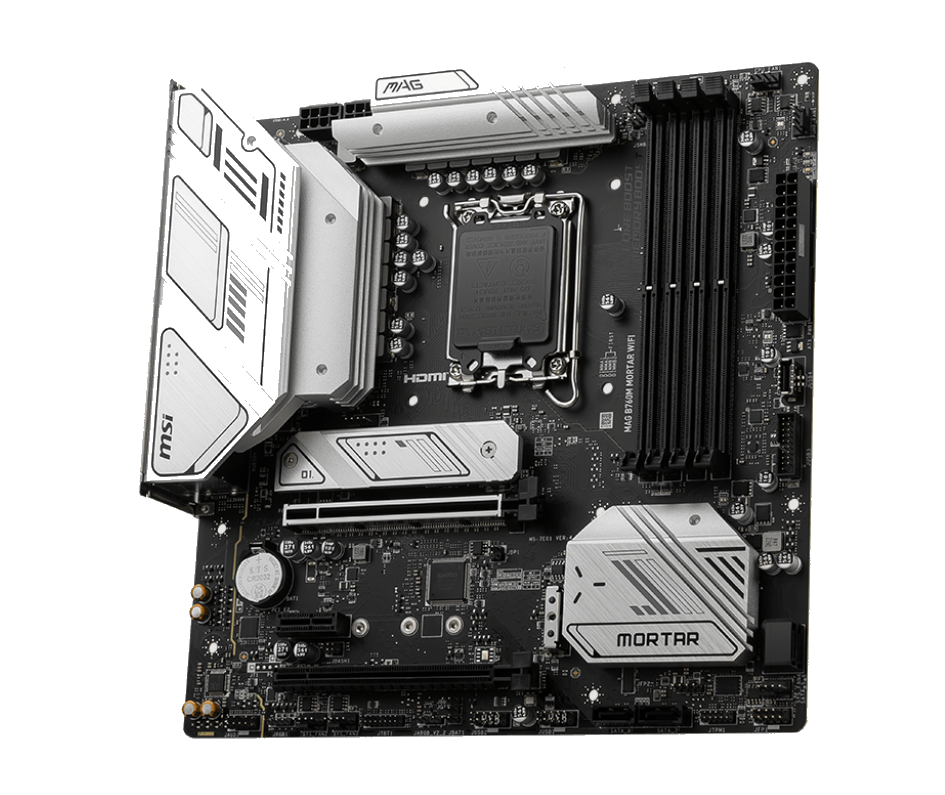

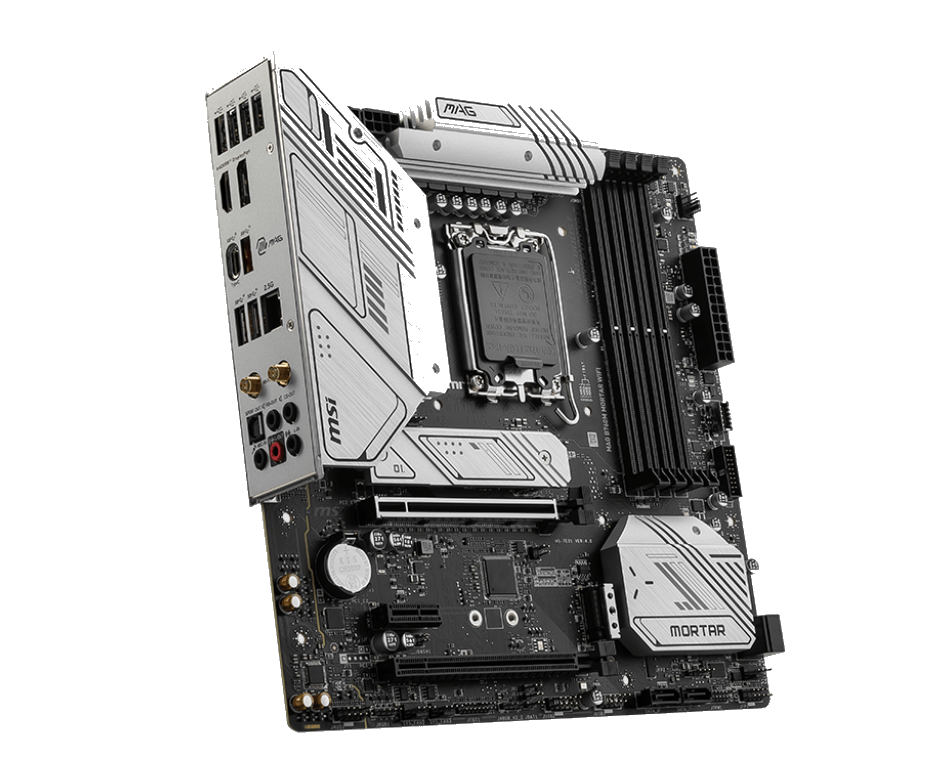

MSI MAG B760M Mortar WIFI

The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

Form Factor

  • mATX, 243.84mmx243.84mm

CPU

  • Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors - LGA1700

Chipset

  • INTEL B760

Memory

  • 4x DDR5, Maximum Memory Capacity 128 GB, Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC) / 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC) / 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz, Max. overclocking frequency: • 1DPC 1R Max speed up to 7000+ MHz, • 1DPC 2R Max speed up to 6600+ MHz, • 2DPC 1R Max speed up to 6400+ MHz, • 2DPC 2R Max speed up to 5600+ MHz, Supports Dual-Channel mode, Supports non-ECC, un-buffered memory, Supports Intel® Extreme Memory Profile

Graphics

  • 1x HDMI™, 1x DisplayPort, Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*, Support DP 1.4, maximum resolution of 4K 60Hz*

Expansion Slots

  • 2x PCI-E x16 slot, Supports x16/x4, 1x PCI-E x1 slot, PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Storage

  • 2 x M.2, M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices, M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices, 4 x SATA 6G, RAID - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

LAN

  • Realtek® 2.5Gbps LAN

WIRELESS / BLUETOOTH

  • Intel® Wi-Fi 6E, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth® 5.3, FIPS, FISMA

Audio

  • Realtek® ALC897 Codec, 7.1-Channel USB High Performance Audio, Supports S/PDIF output

USB Ports

  • 4x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 3.2 Gen1 Type A (Front), 3x USB 3.2 Gen2 Type A (Rear), 1x USB 3.2 Gen2 Type C (Front), 1x USB 3.2 Gen2x2 Type C (Rear)

OS Support

  • Windows® 11 64-bit, Windows® 10 64-bit

Internal I/O Ports

  • 1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x CPU Fan, 1x Pump Fan, 4x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x TBT connector (JTBT, supports RTD3), 1x Tuning Controller connector(JDASH), 2x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 ports, 2x USB 3.2 Gen1 Type A ports, 1x USB 3.2 Gen2 Type C ports

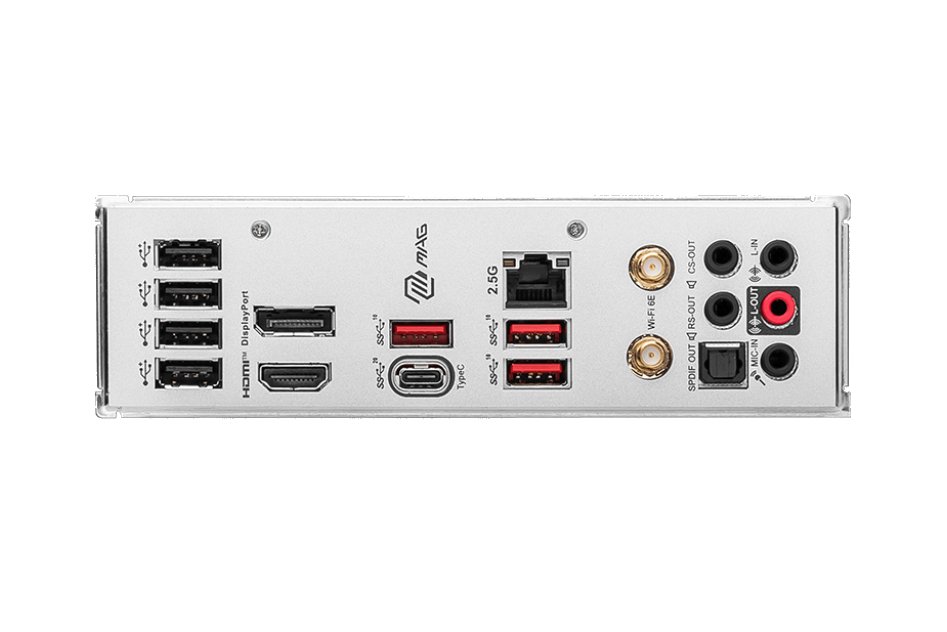

Back I/O Ports

  • 4 x USB 2.0, DisplayPort, 3 x USB 3.2 Gen 2 10Gbps Type-A, 2.5G LAN, Wi-Fi / Bluetooth Antenna, 5 x HD Audio Connectors, HDMI™ 2.1 Port, 1 x USB 3.2 Gen 2x2 20Gbps Type-C, Optical S/PDIF OUT

LED FEATURE

  • 4 x EZ Debug LED
