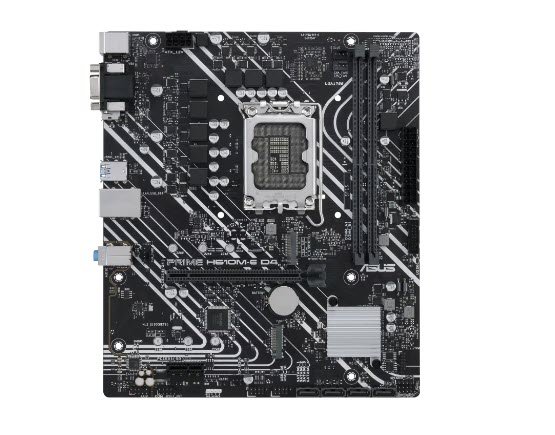

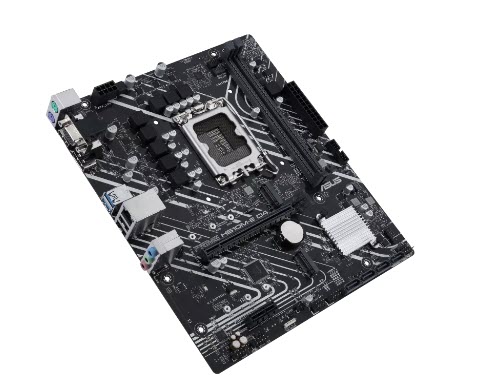

ASUS PRIME H610M-E D4

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th & 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features

Form Factor

• mATX Form Factor, 9.6 inch x 8.3 inch ( 24.4 cm x 21.1 cm )

CPU

• Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0, Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Chipset

• Intel® H610 Chipset

Memory

• 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports Intel® Extreme Memory Profile (XMP)

Graphics

• 1 x DisplayPort, 1 x D-Sub port, 1 x HDMI® port

Expansion Slots

• Intel® 13th & 12th Gen Processors, 1 x PCIe 4.0 x16 slot, Intel® H610 Chipset, 1 x PCIe 3.0 x1 slot, Intel® 12th Gen Processors, 1 x PCIe 4.0 x16 slot, Intel® H610 Chipset, 1 x PCIe 3.0 x1 slot

Storage

• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports, Intel® H610 Chipset, M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode), 4 x SATA 6Gb/s ports

LAN

• 1 x Realtek 1Gb Ethernet

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC, - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback, Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers

USB Ports

• Rear USB (Total 4 ports), 2 x USB 3.2 Gen 1 ports (2 x Type-A), 2 x USB 2.0 ports (2 x Type-A), Front USB (Total 6 ports), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports, Rear USB (Total 4 ports), 2 x USB 3.2 Gen 1 ports (2 x Type-A), 2 x USB 2.0 ports (2 x Type-A), Front USB (Total 6 ports), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports

OS Support

• Windows® 11 64-bit, Windows® 10 64-bit

Internal I/O Ports

• Fan and Cooling related; 1 x 4-pin CPU Fan header, 2 x 4-pin Chassis Fan headers, Power related; 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, Storage related; 2 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, USB; 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports, Miscellaneous; 1 x RGB header, 1 x Clear CMOS header, 1 x Front Panel Audio header (AAFP), 1 x COM Port header, 1 x S/PDIF Out header, 1 x Speaker header, 1 x SPI TPM header (14-1pin), 1 x 10-1 pin System Panel header

Back I/O Ports

• 2 x USB 3.2 Gen 1 ports (2 x Type-A), 2 x USB 2.0 ports (2 x Type-A), 1 x DisplayPort, 1 x D-Sub port, 1 x HDMI® port, 1 x Realtek 1Gb Ethernet port, 3 x Audio jacks, 1 x PS/2 Keyboard (purple) port, 1 x PS/2 Mouse (green) port

Software Features

• ASUS Exclusive Software, Armoury Crate, AI Suite 3 - Performance And Power Saving Utility, TurboV EVO, EPU, DIGI+ VRM, Fan Xpert 2+, ASUS CPU-Z, Norton Anti-virus software (Free Trial version), WinRAR, UEFI BIOS, ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Special Features

• ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O, ASUS Q-Design - Q-DIMM - Q-Slot, ASUS Thermal Solution - Aluminum heatsink design, ASUS Lighting Control - RGB header

Accessories

• 2 x SATA 6Gb/s cables, 1 x I/O Shield, 1 x M.2 SSD screw package, 1 x Support DVD, 1 x User guide
