ASUS ROG STRIX B550-F GAMING WIFI II - ATX, AM4, 4xDDR4, 2xM.2, 1xDP, 1xHDMI
Product Type:
Motherboards
Type Detail:
AMD Socket AM4
Manufacturer:
Asus
Manufacturer #:
STRIX B550-F GAMI WIFI II
Part Status:
Special Order Only
Milwaukee PC SKU:
264631
Price:
$239.99

Quick Tech Specs

Processor Manufacture: AMD
Socket: AM4
Chipset Manufacture: AMD / B550
Form Factor: ATX
SLI Support: NONE
Crossfire Support: NONE
Memory Type: DDR4
Number of Memory Slots: 4 Slots
Max Memory: 128GB
PCI Express x16 Slots: 2 Slots
PCI Express x1 Slots: 3 Slots
PCI Slots: None
WiFi Onboard: Wi-Fi 6 / BT 5.2
RAID Support: RAID 0/1/10
Sata 6 Gbits/s Ports (3.0/3.1): 6 Ports
M.2 Slots: 2 Slots
NVMe Support: No
USB C Ports: 1 Port
Legacy Ports: NONE
Thunderbolt Ports: NONE
USB 3.0 Ports: None
USB 2.0 Ports: 2 Ports
Display Ports: 1 Port
VGA Ports: NONE
DVI Ports: NONE
HDMI Ports: 1 Ports
Network Ports: 2.5 Gigabit
USB 3.x Ports (3.0 or higher): 5 Ports

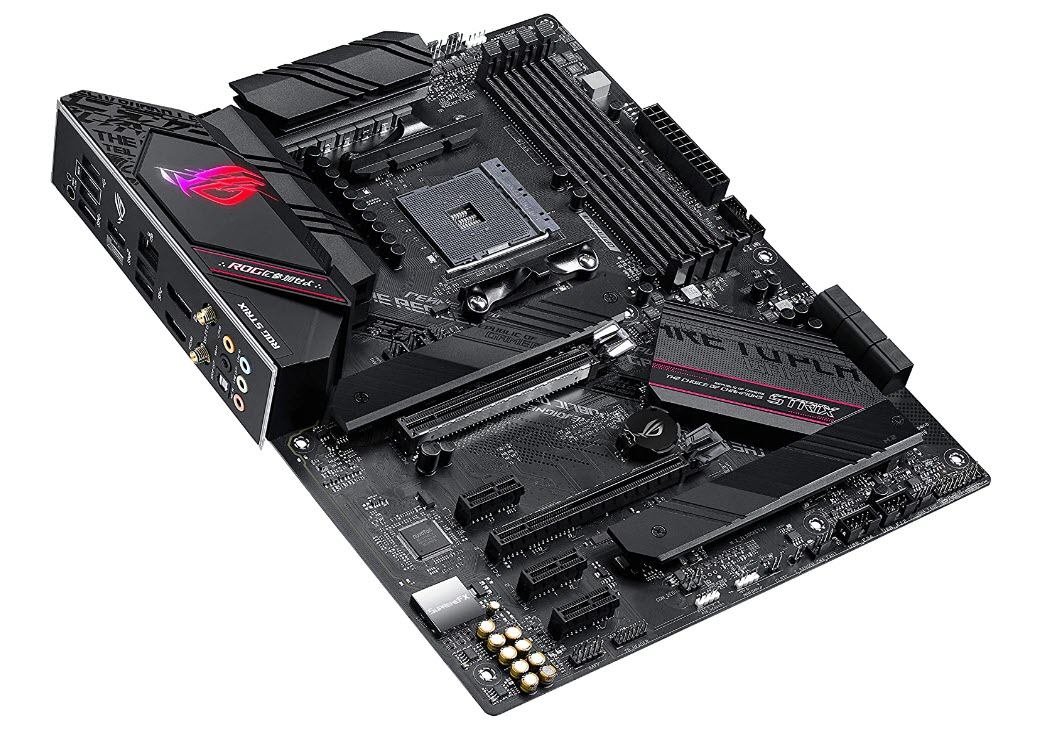

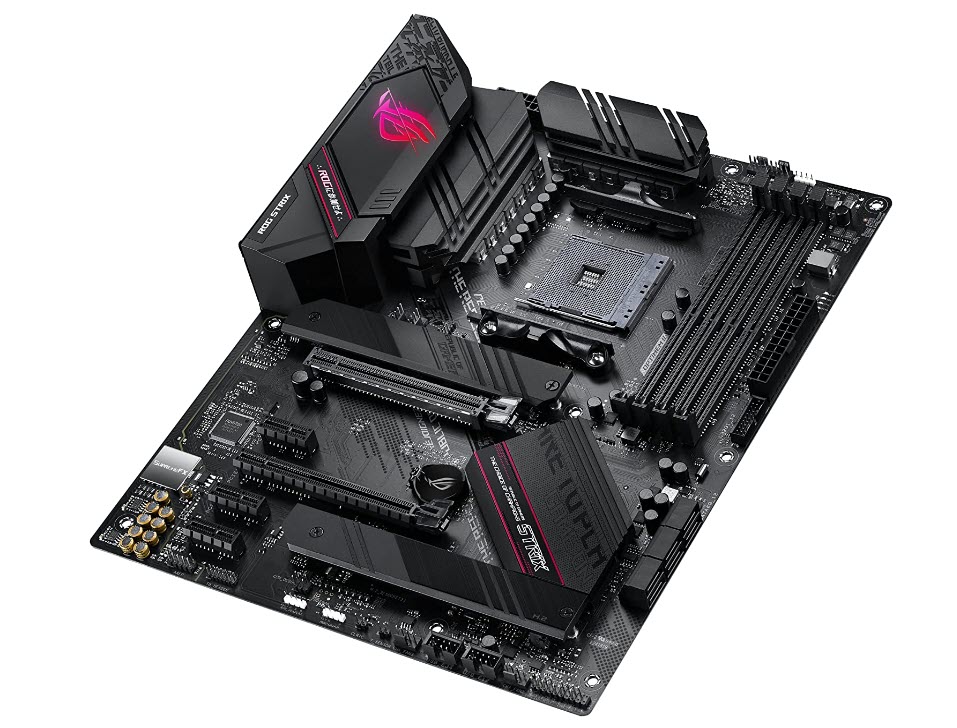

ASUS ROG STRIX B550-F GAMING WIFI II

ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including the latest PCIe® 4.0. With robust power delivery and effective cooling, ROG Strix B550 Gaming is well-equipped to handle Zen 3 architecture AMD Ryzen™ CPUs. Boasting futuristic aesthetics and intuitive ROG software, ROG Strix B550-F Gaming WiFi II gives you a head start on your dream build.

Form Factor

  • ATX, 30.5cm x 24.4cm

CPU

  • AM4/AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors,

Chipset

  • B550

Memory

  • AMD Ryzen™ 5000 and 3000 Series Desktop Processors - 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4666(O.C.)/4600(O.C.)/4400(O.C.) /4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.) /3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz, Un-buffered Memory, AMD Ryzen™ 5000 and 4000 G-Series Processors - 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4866(O.C.)/4600(O.C) /4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.) /3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory, ECC Memory (ECC mode) support varies by CPU

Graphics

  • 1 x DisplayPort 1.2, 1 x HDMI® 2.1

Expansion Slots

  • AMD Ryzen™ 5000 and 3000 Series/ 5000 and 4000 G-Series Desktop Processors; 1 x PCIe 4.0 x16 SafeSlot (supports x16 mode), AMD B550 chipset; 1 x PCIe 3.0 x16 slot (supports x4 mode), 3 x PCIe 3.0 x1 slots

Storage

  • Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports, Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports, AMD Ryzen™ 5000 and 3000 Series/ 5000 and 4000 G-Series Desktop Processors; M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes), AMD B550 Chipset: M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes), 6 x SATA 6Gb/s ports, Support RAID 0, 1, 10

LAN

  • 1 x Intel® 2.5Gb Ethernet, 1 x Intel® I225-V 2.5Gb Ethernet

Wireless & Bluetooth

  • Wi-Fi 6E, 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax), Supports 2.4/5/6GHz frequency band, Bluetooth v5.2

Audio

  • ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A - Impedance sense for front and rear headphone outputs - Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback, Audio Features - SupremeFX Shielding Technology - Dual OP Amplifiers - Premium audio capacitors - Audio cover

USB Ports

  • Rear USB: Total 8 ports; 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®), 4 x USB 3.2 Gen 1 ports (4 x Type-A), 2 x USB 2.0 ports, Front USB: Total 6 ports; 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports

OS Support

  • Windows® 11, Windows® 10 64-bit

Internal I/O Ports

  • Fan and cooling related - 1 x 4-Pin AIO_Pump header, 1 x 4-Pin CPU fan header, 1 x 4-Pin CPU_OPT fan header, 3 x 4-Pin Chassis fan headers, Power related - 1 x 24-pin main power connector, 1 x 8-pin +12V power connector, 1 x 4-pin +12V power connector, Storage related - 2 x M.2 slots (Key M), 6 x SATA 6Gb/s ports, USB ports - 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports, Miscellaneous - 1 x Addressable Gen 2 header, 2 x AURA RGB headers, 1 x Clear CMOS header, 1 x Front panel audio header (AAFP), 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x Thermal sensor header, 1 x Thunderbolt™ header

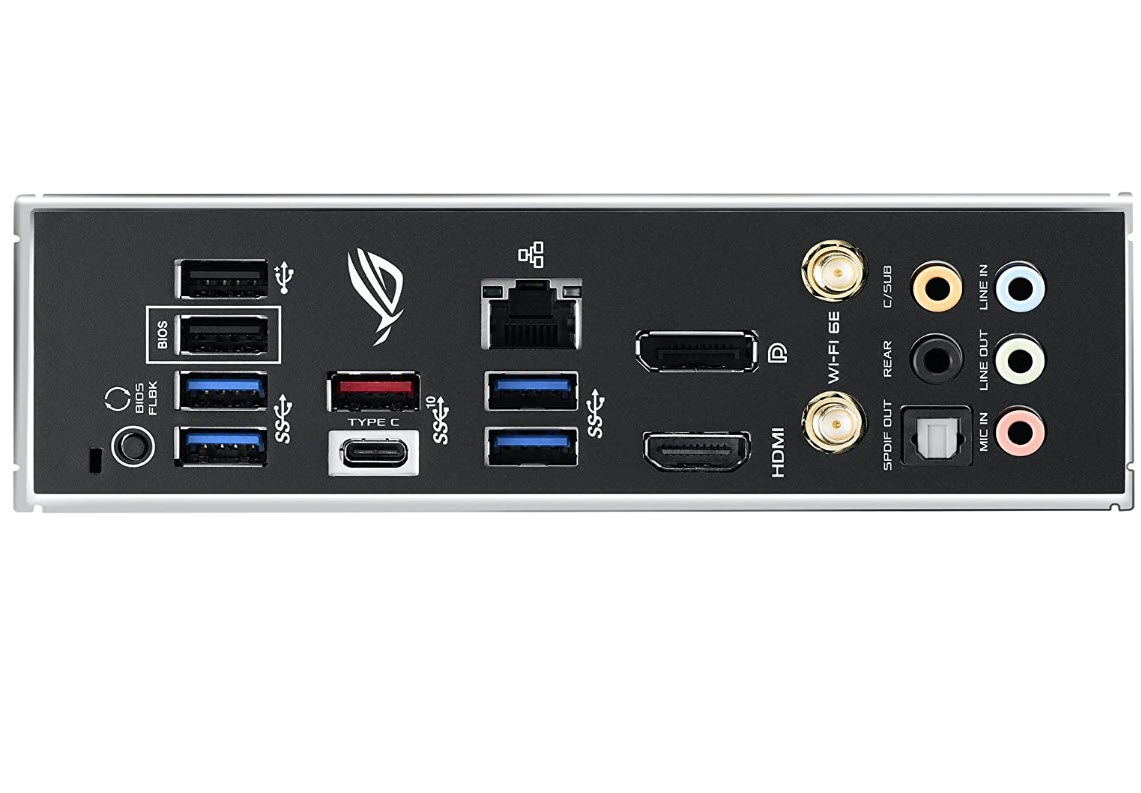

Back I/O Ports

  • 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®), 4 x USB 3.2 Gen 1 ports (4 x Type-A), 2 x USB 2.0 ports, 1 x Wi-Fi Module, 1 x DisplayPort, 1 x HDMI® port, 1 x Intel® I225-V 2.5G Ethernet, 1 x Optical S/PDIF out, 5 x Audio jacks, 1 x BIOS FlashBackTM button

Software Features

  • ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - Anti-virus software, ASUS Exclusive Software Features Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Two-Way AI Noise Cancellation, AI Suite 3: - Performance And Power Saving Utility, EPU, DIGI+ VRM, Fan Xpert 4, TurboV EVO - EZ update, WinRAR, DAEMON Tools, Norton Anti-virus software (Free Trial version), UEFI BIOS, ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Special Features

  • ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) - ASUS Q-Slot, ASUS Thermal Solution - M.2 heatsink, AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers, ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS header - ProCool - Pre-mounted I/O shield - SafeSlot

Accessories

  • Cables - 1 x Addressable RGB extension cable, 4 x SATA 6Gb/s cables, Miscellaneous - 1 x ASUS Wi-Fi moving antennas, 1 x Cable ties pack, 1 x M.2 Rubber Package, 1 x M.2 SSD screw package, 1 x ROG key chain, 1 x ROG Strix stickers, 1 x ROG Strix thank you card, Installation Media - 1 x Support DVD, Documentation - 1 x User manual
