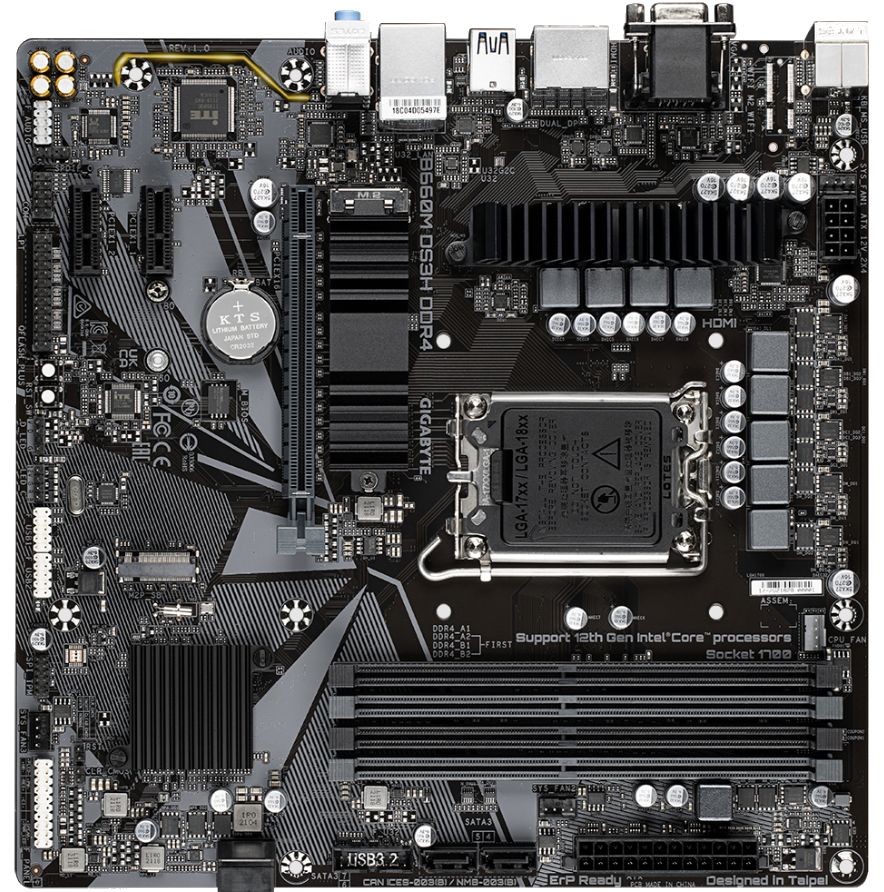

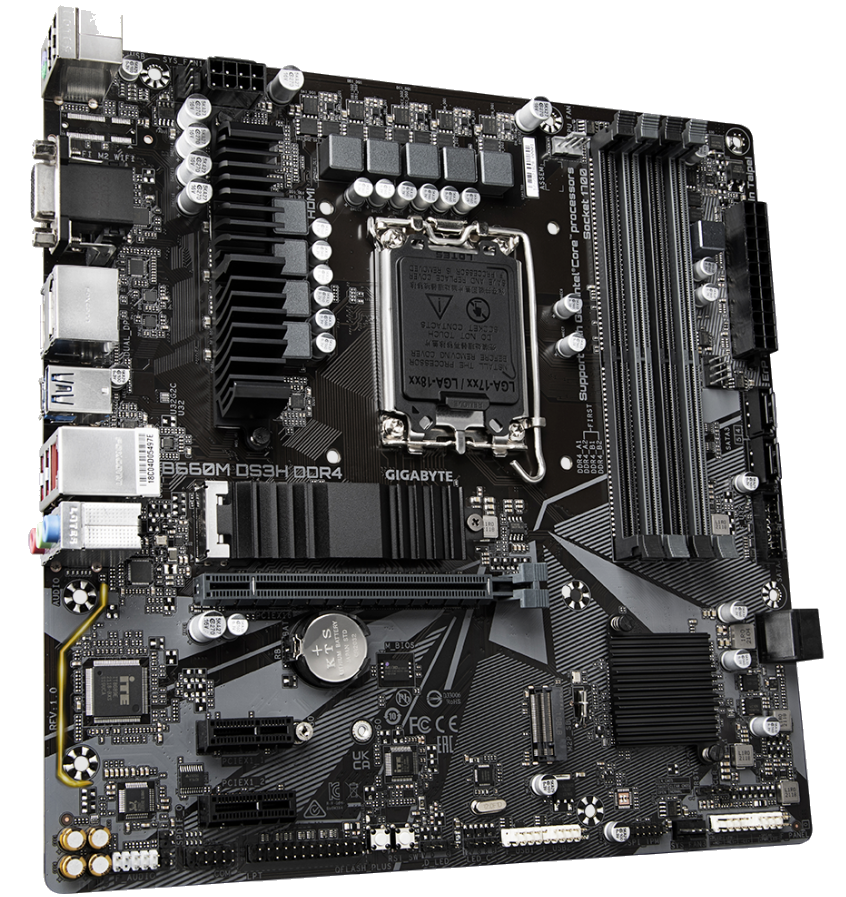

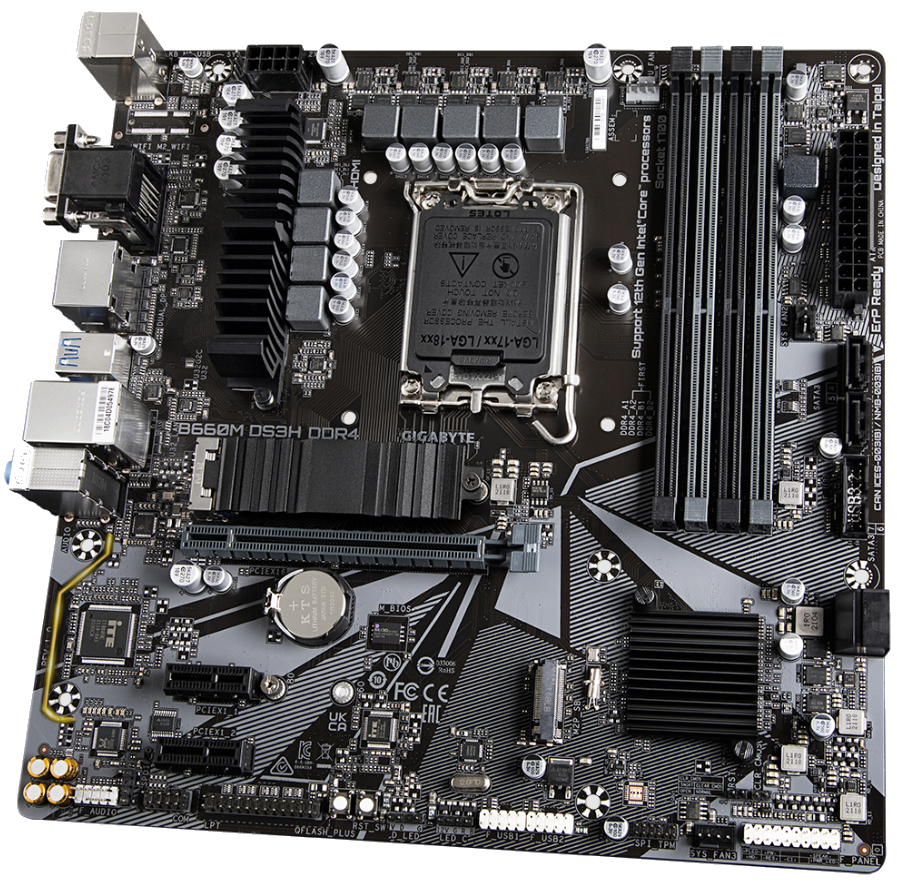

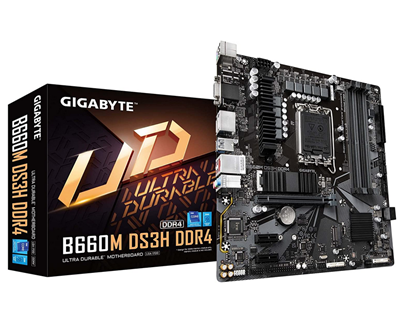

Gigabyte B660M DS3H DDR4 - MATX, B660, s1700, 4xDDR4
Product Type:
Motherboards
Type Detail:
Intel Socket 1700 (6xx/7xx Series)
Manufacturer:
Gigabyte
Manufacturer #:
B660M DS3H DDR4
Part Status:
Special Order Only
Milwaukee PC SKU:
264614
Price:
$139.99

Gigabyte MB B660M DS3H DDR4 B660 LGA1700 Max128GB DDR4 mATX Retail

Gigabyte B660M DS3H DDR4 - MATX, B660, s1700, 4xDDR4

Form Factor

  • Micro ATX Form Factor; 24.4cm x 24.4cm

CPU

  • LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*, L3 cache varies with CPU

Chipset

  • B660

Memory

  • Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.) / 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules, 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory, Dual channel memory architecture, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules

Graphics

  • Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of [email protected] Hz, 1 x HDMI port, supporting a maximum resolution of [email protected] Hz, * Support for HDMI 2.1 version and HDCP 2.3., ** Support native HDMI 2.1 TMDS compatible ports., 1 x DisplayPort, supporting a maximum resolution of [email protected] Hz, * Support for DisplayPort 1.2 version and HDCP 2.3, 1 x DisplayPort, supporting a maximum resolution of [email protected] Hz, * Support for DisplayPort 1.2 version. (Graphics specifications may vary depending on CPU support.) Support for up to 4 displays at the same time

Expansion Slots

  • 1 x PCI Express x16 slot, running at x16, (The PCIEX16 slot conforms to PCI Express 4.0 standard.), 2 x PCI Express x1 slots, (The PCIEX1 slots conform to PCI Express 3.0 standard.)

Storage

  • CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU), Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB), 4 x SATA 6Gb/s connectors, Support for RAID 0, RAID 1, RAID 5, and RAID 10, Intel® Optane™ Memory Ready, * System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connector supported by the Chipset.

LAN

  • Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Audio

  • Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel

USB Ports

  • Chipset: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support, 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header), 2 x USB 2.0/1.1 ports on the back panel, Chipset+2 USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers

OS Support

  • Windows 11 64-bit, Windows 10 64-bit

Internal I/O Ports

  • 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 3 x system fan headers, 1 x addressable LED strip header, 1 x RGB LED strip header, 2 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only), 1 x serial port header, 1 x parallel port header, 1 x S/PDIF Out header, 1 x Q-Flash Plus button, 1 x reset button, 1 x reset jumper, 1 x Clear CMOS jumper

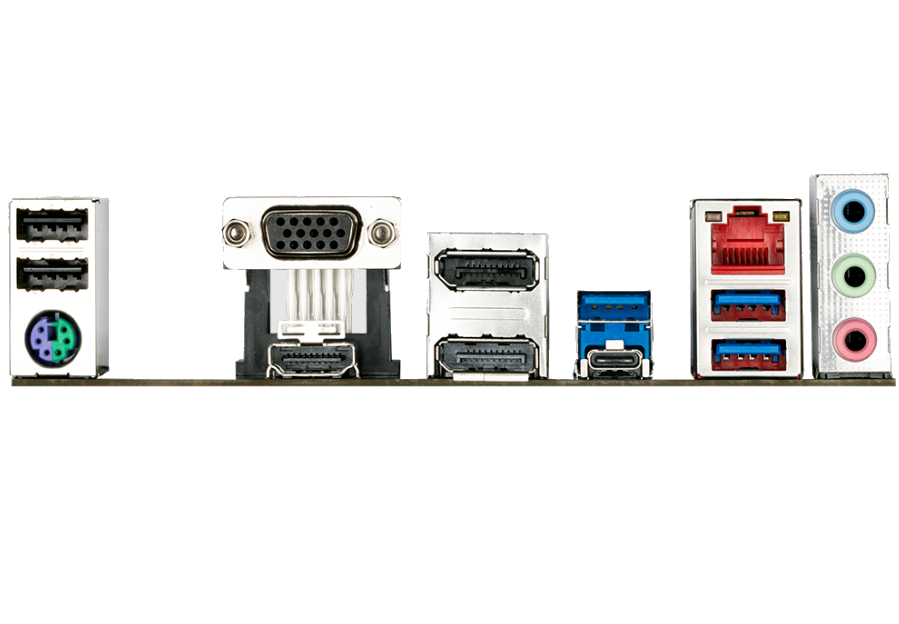

Back I/O Ports

  • 2 x USB 2.0/1.1 ports, 1 x PS/2 keyboard/mouse port, 1 x D-Sub port, 1 x HDMI port, 2 x DisplayPorts, 3 x USB 3.2 Gen 1 ports, 1 x USB Type-C® port, with USB 3.2 Gen 2 support, 1 x RJ-45 port, 3 x audio jacks

H/W Monitoring

  • Voltage detection, Temperature detection, Fan speed detection, Fan fail warning, Fan speed control

Unique Features

  • Support for APP Center, * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS, EasyTune, RGB Fusion, Smart Backup, System Information Viewer, Support for Q-Flash Plus, Support for Q-Flash, Support for Xpress Install

Bundled Software

  • Norton® Internet Security (OEM version), Realtek® Gaming LAN Bandwidth Control Utility

Additional Technical Specs

Processor Manufacture: Intel
Socket: LGA 1700
Chipset Manufacture: Intel / Intel® B660
Form Factor: Micro ATX
SLI Support: NONE
Crossfire Support: NONE
Number of Memory Slots: 4 Slots
Max Memory: 128GB
Memory Type: DDR4
PCI Express x16 Slots: 1 Slots
PCI Express x1 Slots: 2 Slots
PCI Slots: None
WiFi Onboard: NONE
RAID Support: RAID 0/1/5/10
Sata 6 Gbits/s Ports (3.0/3.1): 4 Ports
M.2 Slots: 2 Slots
NVMe Support: No
Legacy Ports: NONE
USB 3.x Ports (3.0 or higher): 2 Ports
Thunderbolt Ports: NONE
USB 3.0 Ports: None
Display Ports: 1 Port
VGA Ports: NONE
DVI Ports: NONE
HDMI Ports: 1 Ports
USB C Ports: 1 Port
Network Ports: 2.5 Gigabit
