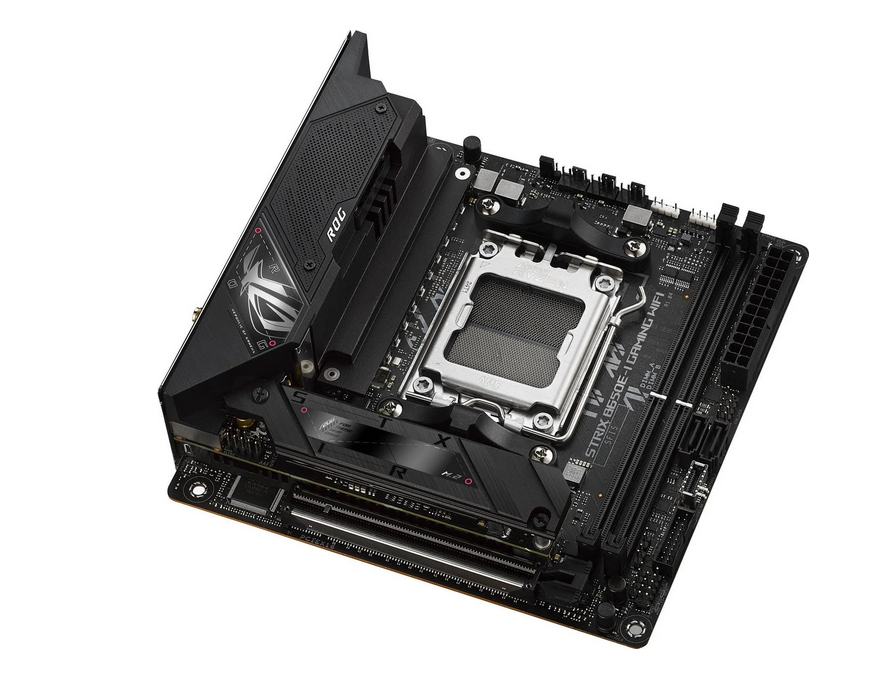

ASUS ROG STRIX B650E-I GAMING WIFI

Form Factor

• Mini-ITX Form Factor, 6.7 inch x 6.7 inch (17 cm x 17 cm)

CPU

• AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors

Chipset

• AMD B650

Memory

• 2 x DIMM, Max. 64GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC) / 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800MHz ECC and Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports AMD EXTended Profiles for Overclocking (EXPO™), OptiMem II

Graphics

• 1 x HDMI® port, 1 x USB3.2 Gen2 port supports USB Type-C® display outputs

Expansion Slots

• AMD Ryzen™ 7000 Series Desktop Processors, 1 x PCIe 5.0 x16 slot

Storage

• Total supports 2 x M.2 slots and 2 x SATA 6Gb/s ports, AMD Ryzen™ 7000 Series Desktop Processors, M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), 2 x SATA 6Gb/s ports

LAN

• 1 x Intel® 2.5Gb Ethernet, ASUS LANGuard

Wireless & Bluetooth

• Wi-Fi 6E, 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax), Supports 2.4/5/6GHz frequency band, Bluetooth® v5.2

Audio

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback, Audio Features - Audio Shielding - Savitech SV3H712 AMP - LED-illuminated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors

USB Ports

• Rear USB (Total 8 ports), 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 5 x USB 3.2 Gen 2 ports (4 x Type-A + 1 x USB Type-C®), 2 x USB 2.0 ports (2 x Type-A), Front USB (Total 5 ports), 1 x USB 3.2 Gen 2 connector, 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 1 x USB 2.0 header supports additional 2 USB 2.0 ports

OS Support

• Windows® 11 64-bit, Windows 10 64-bit

Internal I/O Ports

• 1 x 4-pin CPU Fan header, 1 x 4-pin AIO Pump header, 1 x 4-pin Chassis Fan header, 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 2 x M.2 slots (Key M), 2 x SATA 6Gb/s ports, 1 x USB 3.2 Gen 2 connector, 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 1 x USB 2.0 headers supports additional 2 USB 2.0 ports, 1 x Addressable Gen 2 header, 1 x AURA RGB header, 1 x Clear CMOS header, 1 x CPU Over Voltage jumper, 1 x 12-1 pin Front Panel Audio header (AAFP), 1 x 10-1 pin System Panel header, 1 x Speaker header, 1 x Thermal Sensor header

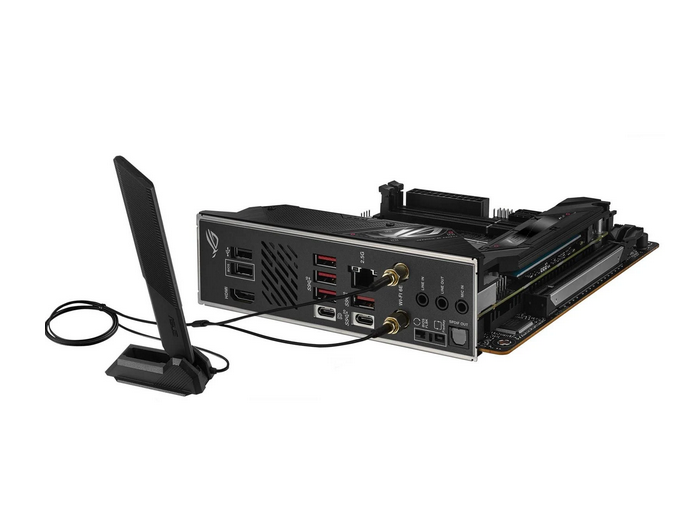

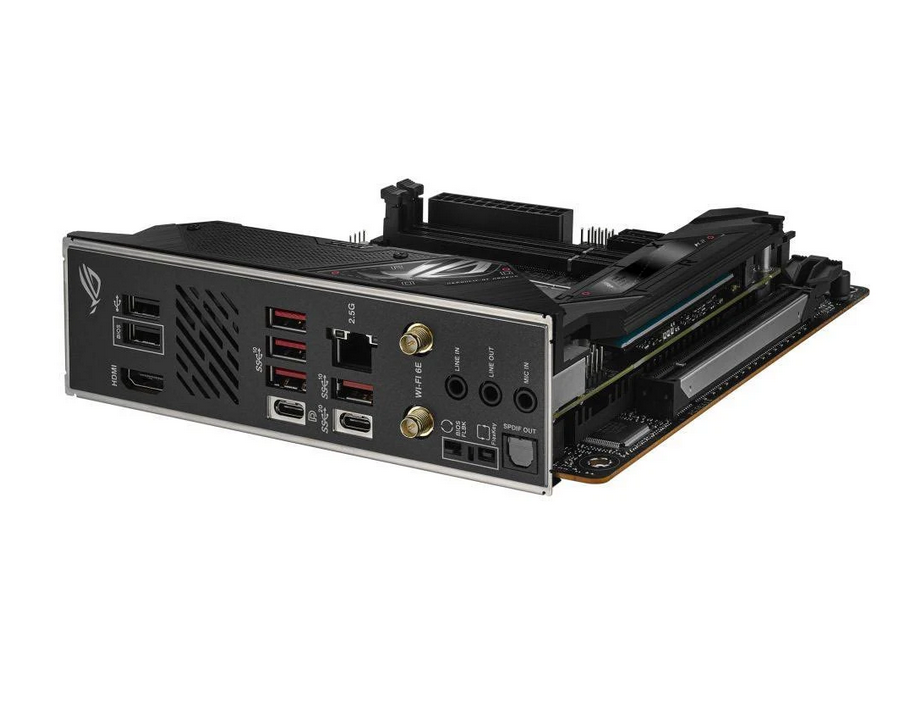

Back I/O Ports

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 5 x USB 3.2 Gen 2 ports (4 x Type-A + 1 x USB Type-C® with DP Alt mode), 2 x USB 2.0 ports (2 x Type-A), 1 x HDMI® port, 1 x Wi-Fi Module, 1 x Intel® 2.5Gb Ethernet port, 3 x LED-illuminated audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack™ button, 1 x FlexKey button

Software Features

• ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual, Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound - Anti-virus software, ASUS Exclusive Software, Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation, AI Suite 3 - TPU - DIGI+ VRM - Turbo app - PC Cleaner, MyAsus, WinRAR, UEFI BIOS, ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode, Dynamic OC Switcher, FlexKey

Special Features

• Extreme Engine Digi+ -5K Black Metallic Capacitors, ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot, ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design, ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM, AURA Sync - AURA RGB header - Addressable Gen 2 header

Accessories

• 2 x SATA 6Gb/s cables, 1 x ROG USB2.0 splitter cable, 1 x Panel cable, 1 x Thermal pad for M.2, 1 x ASUS Wi-Fi moving antennas, 1 x Cable ties package, 1 x M.2 Bracket, 1 x M.2 SSD screw package, 1 x M.2 Q-Latch package for M.2 backplate, 1 x ROG key chain, 1 x ROG Strix sticker, 1 x ROG Strix thank you card, 1 x Rubber Package for M.2 backplate, 1 x User guide
