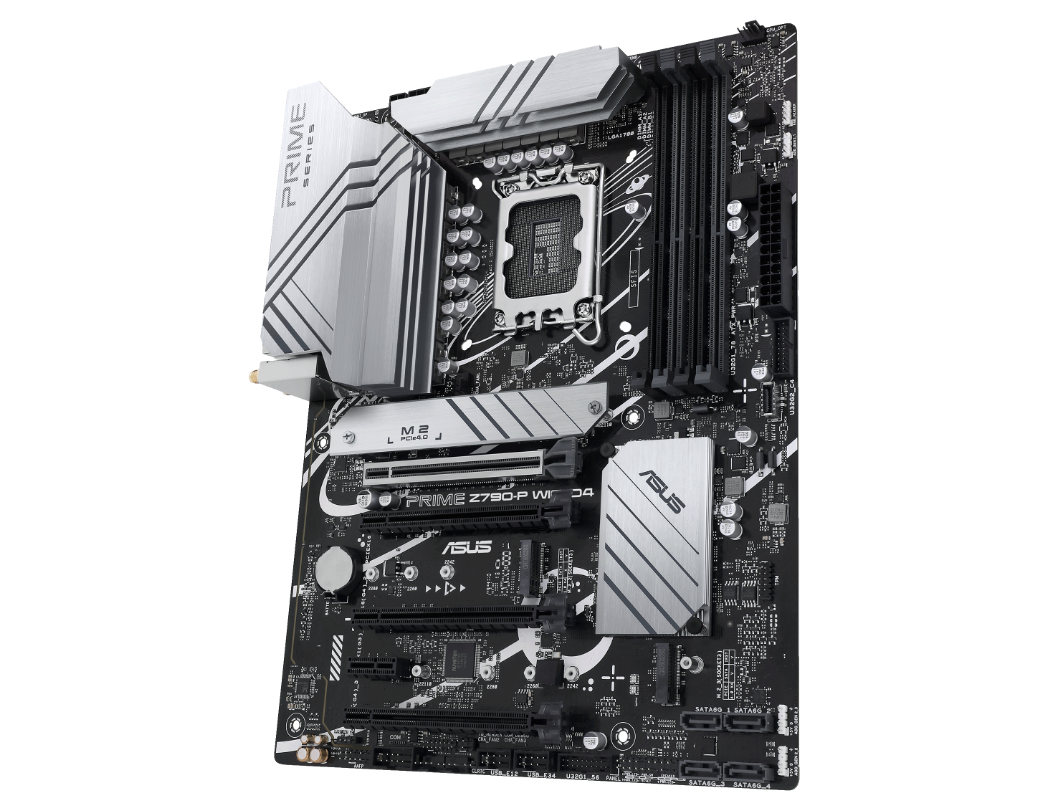

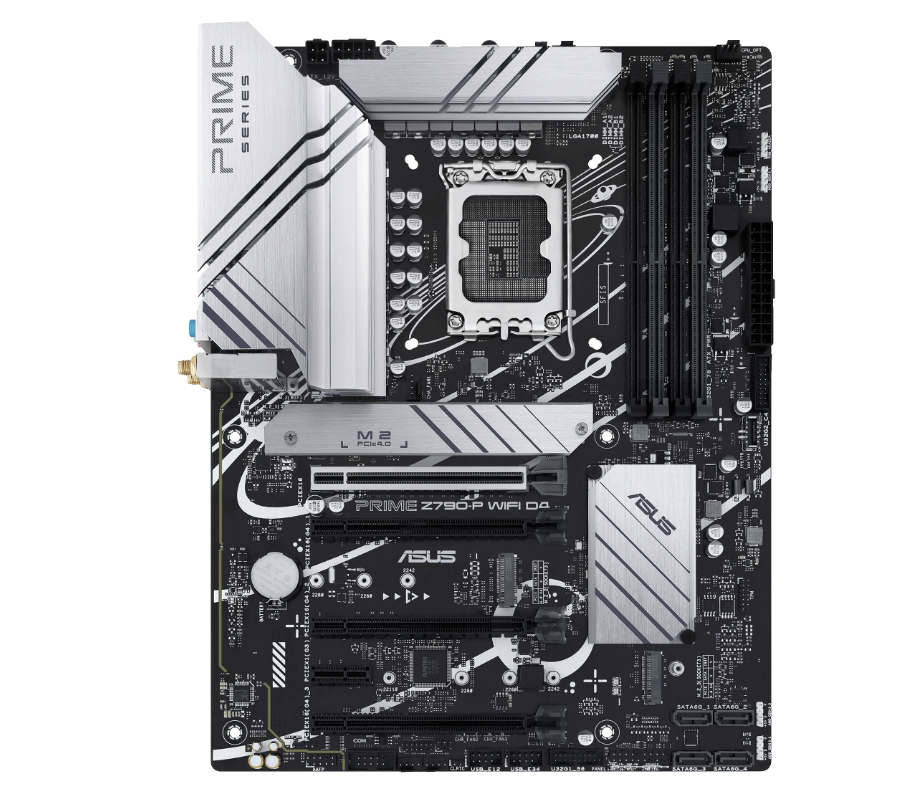

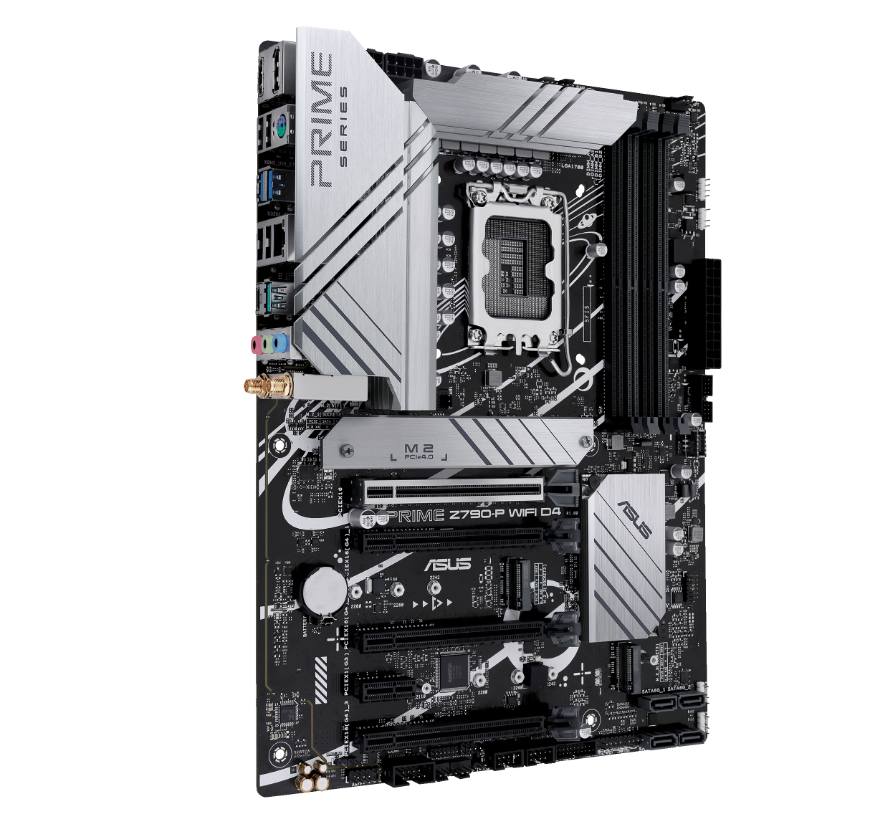

ASUS PRIME Z790-P WIFI D4 - ATX, Z790, s1700, 4xDDR4, PCIe 5.0, Wi-Fi 6, 2.5GbE, 3xM.2
Product Type:
Motherboards
Type Detail:
Intel Socket 1700 (6xx/7xx Series)
Manufacturer:
Asus
Manufacturer #:
PRIME Z790-P WIFI D4
Part Status:
Special Order Only
Milwaukee PC SKU:
264610
Price:
$269.99

ASUS PRIME Z790-P WIFI D4 - ATX, Z790, s1700, 4xDDR4, PCIe 5.0, Wi-Fi 6, 2.5GbE, 3xM.2

Form Factor

  • ATX Form Factor, 12 inch x 9.2 inch

CPU

  • Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset

  • Intel® Z790 Chipset

Memory

  • 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5066(OC)/5000(OC) /4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC) /3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports Intel® Extreme Memory Profile (XMP), OptiMem II

Graphics

Expansion Slots

  • Intel® 13th & 12th Gen Processors; 1 x PCIe 5.0 x16 slot, Intel® Z790 Chipset; 3 x PCIe 4.0 x16 slots (support x4 mode), 1 x PCIe 3.0 x1 slot

Storage

  • Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*, Intel® 13th & 12th Gen Processors; M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), Intel® Z790 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes), 4 x SATA 6Gb/s ports, * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

LAN

  • 1 x Realtek 2.5Gb Ethernet

Wireless & Bluetooth

  • Wi-Fi 6, 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Supports 2.4/5GHz frequency band, Bluetooth® v5.2

Audio

  • Realtek 7.1 Surround Sound High Definition Audio CODEC*, - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback, Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers, * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

USB Ports

  • Rear USB (Total 8 ports); 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 1 x USB 3.2 Gen 2 port (1 x Type-A), 2 x USB 3.2 Gen 1 ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), Front USB (Total 9 ports); 1 x USB 3.2 Gen 2 connector (supports USB Type-C®), 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports

OS Support

  • Windows® 11, Windows® 10 64-bit

Internal I/O Ports

  • Fan and Cooling related; 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 3 x 4-pin Chassis Fan headers, Power related; 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x 4-pin +12V Power connector, Storage related; 3 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, USB; 1 x USB 3.2 Gen 2 connector (supports USB Type-C®), 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports, Miscellaneous; 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x SPI TPM header (14-1pin), 1 x 20-5pin System Panel header, 1 x Thunderbolt™ (USB4®) Header

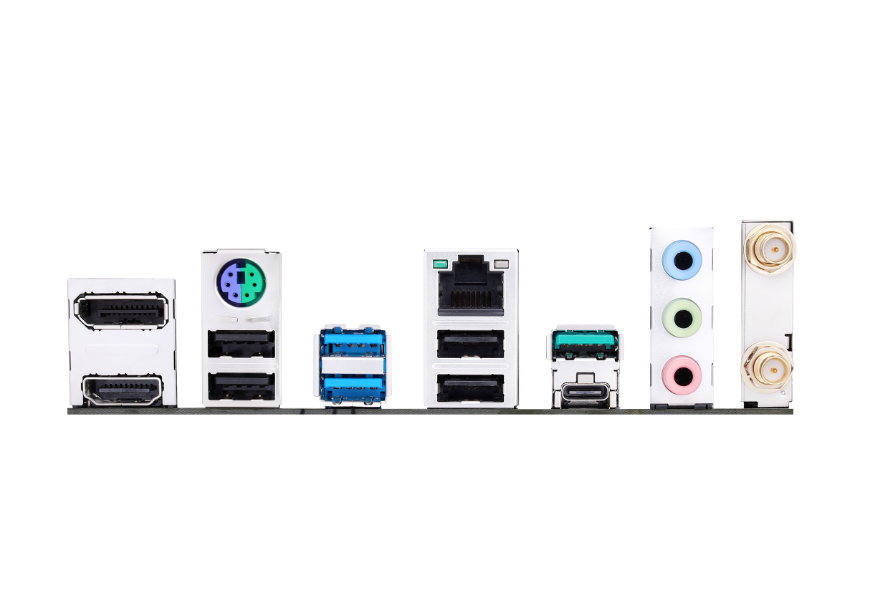

Back I/O Ports

  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 1 x USB 3.2 Gen 2 port (1 x Type-A), 2 x USB 3.2 Gen 1 ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x DisplayPort, 1 x HDMI® port, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo port

Software Features

  • ASUS Exclusive Software, Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving, AI Suite 3 -TurboV EVO -PC Cleaner -DIGI+ VRM, ASUS CPU-Z, MyASUS, Norton 360 Deluxe (60 Days Free Trial), WinRAR, UEFI BIOS, ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Special Features

  • ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O, ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core, ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design, ASUS EZ DIY - ProCool, Aura Sync - Aura RGB header - Addressable Gen 2 headers

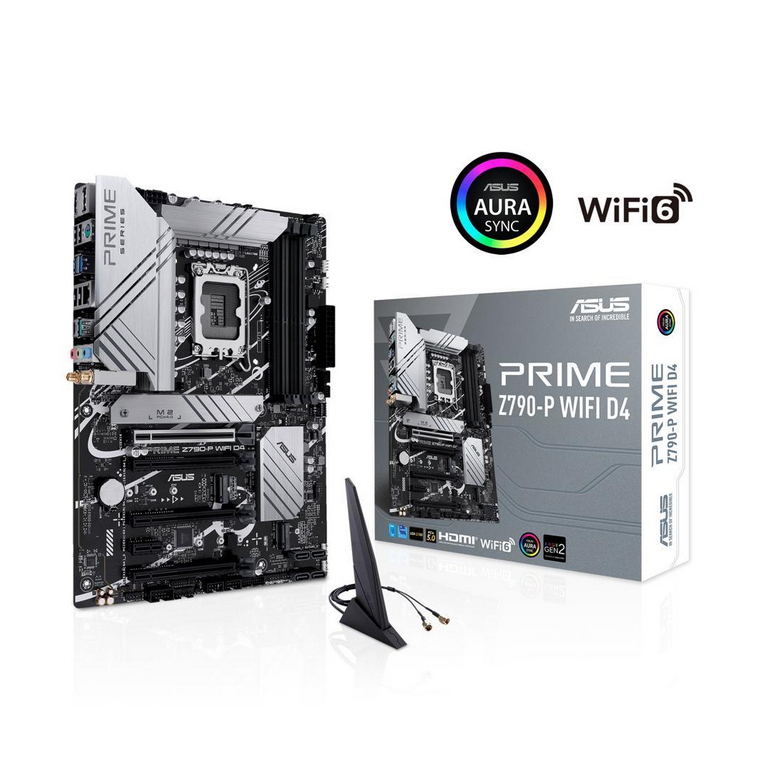

Accessories

  • Cables; 2 x SATA 6Gb/s cables, Miscellaneous; 1 x ASUS Wi-Fi moving antennas, 1 x I/O Shield, 1 x M.2 Rubber Package, 2 x Screw packages for M.2 SSD, Documentation, 1 x User guide

Additional Technical Specs

Processor Manufacture: Intel
Socket: LGA 1700
Brand: ASUS
Chipset Manufacture: Intel
Form Factor: ATX
SLI Support: NONE
Crossfire Support: NONE
Number of Memory Slots: 4 Slots
Max Memory: 128GB
Memory Type: DDR4
PCI Express x16 Slots: 4 Slots
PCI Express x1 Slots: 1 Slots
PCI Slots: None
WiFi Onboard: Wireless AC / Wi-Fi 6
RAID Support: RAID 0/1/5/10
M.2 Slots: 3 Slots
Sata 6 Gbits/s Ports (3.0/3.1): 4 Ports
Sata Express 16 Gbits/s Ports (3.2): None
NVMe Support: Yes
eSata Ports: None
USB C Ports: 1 Port
Legacy Ports: NONE
USB 3.x Ports (3.0 or higher): 2 Ports
Thunderbolt Ports: NONE
USB 3.0 Ports: 2 Ports / USB 3.2 Gen 1 ports
USB 2.0 Ports: 4 Ports
Network Ports: Gigabit (10/100/1000)
Display Ports: 1 Port
VGA Ports: NONE
DVI Ports: NONE
HDMI Ports: 1 Ports
