MSI MAG B550 TOMAHAWK MAX WIFI - ATX, AM4, 4xDDR4, 2xM.2, 1xDP, 1xHDMI, AMD CrossFire
Product Type:
Motherboards
Type Detail:
AMD Socket AM4
Manufacturer:
MSI
Manufacturer #:
B550TMHWKMWI
Part Status:
Special Order Only
Milwaukee PC SKU:
264606
Price:
$199.99

Quick Tech Specs

Processor Manufacture: AMD
Socket: AM4
Brand: MSI
Chipset Manufacture: AMD / B550
Form Factor: ATX
SLI Support: NONE
Crossfire Support: YES
Number of Memory Slots: 4 Slots
Max Memory: 128GB
Memory Type: DDR4
PCI Express x16 Slots: 2 Slots
PCI Express x1 Slots: 2 Slots
PCI Slots: None
WiFi Onboard: Wi-Fi 6E / BT 5.2
RAID Support: RAID 0/1/10 / M.2 NVMe RAID 0/RAID 1
Sata 6 Gbits/s Ports (3.0/3.1): 6 Ports
Sata 3 Gbits/s Ports (2.0): None
Sata Express 16 Gbits/s Ports (3.2): None
M.2 Slots: 2 Slots
NVMe Support: Yes
eSata Ports: None
Thunderbolt Ports: NONE
USB 3.0 Ports: None
USB 2.0 Ports: 2 Ports
Display Ports: 1 Port
VGA Ports: NONE
DVI Ports: NONE
HDMI Ports: 1 Ports
Legacy Ports: NONE
USB C Ports: 1 Port
Network Ports: 2.5 Gigabit
USB 3.x Ports (3.0 or higher): 3 ports

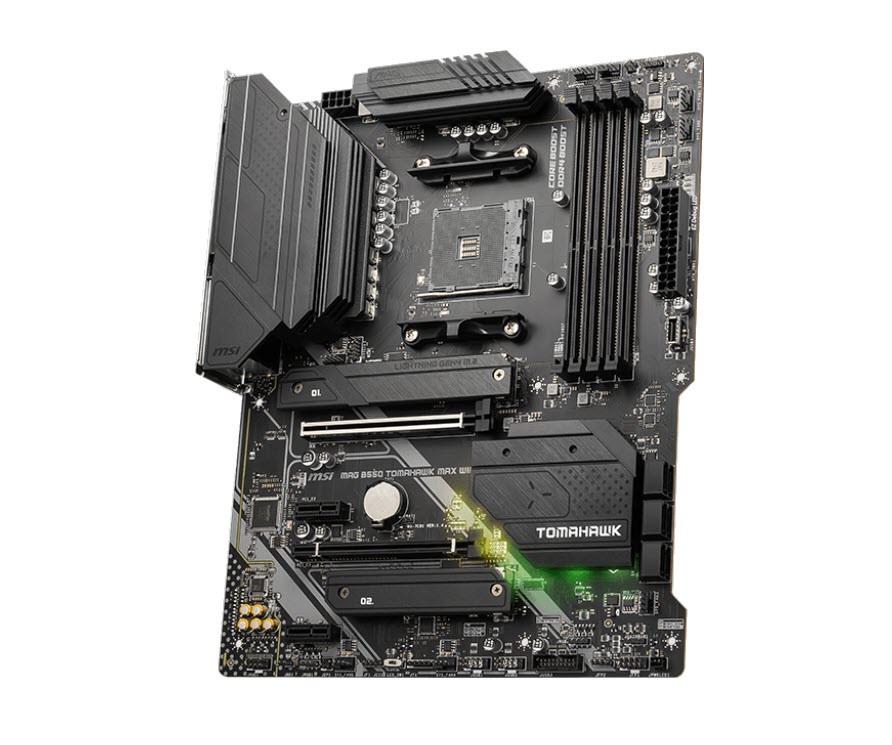

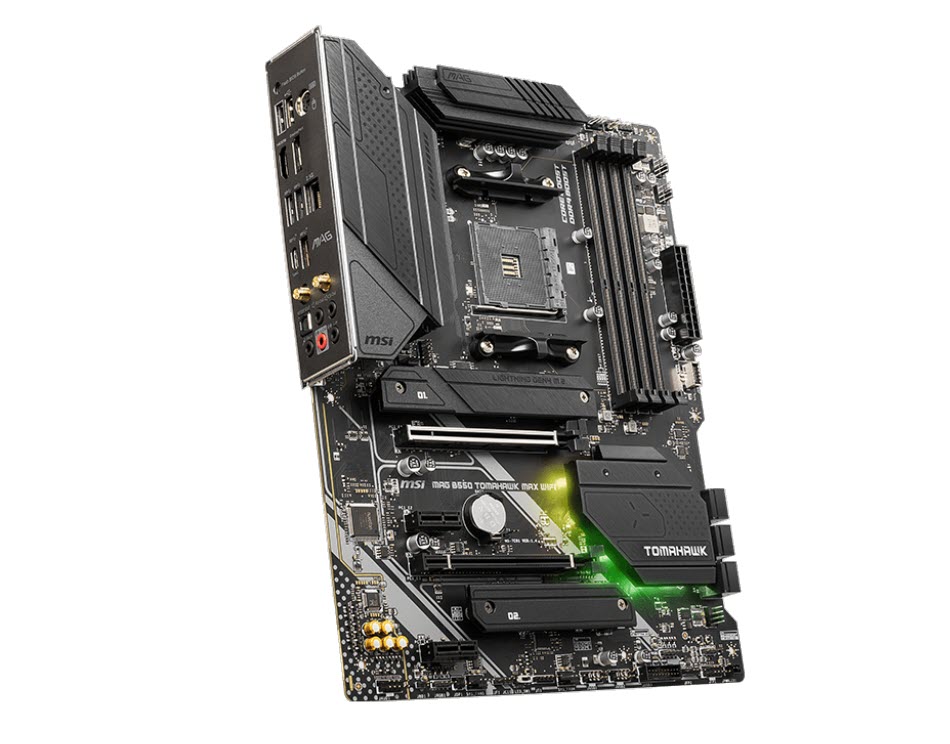

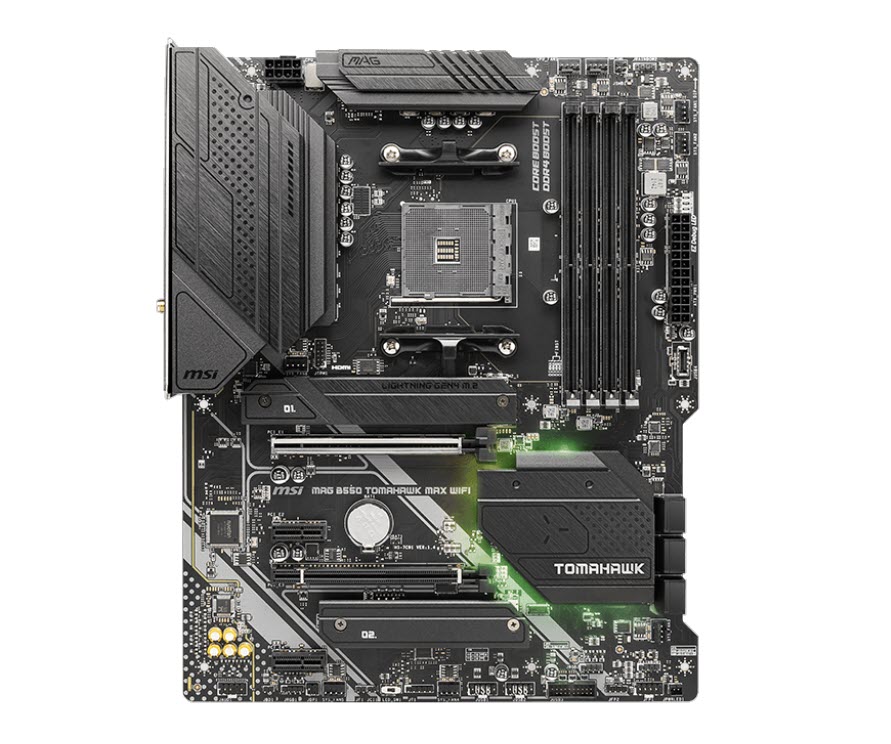

MSI MAG B550 TOMAHAWK MAX WIFI

The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.

Form Factor

  • ATX Form Factor: 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

CPU

  • Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors

Chipset

  • AMD B550 Chipset

Memory

  • 4 x DDR4 memory slots, support up to 128GB, Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866/ 5000/ 5100+ MHz by A-XMP OC MODE, 1DPC 1R max speed 5100 MHZ, 1DPC 2R max speed 3866 MHZ, 2DPC 1R max speed 4000 MHZ, 2DPC 2R max speed 3600 MHZ, Dual channel memory architecture, Supports non-ECC UDIMM memory, Supports ECC UDIMM memory, Supports un-buffered memory

Graphics

  • 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz, Support HDCP 1.4 & 2.3, 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz, Maximum shared memory of 16 GB

Multi-GPU

  • Supports AMD CrossFire™ Technology

Expansion Slots

  • 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1), 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed, 2x PCIe 3.0 x1 slots

Storage

  • AMD B550 Chipset: 6x SATA 6Gb/s ports, 2x M.2 slots (Key M), M2_1 slot (from AMD Processor), Supports PCIe 4.0/ 3.0 x4, Supports SATA 6Gb/s, Supports 2242/ 2260/ 2280/ 22110 storage devices, M2_2 slot (from AMD B550 chipset), Supports PCIe 3.0x4, Supports 2242/ 2260/ 2280 storage devices, RAID; Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices, Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

LAN

  • 1x Realtek® RTL8125B 2.5Gbps LAN controller

WIRELESS LAN & BLUETOOTH

  • AMD Wi-Fi 6E, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1 (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth® 5.2 2, FIPS, FISMA

Audio

  • Realtek® ALC897 Codec, 7.1-Channel High Definition Audio, Supports S/PDIF output

USB Ports

  • AMD B550 Chipset; 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector), 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors), AMD Processor; 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel), 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

OS Support

  • Support for Windows® 11 64-bit, Windows® 10 64-bit

Internal I/O Ports

  • 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 6x SATA 6Gb/s connectors, 2x M.2 slots (M-Key), 1x USB 3.2 Gen 1 5Gbps Type-C port, 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports), 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 1x 4-pin CPU fan connector, 1x 4-pin water-pump fan connector, 6x 4-pin system fan connectors, 1x Front panel audio connector, 2x System panel connectors, 1x Chassis Intrusion connector, 2x 4-pin RGB LED connectors, 2x 3-pin RAINBOW LED connectors, 1x TPM module connector, 1x Clear CMOS jumper

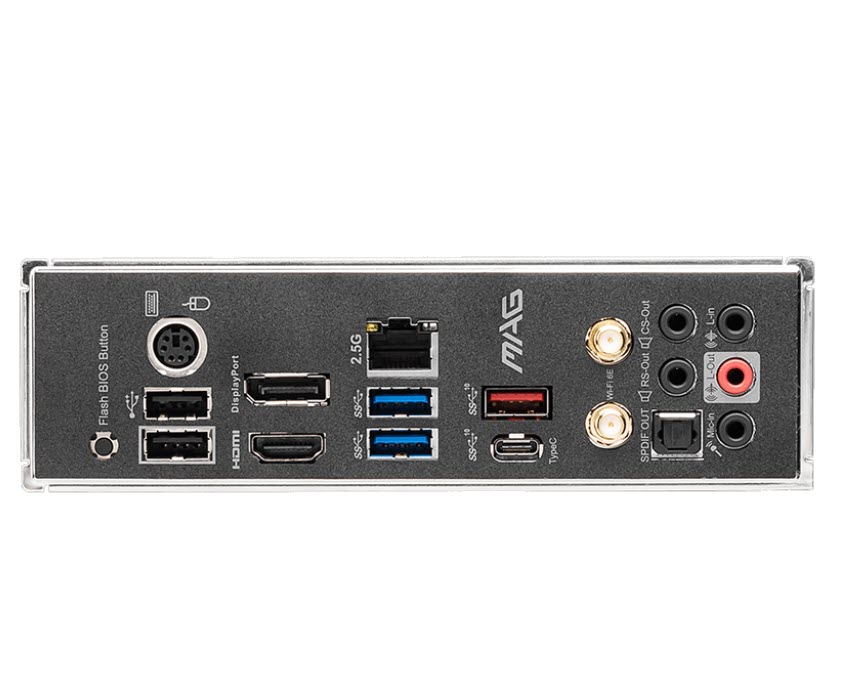

Back I/O Ports

  • Keyboard / Mouse, DisplayPort 1.4, 2.5G LAN Port, 1 x USB 3.2 Gen 2 10Gbps Type-A, Wi-Fi / Bluetooth Antenna, 5 x Audio Connectors, Flash BIOS Button, 2 x USB 2.0 Port, HDMI 2.1 Port, 2 x USB 3.2 Gen 1 5Gbps Type-A, 1 x USB 3.2 Gen 2 10Gbps Type-C, Optical S/PDIF OUT
